Richelieu 89K8094S Terno Eclettica Fluid Hardware Set with Shock AbsorberRichelieu 89K8094S TERNO ECLETTICA FLUID Hardware Set with Shock Absorber offers an exceptional solution for sliding wood doors, accommodating weights of up to 176 lbs (80 kg) or 264 lbs (120 kg). This hardware set is meticulously engineered for single sliding door applications, ensuring a seamless and smooth operation thanks to its innovative design. One of the standout features is the clip-on suspension plate, which simplifies door mounting, while the FLUID shock absorbers provide a gentle stop, enhancing user experience and safety. The low pull force required to open the door makes it accessible for all users, ensuring effortless movement. With a minimum door width of 23-5/8 in (600 mm) and adjustable height options ranging from 59 to 118 in, this set is versatile for various installations. The top-hung installation method allows for a clean aesthetic, while the ball-bearing roller type guarantees durability and performance. For optimal accuracy during installation, it is advised to use metric measurements and create a groove of 1/4 in x 5/8 in (6.4 mm x 14 mm) at the bottom of the door for the floor guide. Elevate your space with Richelieu’s reliable and stylish hardware set, designed for professionals and discerning homeowners alike.

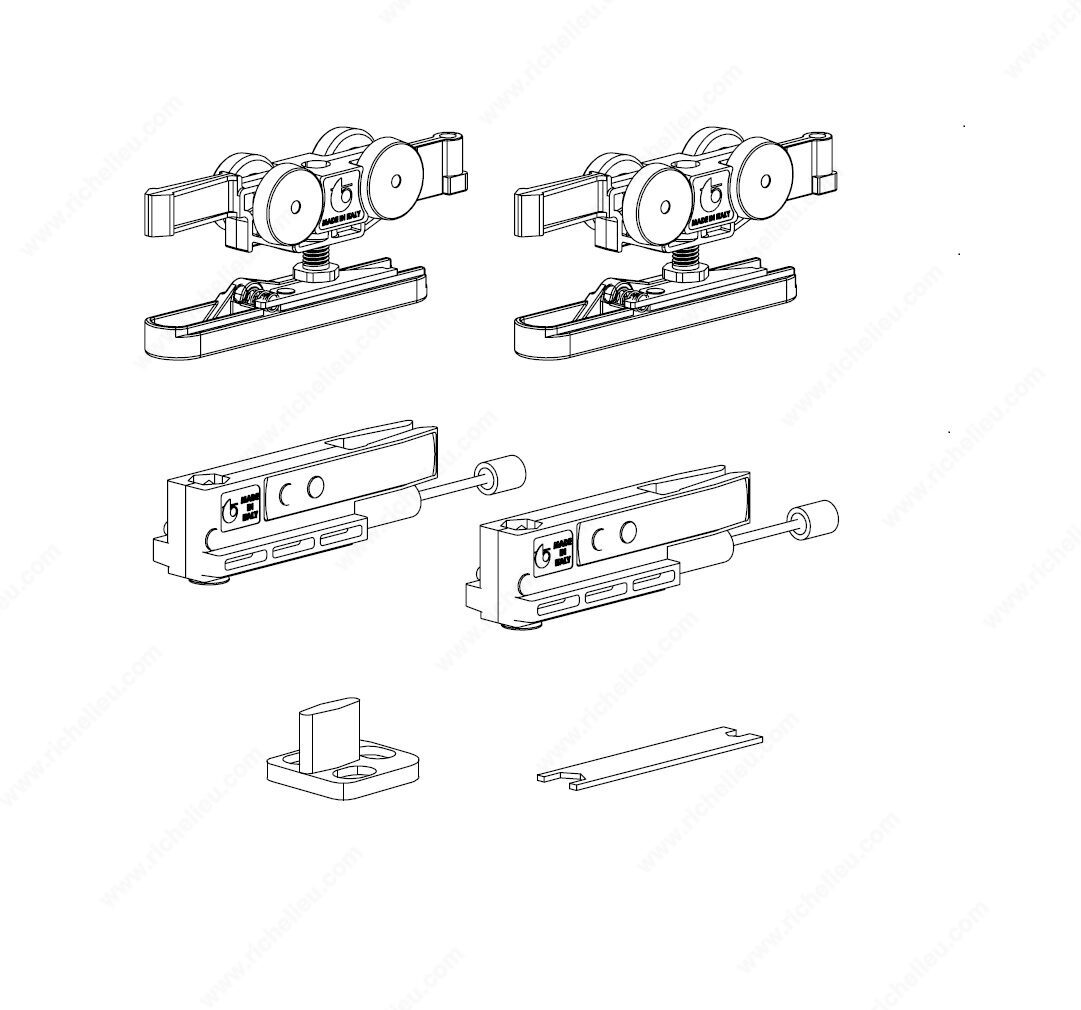

TERNO ECLETTICA FLUID Hardware Set with Shock Absorber
The TERNO ECLETTICA FLUID Hardware Set with Shock Absorber Stops is designed for one wood door with door weight capacities of 176 lbs (80 kg) or 264 lbs (120 kg) each.
Features:
- Clip-on suspension plate to mount the door
- Stops with FLUID shock absorbers
- Low pull force to open the door
- Minimum door width of 23-5/8 in (600 mm)
- All hardware sets operate on the same tracks
- Simple and flexible direct-mount installation
- Smooth operating
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a 1/4 in x 5/8 in (6.4 mm x 14 mm) groove at the bottom of the door for the floor guide.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Detailed Door Movement: Single sliding
Door Height: 59 to 118 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/16 to 1 31/32 in*
Door Width: 23 5/8 to 59 in*
Load Capacity: 110 to 176 lb*
Number of Doors: 1
Product #: 89K8094S
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: FLUID
Stopper: Two
Track type: Box Track
