Richelieu 89M21100 Magic 2 Legno Sliding Door SystemRichelieu 89M21100 Magic 2 Legno Sliding Door System is a sophisticated bottom-running solution designed for wood doors weighing up to 176 lb (80 kg). This system features a concealed upper guide and includes a dampener that ensures the door stops smoothly in both directions, enhancing safety and usability. It accommodates door widths ranging from 33 1/2 in to 43 1/4 in, making it versatile for various applications. The Magic 2 Legno is particularly well-suited for residential interiors, hospitality environments, and commercial offices, offering a seamless aesthetic with its unique hardware that creates the illusion of a floating door. With a load capacity of 88.2 to 176 lb, this system is robust yet elegant. Installation is straightforward; however, it is crucial to follow the provided specifications, including creating grooves at the bottom of the door for the guiding system. The system functions effectively on hard, smooth flooring, and the non-marking bottom rollers eliminate the need for a track. Designed for doors with a thickness between 1 3/8 in to 2 5/32 in and a height of 70 7/8 in to 104 in, the Richelieu Magic 2 Legno ensures a perfect fit for your project, ensuring both functionality and style.

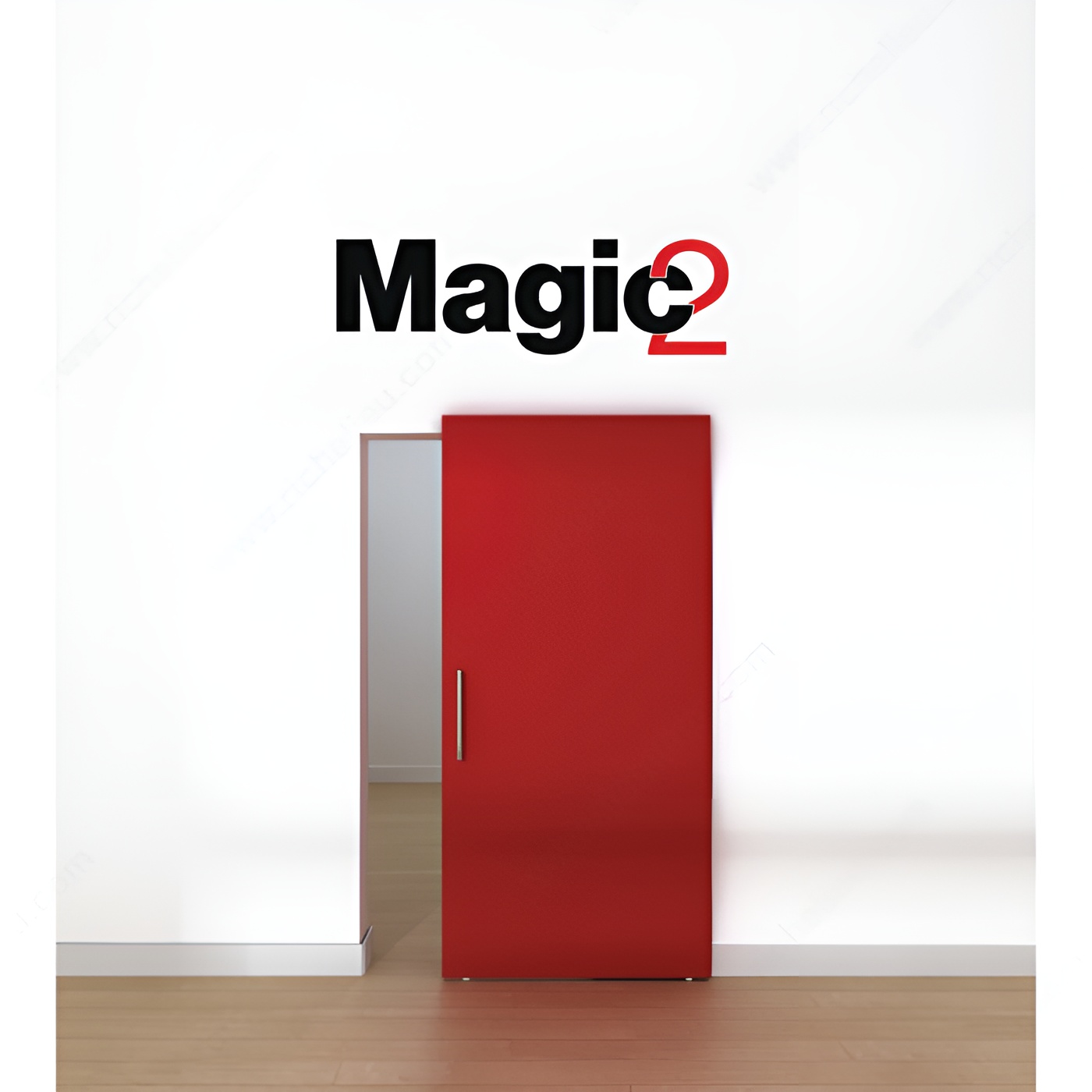

Magic 2 Legno Sliding Door System
The Magic 2 Legno is a bottom-running sliding system for wood doors weighing up to 176 lb (80 kg) each.
- Bottom running with a concealed upper guide in kit format
- Includes dampener to stop the door in both directions
- For door widths up to 43 in (1.1 m) and 70 in (1.8 m)
- Can be cut and fitted for a wide variety of door widths and thicknesses
- Non-marking bottom rollers do not require a track
- For hard smooth floor surfaces
The Magic 2 Legno is ideal for residential interior doors, the hospitality sector, and commercial offices.
Unique hardware and concealed track create the illusion of a floating door.
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove at the bottom of the door as per instruction 24 x 21 mm (1 x 7/8 in) for the bottom wheels and 12 x 21 mm (1/2 x7/8 in) for the bottom guide rail.
When calculating door dimensions read instructions carefully, and consider 170 mm (6 3/4 in) door overlap and an additional 50 mm (2 in) to reduce sight lines.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Sliding Wall, Standard Access Door, Barn Door
Detailed Door Movement: Single sliding
Door Height: 2 640 mm
Door Installation: Bottom Running
Door Material: Wood
Door Position: In Front of Wall
Door Thickness: 35 to 55 mm
Door Width: 850 to 1 100 mm
Groove Needed for Guiding System: Yes
Length - Overall Dimensions: 43 1/4 in*
Load Capacity: 88.2 to 176 lb*
Number of Doors: 1
Overall Length: 1 100 mm
Product #: 89M21100
Product Type: Complete Set
Product number: 89M21100
Product type: Complete Set
Product №: 89M21100
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Length: 1 100 mm
Track Mounting: Wall Mount, Floor Mount
Track Type: Running
Track type: Running
Unit: Box
Unit 1: case - 6
Unit 2: case - 4
Weight Capacity per Door: Max. 80 kg
