Richelieu 89RO82TP40 RO 82 Hardware Set Series InstructionsRichelieu 89RO82TP40 RO 82 Hardware Set Series offers a robust solution for sliding wood doors, accommodating weights of 40 kg (88 lb), 80 kg (176 lb), and 100 kg (220 lb). This versatile hardware set is ideal for various applications, including closets and walk-in closets, allowing for seamless single sliding, bypassing, or biparting door movements. Designed for ease of installation, the RO 82 series features a surface mount suspension plate and offers multiple hardware types. Choose between top mount or rear mount suspension plates with standard stops, or opt for a top mount with a dual soft close mechanism. This mechanism is compatible with a minimum door width of 650 mm (25 1/2 in), ensuring smooth operation and added safety. The series functions efficiently on the same tracks, enhancing flexibility for your projects. With a door height range of 35 3/8 to 108 in* and a thickness of 31/32 to 1 25/32 in*, it accommodates various door sizes. The upper roller position, paired with ball bearing rollers, ensures durability and reliable performance. For precise installation, a groove of 10 x 12 mm (3/8 x 1/2 in) for the plastic floor guide or 12 x 12 mm (1/2 x 1/2 in) for the floor roller guide is recommended.

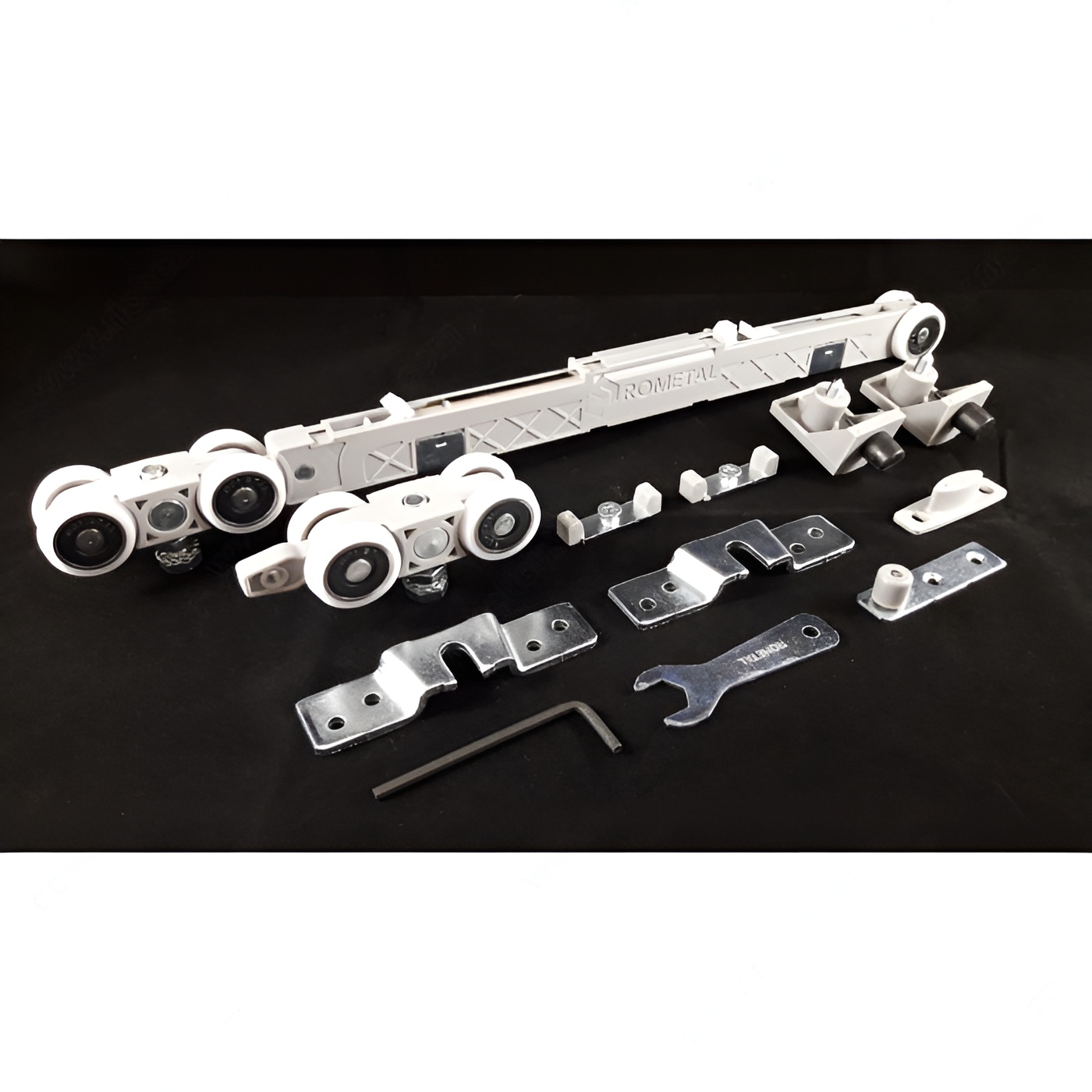

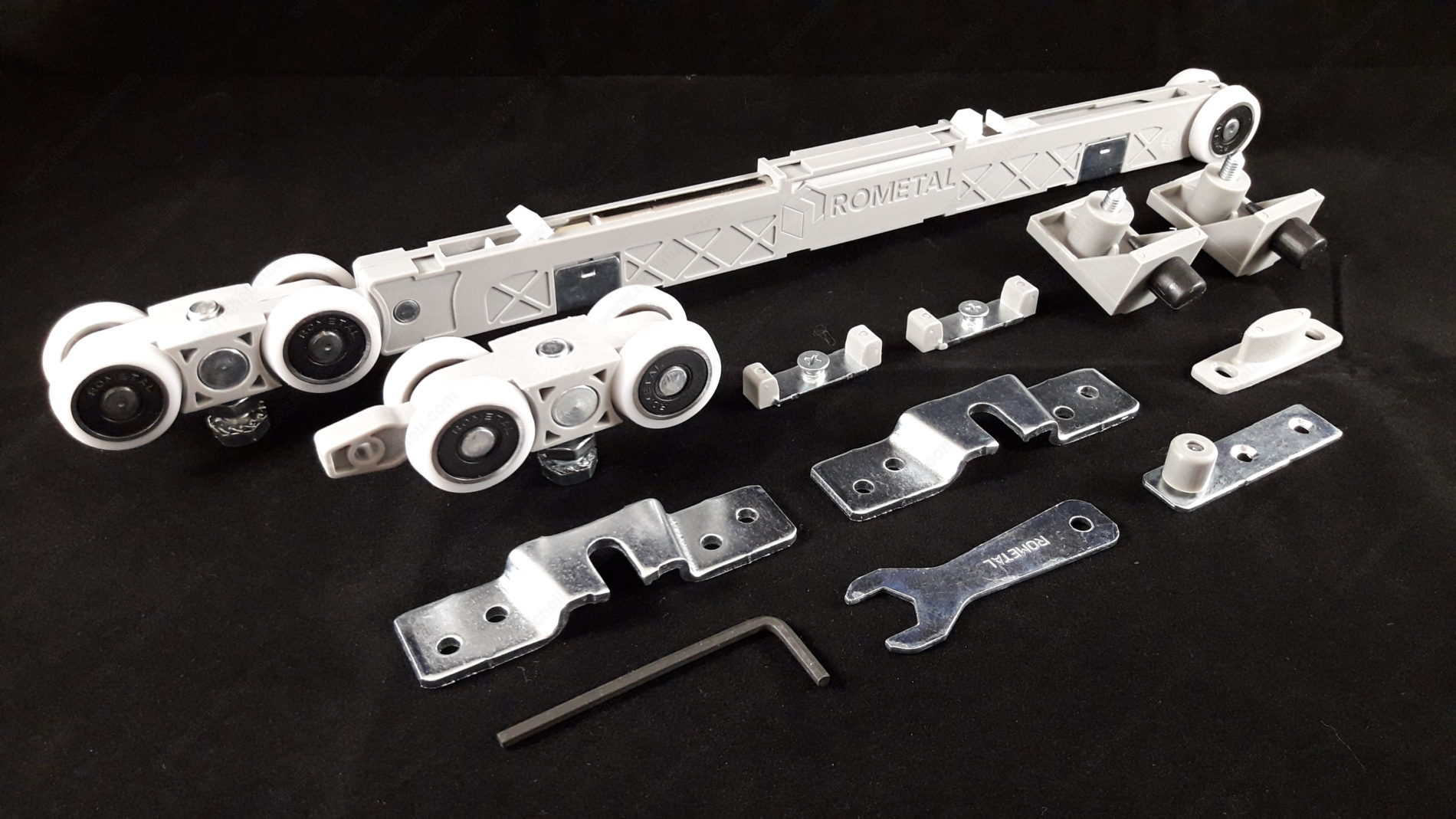

RO 82 Hardware Set Series
The RO 82 hardware sets series for one wood door for door weight capacities of 40 kg (88 lb), 80 kg (176 lb), and 100 kg (220 lb) each.
Features:
- Surface mount suspension plate
- Select from different hardware types
a) top mount suspension plate with standard stops
b) rear mount suspension plate with standard stops
c) top mount suspension plate with dual soft close mechanism for three different weight capacities
- Minimum door width 650 mm (25 1/2 in) for soft close mechanism
- All hardware sets operate on the same tracks
- Simple and Flexible direct mount installation
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 10 x 12 mm (3/8 x 1/2 in) for the plastic floor guide or 12 x 12 mm (1/2 x ½ in) for the floor roller guide.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door
Detailed Door Movement: Single sliding, Bypassing, Biparting
Door Height: 35 3/8 to 108 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 25 to 45 mm
Door Width: 650 to 1 524 mm
Load Capacity: 33.1 to 88.2 lb*
Number of Doors: 1
Product #: 89RO82TP40
Product type: Hardware Set
Product №: 89RO82TP40
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Stopper: Two
Weight Capacity per Door: 15 to 40 kg
