Richelieu 89RO82TP80 RO 82 Hardware Set Series InstructionsRichelieu 89RO82TP80 RO 82 Hardware Set Series offers a robust solution for sliding wood doors, accommodating weights of up to 100 kg (220 lb). Designed for versatility, this hardware set allows for a variety of configurations including single sliding, bypassing, and biparting movements. Featuring both top and rear mount suspension plates, the system ensures a straightforward installation process, with flexibility in mounting options to suit different needs. The top mount suspension plate is available with standard stops or a dual soft close mechanism, adding an element of sophistication while providing seamless door operation. This set is compatible with door widths ranging from 25 5/8 to 60 inches and thicknesses between 31/32 to 1 25/32 inches, making it suitable for various applications, including closets and standard access doors. The hardware set operates smoothly on shared tracks, enhancing functionality across multiple installations. With a minimum door width of 650 mm (25 1/2 in) required for the soft close mechanism, accurate metric measurements are crucial for optimal performance. The upper roller position and ball bearing type ensure durability and reliability, making the Richelieu 89RO82TP80 not just a choice, but an investment in quality and ease of use.

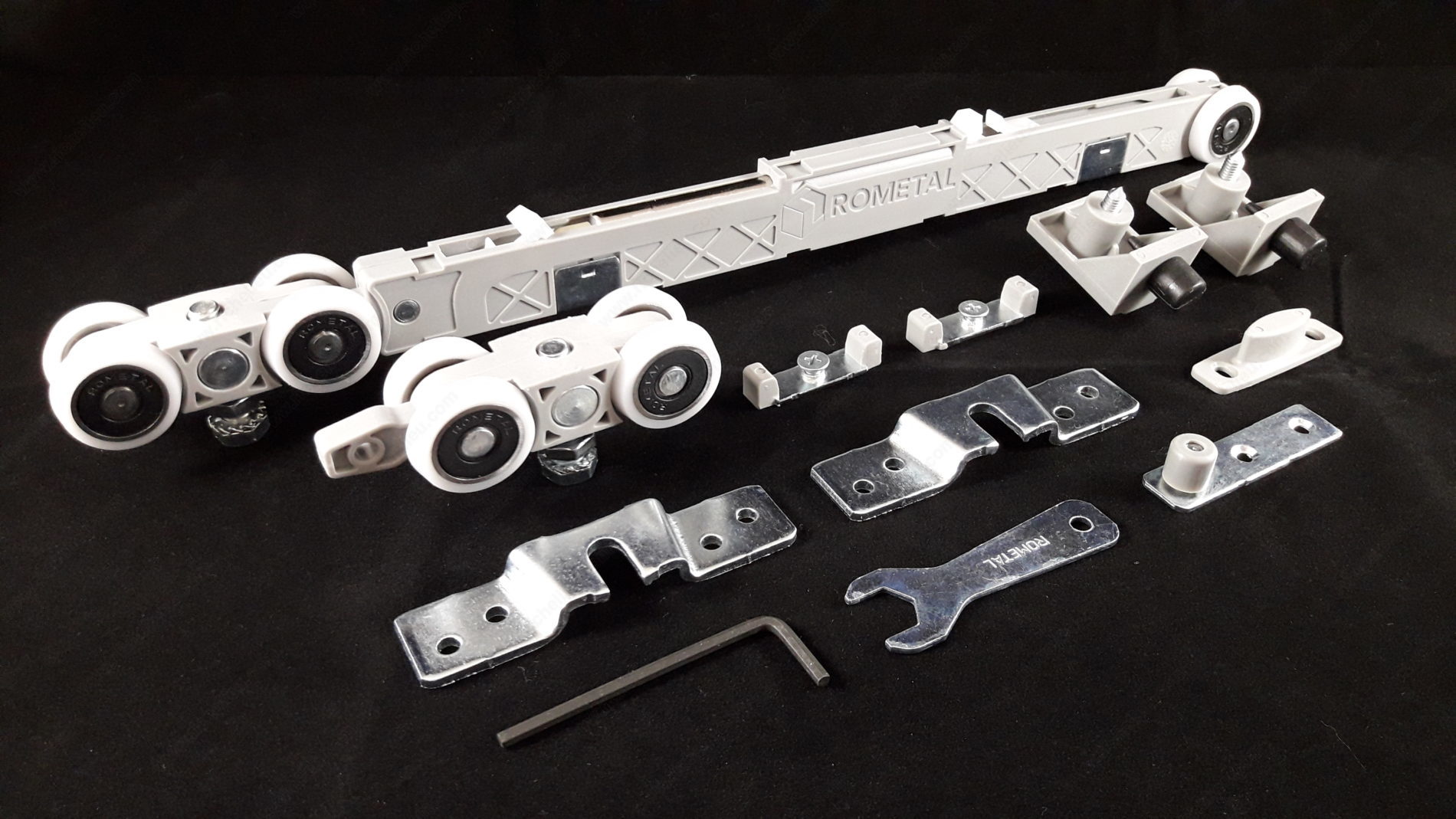

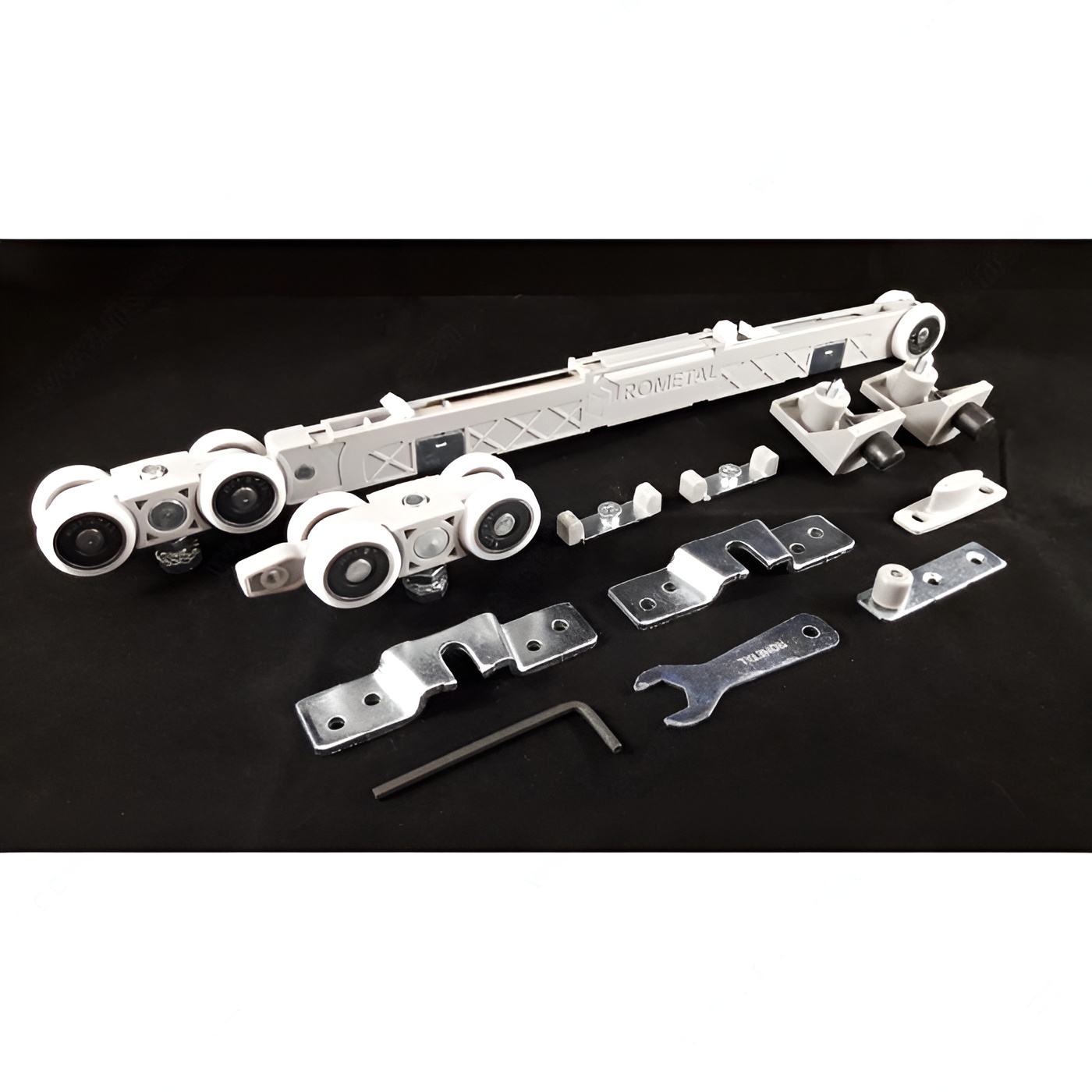

RO 82 Hardware Set Series
The RO 82 hardware sets series for one wood door for door weight capacities of 40 kg (88 lb), 80 kg (176 lb), and 100 kg (220 lb) each.
Features:
- Surface mount suspension plate
- Select from different hardware types
a) top mount suspension plate with standard stops
b) rear mount suspension plate with standard stops
c) top mount suspension plate with dual soft close mechanism for three different weight capacities
- Minimum door width 650 mm (25 1/2 in) for soft close mechanism
- All hardware sets operate on the same tracks
- Simple and Flexible direct mount installation
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 10 x 12 mm (3/8 x 1/2 in) for the plastic floor guide or 12 x 12 mm (1/2 x ½ in) for the floor roller guide.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door
Detailed Door Movement: Single sliding, Bypassing, Biparting
Door Height: 35 3/8 to 108 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 25 to 45 mm
Door Width: 650 to 1 524 mm
Load Capacity: 88.2 to 176 lb*
Number of Doors: 1
Product #: 89RO82TP80
Product type: Hardware Set
Product №: 89RO82TP80
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Stopper: Two
Weight Capacity per Door: 40 to 80 kg
