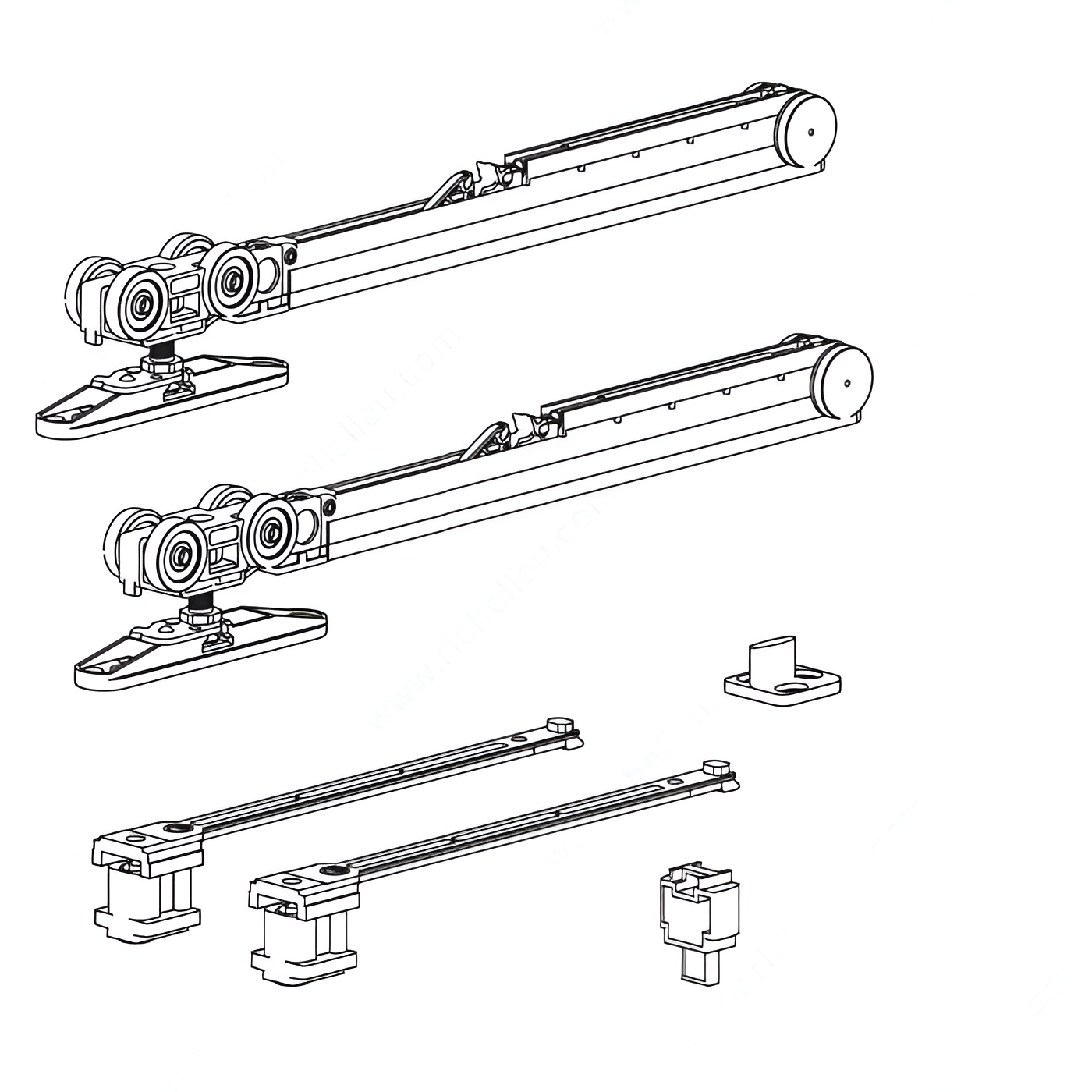

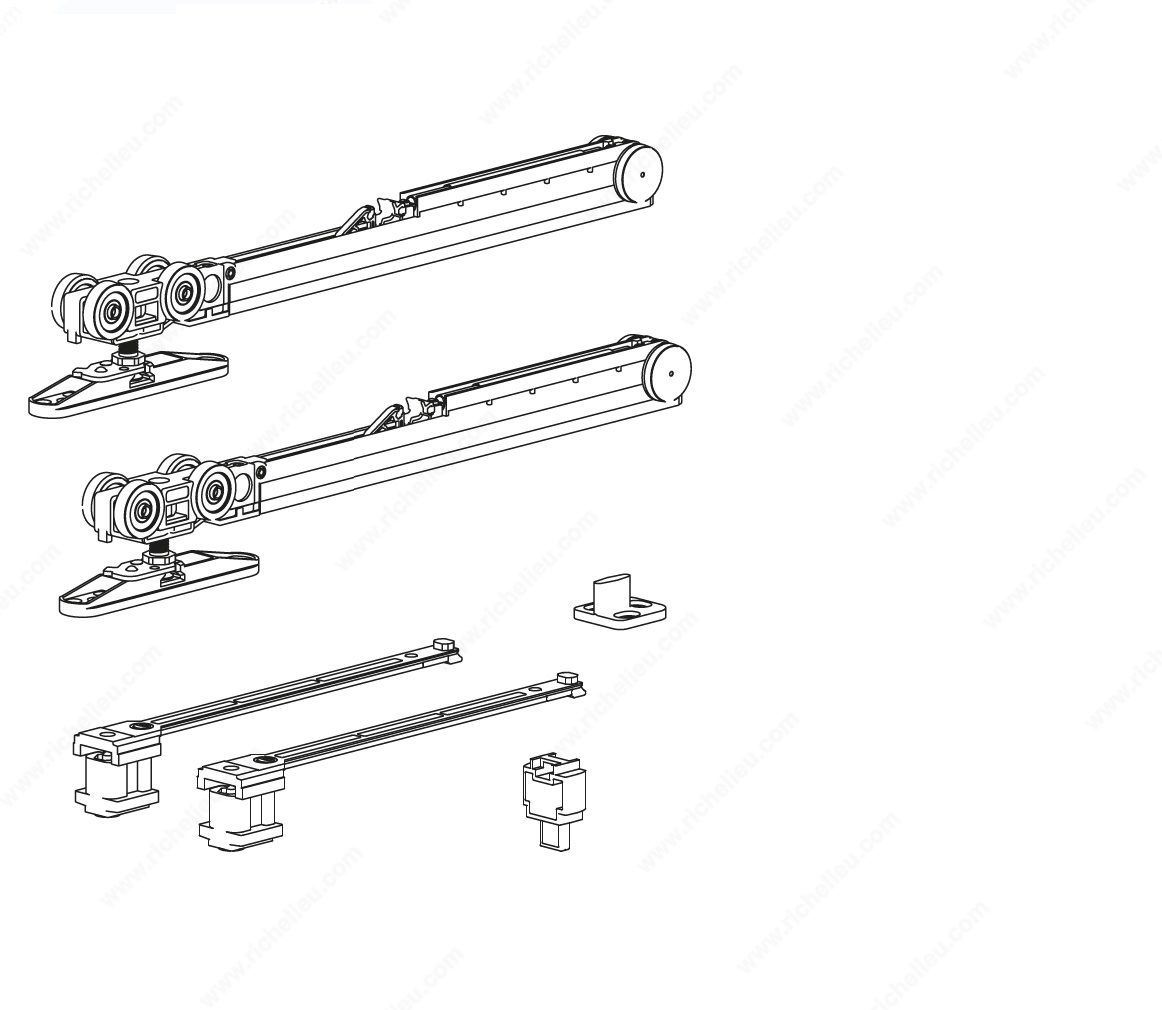

Richelieu 89STEP502SC TERNO STEP FLUID Soft-Close Hardware SetRichelieu 89STEP502SC TERNO STEP FLUID Soft-Close Hardware Sets deliver a sophisticated solution for single sliding wood doors, accommodating weights of up to 352 lb (160 kg). This versatile hardware set is designed for doors ranging from 29 1/8 to 47 1/4 inches in width and 1 3/16 to 1 31/932 inches in thickness, making it suitable for a variety of applications. The TERNO STEP FLUID features a clip-on suspension plate, allowing for effortless, tool-free door mounting. Equipped with two advanced soft-close mechanisms utilizing FLUID technology, this hardware ensures a gentle, quiet close every time, enhancing the overall user experience. The low pull force required to open the door simplifies operation, making it an ideal choice for high-traffic areas. Installation is straightforward and flexible, with all hardware sets functioning seamlessly on the same tracks. Crafted from durable nylon, aluminum, and plastic, this hardware is designed for long-lasting performance. With a door height capacity of up to 9 ft 10 in., the TERNO STEP FLUID set is perfect for creating elegant and functional space solutions in both residential and commercial environments. For best results, refer to metric dimensions during installation and be sure to cut a groove at the bottom of the door for the floor guide.
TERNO STEP FLUID Soft-Close Hardware Sets
The TERNO STEP FLUID soft-close hardware sets are designed for one wood door with weight capacities of 110 lb (50 kg), 176 lb (80 kg), 264 lb (120 kg), and 352 lb (160 kg).
Features:
- Clip-on suspension plate to mount the door without tools
- Two soft-close mechanisms with FLUID technology
- Low pull force to open the door
- All hardware sets operate on the same tracks
- Simple and flexible installation
- Smooth operating
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove at the bottom of the door for the floor guide (see instructions).
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door
Detailed Door Movement: Single sliding
Door Height: 3 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 50 mm
Door Width: 740 to 1 200 mm
Load Capacity: 66.1 to 110 lb*
Manufacturing Material: Nylon, Aluminum, Plastic
Material: Plastic, Aluminum, Nylon
Number of Doors: 1
Product #: 89STEP502SC
Product number: 89STEP502SC
Product type: Hardware Set
Product №: 89STEP502SC
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: FLUID
Soft- Closing: Yes
Unit: Set
Unit 1: case - 4
Unit 2: case - 4
Weight Capacity per Door: 30 to 50 kg
Resources
