Richelieu 89TY049S2561170 Pro Series Albergo STP SC Hardware SetRichelieu 89TY049S2561170 Pro Series Albergo STP SC Hardware Set is expertly crafted for seamless soft-close functionality, accommodating wood doors weighing up to 176 lb (80 kg). This professional-grade hardware set is ideal for both residential and commercial applications, designed for high-frequency use. Constructed from Type 304 stainless steel, this set features strap-mount ball bearing wheels that ensure smooth and reliable door movement. The adjustable wall mount bottom door guide enhances installation flexibility, while the built-in anti-derailing device offers added security and peace of mind. For customization, the adjustable track stop allows for various door widths, making the product adaptable to different settings. The system includes an activator for the soft-close mechanism, sold separately, ensuring a gentle and quiet closing action. It supports single sliding door movement and is designed for top-hung installation, accommodating door heights from 59 to 106 inches and thicknesses between 1 3/8 to 1 25/32 inches. With a maximum width capacity ranging from 33 1/8 to 51 1/8 inches, this hardware set is versatile and robust. Ensure precise installation by following the metric specifications provided, including cutting a groove at the door's bottom. Enhance your space with the reliability and style of Richelieu's Pro Series Albergo hardware set.
Pro Series Albergo STP SC Hardware Set
The Pro Series Albergo STP SC is a hardware set for soft close designed for wood doors weighing up to 176 lb (80 kg) each.
Features:
- Type 304 stainless steel

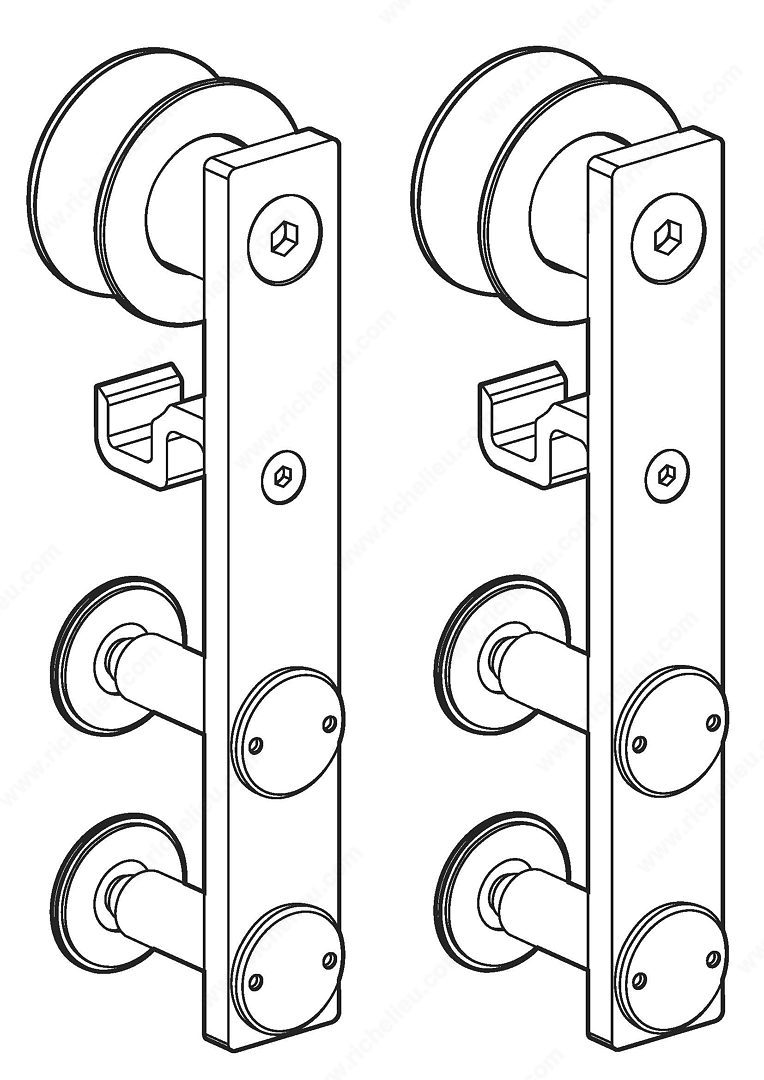

- Strap-mount ball bearing wheels with through bolts
- Adjustable wall mount bottom door guide
- Built-in anti-derailing device
- Adjustable track stop for various door widths
- Activator for soft close mechanism (soft close sold with track separately)
Professional Grade and Ideal for residential and commercial applications designed for high use.
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 7 x 20 mm (5/16 x 13/16 in) without guide insert or 9.5 x 20mm (3/8 x 13/16 in) with guide insert at the bottom of the door.
Attributes
Ship via: No UPS - Common Carrier Only
Brand: Richelieu
Detailed Door Movement: Single sliding, Barn door
Door Height: 1 500 to 2 700 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 35 to 45 mm
Finish: Stainless Steel (170)
Load Capacity: 132 to 176 lb*
Manufacturing Material: Stainless Steel
Material: Stainless Steel
Maximum Door Width: 840 to 1 300 mm
Product #: 89TY049S2561170
Product Type: Hardware Set
Product number: 89TY049S2561170
Product type: Hardware Set
Product №: 89TY049S2561170
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Stopper: Two
Track Material: Stainless Steel
Unit: Box
Unit 1: case - 5
Unit 2: case - 5
Weight Capacity per Door: Max. 80 kg
