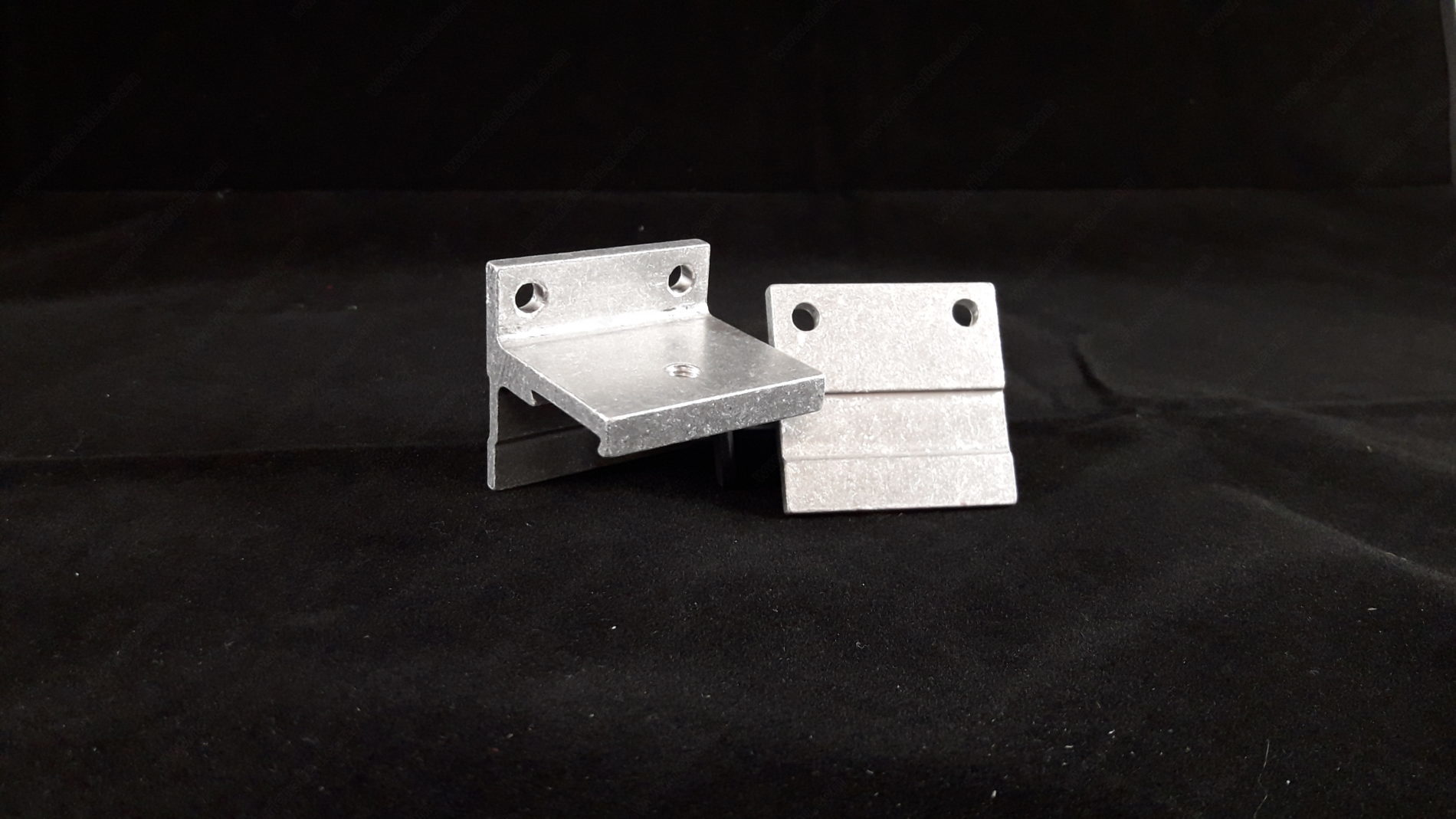

Richelieu 89WB370 RO 82 Wall Brackets for Upper Track are essential mounting accessories designed for wall mounting upper door tracks, ensuring a sturdy and reliable installation. Available in two sizes, these brackets accommodate door thicknesses ranging from 23/32 to 1 25/32 inches, making them versatile for various applications. Each bag contains 10 brackets, providing a cost-effective solution for multiple installations. Engineered from durable aluminum, these brackets support a remarkable load capacity of up to 220 pounds, making them suitable for handling substantial wooden doors. The thoughtful design allows for optimal spacing during installation; for a 2.0m (78 in) track, the maximum mount spacing is 257 mm (10 1/8 in) center to center, while for a 3.0m (118 in) track, it can extend to 311 mm (12 1/4 in). For a 4.0m (157 in) track, the spacing returns to 257 mm. Designed for top-hung door installations, the Richelieu 89WB370 brackets facilitate both single sliding and biparting door movements, ensuring smooth operation. With upper roller positions and wall mount capabilities, these brackets are an ideal choice for enhancing the functionality of your door systems. Trust Richelieu for quality and performance in your architectural hardware needs.
RO 82 Wall Brackets for Upper Track
Compatible with: RO 82
Detailed Door Movement: Single sliding, Biparting
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 23/32 to 1 25/32 in*
Load Capacity: 220 lb*
Manufacturing Material: Aluminum
Overall Length: 3 15/16 in*
Product #: 89WB370
Product type: Mounting Accessories
Roller Position: Upper
Running Track Fixing: Bracket
Track Mounting: Wall Mount
