Richelieu 89XC72B90 ONWARD Dome Closet Door KitRichelieu 89XC72B90 ONWARD DOME Closet Door KIT offers a sophisticated solution for bypass sliding wood doors, accommodating weights up to 150 lbs (68 kg). Designed for top-hung installation, this kit features a double aluminum track with integrated fascia, allowing for door thicknesses ranging from 1-3/8 to 1-3/4 inches (35 to 45 mm). The adjustable floor guide ensures a seamless operation without the need for grooves in the door's bottom. This kit is perfect for residential, commercial, and institutional spaces, ideal for bedrooms, offices, and storage areas. It includes all necessary hardware for two doors and can be expanded with additional hardware for three- or four-door setups. A bumper mounted on the rear of one door prevents misalignment, while durable ball bearing wheels enhance longevity. Available in four track lengths-48, 60, 72, and 96 inches (1219, 1524, 1828, and 2438 mm)-and three elegant finishes: Anodized Gray, Satin Black Powder Coat, and Satin White Powder Coat, this kit not only meets functional needs but also elevates the aesthetic of any space. The toolless lever release suspension plate simplifies installation, making it a straightforward choice for any project.
ONWARD DOME Closet Door KIT
The ONWARD DOME Closet Door KIT is for two bypass sliding wood doors weighing up to 150 lbs (68 kg). Doors are top hung and run on a double aluminum track with integrated fascia suitable for door thicknesses of 1-3/8 to 1-3/4 in (35 to 45 mm). An additional hardware set can be purchased separately for three- and four-door applications. The floor guide is adjustable to various door thicknesses and guides the door from the outside. No groove is required in the bottom of the door.
Features:

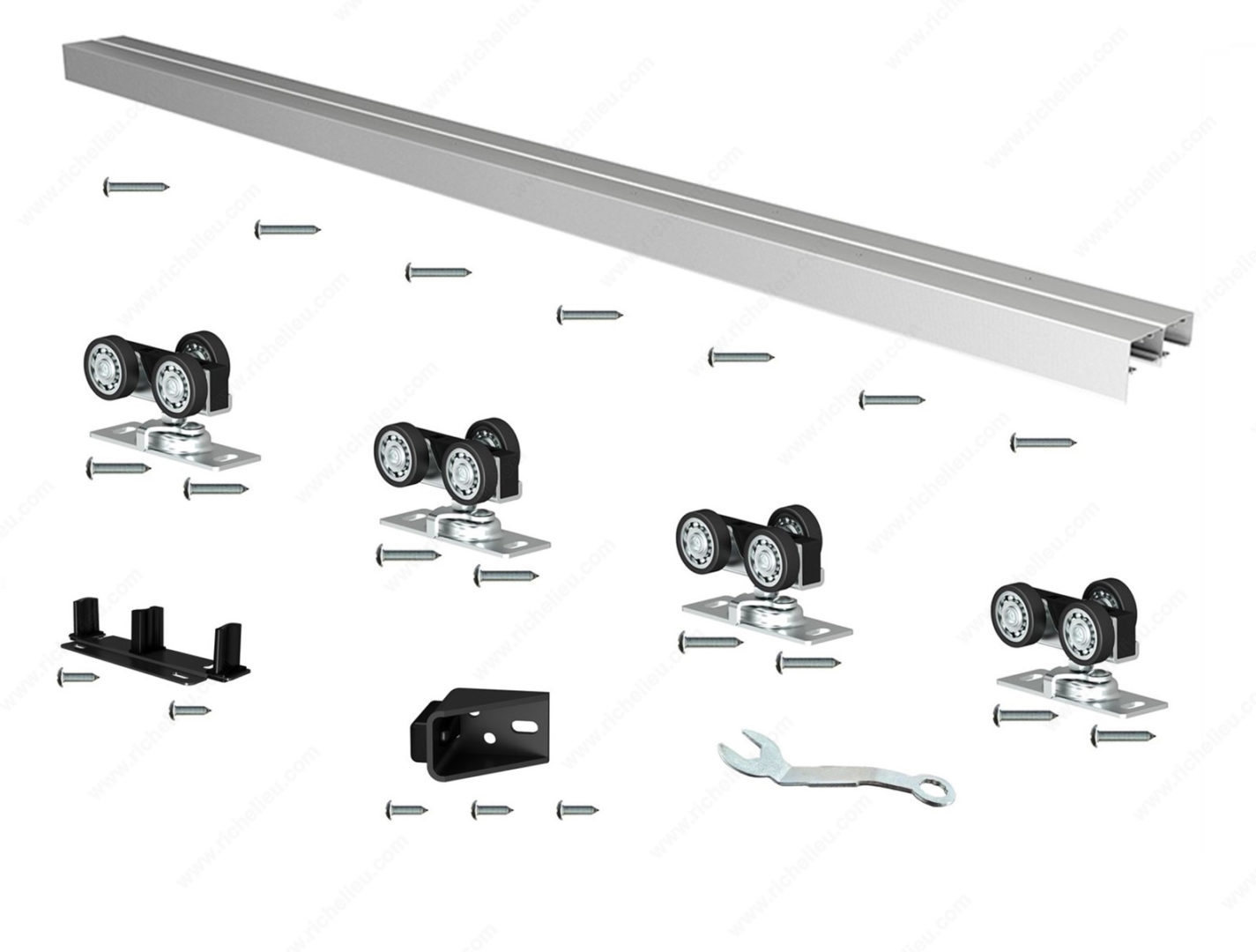

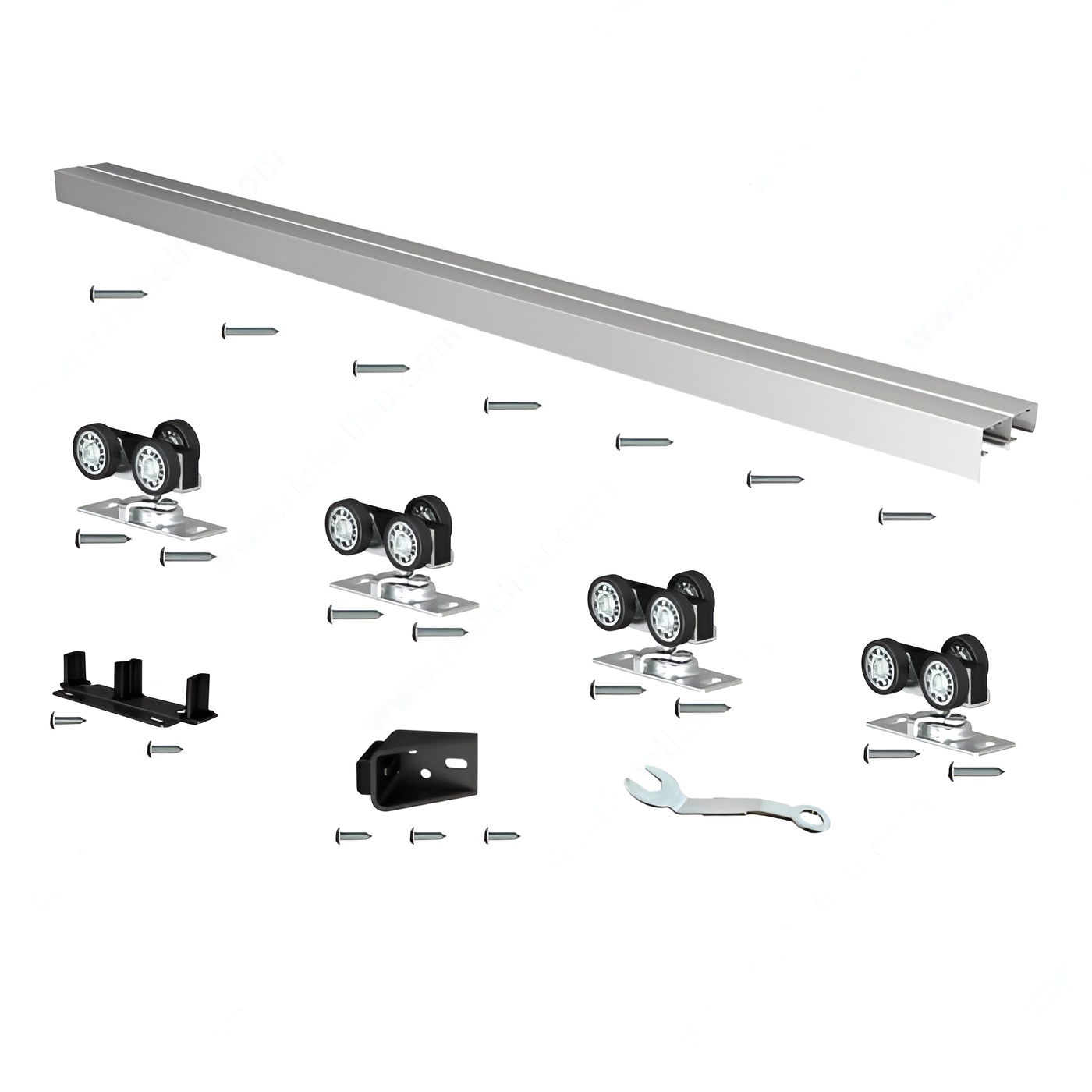

- Includes hardware for 2 sliding wood doors
- A bumper mounted on the rear of one door prevents doors from bypassing too far or in the wrong direction
- Ball bearing wheels for greater durability and longevity
- Suspension plate surface mounts to the top of the door with a toolless lever release for simple door mounting
- 4 track lengths available: 48, 60, 72, and 96 in (1219, 1524, 1828, and 2438 mm)
- 3 finishes available: Anodized Gray, Satin Black Powder Coat and Satin White Powder Coat
- Includes two ring pulls that match the finish of the track
- Simple, flexible and low-cost installation

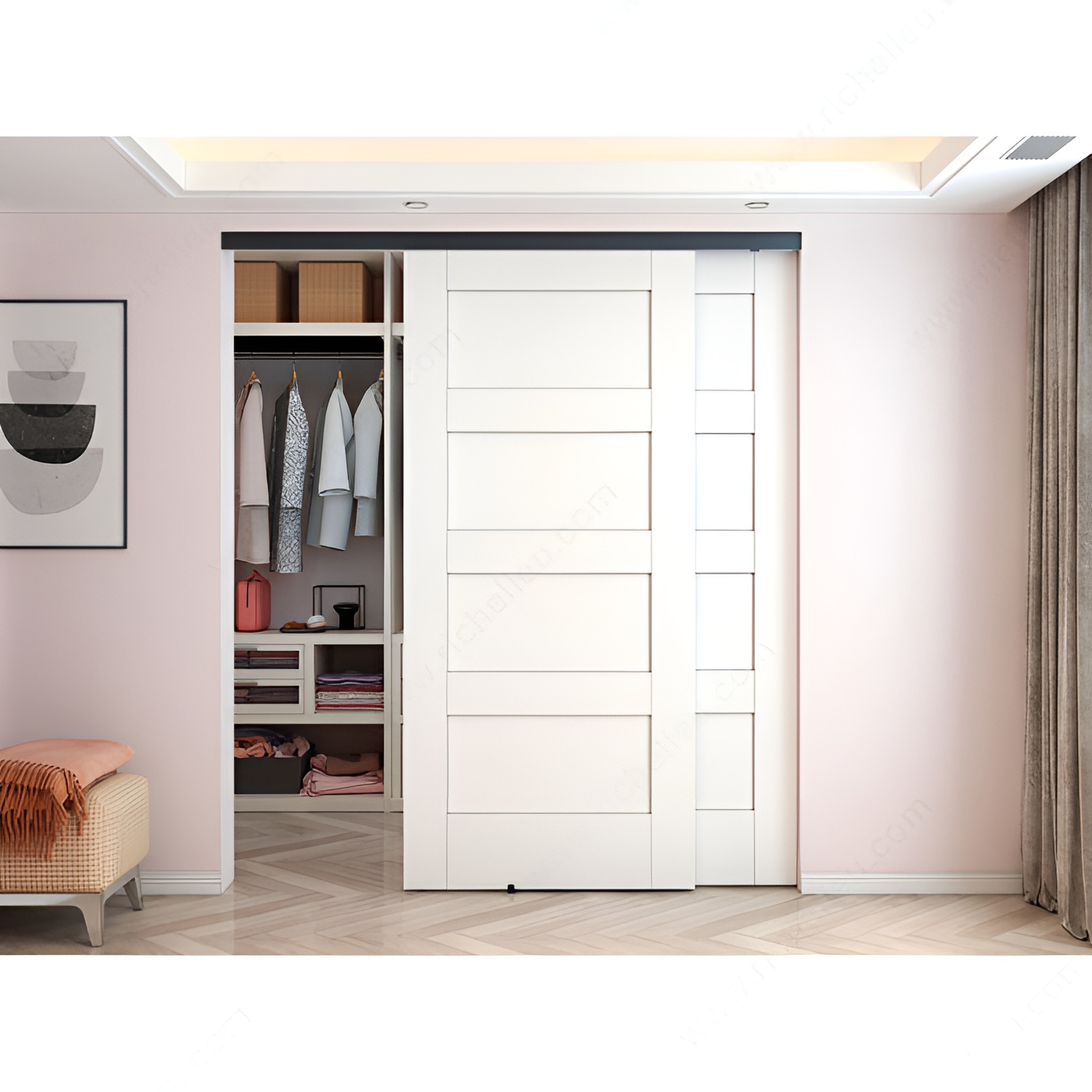

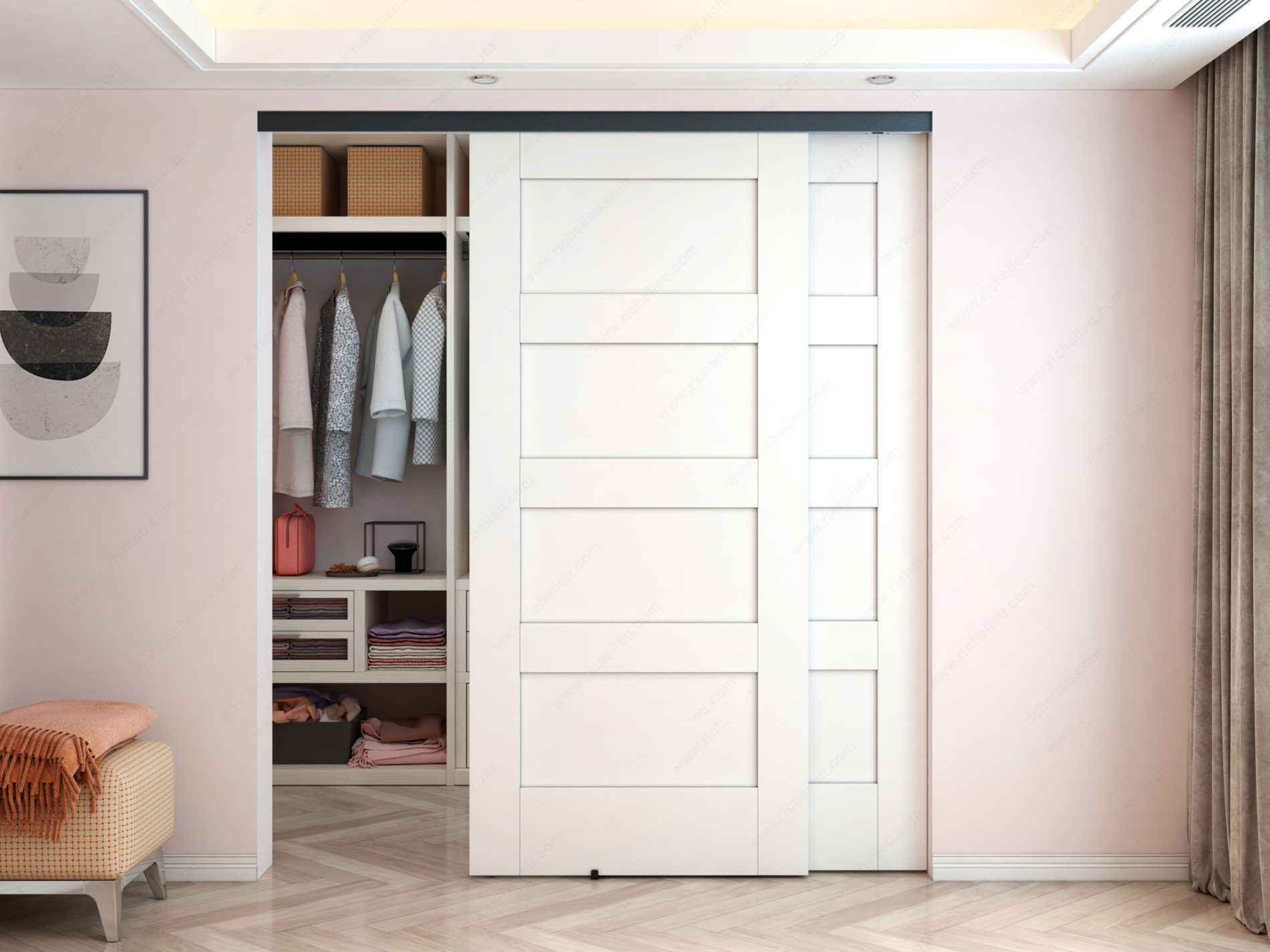

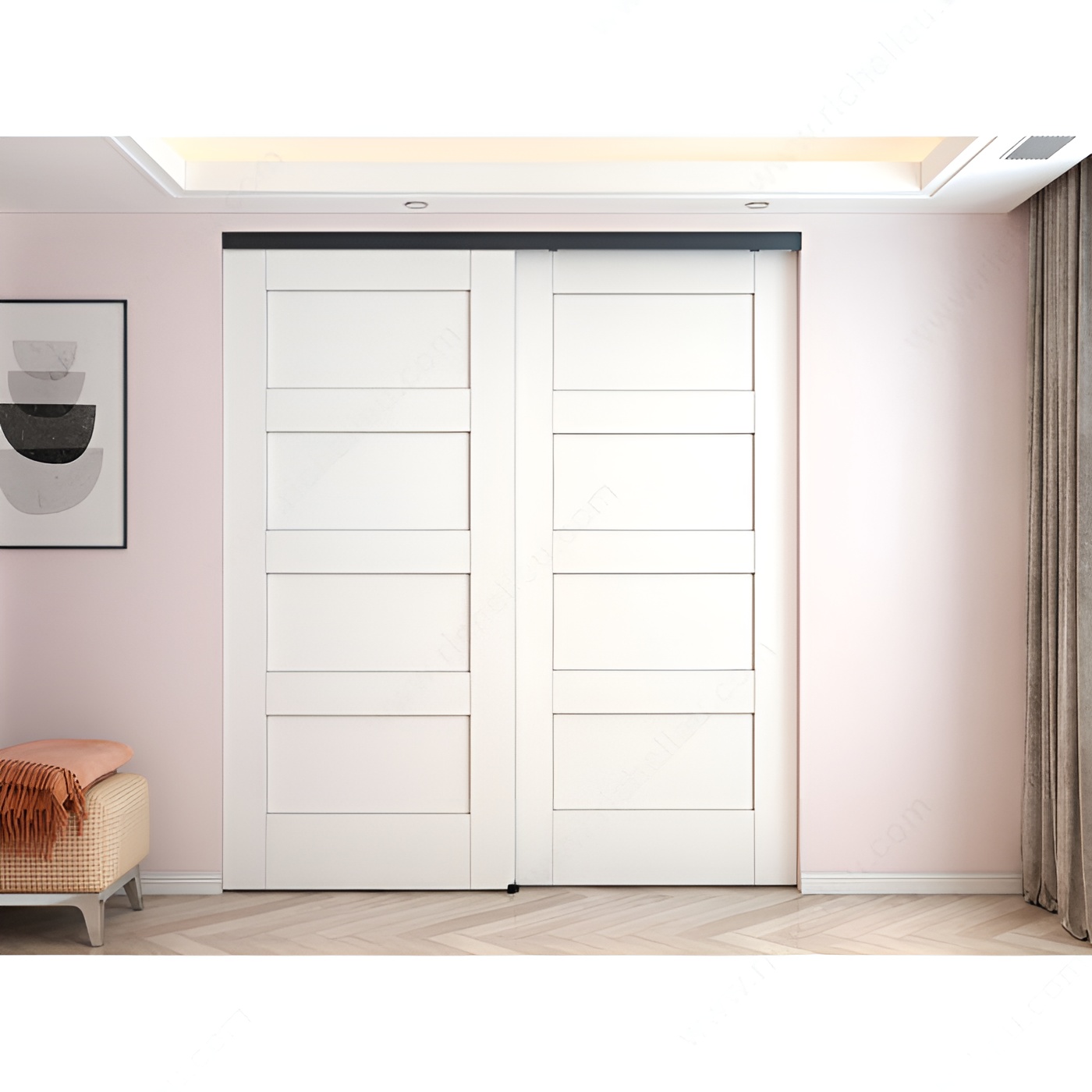

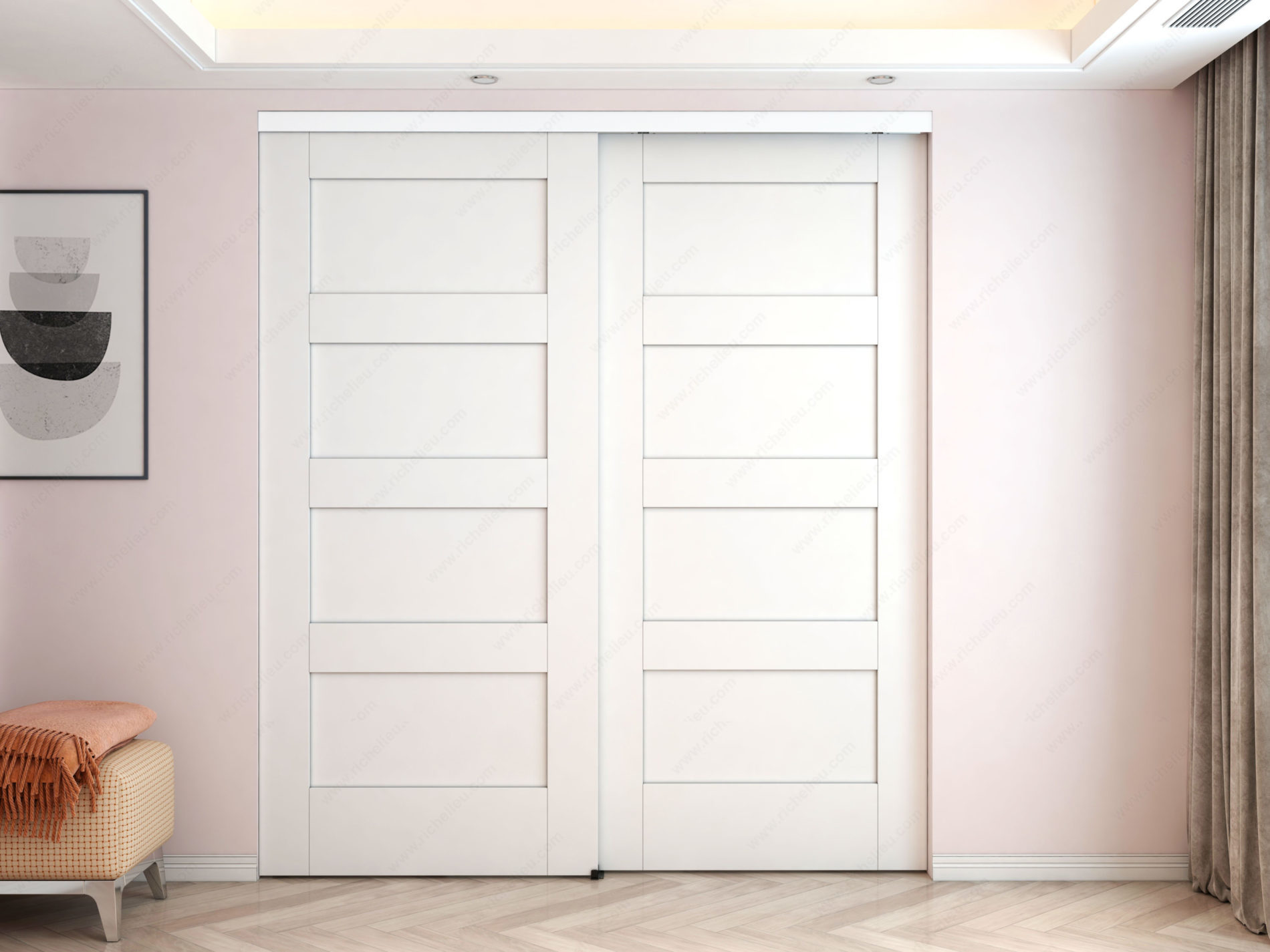

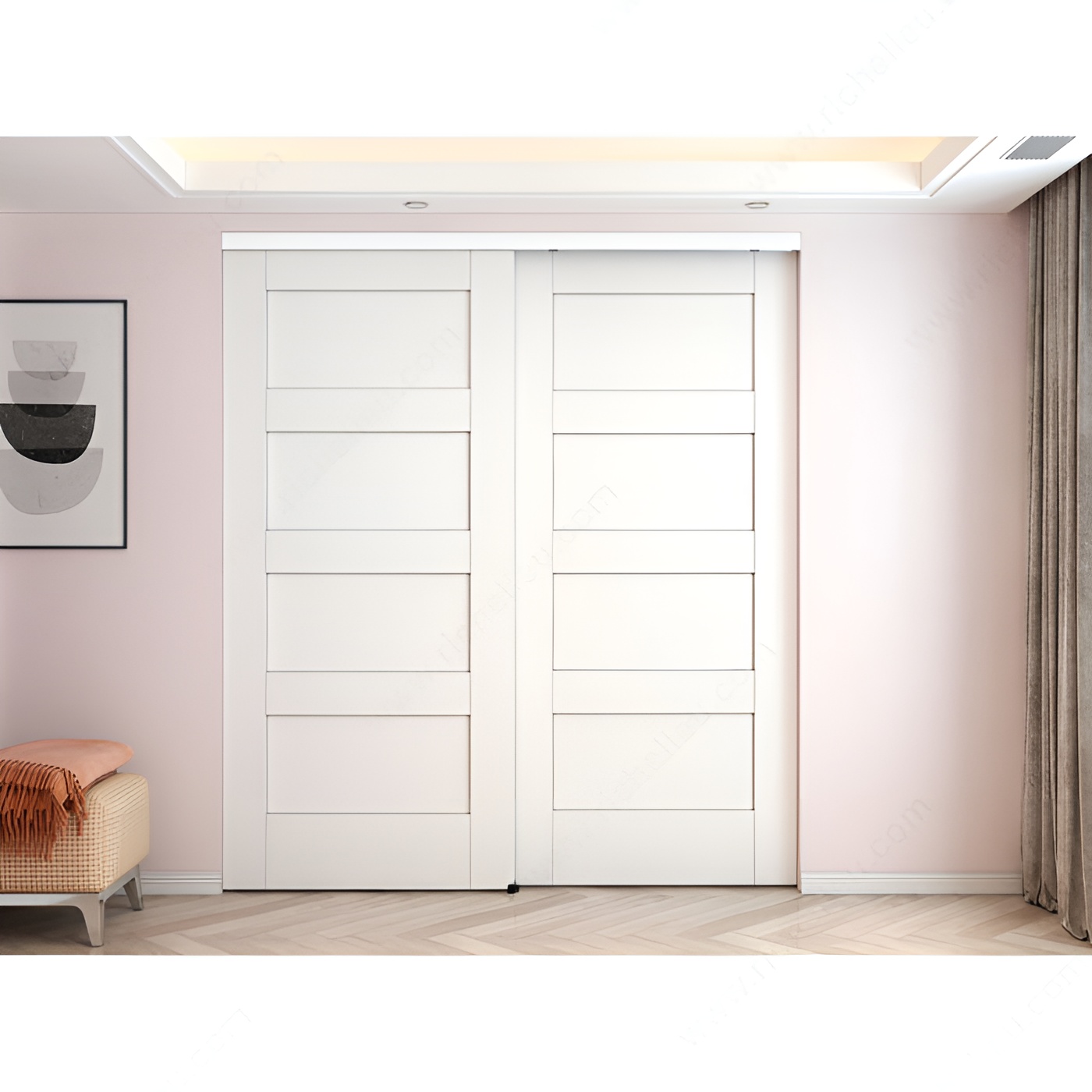

Ideal for residential, commercial, and institutional projects for use in bedrooms, offices, storage rooms and a wide range of other applications that require double tracks.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Closet and Walk-In Closet, Wardrobe, Storage
Brand: Onward
Detailed Door Movement: Bypassing
Door Height: 120 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 32 to 38 in
Finish: Black
Function: Sliding Door
Groove Needed for Guiding System: No
Length: 72 in
Length - Overall Dimensions: 72 in
Load Capacity: 40 to 150 lb
Manufacturing Material: Aluminum, Plastic
Material: Plastic, Aluminum
Number of Doors: 2
Overall Height: 3 1/2 in
Overall Length: 73 1/4 in
Overall Width: 5 7/8 in
Packaging Format: White Cardboard with Photo Label
Product #: 89XC72B90
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Finish: Black
Track Material: Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Door: 40 to 150 lb
