Richelieu 89YM3680SC Onward Evanescence Pocket Door KitRichelieu 89YM3680SC ONWARD EVANESCENCE Pocket Door Kit is engineered for single sliding wood doors with a robust weight capacity of up to 220 lb (100 kg), making it an ideal choice for both residential and commercial settings. This kit features a self-supporting header and frame structure, ensuring a straightforward installation process compatible with typical 2 x 4 wall construction. Accommodating various door widths from 24 in (610 mm) to 48 in (1219 mm) and heights of 80 in (2032 mm) or 96 in (2438 mm), the tracks and frames can be easily cut to fit your specific requirements. Designed for doors with thicknesses of 1-3/8 in (35 mm) or 1-3/4 in (45 mm), it includes ball bearing wheels for smooth operation and a toolless lever suspension plate that simplifies door mounting. A standout feature is the integrated dual-action soft close option, allowing for a gentle and quiet closure. The beveled bottom guides eliminate the need for a groove at the bottom of the door, enhancing aesthetics. The sturdy double-wall aluminum frame vertical profiles provide lasting durability, while the pre-marked header and track assembly facilitate easy adjustments. For additional convenience, a QR code on the packaging links to an assembly and installation video, making your project even more manageable.
ONWARD EVANESCENCE Pocket Door Kit

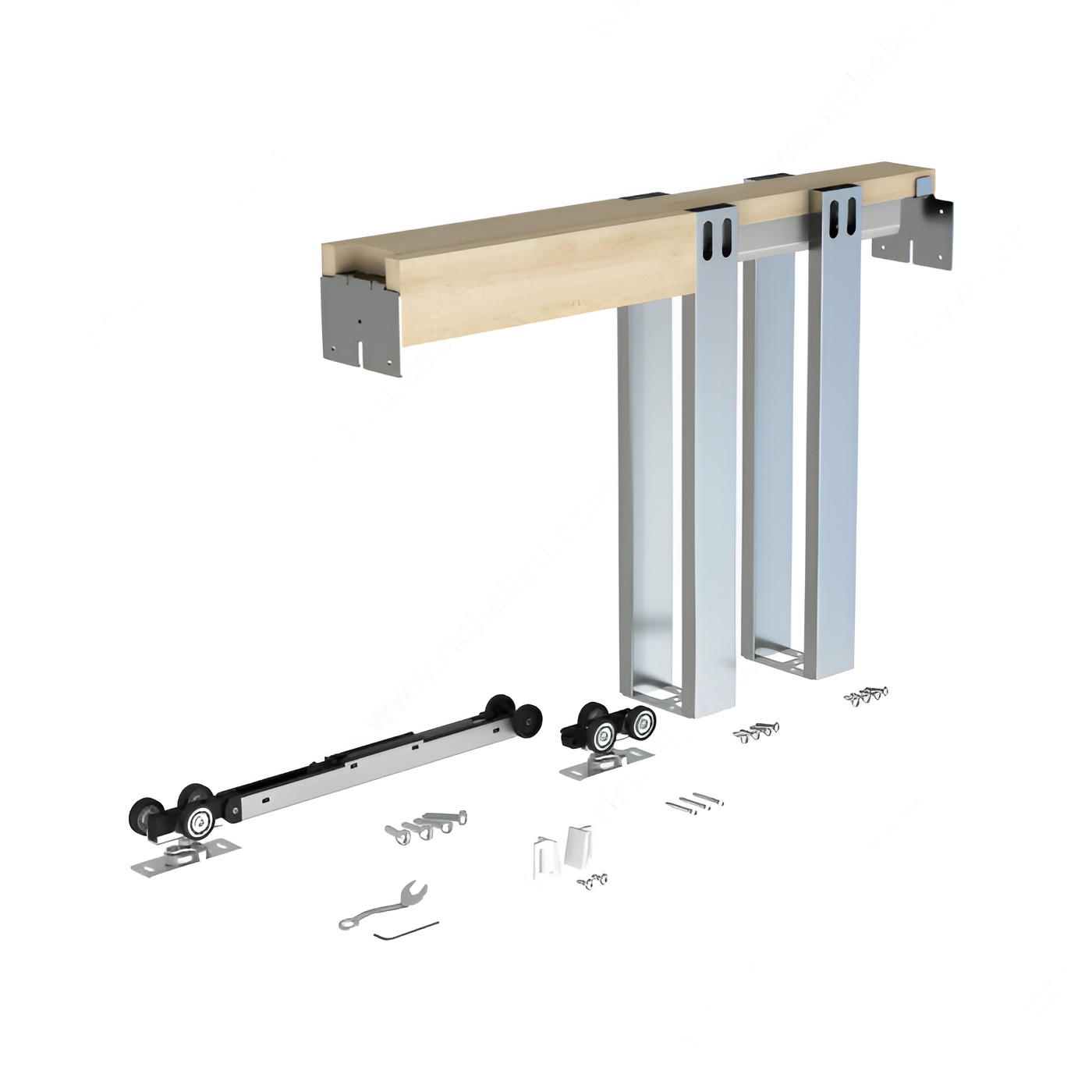

The ONWARD EVANESCENCE Pocket Door KIT is for single sliding wood doors weighing up to 220 lb (100 kg) with options and with or without integrated dual-action soft close.
Features:
- Self-supporting header and frame structure for simple installation
- Suitable for typical 2 x 4 wall construction
- Select from various kits for door widths of 24 in (610 mm) to 48 in (1219 mm) and door heights of 80 in (2032 mm) or 96 in (2438 mm)
- Tracks and frames can be cut to door width and height
- Ball bearing wheels
- Toolless lever suspension plate for simple door mounting
- Suitable for 1-3/8 in (35 mm) or 1-3/4 in (45 mm) thick doors
- Includes door edge finger pull to allow for full retraction into the pocket area
- Beveled bottom guides do not require a groove at the bottom of the door
- Sturdy double-wall steel frame vertical profiles
- Header and track assembly is pre-marked for the various potential door widths
- Simple, flexible, and low-cost installation
- Scan the QR code on the packaging for an easy-to-follow assembly and installation video

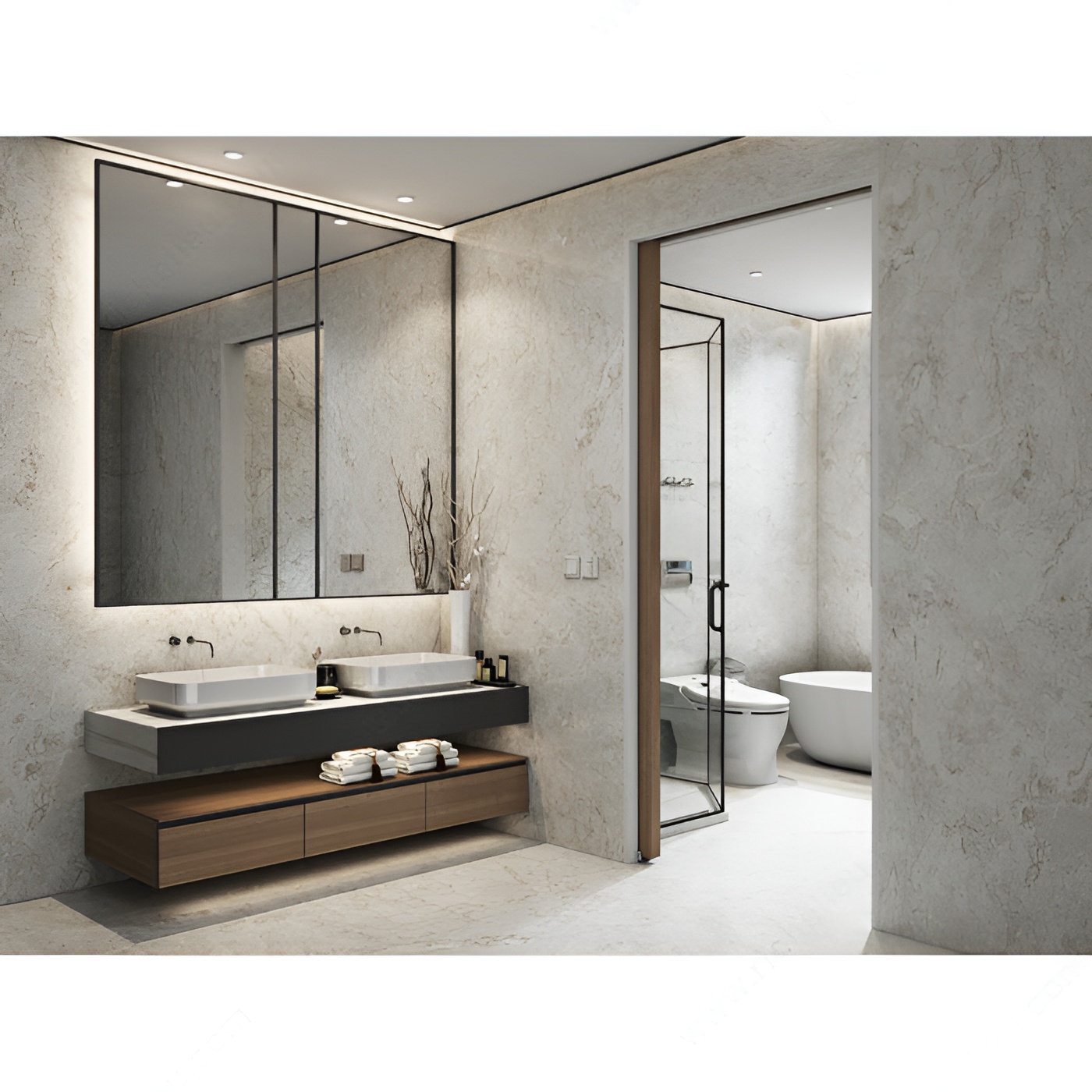

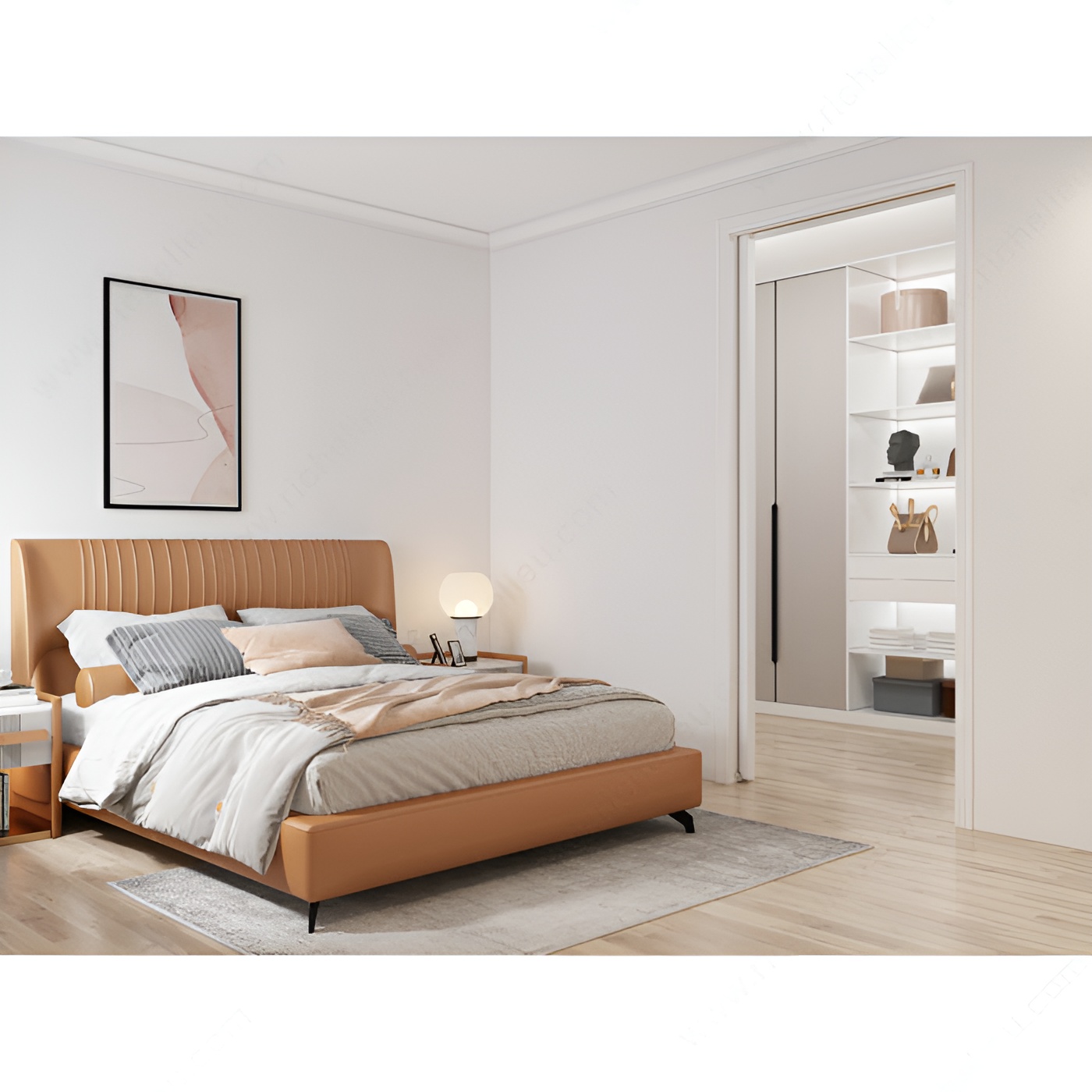

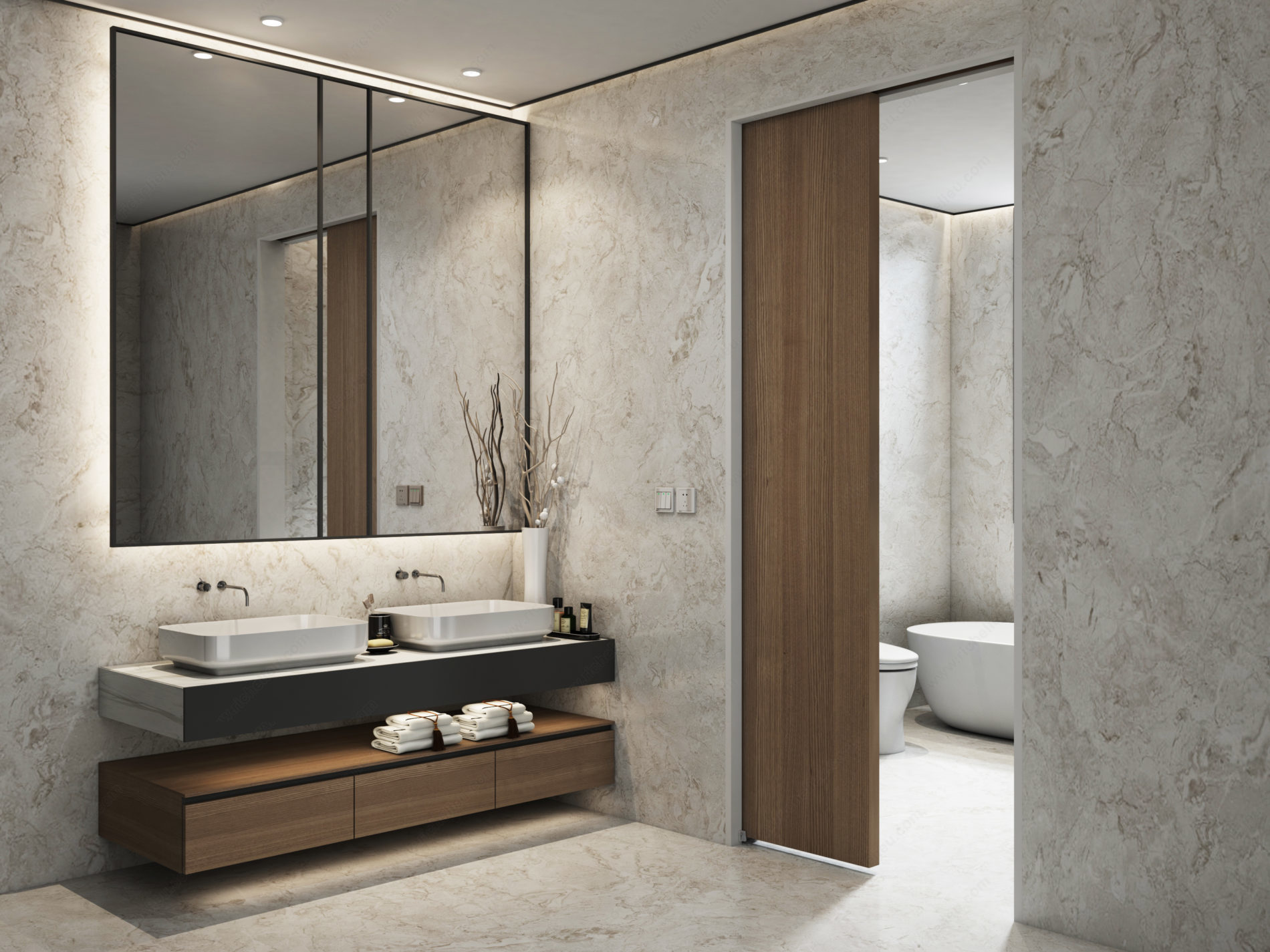

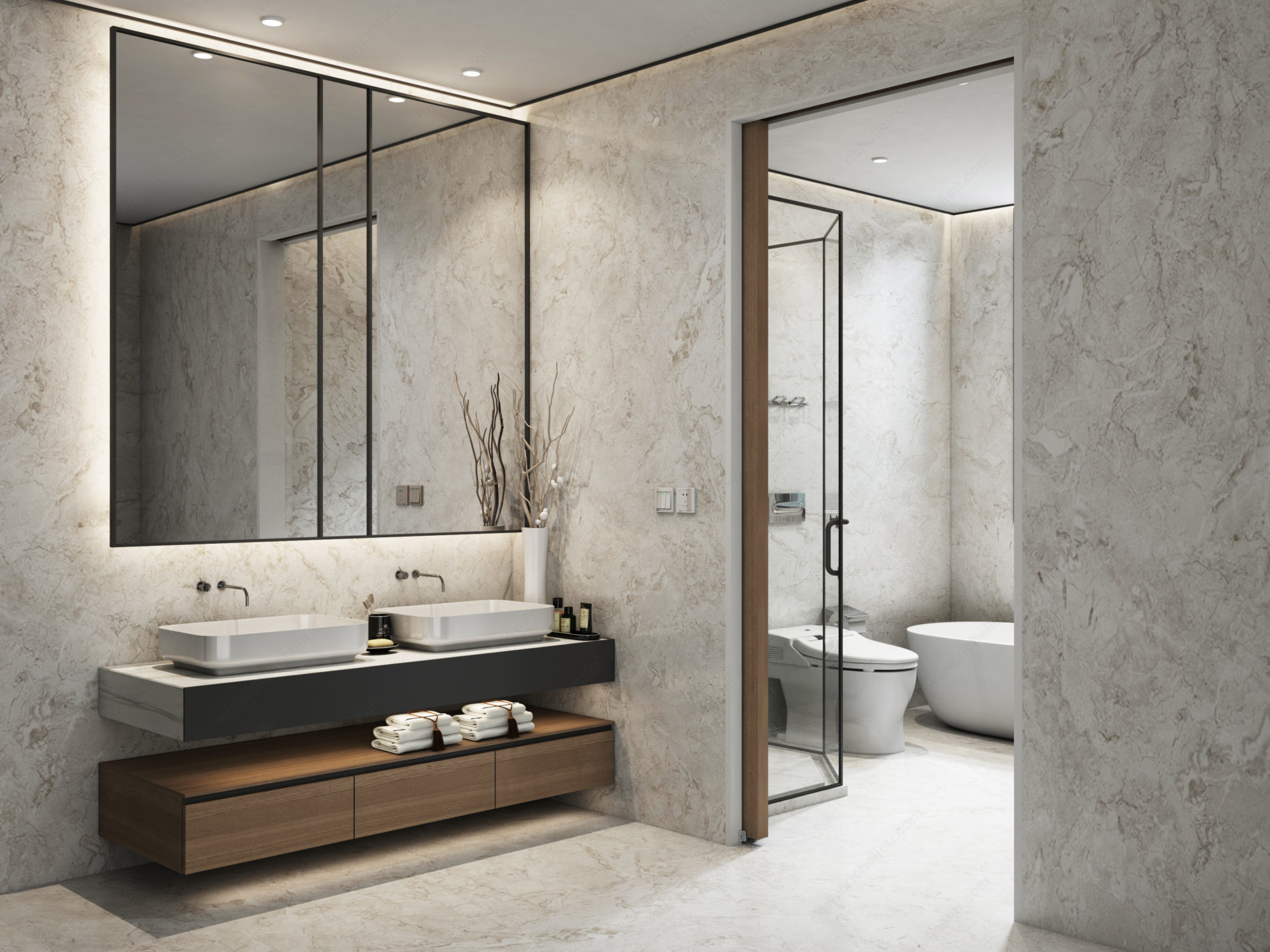

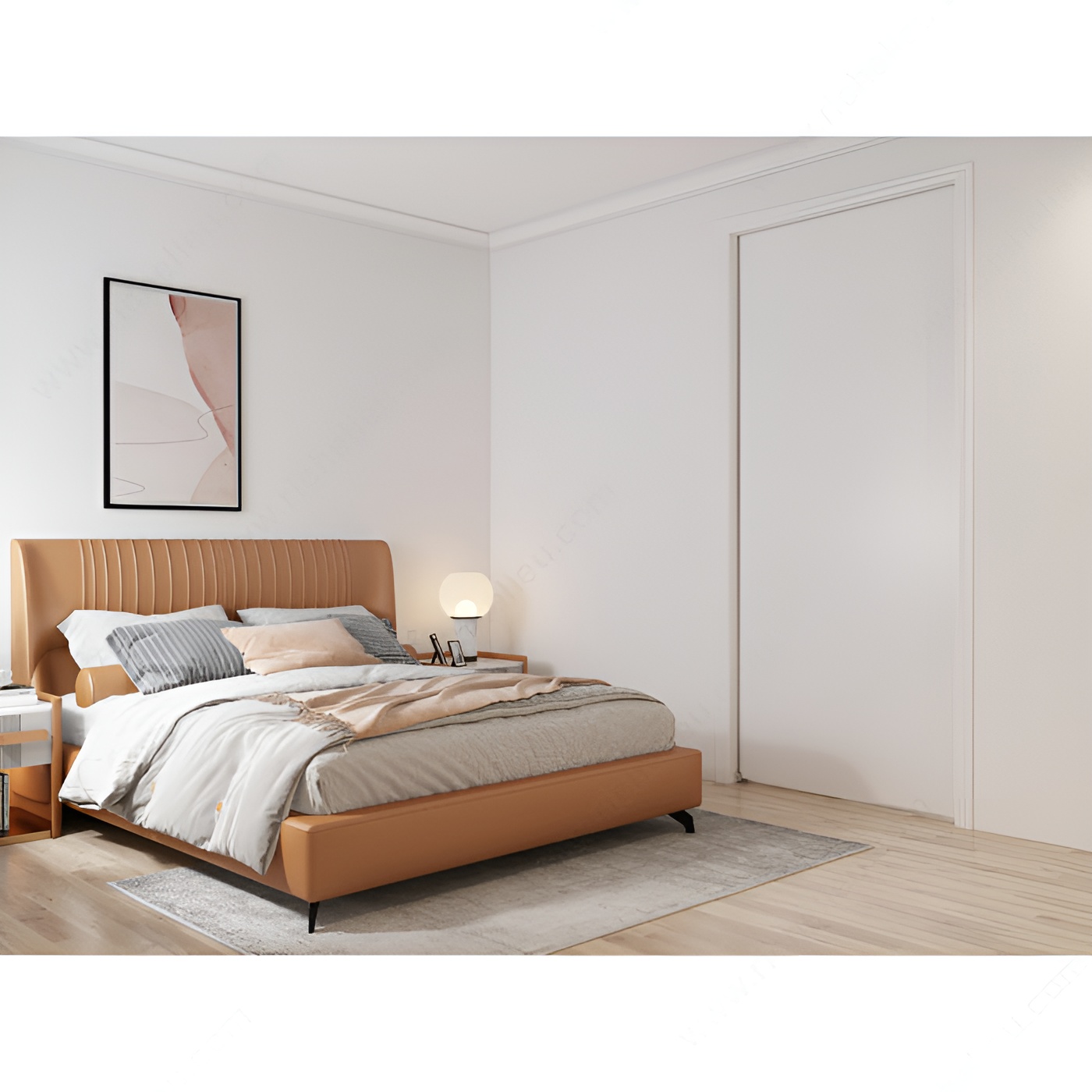

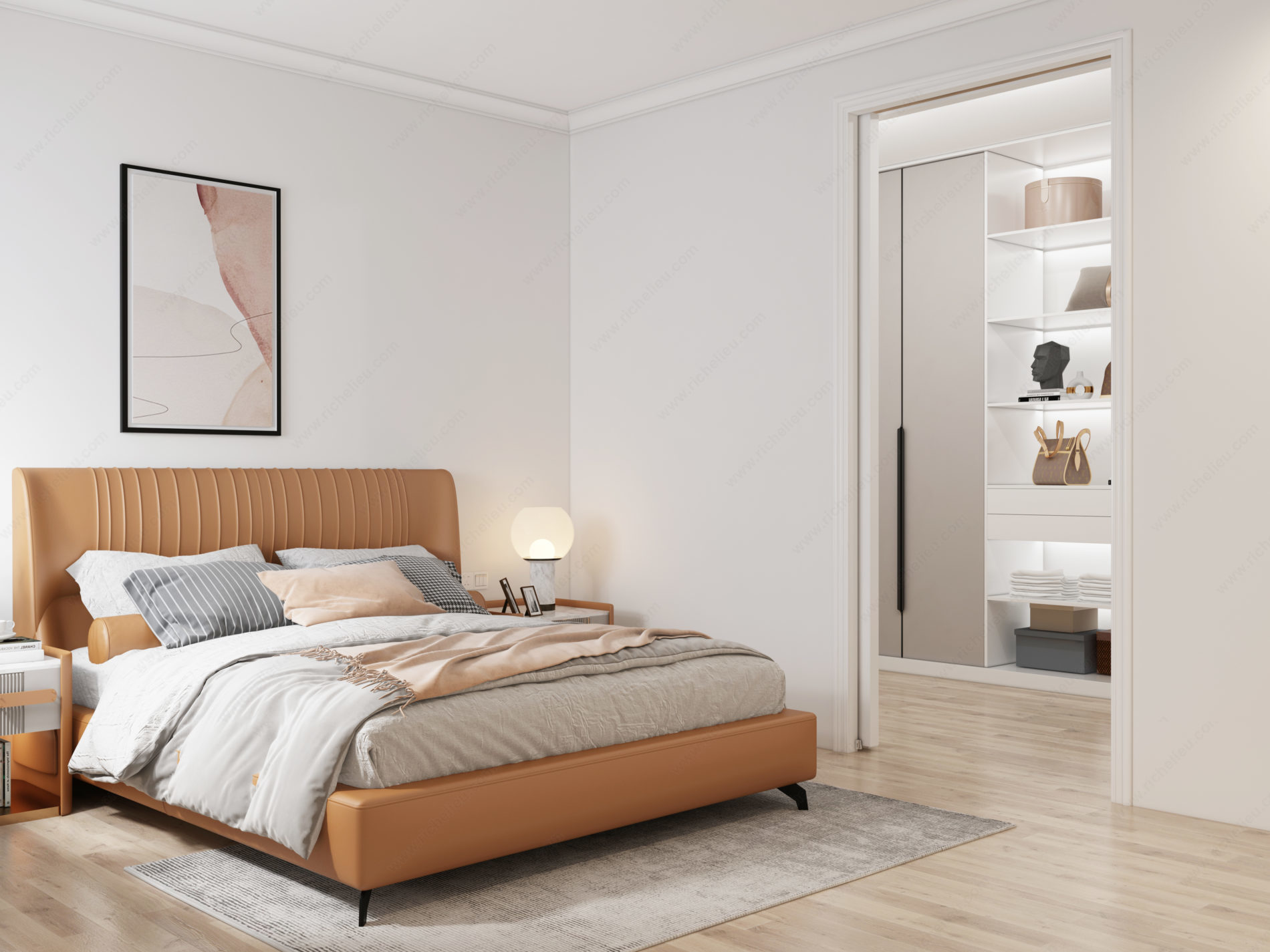

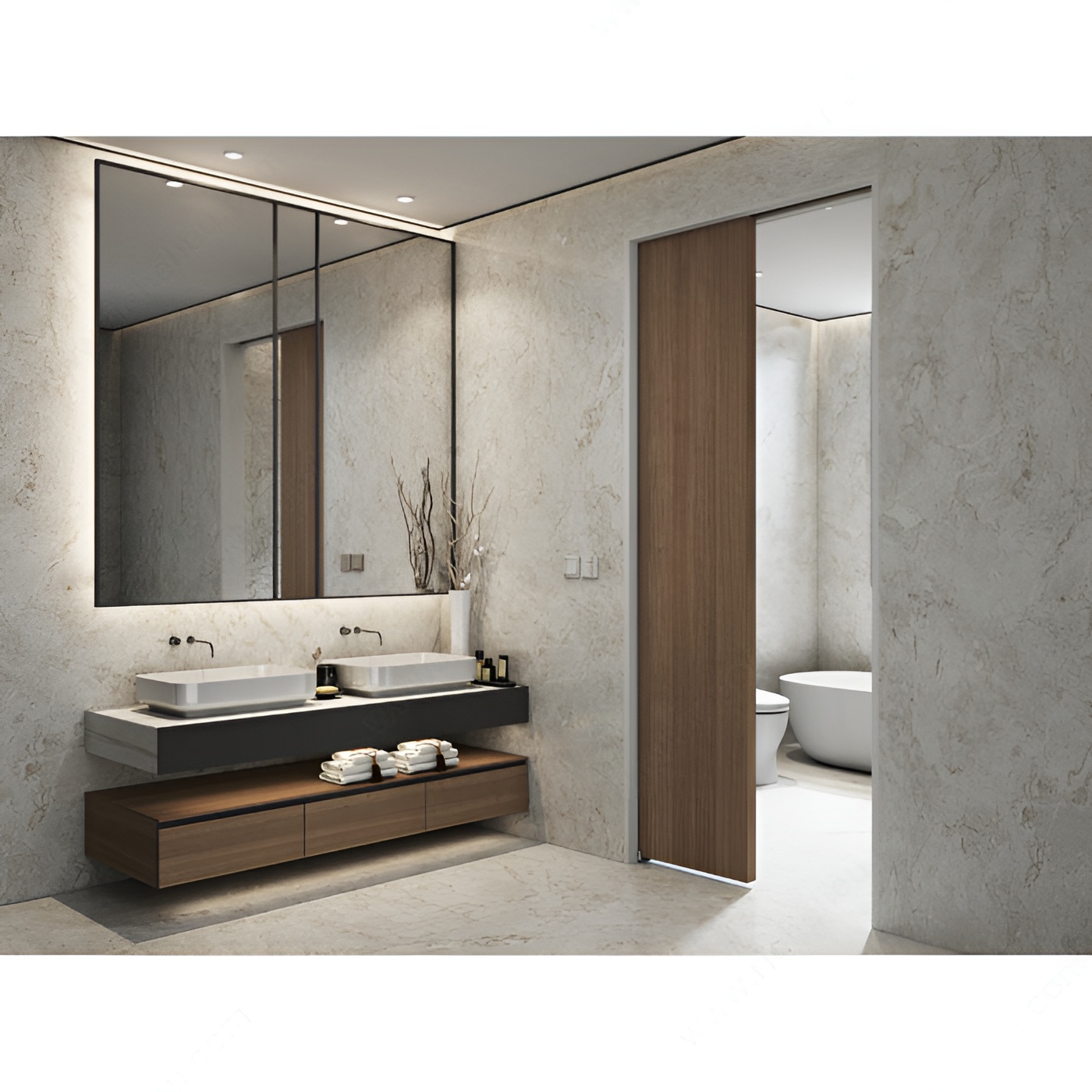

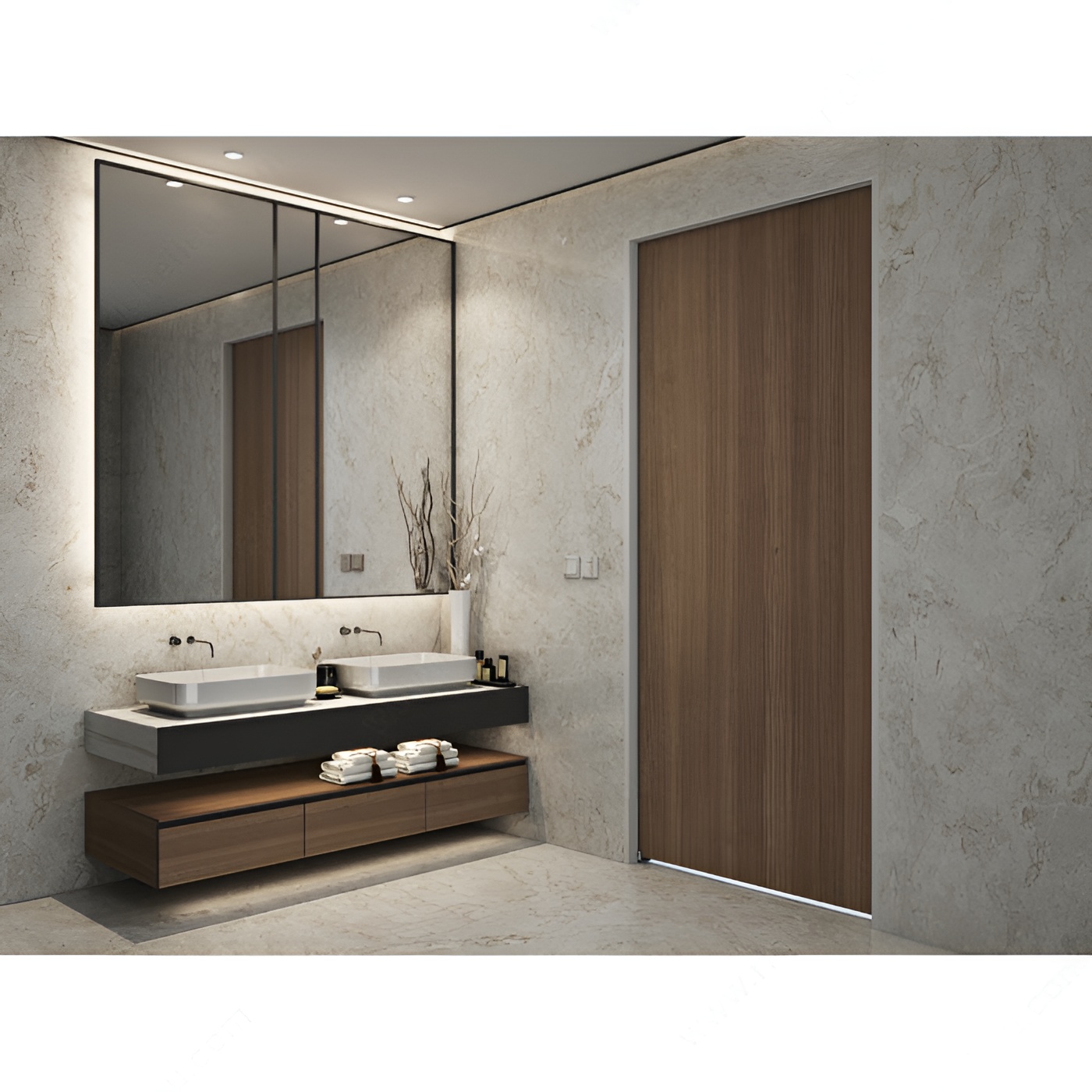

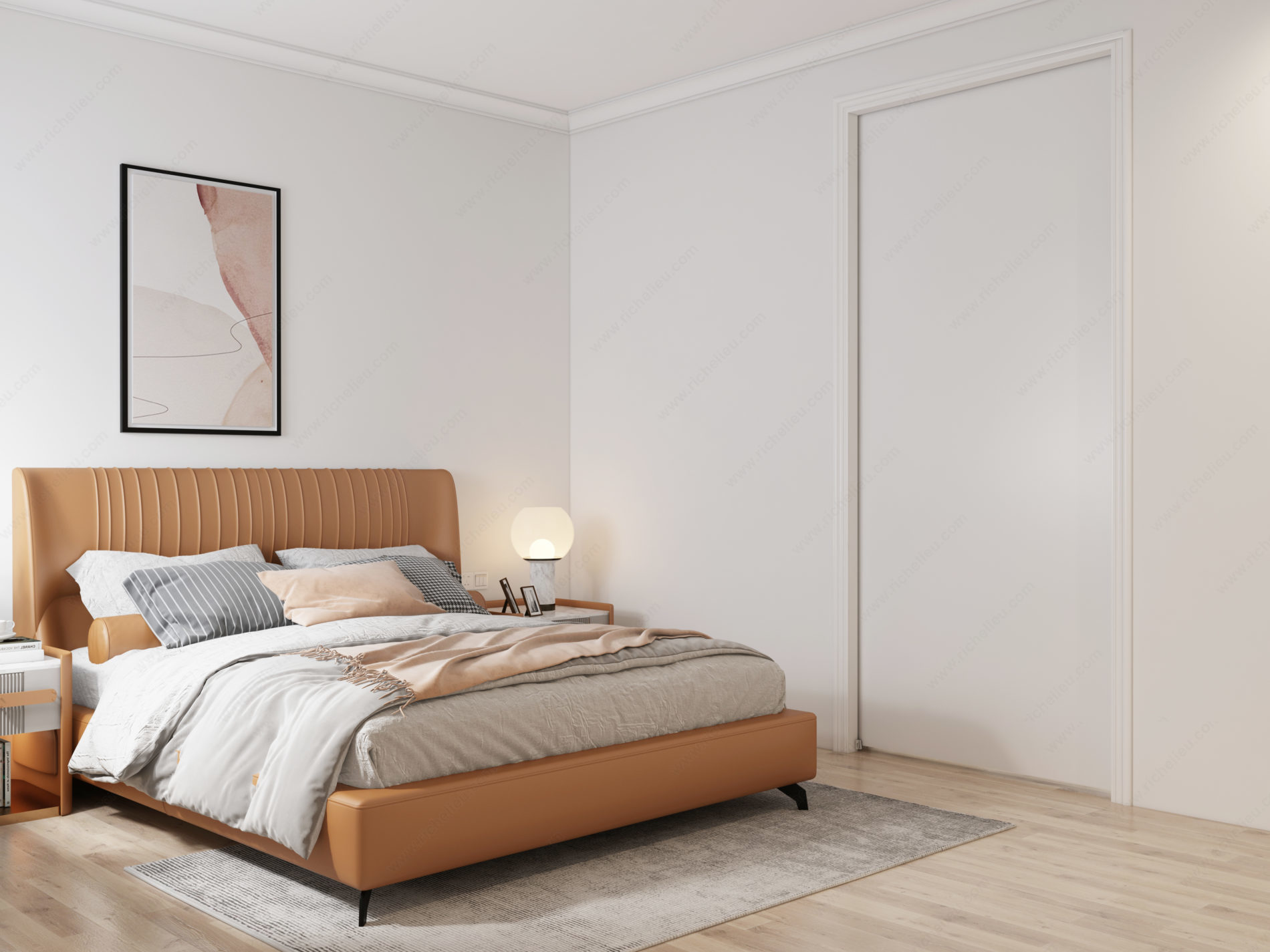

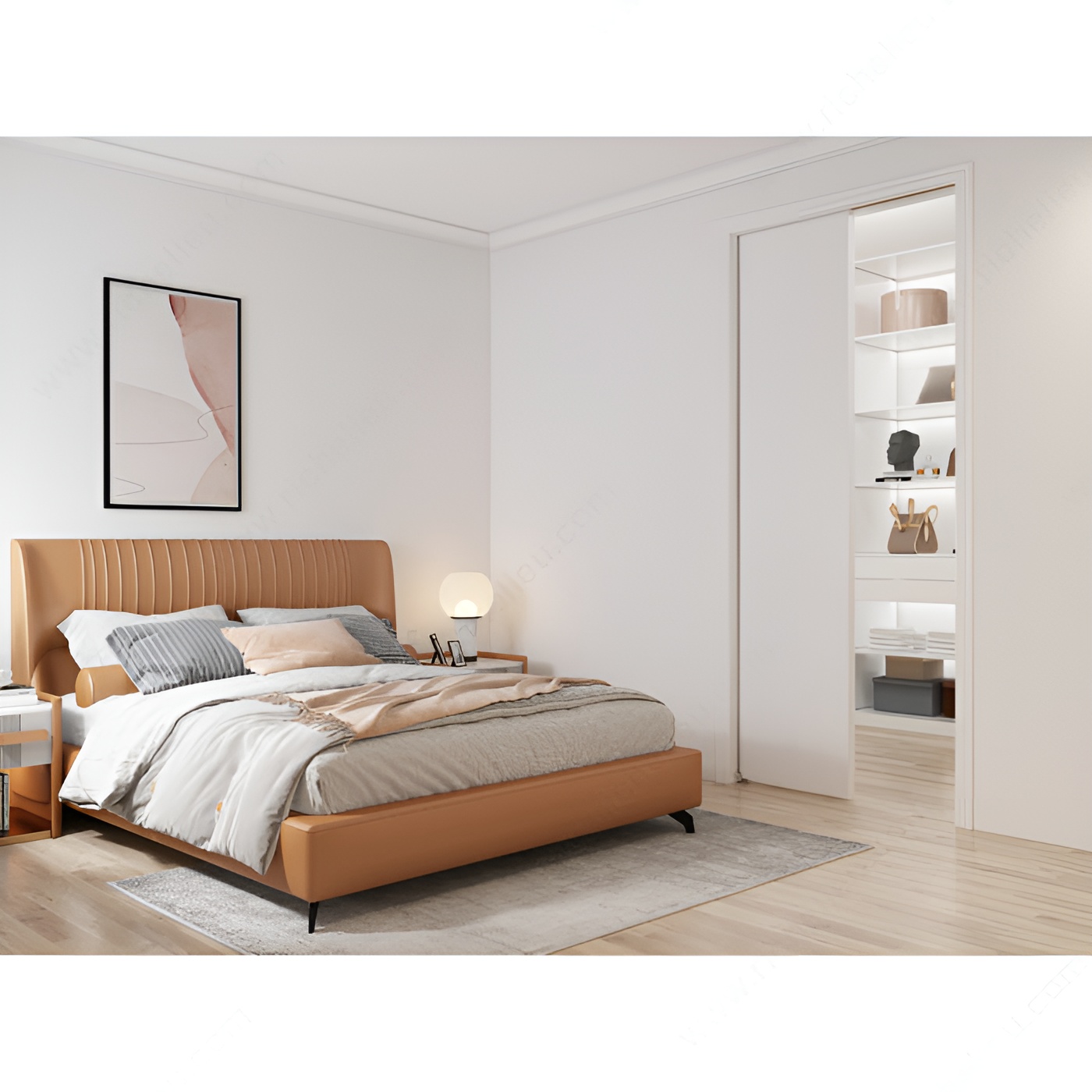

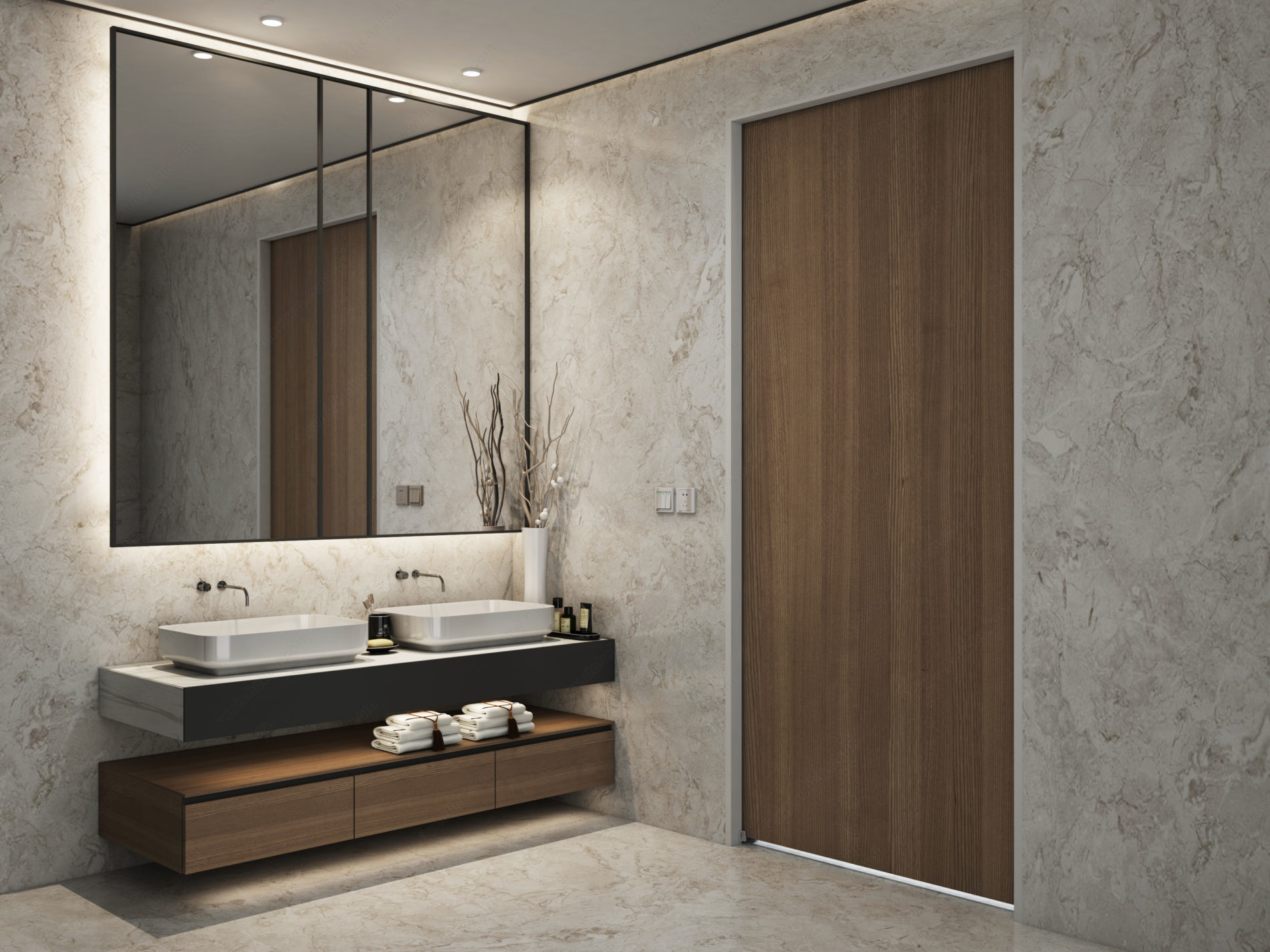

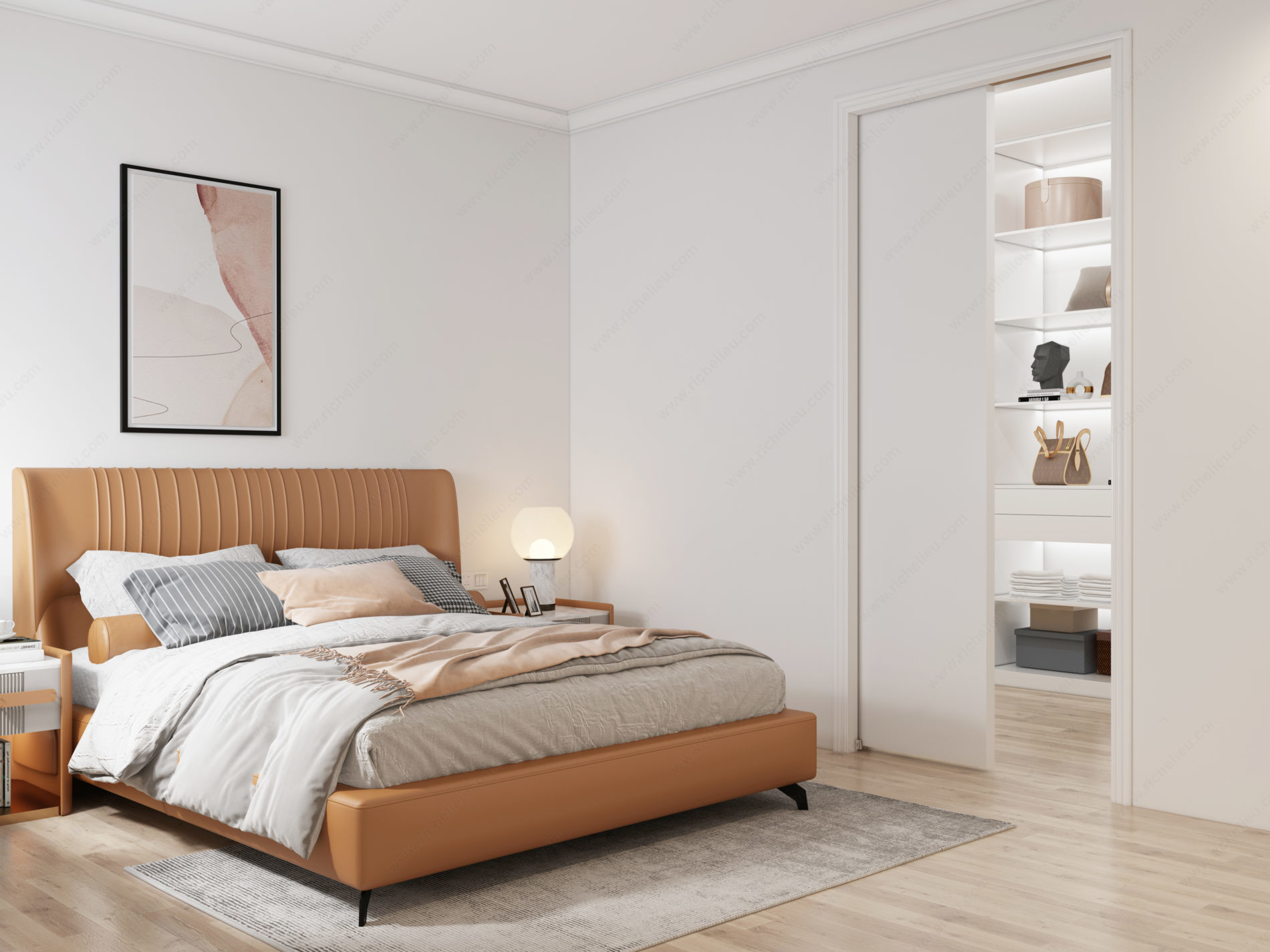

Ideal for residential, commercial, and institutional projects for use in bedrooms, offices, consultation rooms, and a wide range of other applications.
Attributes
Application: Pocket Door
Brand: Onward
Detailed Door Movement: Single sliding
Door Height: 80 in
Door Material: Wood
Door Movement: Pocket Door
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 24 to 36 in
Height: 8 in
Length - Overall Dimensions: 85 1/4 in
Load Capacity: 220 lb
Manufacturing Material: Wood, Aluminum, Plastic
Material: Plastic, Aluminum, Wood
Number of Doors: 1
Overall Height: 3 in
Overall Length: 85 1/4 in
Product #: 89YM3680SC
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Weight Capacity per Door: 88 to 220 lb
