Richelieu A7555457 FUTURA Soft-Close Undermount Full Extension Slide for Face Frame CabinetsRichelieu A7555457 FUTURA Full Extension Concealed Slide - Undermount with Soft-Close for Face Frame Cabinets is engineered for seamless functionality and enhanced durability in kitchen cabinetry. This slide can be mounted either at the rear or side, providing versatile installation options to suit various cabinet designs. It offers a remarkable load capacity of 75 lbs, accommodating a variety of drawer types including wood and melamine. The FUTURA slide features an innovative soft-close mechanism that ensures quiet and gentle drawer closure, adding a touch of elegance to daily use. This device is easily removable and replaceable, enhancing ease of maintenance. Users can benefit from adjustable rear sockets, available in metal or plastic, which are sold separately for added customization. The design includes 2.5 mm height adjustment and depth adjustment with slotted holes, allowing for precise alignment. Recommended screws for installation are #6 countersunk, ensuring a secure fit. Available in sizes of 12", 15", 18", and 21", the A7555457 accommodates a wide range of drawer dimensions. Crafted from robust zinc, this undermount slide is a reliable choice for any face frame cabinet, combining practicality with superior performance.

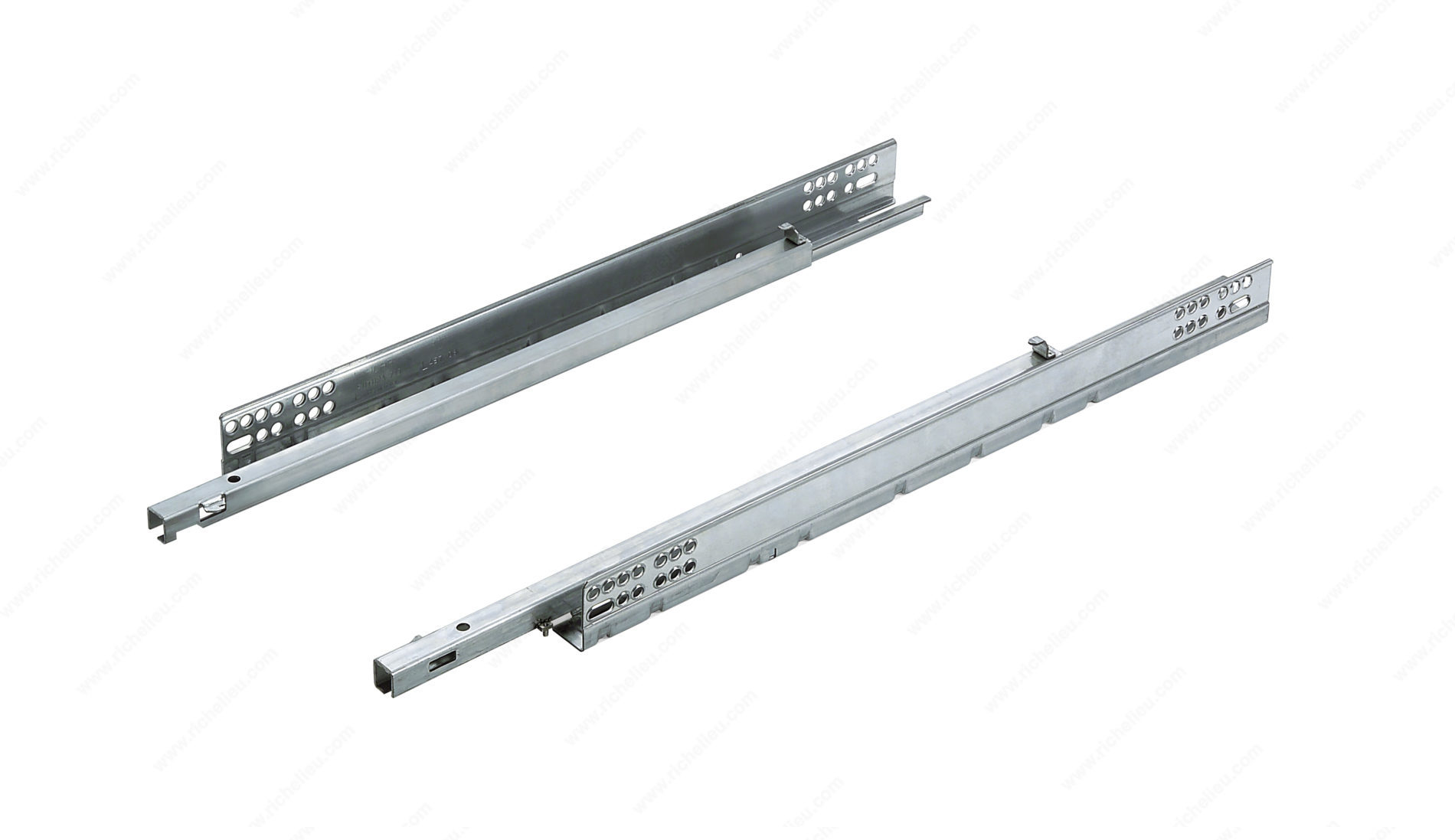

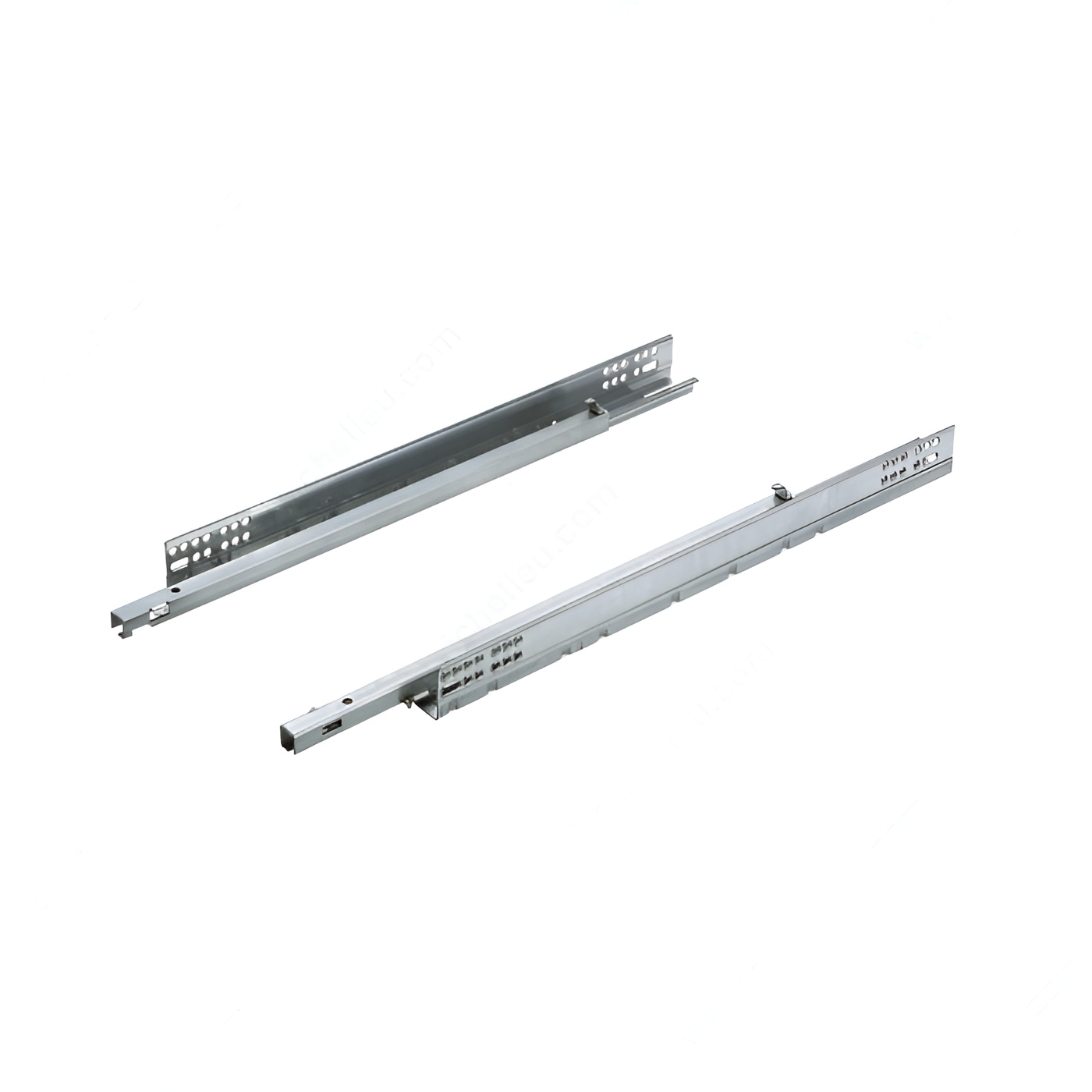

FUTURA Full Extension Concealed Slide - Undermount with Soft-Close for Face Frame Cabinets
- Can be rear- or side-mounted
- Adjustable rear sockets are available in metal or plastic, sold separately
- Locking devices are sold separately
- Plus 2.5 mm height adjustment
- Depth adjustment with slotted holes
- Recommended screws: #6 countersunk
- Soft-closing device is easily removable and replaceable
- Available sizes: 12", 15", 18", 21"
Attributes
Brand: Salice
Cabinet Model: Frameless
Drawer Type: Wood and Melamine
Finish: Zinc
Length: 457 mm
Load Capacity: 75 lb
Material Thickness: 5/8 in
Motion Technology: Soft-Close
Mounting Type: For 5/8" drawer sides
Product #: A7555457
Product Line: FUTURA SMOVE
Product number: A7555457
Product №: A7555457
Screw/ Nail: #6 Screw
Slide Extension: Full Extension
Slide Mounted: Bottom-Mounted
Unit: Pair
Unit 1: case - 6
Unit 2: case - 6
