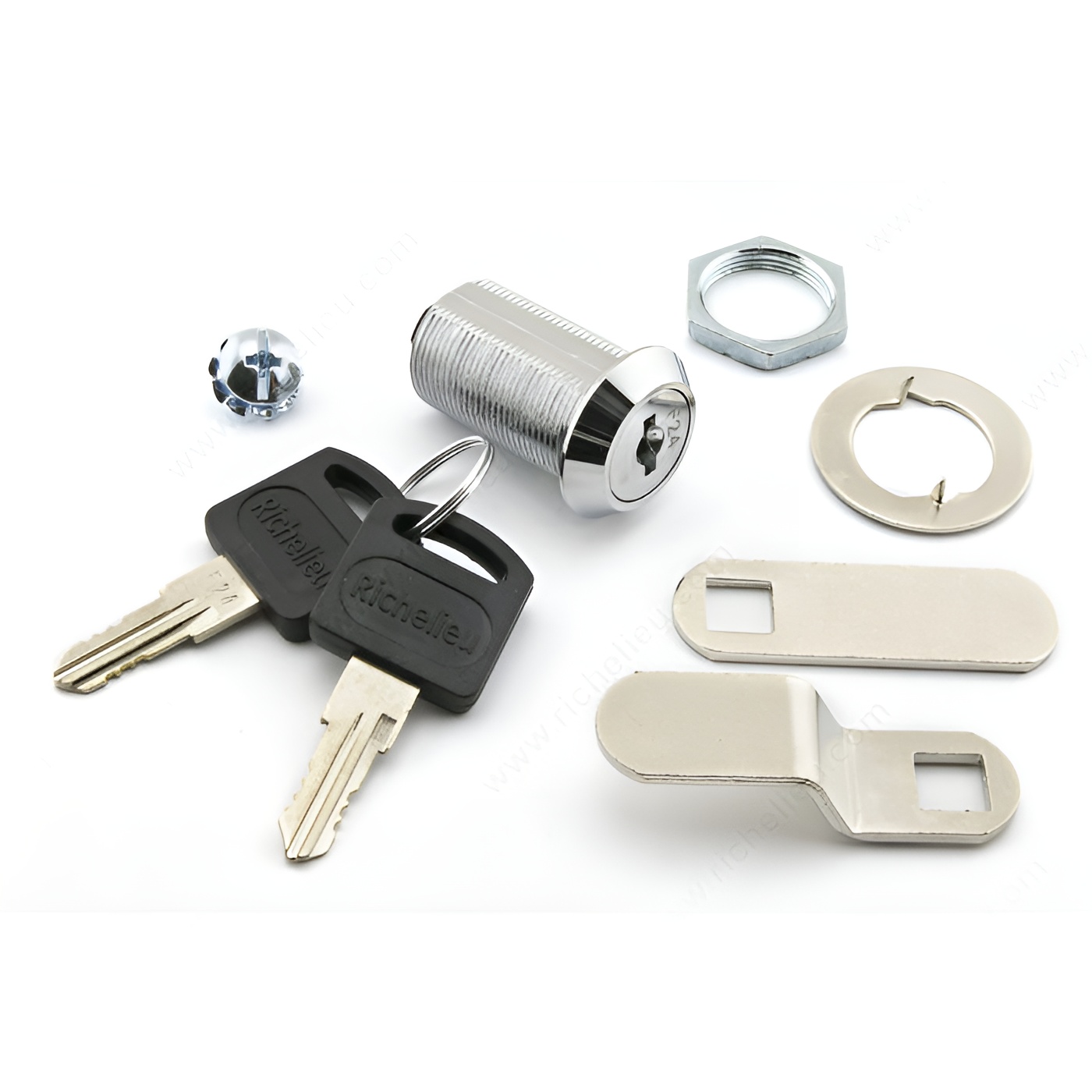

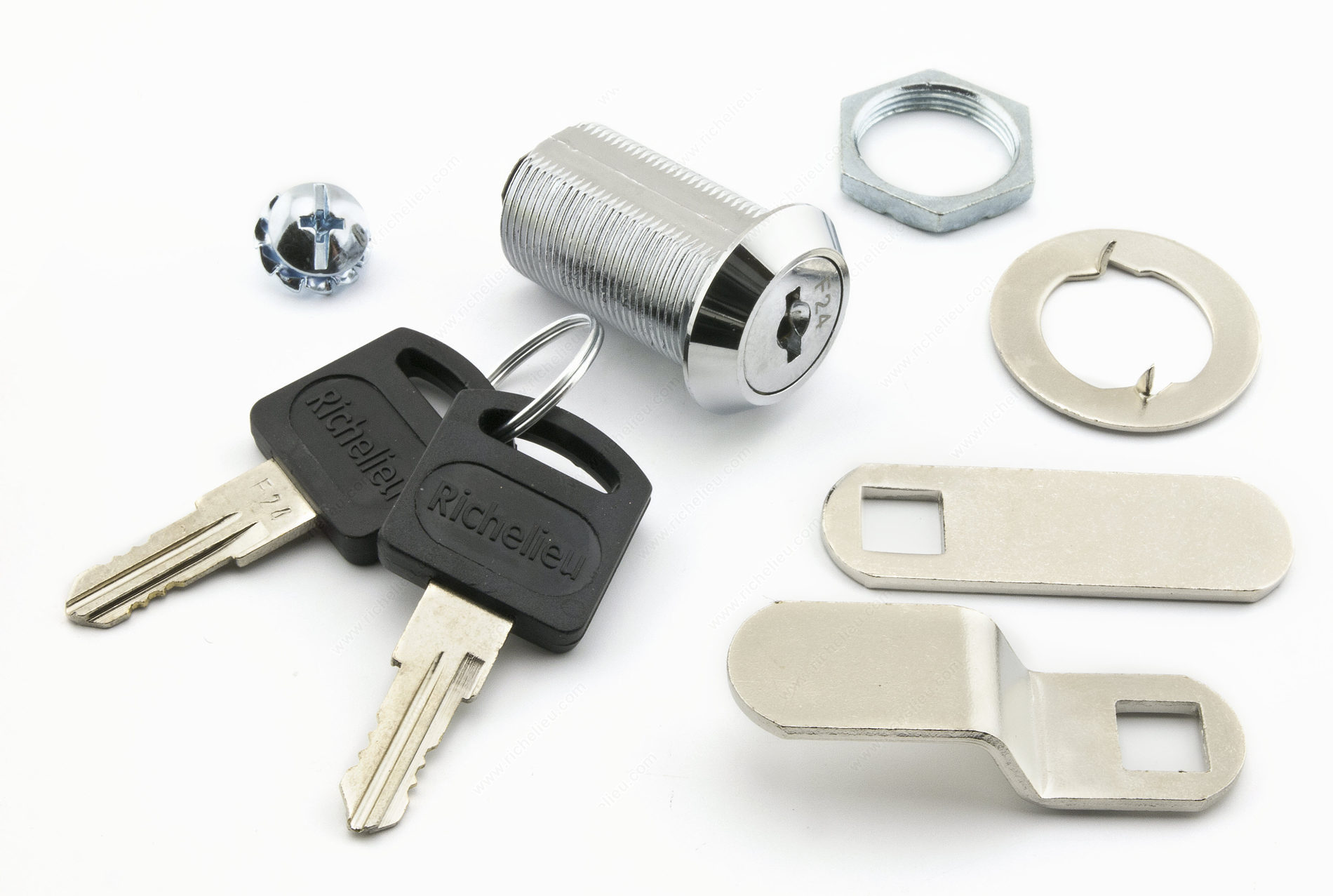

Richelieu BP140100140 Cam Lock for Panel Thickness up to 23 mm provides an ideal solution for securing cabinet doors and drawers, combining security with convenience. Designed specifically for single-drawer applications, this cam lock features a robust disc mechanism made from durable zinc alloy, ensuring longevity and reliable performance. With a chrome finish, the BP140100140 not only enhances the aesthetic of your furniture but also offers practical functionality. The cylinder diameter measures 3/4 inch, with a length of 1 3/16 inches, making it suitable for panel thicknesses ranging from 3/32 to 29/32 inches. The cam length from the center is 1 37/64 inches, while the unique offset cam design provides a cranked height of 3/8 inch, ensuring a secure fit. This lock operates with a 90° key turn, and each unit is keyed differently, adding an extra layer of security. The reversible position feature allows for flexible installation, accommodating various drawer configurations. Furthermore, the BP140100140 complies with RoHS standards, ensuring it meets environmental safety requirements. Elevate your cabinetry's security with Richelieu's BP140100140 Cam Lock, a reliable choice for both building professionals and discerning homeowners.
Cam Lock for Panel Thickness up to 23 mm
Application: Single Drawer
Brand: Richelieu
Cam Length (from center): 40 mm
Cam Lock - Length to Axis: 40 mm
Cylinder Diameter: 19 mm
Cylinder Length: 30 mm
Finish: Chrome
Furniture Material: Wood
Key No.: Keyed Different
Key Turn Degree: 90°
Key Type: Keyed Different
Material: Zinc Alloy
Mechanism Type: Wafer
Offset Cam - Cranked: 12 mm
Offset Cam - Height: 9.5 mm
Panel Thickness: Max. 23 mm
Position: Reversible
Product #: BP140100140
Product number: BP140100140
Product №: BP140100140
Security Level: Standard
Standards and Certifications: RoHS
Supplier Key No.: Key different
Types of Locks: Cam Locks
Unit: Bag
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 50
Unit 4: master case - 200
Use: Single Drawer
