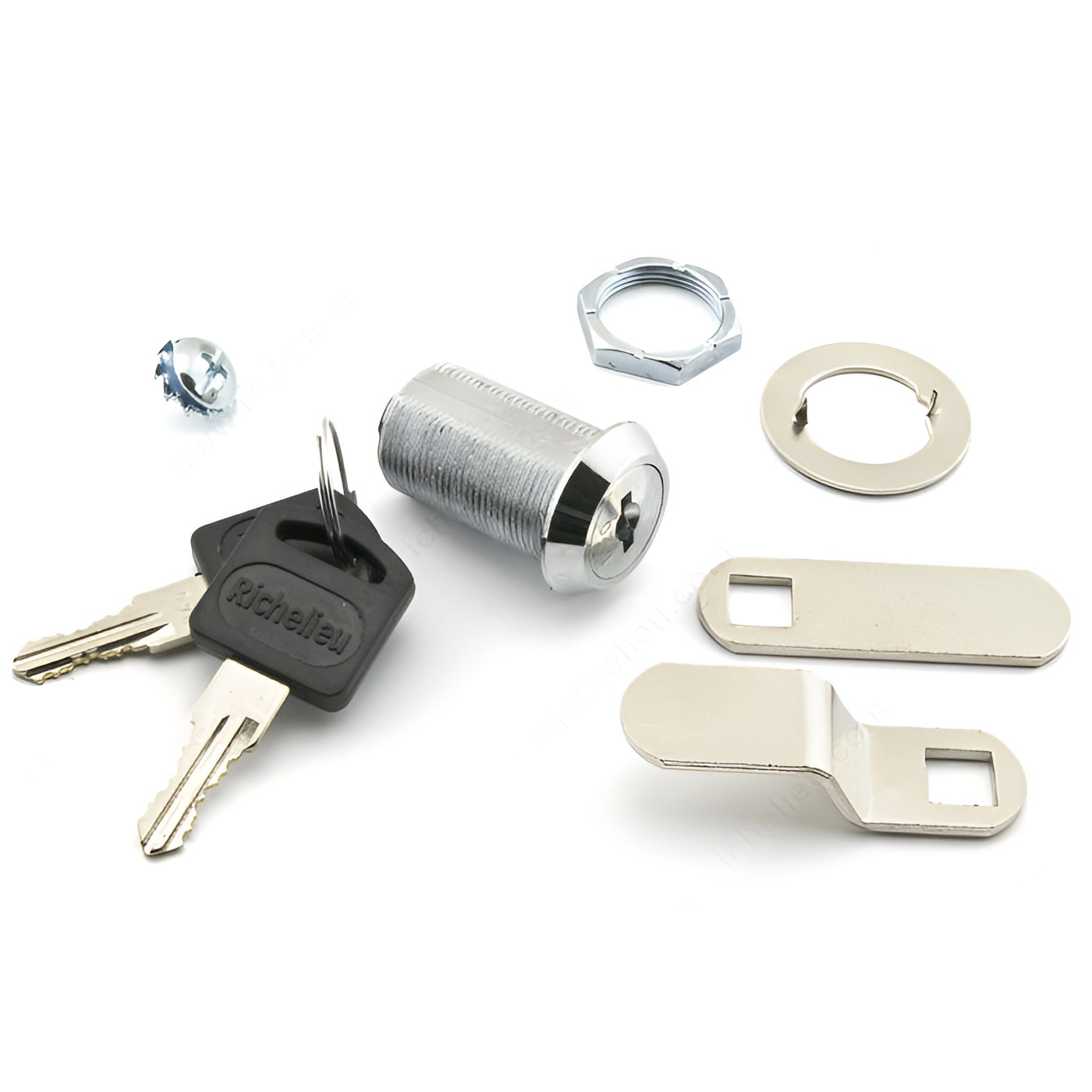

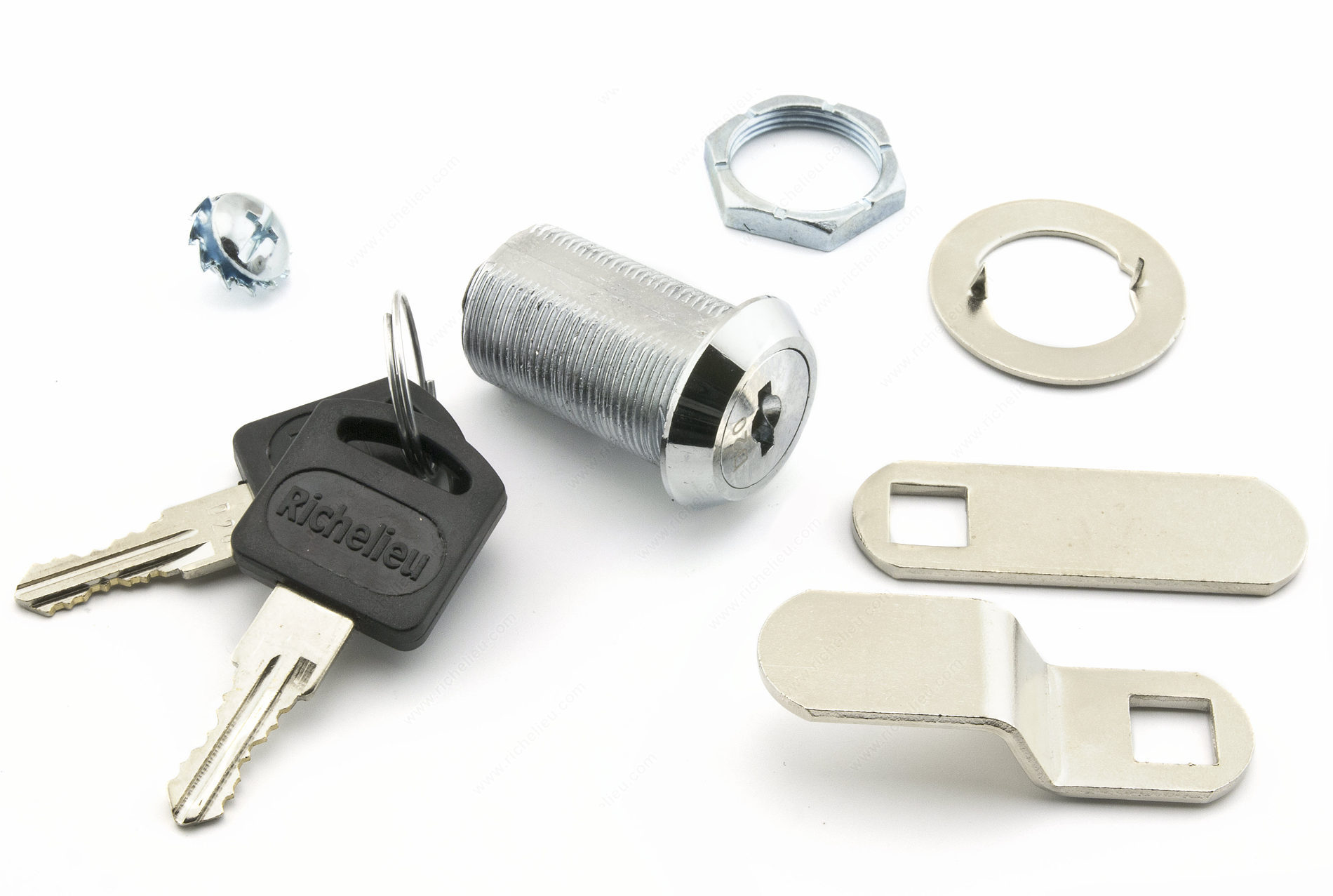

Richelieu BP140101140 Cam Lock for Panel Thickness up to 23 mm provides a secure and convenient solution for cabinet doors and drawers. Designed with versatility in mind, this cam lock is ideal for single drawer applications, ensuring that your belongings are kept safe while allowing easy access when needed. Constructed from durable zinc alloy with a sleek chrome finish, the lock not only enhances security but also adds a polished look to your furniture. The cylinder diameter measures 3/4 inch and the cylinder length is 1 3/16 inch, making it suitable for panel thicknesses ranging from 3/32 to 29/32 inch. With a cam length of 1 37/64 inch and an offset cam cranked height of 3/8 inch, it is designed for effective engagement and reliability. The BP140101140 features a standard security level with a reversible position for flexible installation. The key type is keyed alike #1, allowing for ease of use across multiple locks. With a 90-degree key turn degree, locking and unlocking is straightforward and efficient. This product is RoHS certified, ensuring compliance with environmental standards. Choose Richelieu for a blend of security, style, and functionality in your cabinetry.
Cam Lock for Panel Thickness up to 23 mm
Application: Single Drawer
Brand: Richelieu
Cam Length (from center): 40 mm
Cam Lock - Length to Axis: 40 mm
Cylinder Diameter: 19 mm
Cylinder Length: 30 mm
Finish: Chrome
Furniture Material: Wood
Key No.: D20
Key Turn Degree: 90°
Key Type: Keyed Alike #1
Material: Zinc Alloy
Mechanism Type: Wafer
Offset Cam - Cranked: 12 mm
Offset Cam - Height: 9.5 mm
Panel Thickness: Max. 23 mm
Position: Reversible
Product #: BP140101140
Product number: BP140101140
Product №: BP140101140
Security Level: Standard
Standards and Certifications: RoHS
Supplier Key No.: D20
Types of Locks: Cam Locks
Unit: Bag
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 50
Unit 4: master case - 200
Use: Single Drawer
