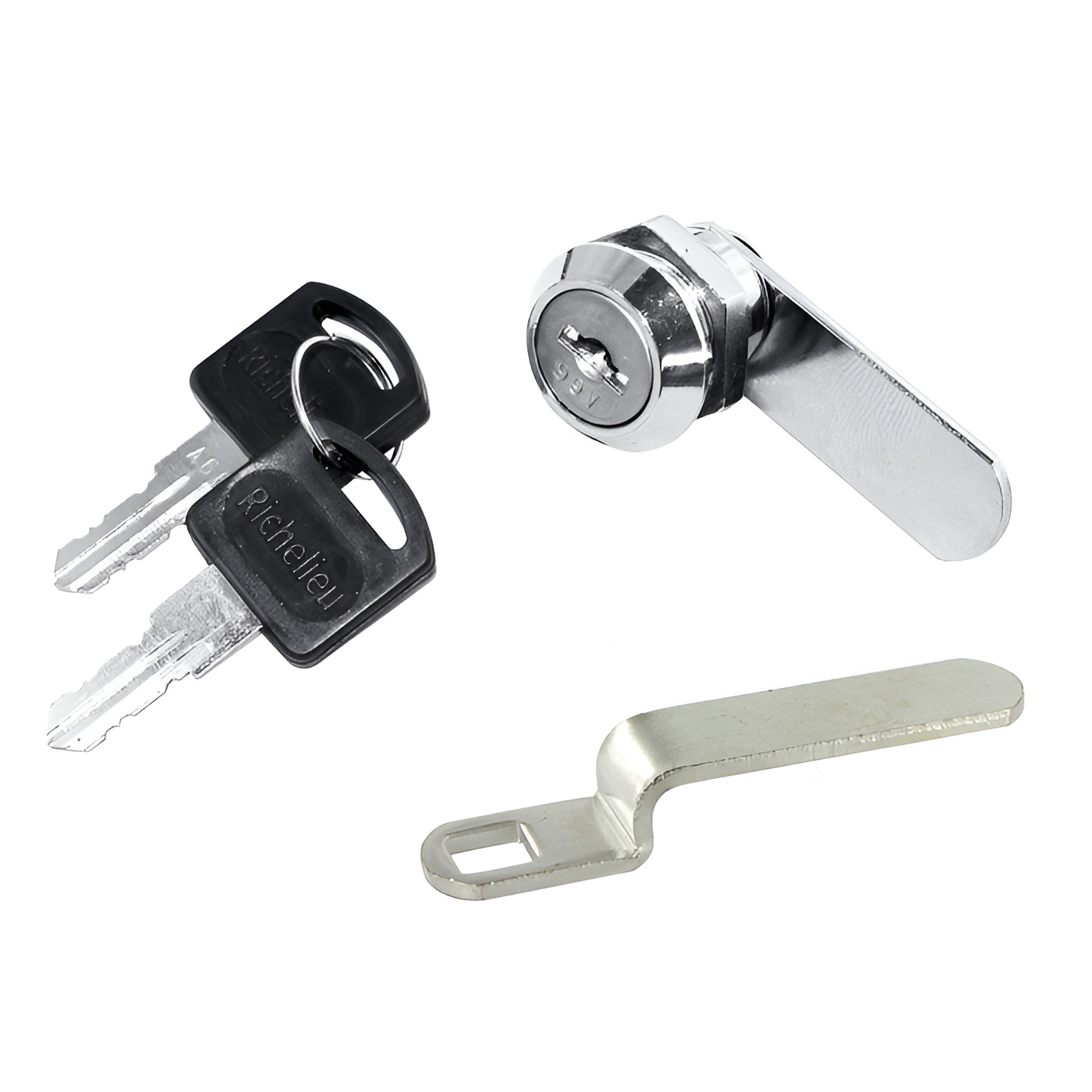

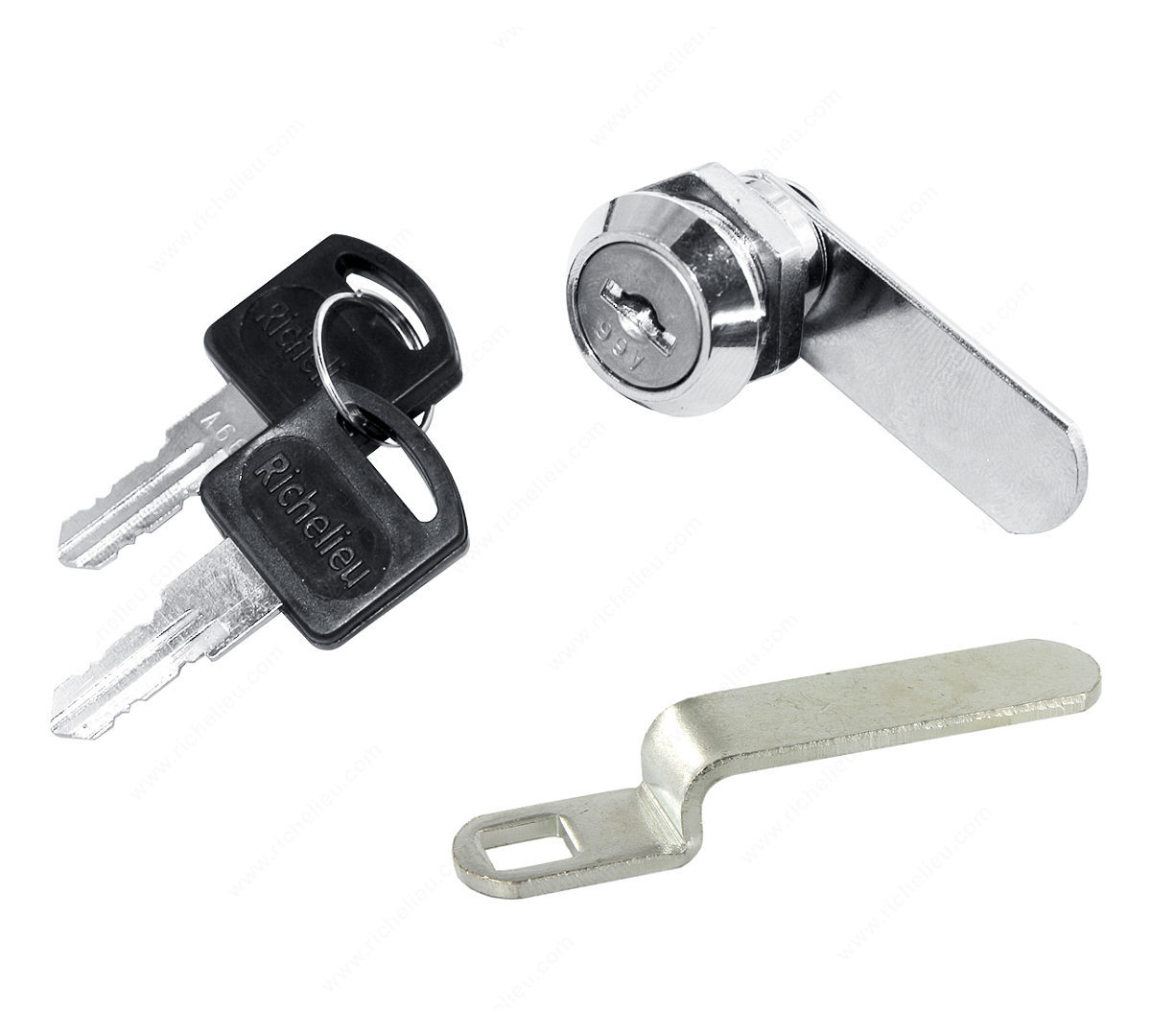

Richelieu BP140702140 Cam Lock for Panel Thickness up to 12 mm offers a reliable solution for securing cabinet doors and drawers, providing an ideal blend of security and convenience. Designed for single drawer applications, this cam lock features a durable zinc alloy construction with a sleek chrome finish, ensuring both functionality and aesthetic appeal. With a cam length of 1 9/16 inches and a cylinder diameter of 3/4 inch, the BP140702140 is engineered to accommodate panel thicknesses ranging from 3/32 to 15/32 inches, making it versatile for various furniture designs. The lock operates with a 90° key turn and utilizes a disc mechanism for enhanced security, rated at a standard level. The keyed alike #2 configuration simplifies access, allowing for seamless use across multiple drawers or cabinets. Additionally, the reversible position feature enhances installation flexibility, while adhering to RoHS standards guarantees compliance with safety regulations. Whether you're a building professional or a knowledgeable homeowner, trust Richelieu’s cam lock to secure your valuable possessions with style and reliability. Designed for easy shipping via UPS, the BP140702140 is a practical choice for any cabinetry project.
Cam Lock for Panel Thickness up to 12 mm
Application: Single Drawer
Brand: Richelieu

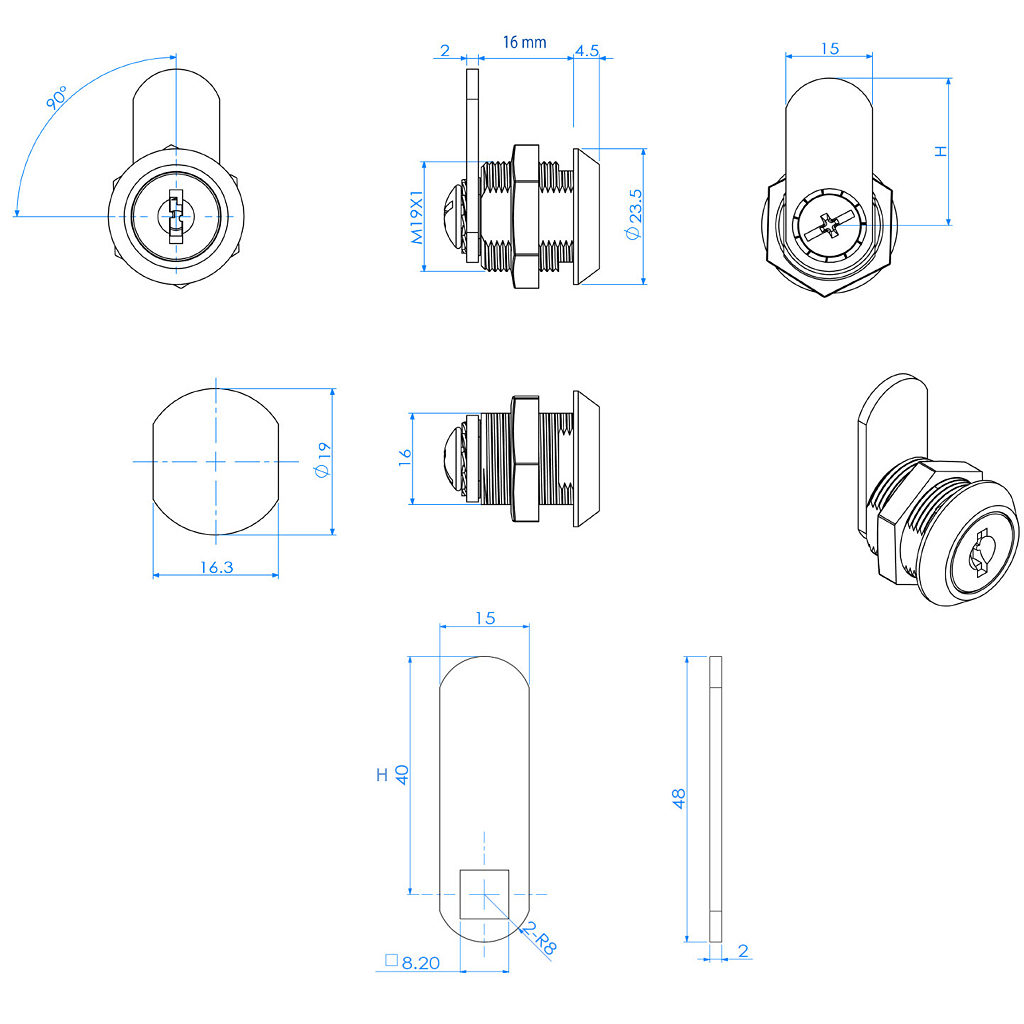

Cam Length (from center): 40 mm
Cylinder Diameter: 19 mm
Cylinder Length: 16 mm
Finish: Chrome
Furniture Material: Wood
Key No.: F20
Key Turn Degree: 90°
Key Type: Keyed Alike #2
Material: Zinc Alloy
Mechanism Type: Wafer
Panel Thickness: Max. 12 mm
Position: Reversible
Product #: BP140702140
Product number: BP140702140
Product №: BP140702140
Security Level: Standard
Standards and Certifications: RoHS
Supplier Key No.: F20
Types of Locks: Cam Locks
Unit: Bag
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 100
Unit 4: master case - 200
Use: Single Drawer
