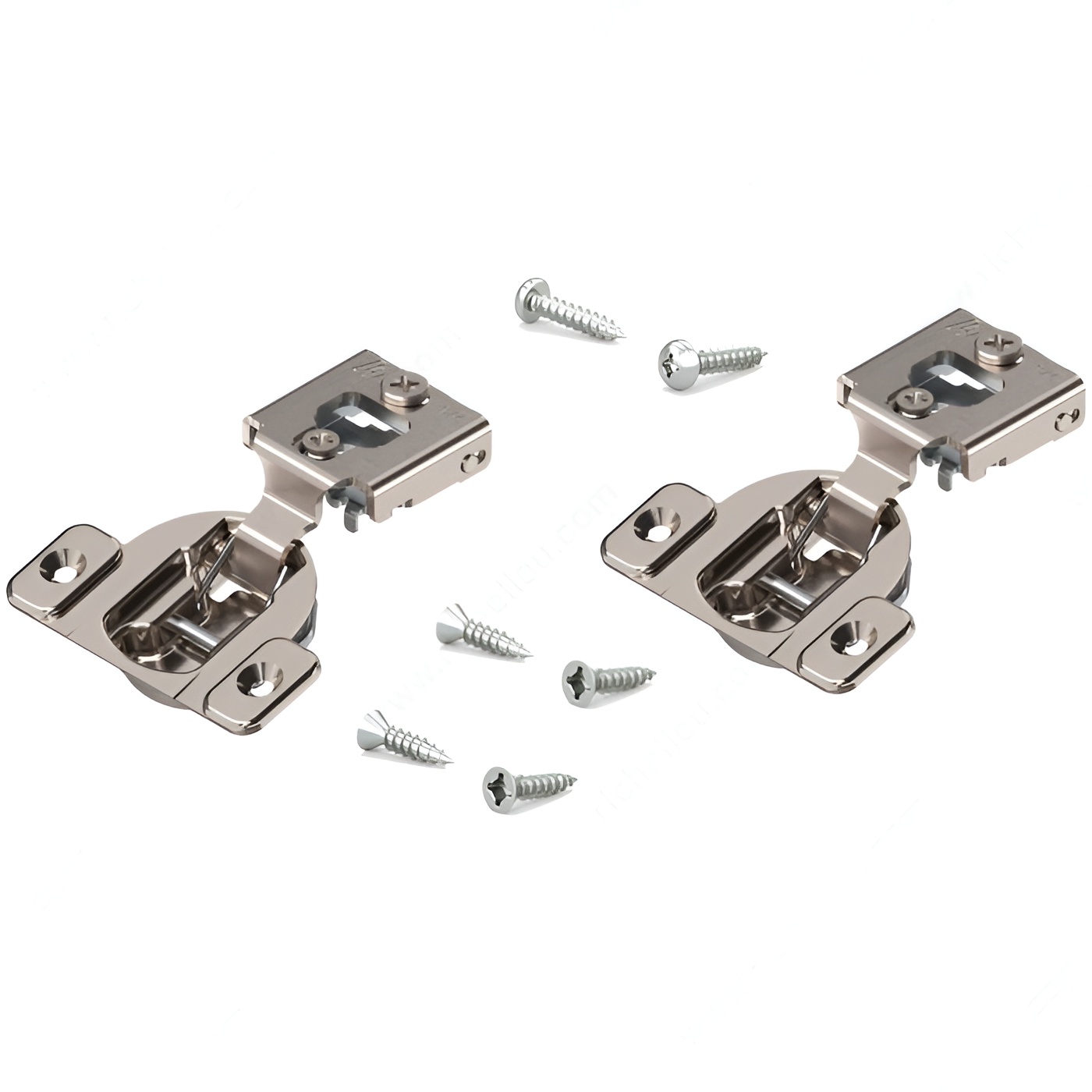

Richelieu BP38N35512180S COMPACT 38N Hinge 105 offers a seamless solution for face frame cabinets, combining functionality with ease of use. These concealed hinges are designed for both small and large overlays, making them suitable for a variety of cabinetry applications. With an adjustable design that allows for side, height, and depth adjustments, they ensure a perfect fit for your projects. Constructed from durable steel, the hinge supports a maximum cabinet and door thickness of 3/4 inch, making it robust enough for standard doors. The hinge opening angle of +105° provides ample access, enhancing the user experience. Each hinge features a spring closing mechanism, ensuring that doors close securely and smoothly every time. This product comes with a wrap-around mount for straightforward installation and includes a plate and screws for added convenience. Packaged in bags of two units, the Richelieu BP38N35512180S is a reliable choice for builders and homeowners alike looking for quality and performance. With a milling depth of 7/16 inch and a diameter of 1 3/8 inch, this hinge is designed for precision. Elevate your cabinetry with this essential component that combines innovation and practicality.
COMPACT 38N Hinge 105
Brand: Blum
Cabinet Thickness: Max. 3/4 in*
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Half Overlay
Door Thickness: Max. 3/4 in
Fixing Type: Screw-On
Hinge Opening Angle: +105°
Hinge Type: COMPACT
Material: Steel
Mechanism: Spring Closing
Milling Depth: 7/16 in
Milling Diameter: 35 mm

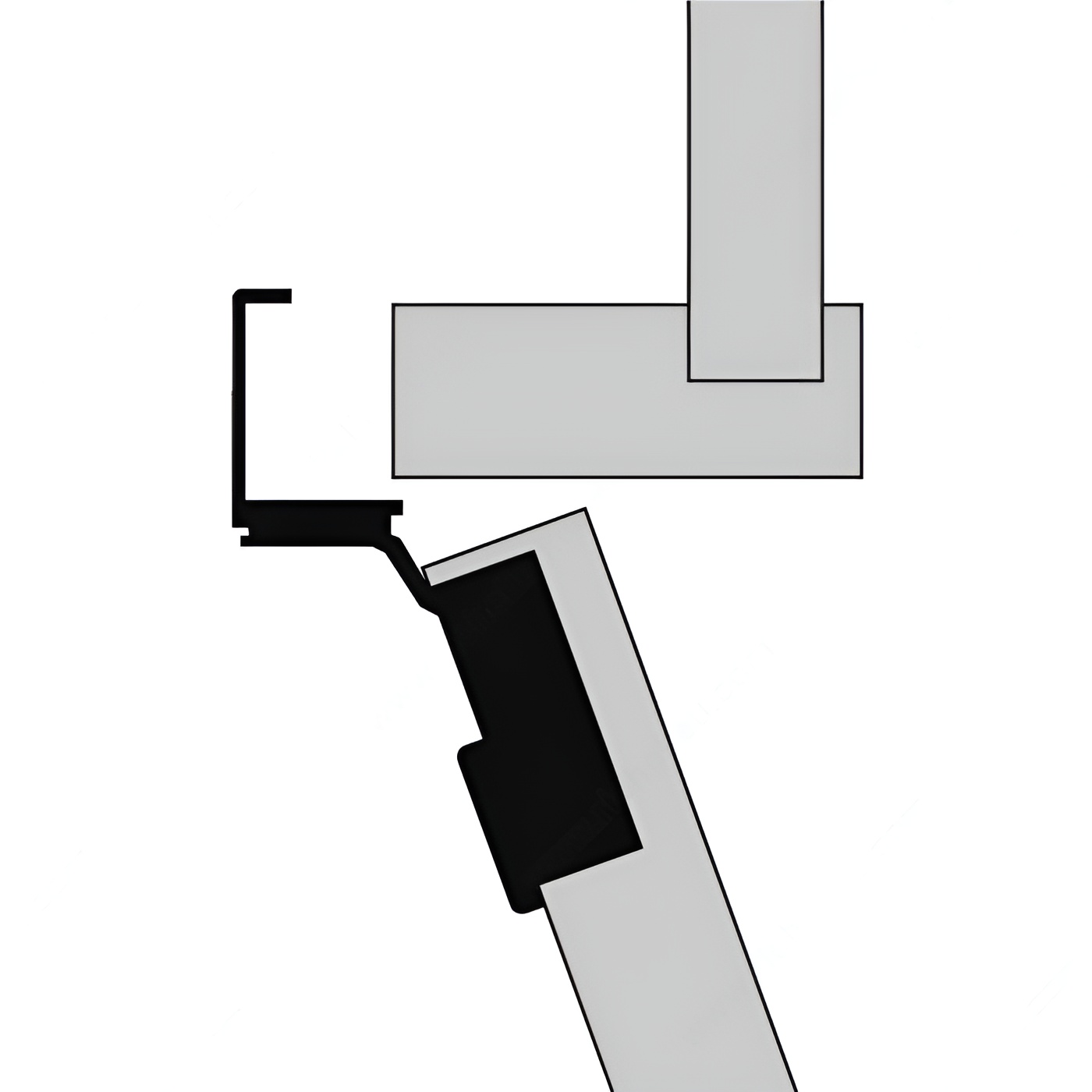

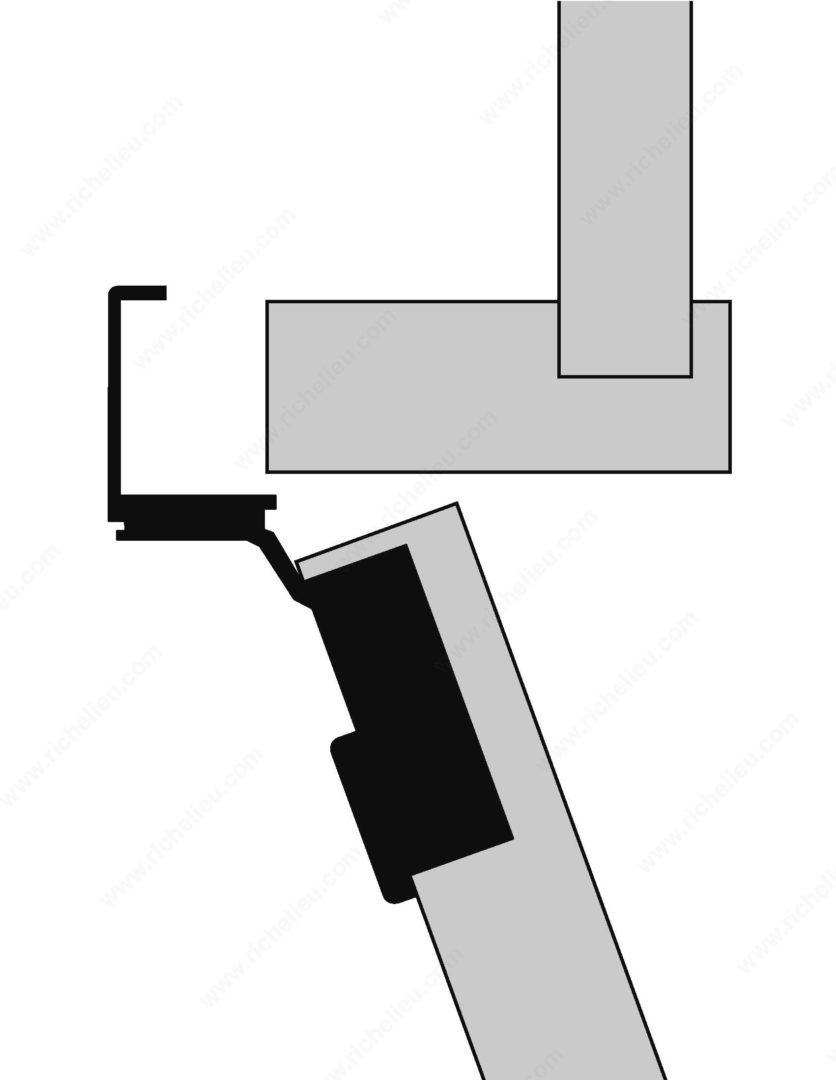

Mounting Type: Wrap-around Mount
Overlay: 3/4 in
Packaging format: Bag of 2 units

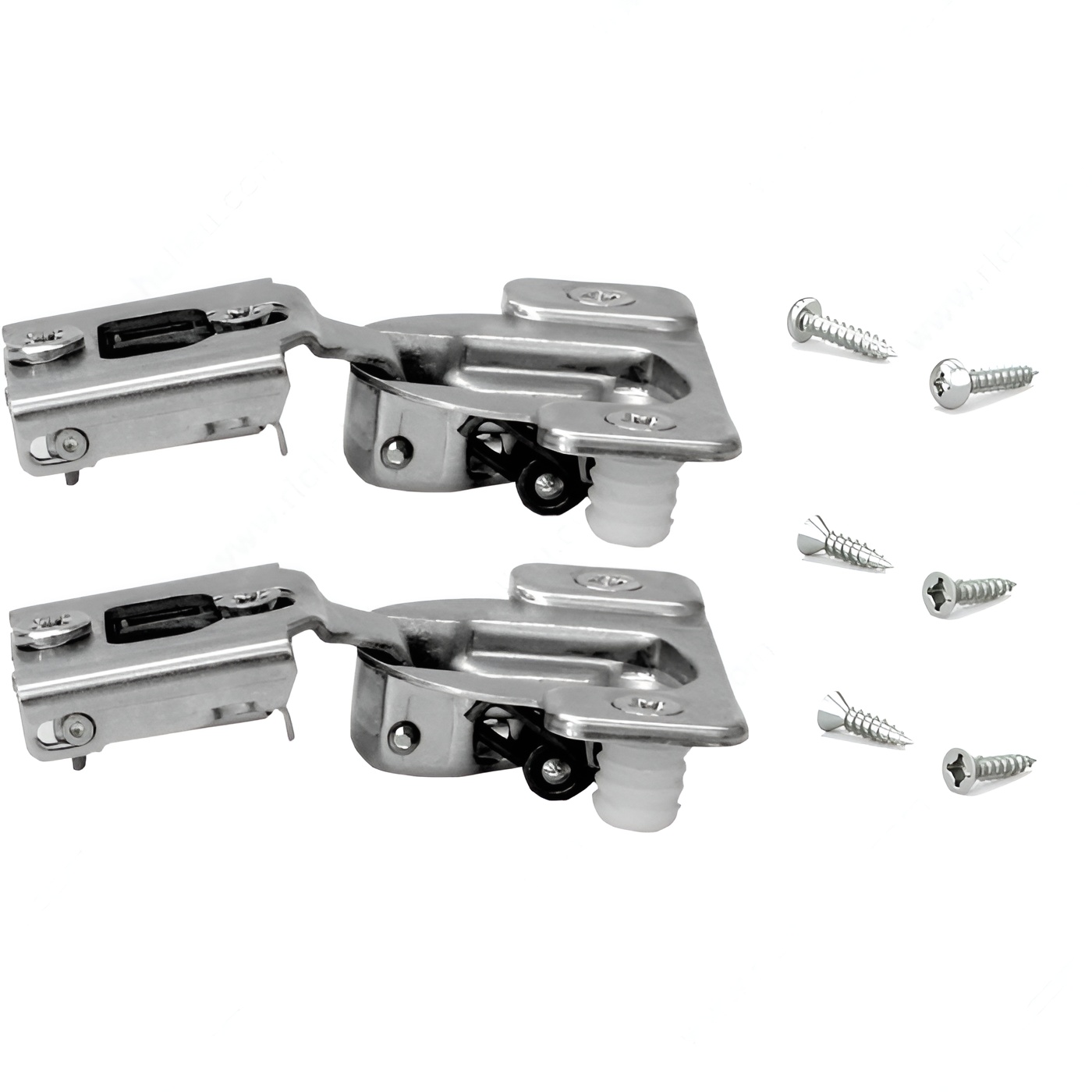

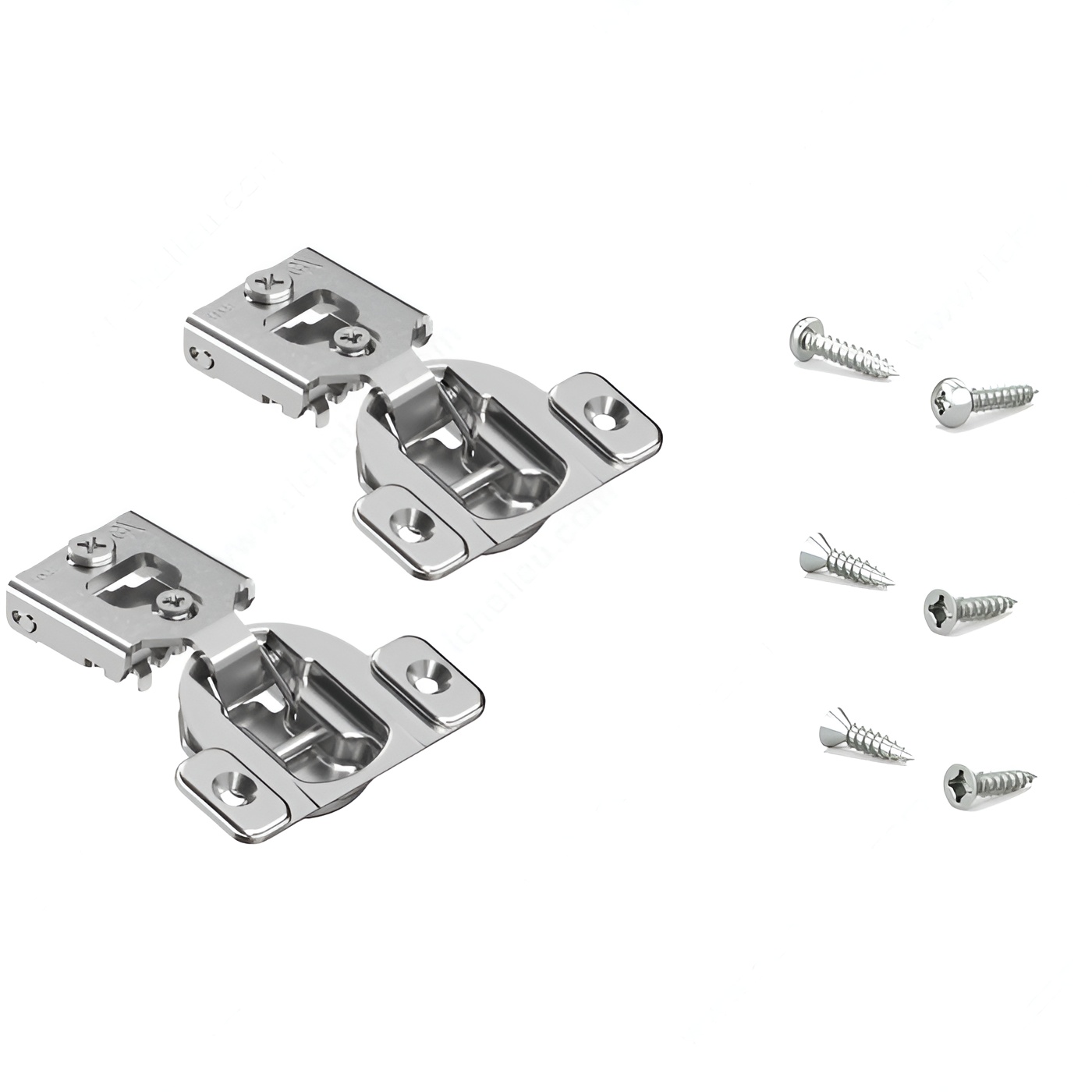

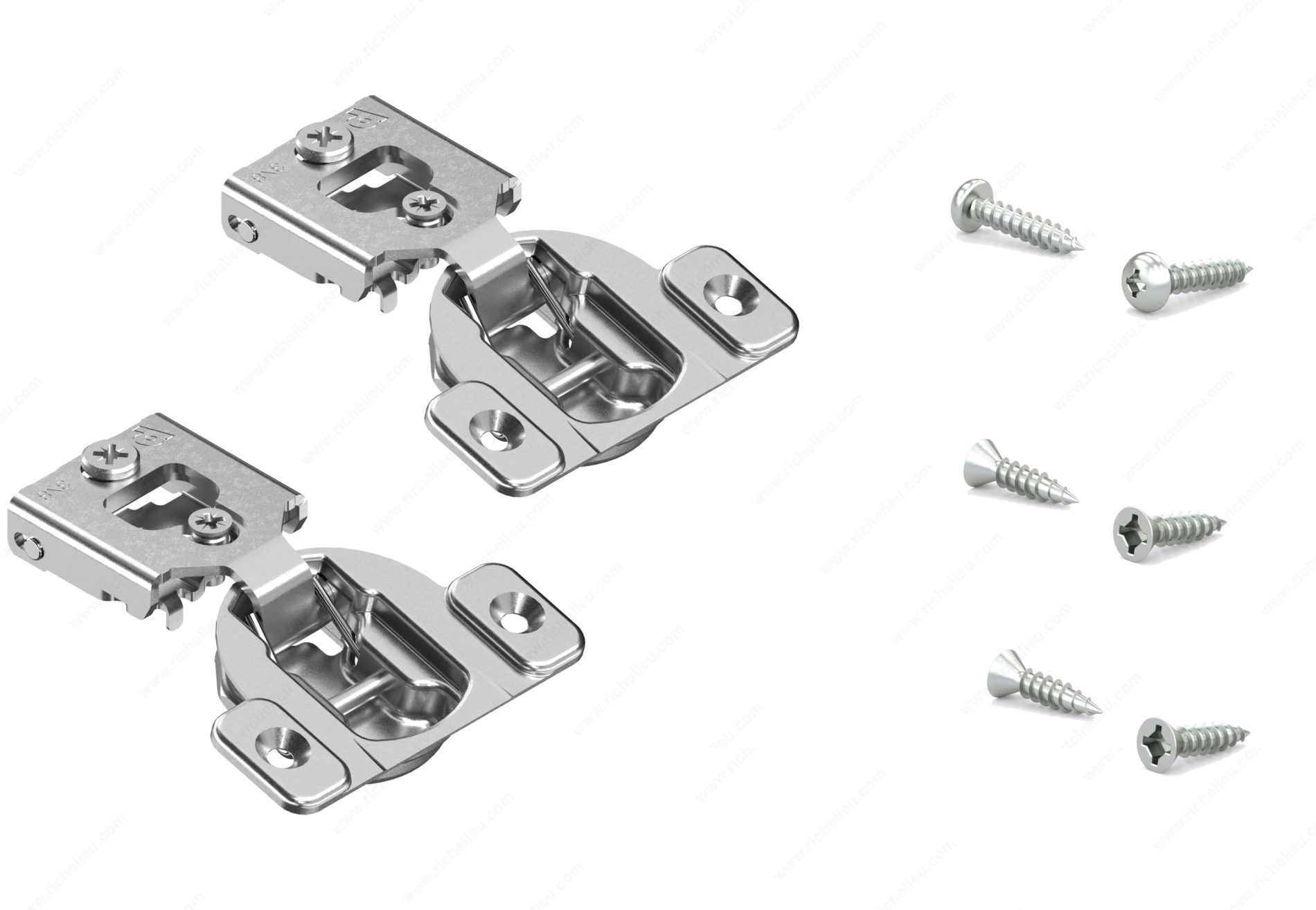

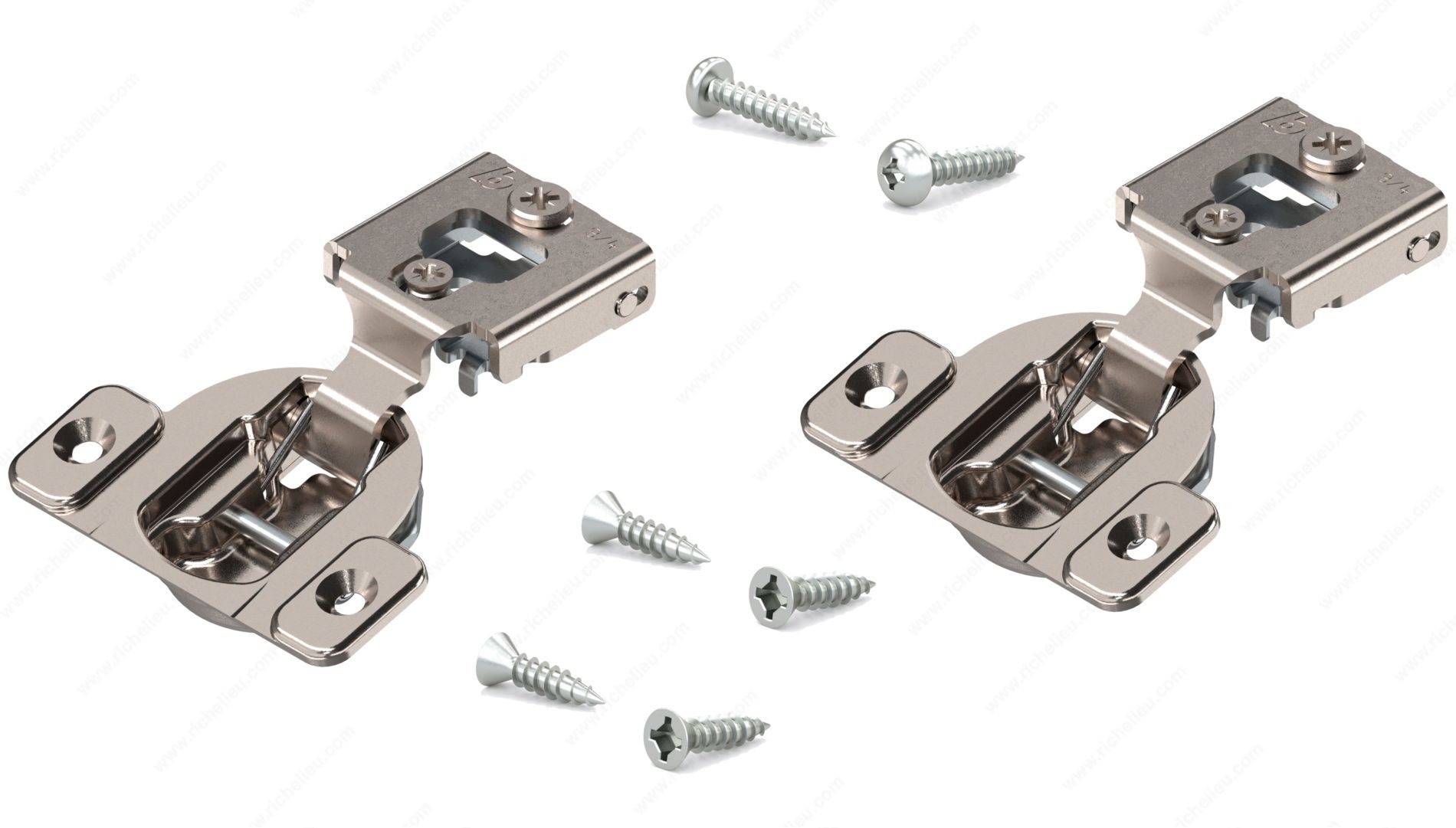

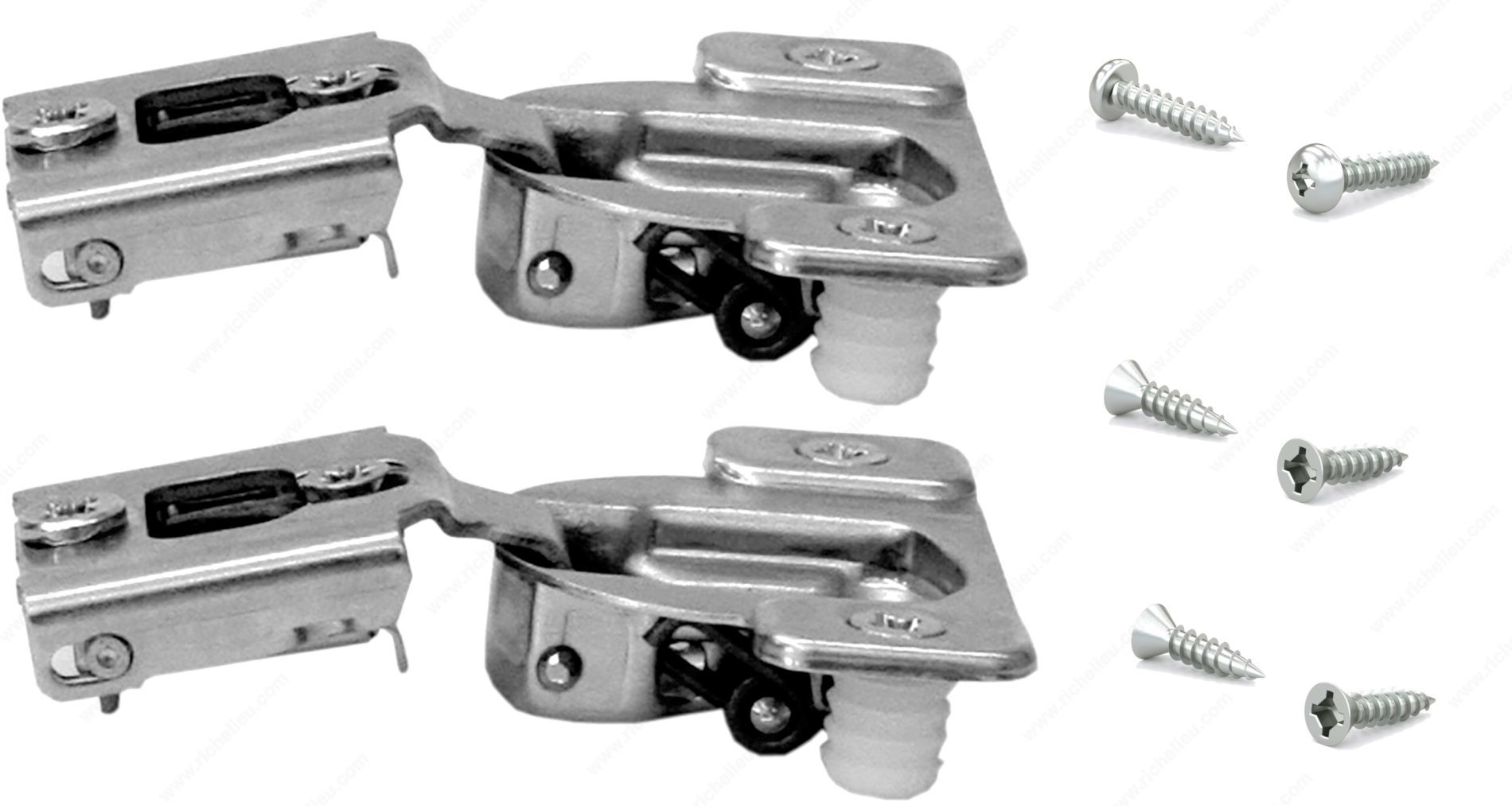

Plate Included: Yes
Product #: BP38N35512180S
Product number: BP38N35512180S
Required Frame Width: 19 mm
Screw/ Nail: Included
Unit: Bag of 2 units
Unit 2: carton - 10
Unit 3: case - 120
Use Type: Standard Door
