Richelieu BP642021140 Single Door Cabinet Lock with Pin offers a secure and stylish solution for swinging glass doors. Designed for glass panels ranging from 5 mm to 6 mm in thickness, this lock ensures both functionality and aesthetic appeal. The cylinder lock features a 7/8 inch diameter and a length of 27/32 inches, making it an ideal fit for a variety of applications. Installation is straightforward, requiring a 25 mm (1 inch) hole fabrication in the glass, which can be achieved using the GT-STD1DI tool. The drilling diameter for this lock is 31/32 inches, accommodating a seamless fit for your cabinetry. Constructed from durable zinc alloy, this lock not only provides strength but also comes finished in a sleek chrome for a polished look. With a reversible stem of 27/32 inches (21 mm) and utilizing a #110 key type, the Richelieu BP642021140 offers both versatility and security. This product ships conveniently via UPS, allowing for easy delivery to your project site. Elevate your cabinetry with this reliable and elegant locking mechanism, perfect for both building professionals and discerning homeowners aiming for quality finishes.
Single Door Cabinet Lock with Pin

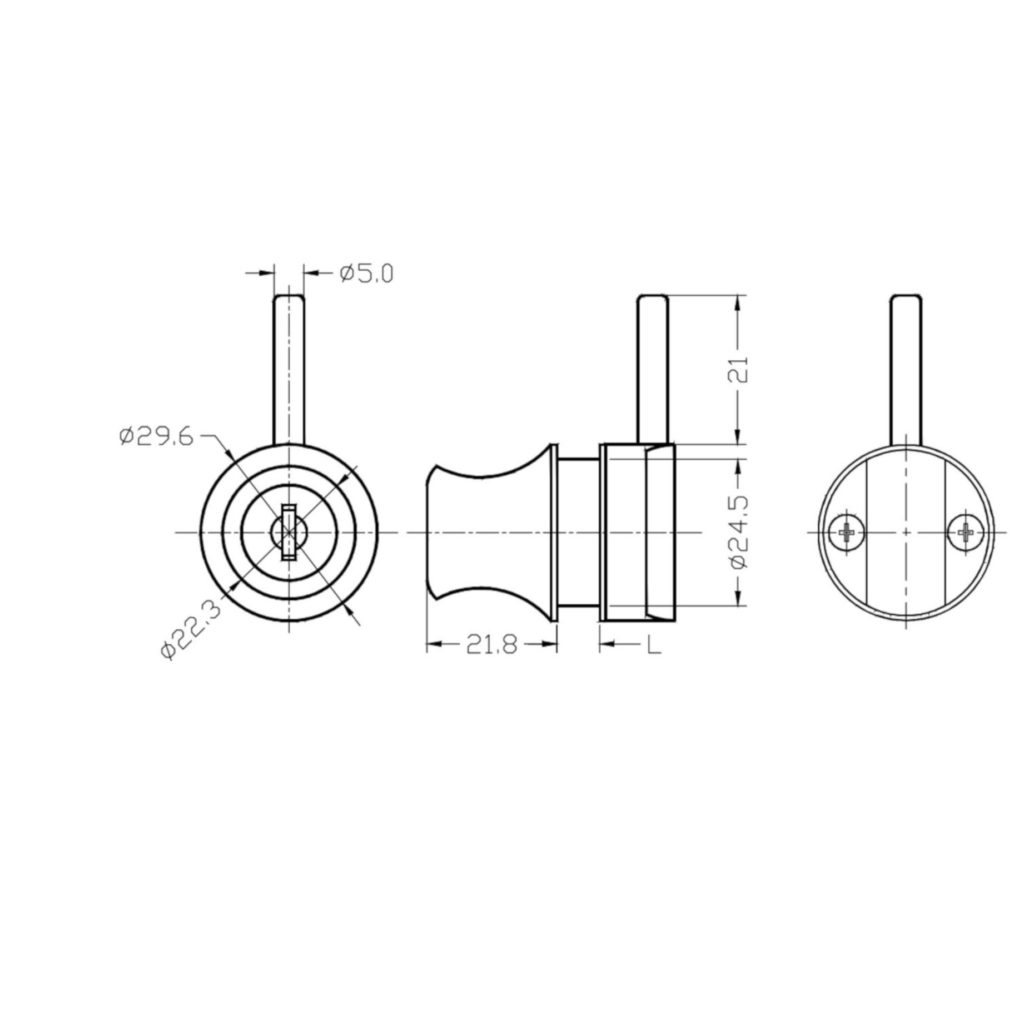

Cylinder Diameter: 22.3 mm
Cylinder Length: 21.8 mm
Drilling Diameter: 25 mm
Features: Reversible / Stem: 27/32 in (21 mm)
Finish: Chrome
Glass Thickness: 5 to 6 mm
Key Type: #110
Material: Zinc Alloy
Product #: BP642021140
Product number: BP642021140
Product №: BP642021140
Unit 1: carton - 20
Unit 2: case - 200
