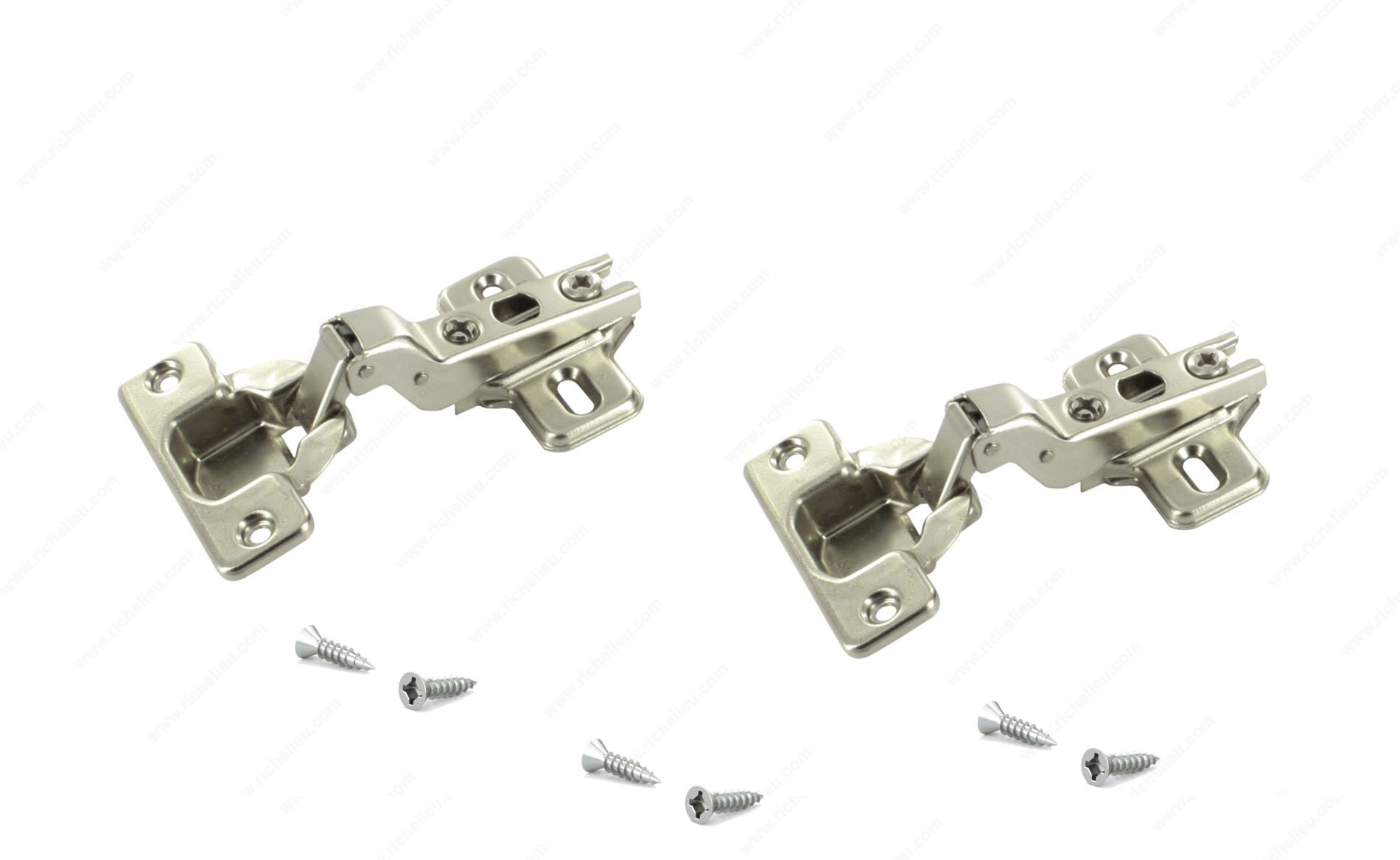

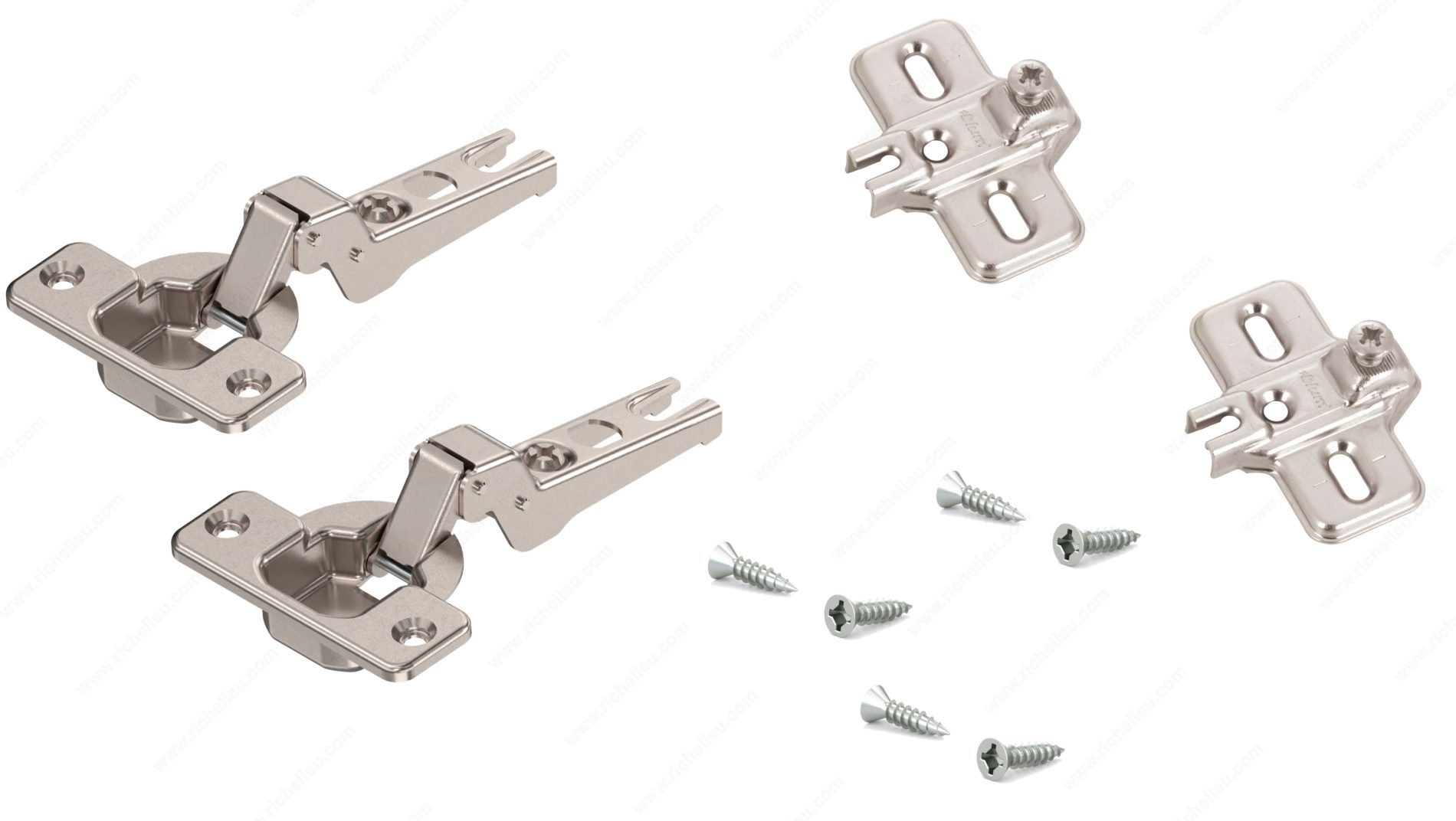

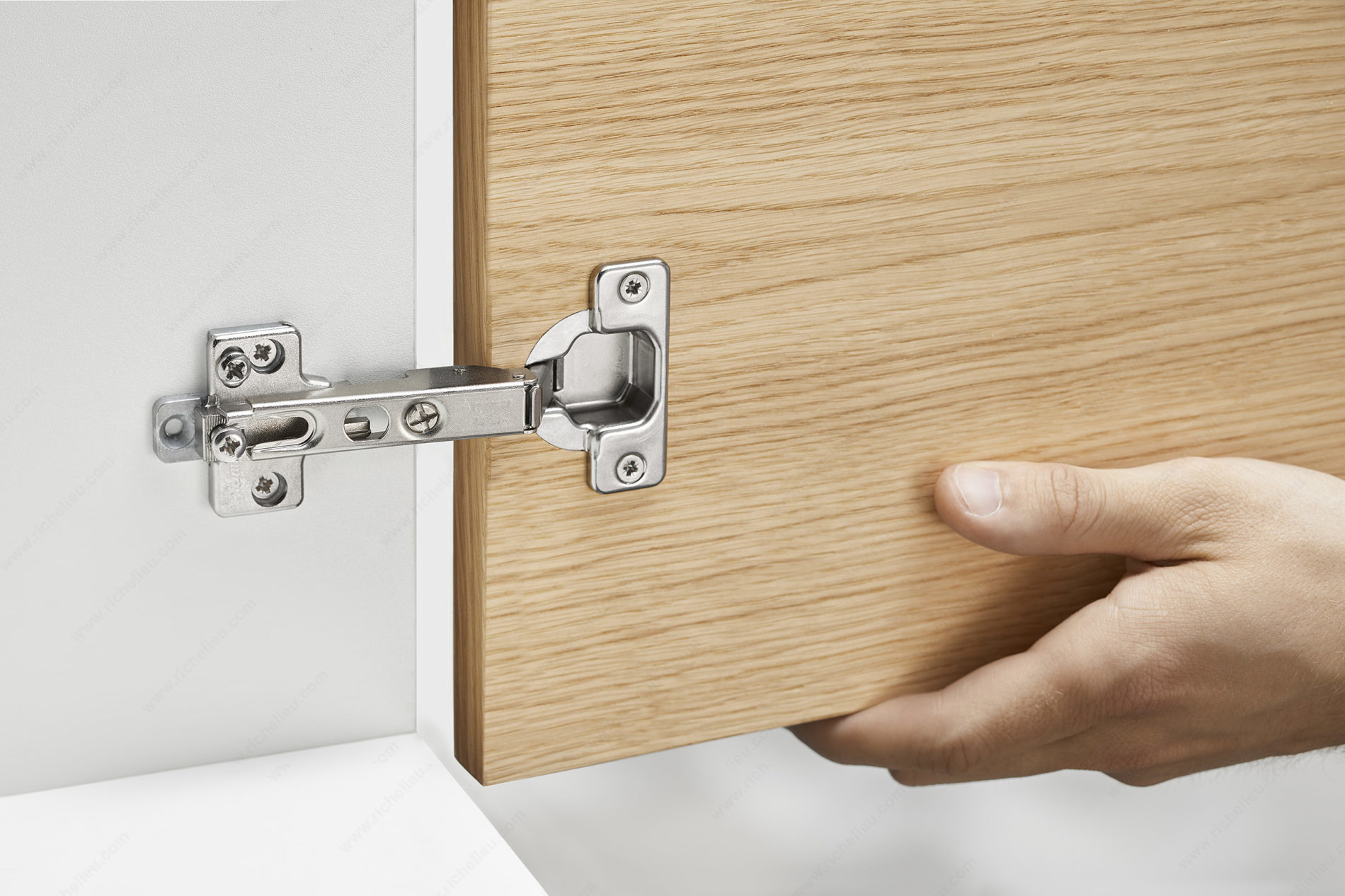

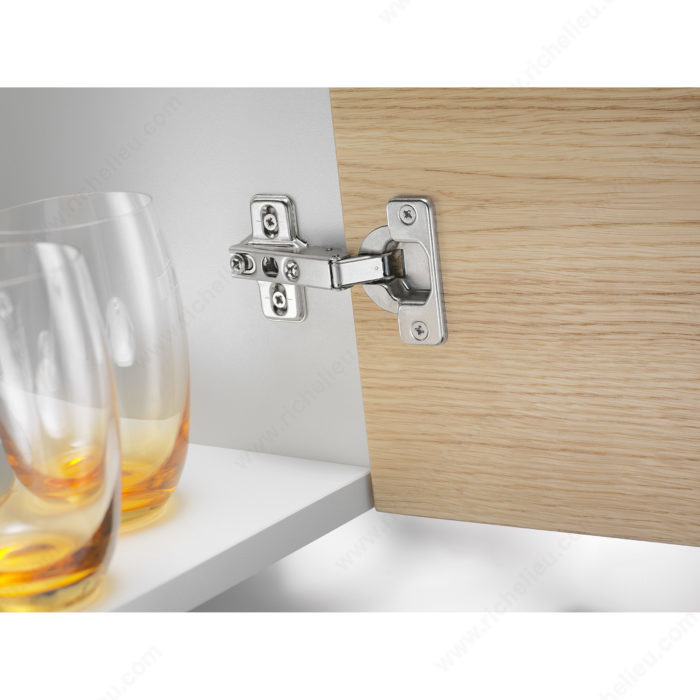

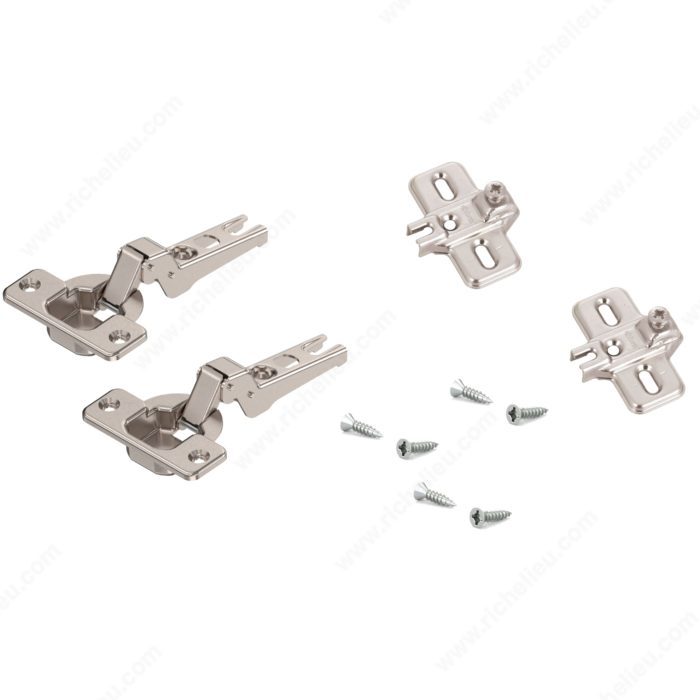

Richelieu BP91M26521180 MODUL Hinge is a versatile and reliable choice for furniture manufacturing, combining sliding and plug-in technology that has stood the test of time. This functional hinge is designed for frameless cabinets, accommodating door thicknesses of 5/8 inches and a minimum cabinet thickness of 5/8 inches, ensuring seamless integration into your projects. One of the standout features of this hinge is its short glide path, which simplifies the assembly process while promoting efficiency. The three-dimensional door adjustment allows for precise alignment, ensuring a balanced play pattern that enhances the overall function and aesthetics of your cabinetry. Additionally, the integrated unhooking safety device keeps the door securely in place during operation, providing extra peace of mind. The hinge opens at an impressive angle of +100°, making it suitable for standard doors. Crafted from durable steel with a spring-closing mechanism, the Richelieu MODUL Hinge is both sturdy and reliable. Each package contains two units, complete with screws for easy installation. Elevate your furniture projects with the proven performance and innovative design of the Richelieu BP91M26521180 MODUL Hinge.
MODUL Hinge - 100
Brand: Blum
Cabinet Thickness: Min. 16 mm

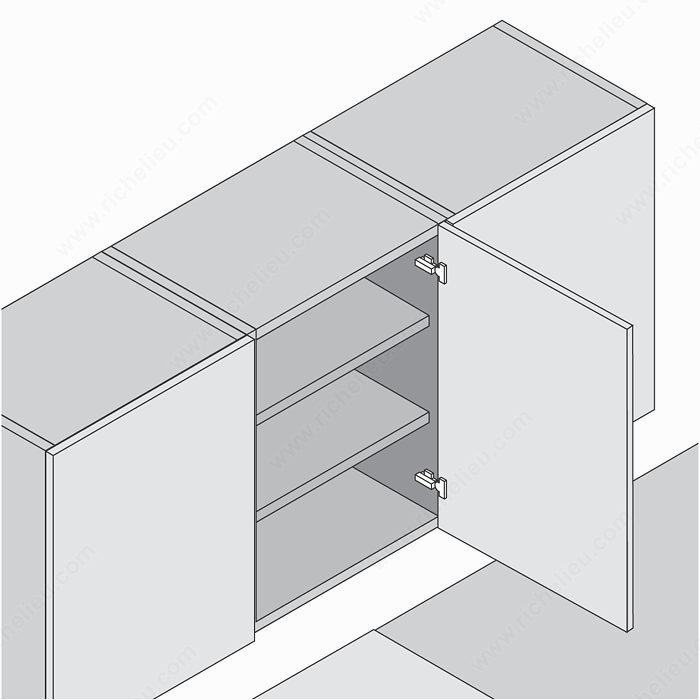

Cabinet Type: Frameless
Closing Mechanism: Spring Closing

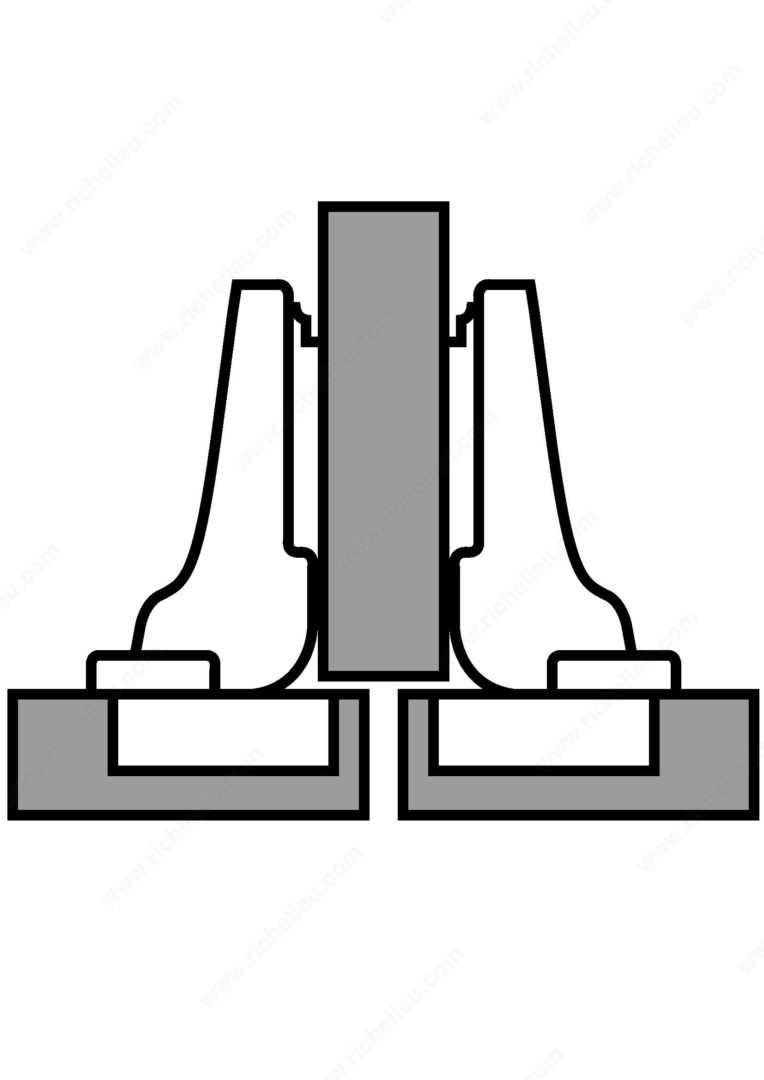

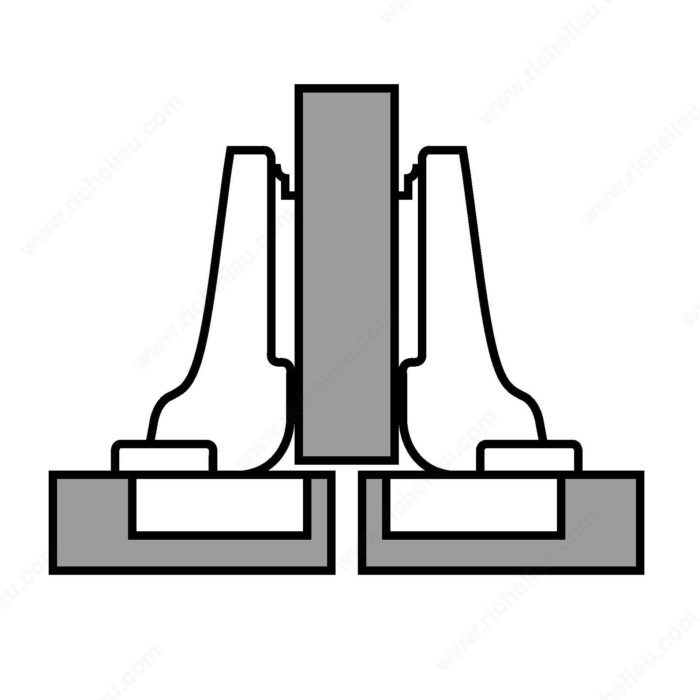

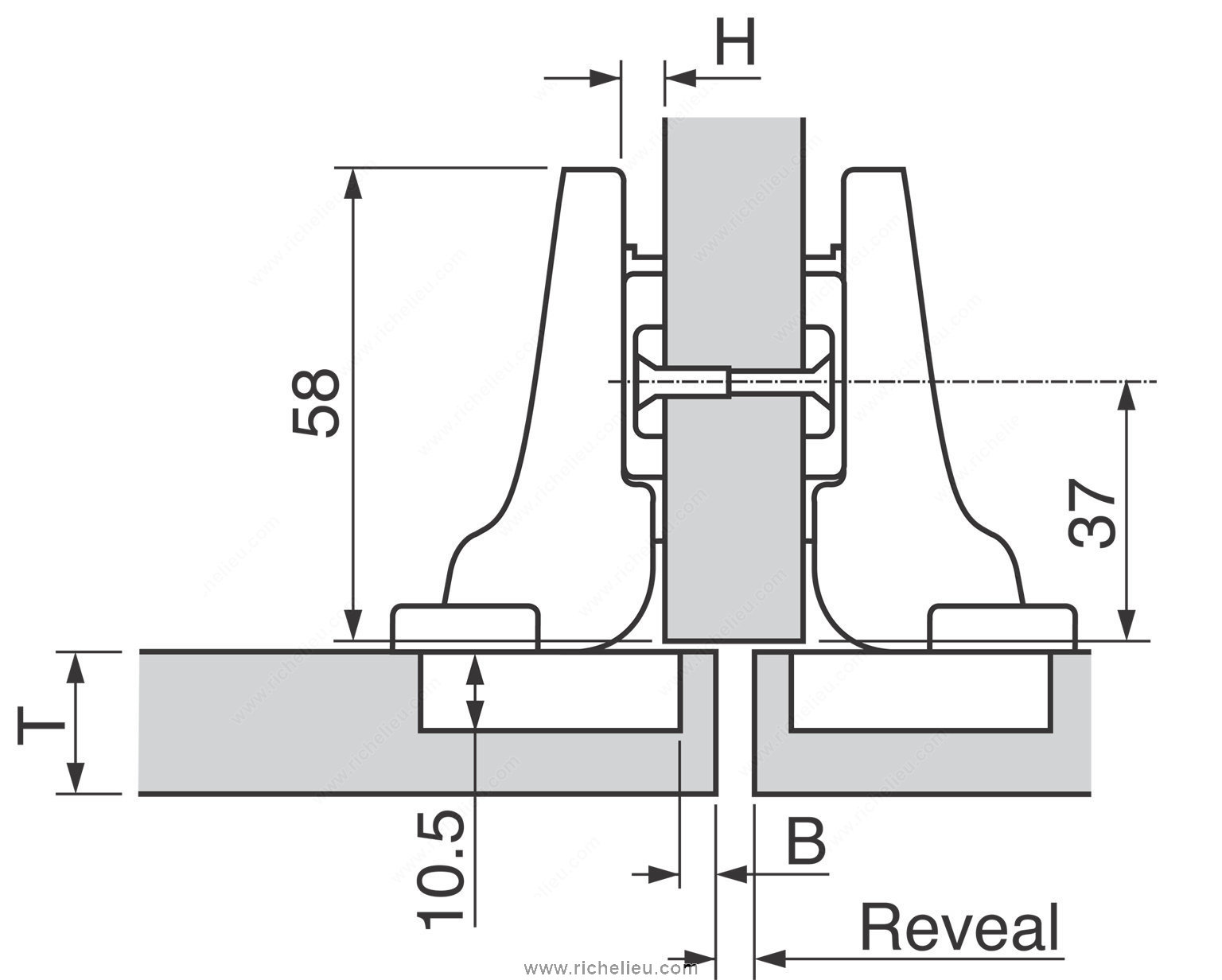

Door Position: Half Overlay
Door Thickness: 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +100°
Hinge Type: MODUL
Material: Steel
Mechanism: Spring Closing

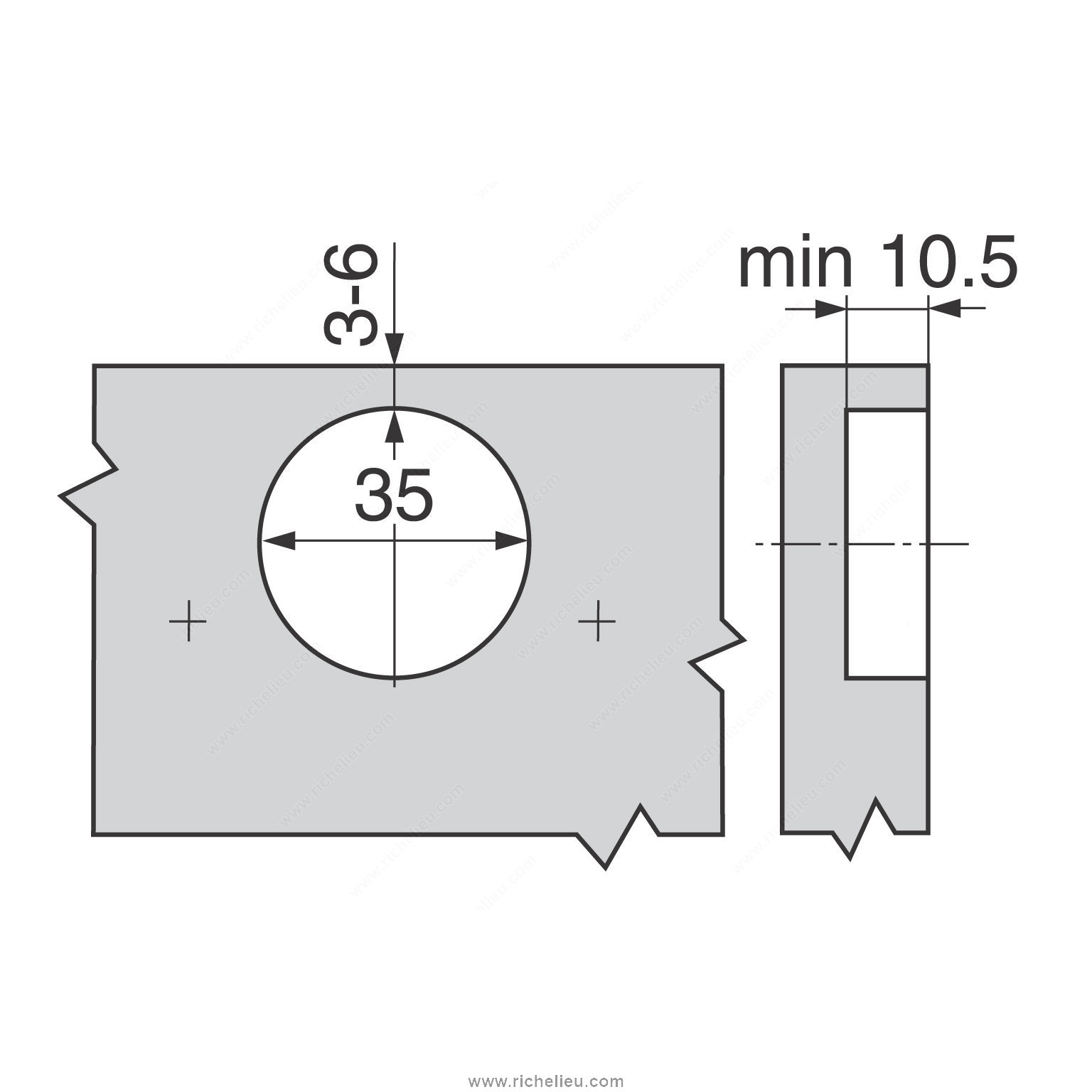

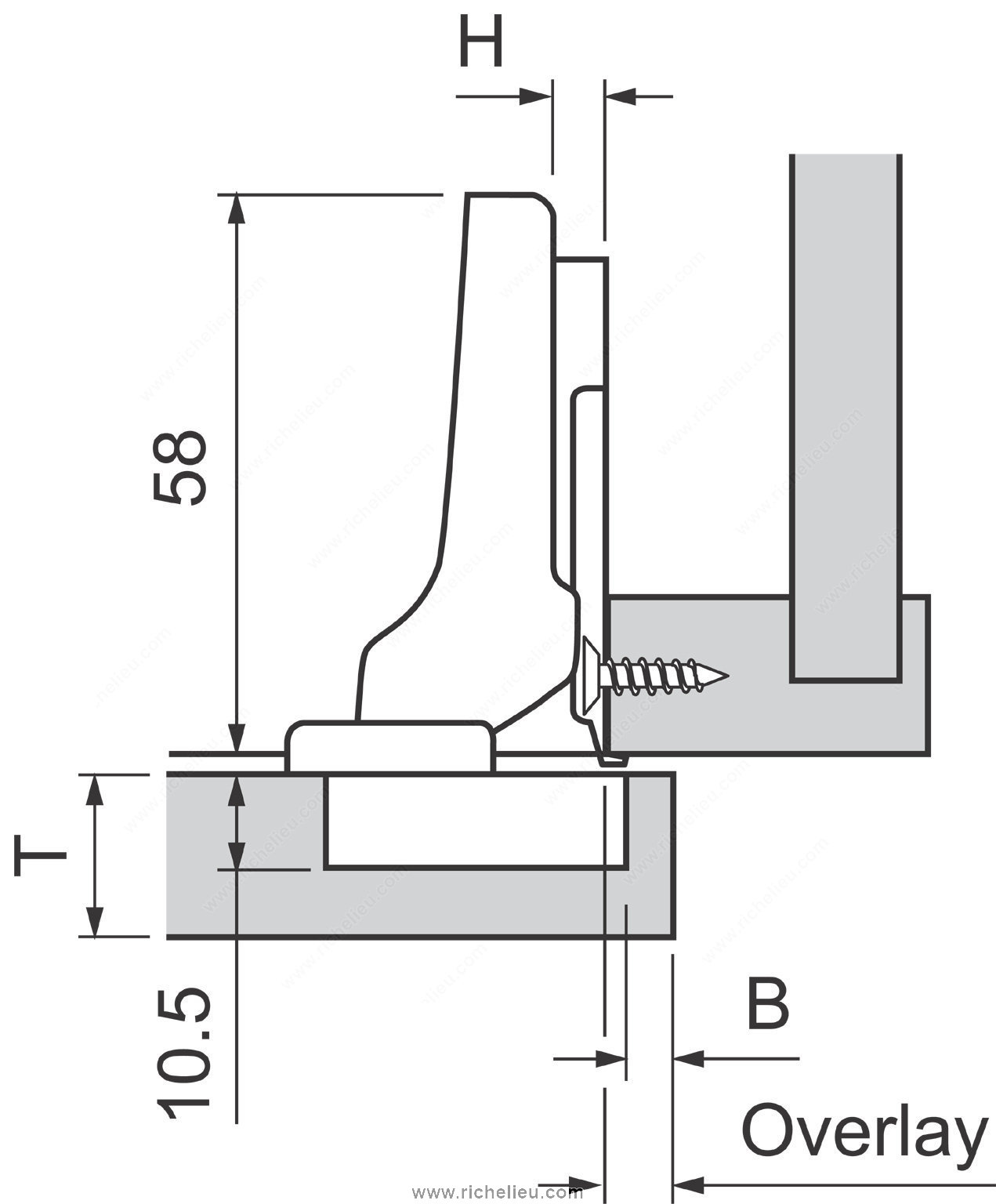

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: UPC Code

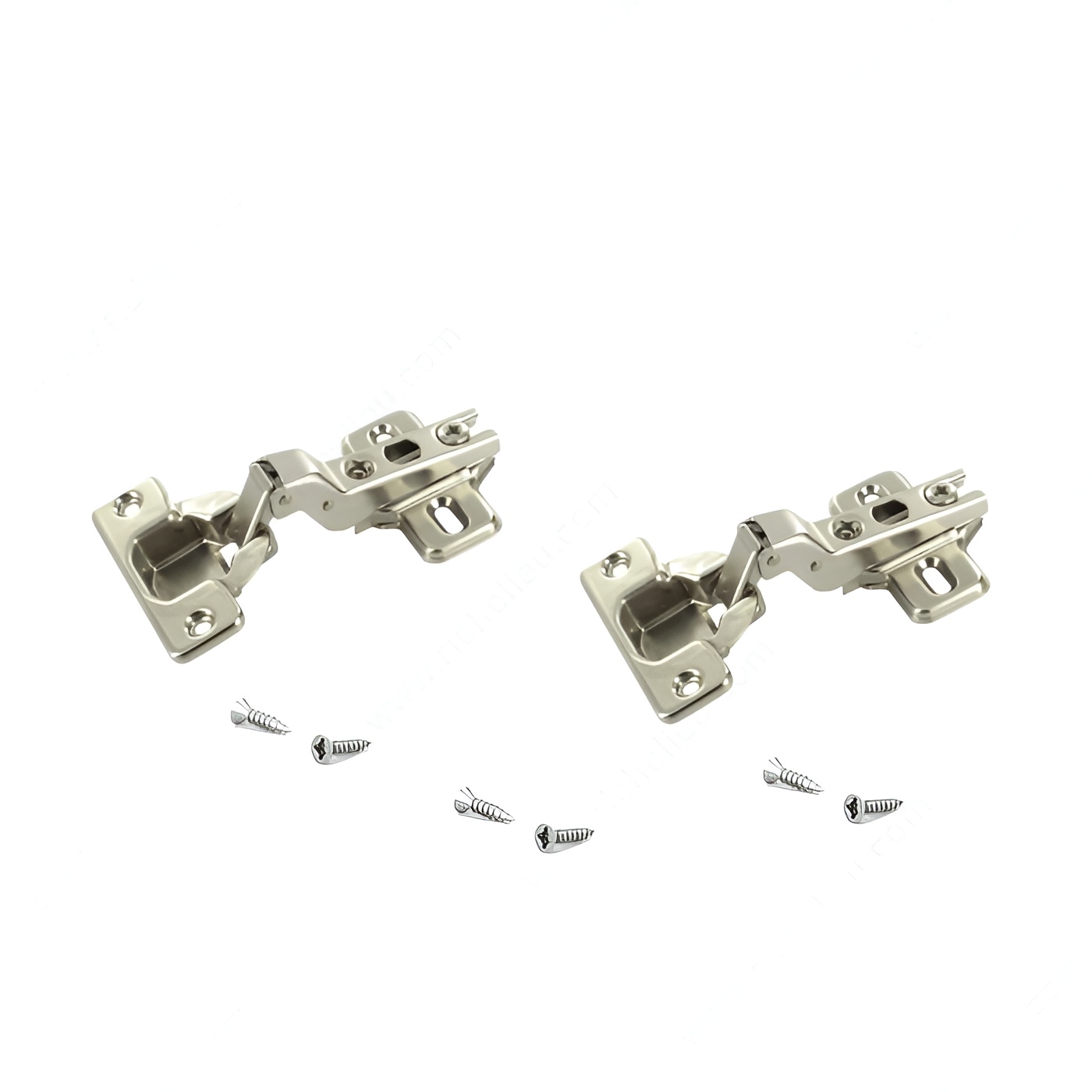

Packaging format: Bag of 2 units
Product #: BP91M26521180
Product number: BP91M26521180
Screw/ Nail: Included
Unit: Bag of 2 units
Unit 2: package - 10
Unit 3: case - 60
Use Type: Standard Door
