Richelieu 14648BC 146BC Bypass Door Hardware Kit with Track InstructionsRichelieu 14648BC 146BC Bypass Door Hardware Kit - with Track offers a comprehensive solution for installing bypass sliding doors in a variety of interior spaces. This all-in-one kit includes a durable sliding door track, adjustable floor guide, four dial-adjust door hangers, two brass-plated finger pulls, and all necessary fasteners, making installation straightforward and tool-efficient-requiring only a drill and screwdriver. Designed to accommodate door heights from 36 to 98 inches and thicknesses between 3/4 to 1 3/8 inches, this kit is versatile enough for different applications, including closets, wardrobes, and bathrooms. The track, made from corrosion-resistant galvanized steel, is perfect for humid environments, ensuring longevity and reliability. With a maximum load capacity of 60 pounds, it is built to support two doors, each with a width of up to 24 inches. The bypass mechanism allows for smooth, straight sliding movement, ideal for tight spaces where traditional hinged doors cannot fit. Additionally, this kit provides an effective replacement option for older bypass doors. With its attractive zinc finish and robust construction, the Richelieu Bypass Door Hardware Kit enhances both the functionality and aesthetics of your home.
146BC Bypass Door Hardware Kit - with Track

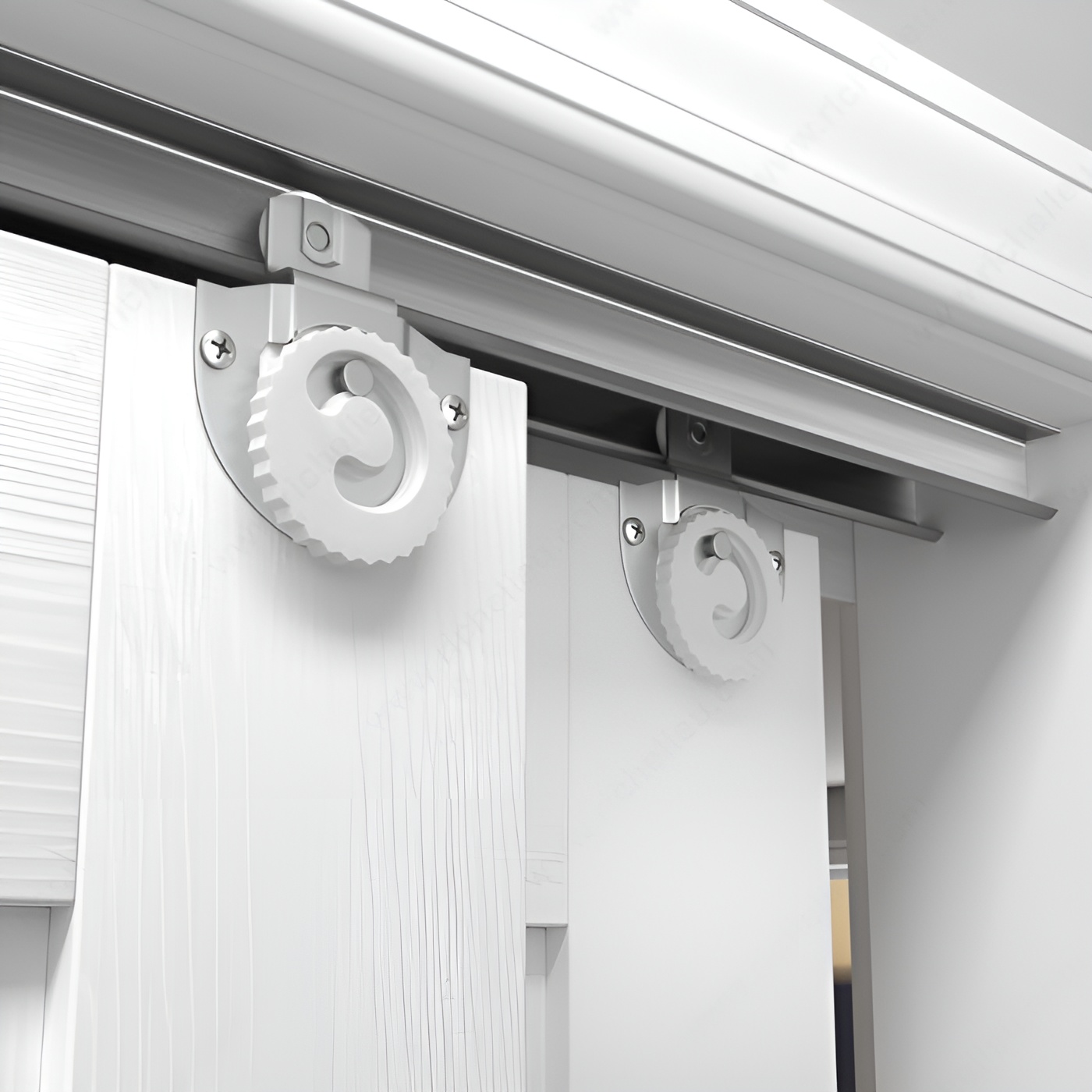

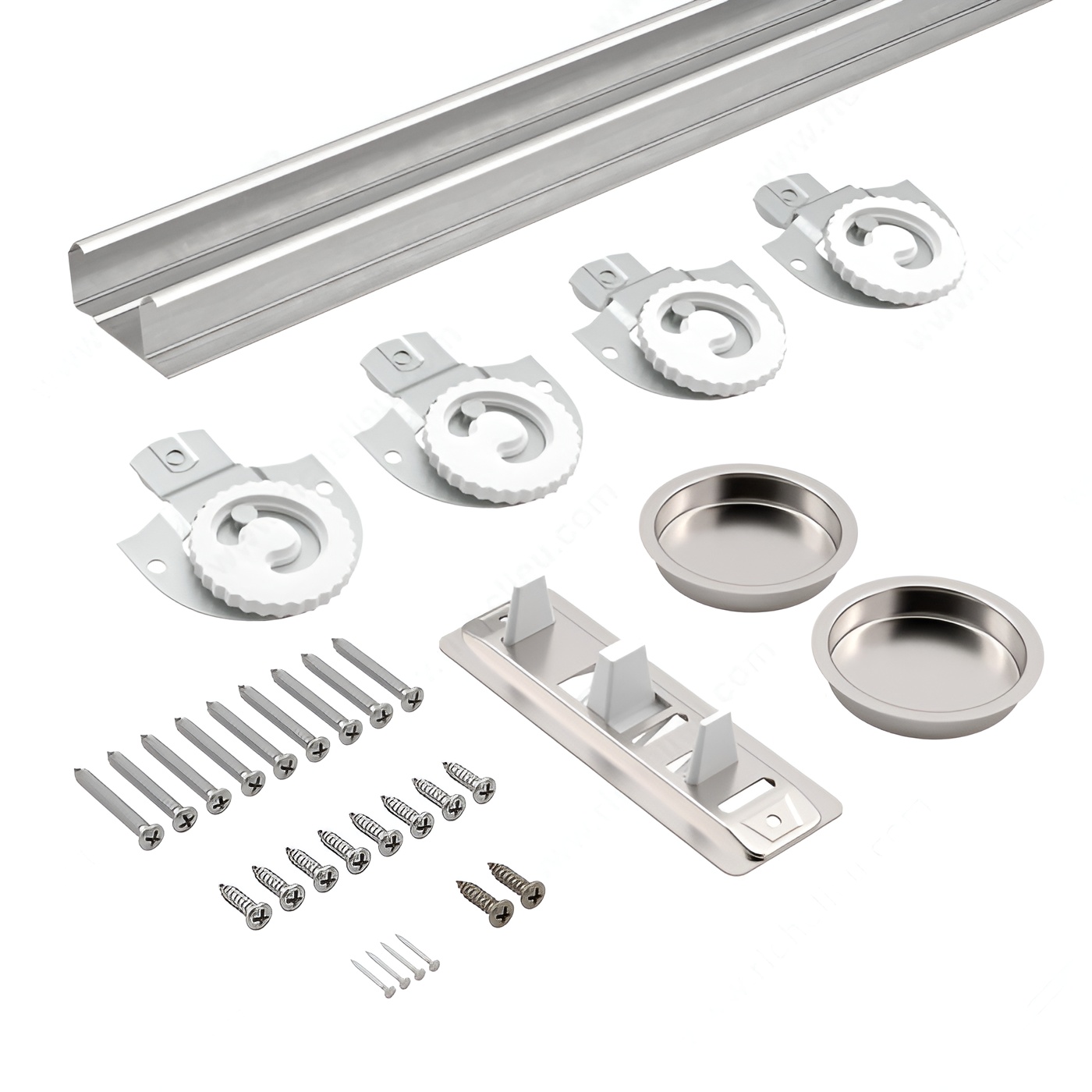

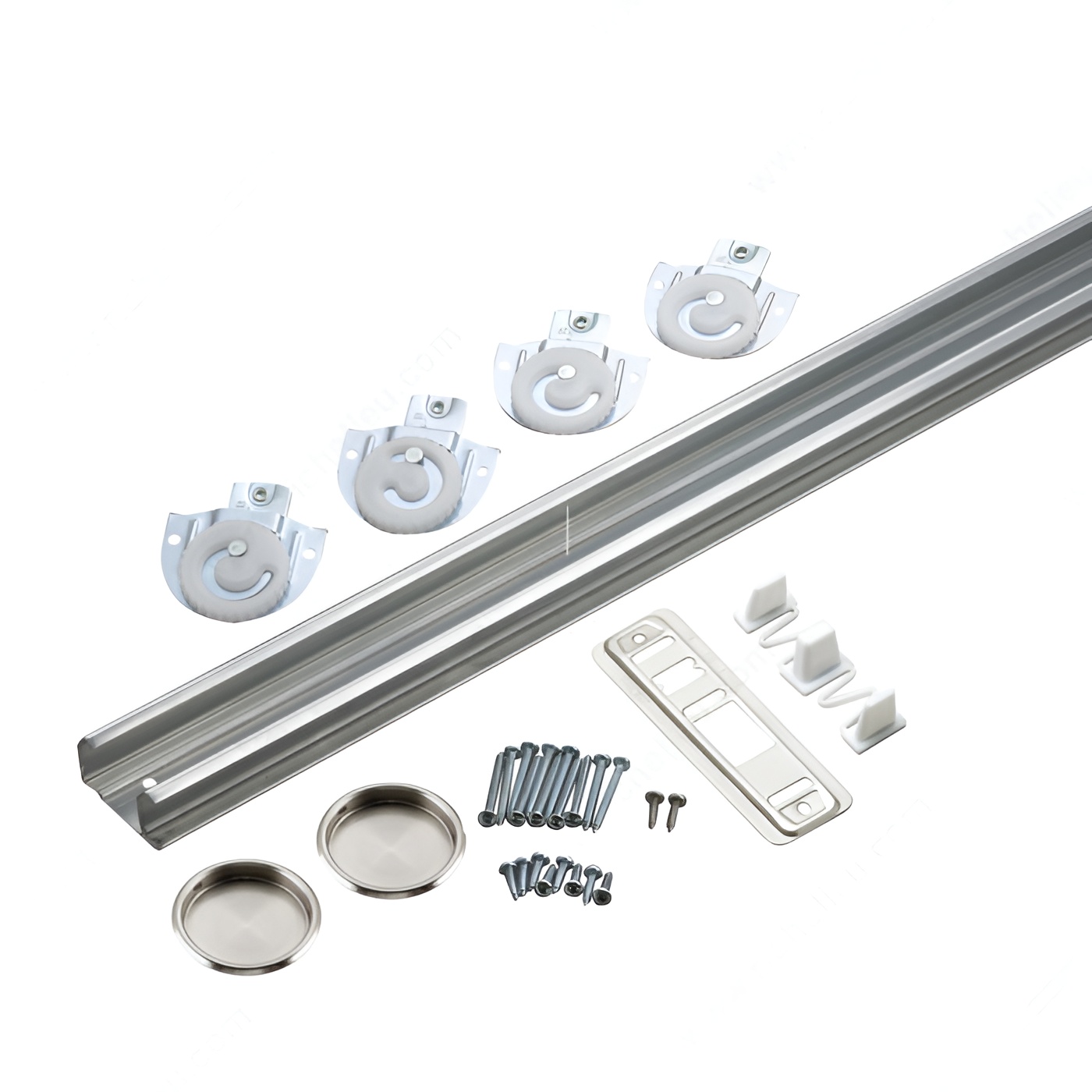

The Onward 146BC Bypass Door Hardware Kit with Track includes everything you need to install bypass sliding doors in your home. The kit includes a sliding door track, adjustable floor guide, four dial-adjust door hangers, two brass-plated finger pulls and fasteners. Install your doors quickly and easily using a drill and screwdriver: no other tools are required. The included parts allow you to make adjustments for different door thicknesses. The track is jump-proof and made of corrosion-resistant galvanized steel, ideal for humid environments. The kit comes in various sizes designed for use with common door widths. Simply choose a kit based on the width of your doors. This kit is also ideal if you need replacement parts to repair an older bypass door.

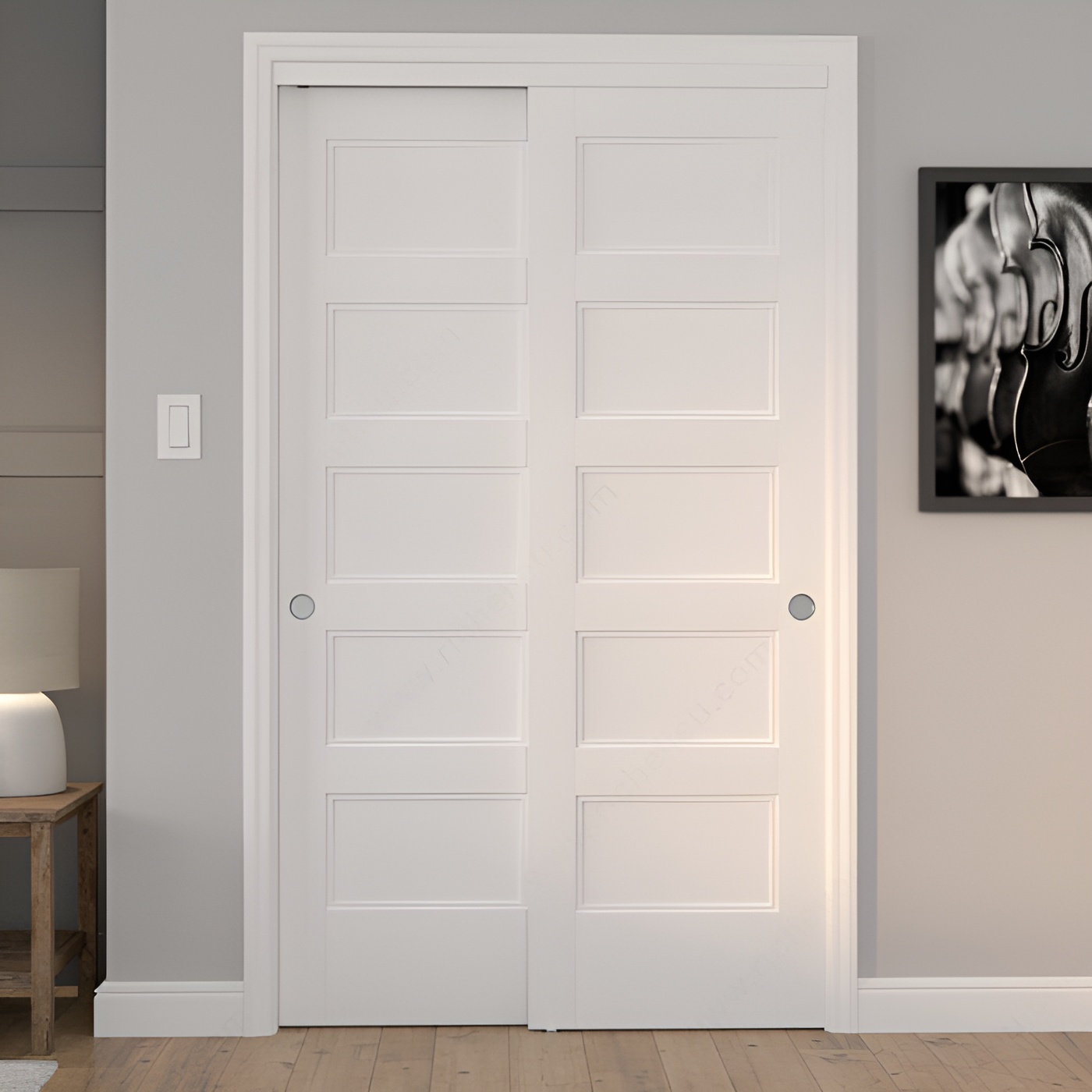

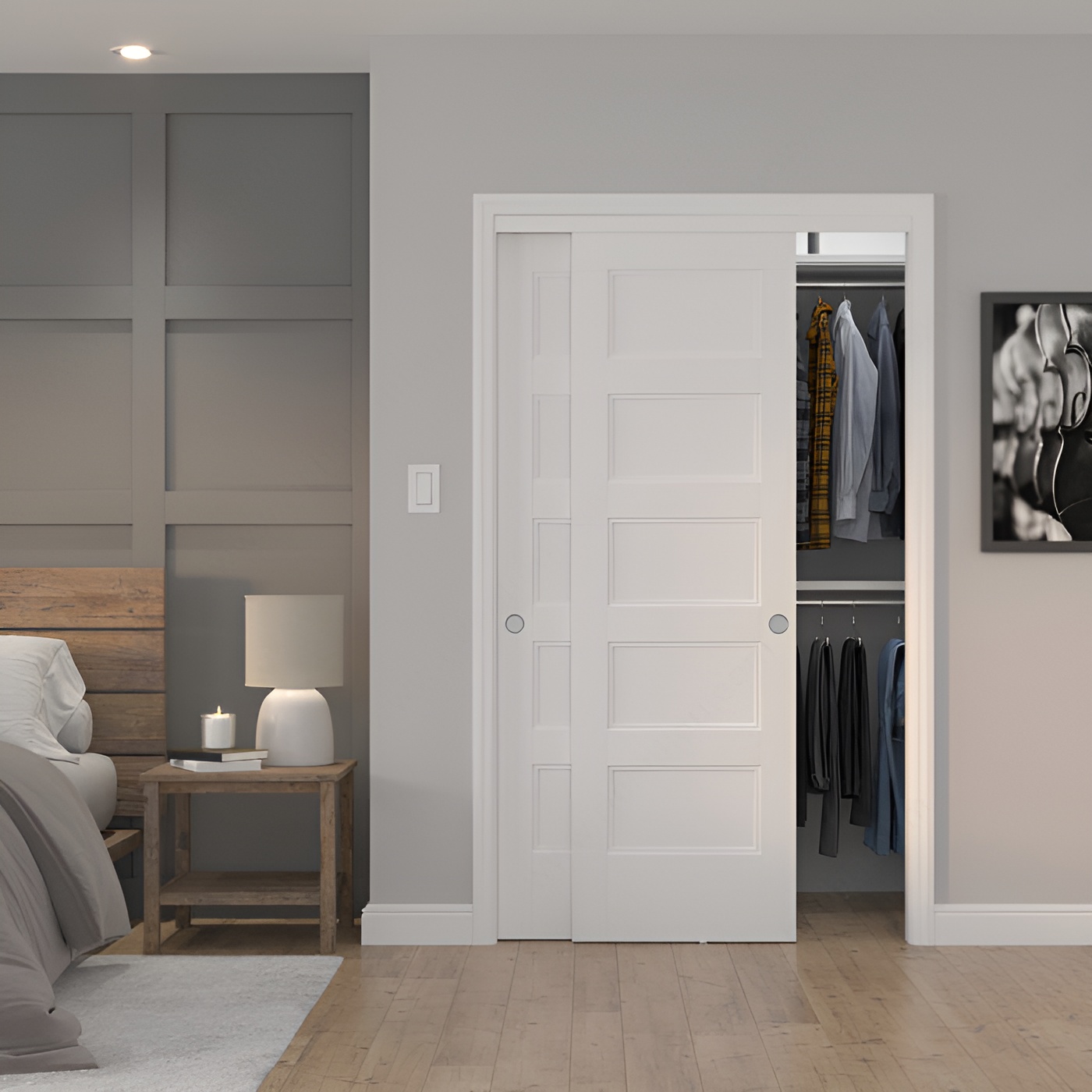

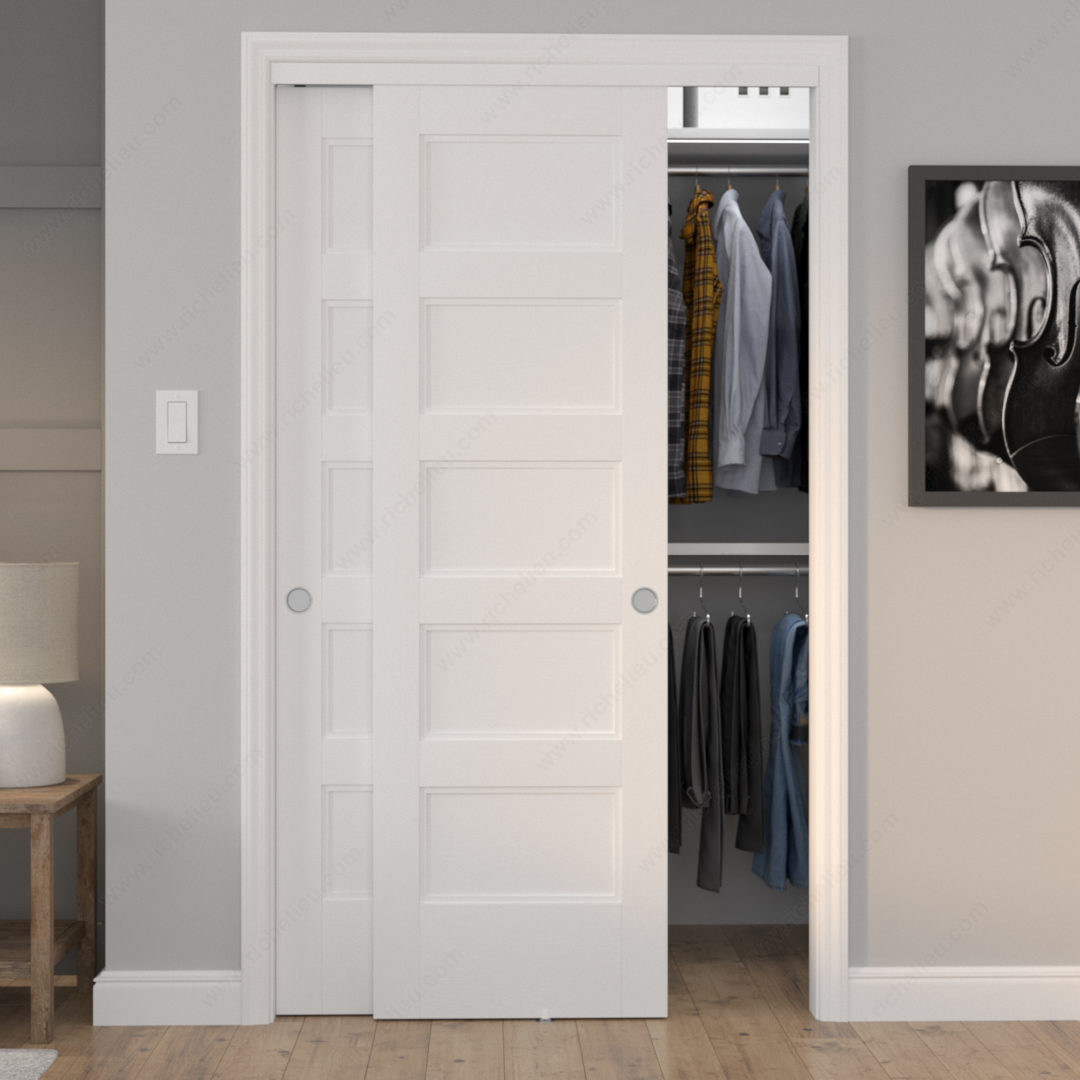

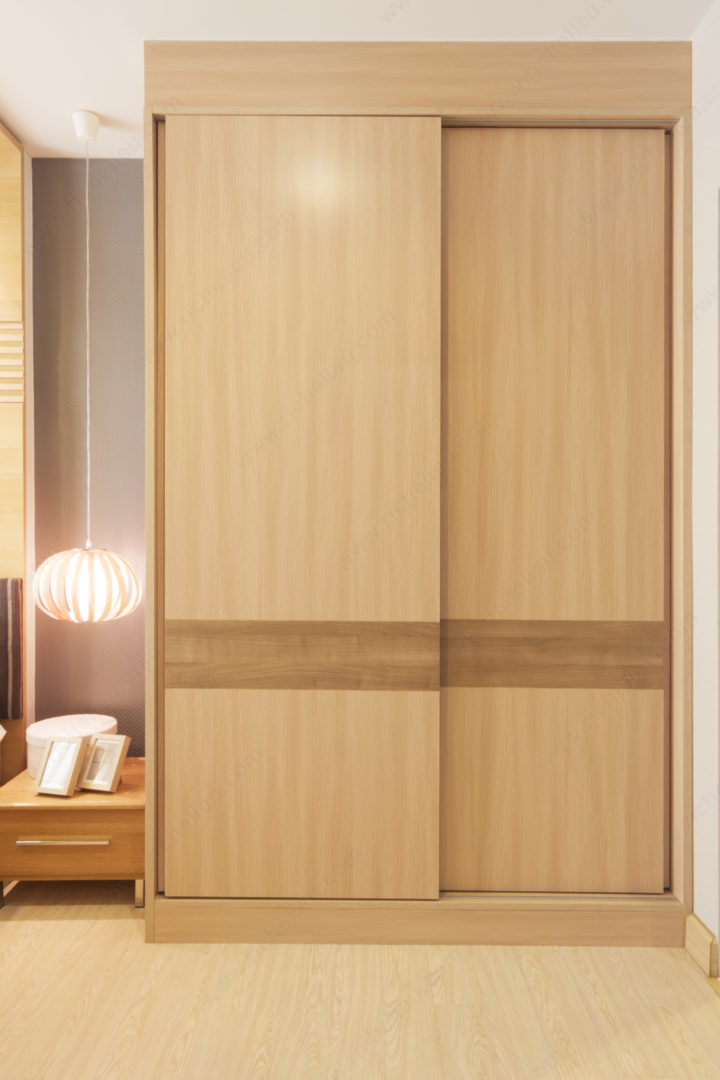

Use the Onward Bypass Door Hardware Kit to install bypass doors in your bathroom, closet, wardrobe, bedroom, or any other interior space. Fashionable and practical, bypass doors are also ideal for tight spaces that can't accommodate a regular hinged door.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Storage
Brand: Onward
Detailed Door Movement: Bypassing
Door Height: 36 to 98 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inside Frame
Door Thickness: 3/4 to 1 3/8 in
Door Width: Max. 24 in
Finish: Zinc
Function: Sliding Door
Groove Needed for Guiding System: No
Handles Finish: Brass (130)
Length - Overall Dimensions: 48 in
Load Capacity: Max. 60 lb
Manufacturing Material: Steel
Number of Doors: 2
Overall Length: 48 in
Overall Width: 1 in
Packaging Format: Box
Product #: 14648BC
Product number: 14648BC
Product type: Bypass Top Roller
Product №: 14648BC
Roller Position: Upper
Roller Type: Axle (Bushing)
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Finish: Zinc

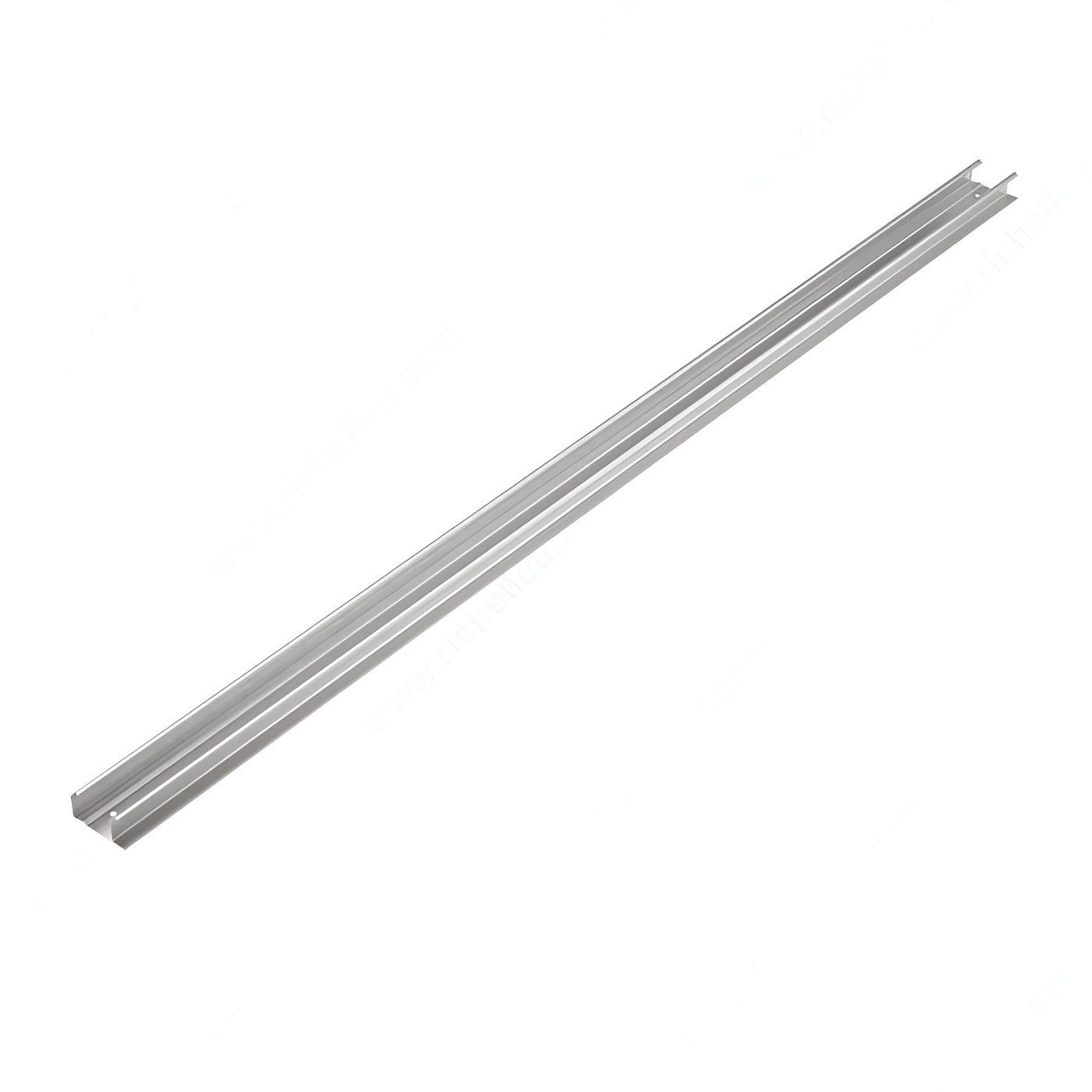

Track Length: 48 in
Track Material: Steel
Track Mounting: Ceiling Mount
Unit: Box
Unit 1: case - 10
Unit 2: case - 10
Weight Capacity per Door: Max. 60 lb
