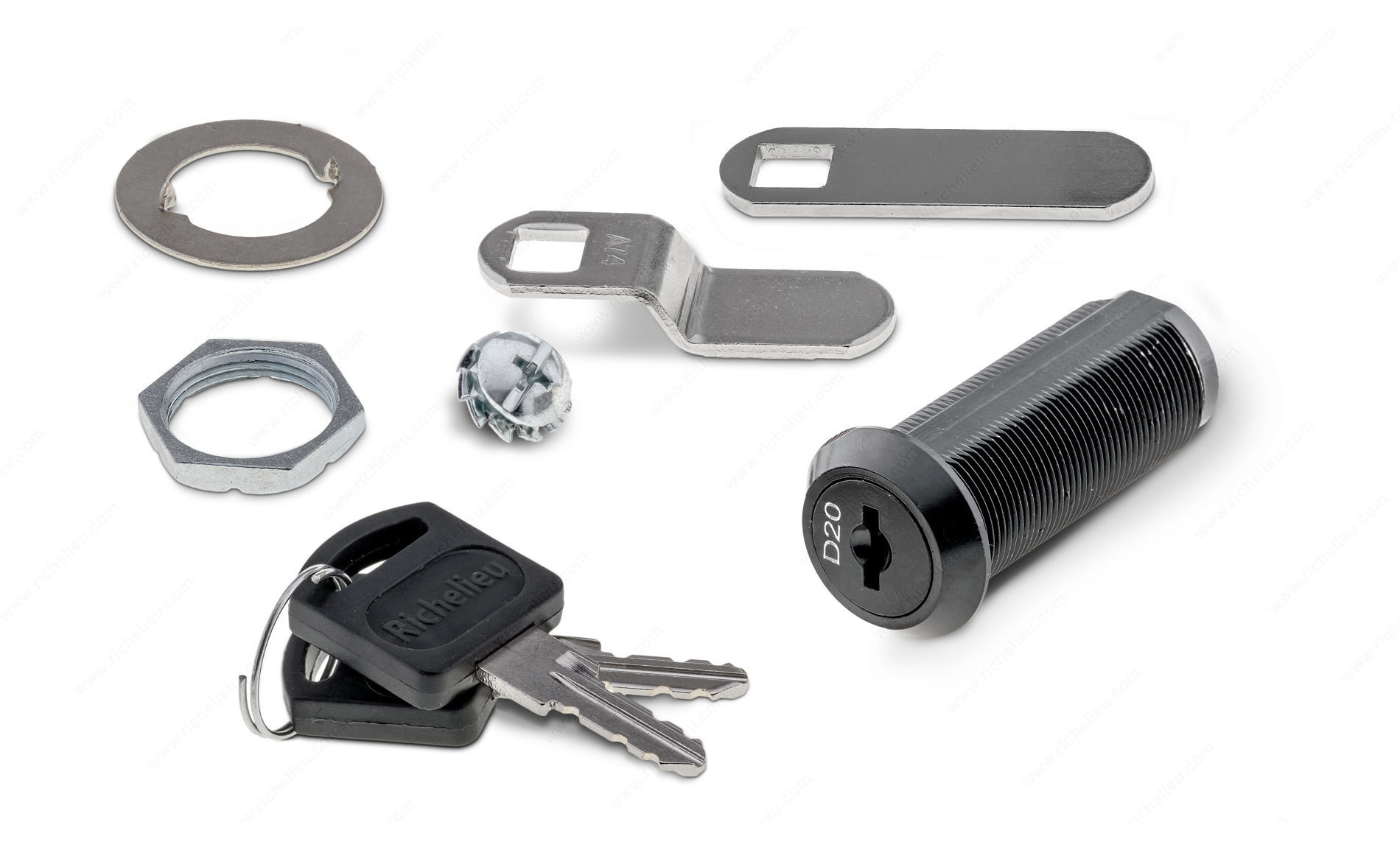

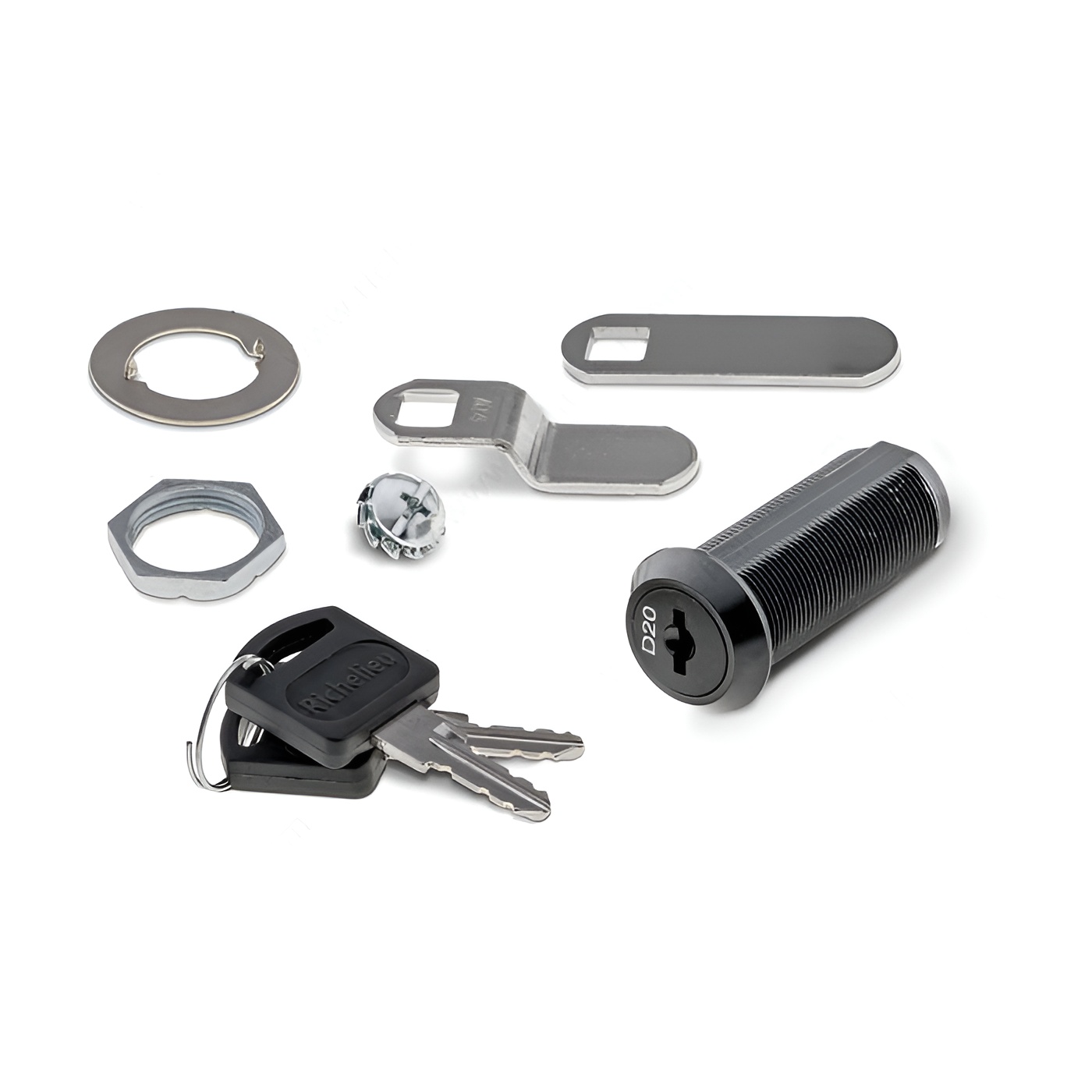

Richelieu BP140451090 Cam Lock for Panel Thickness up to 38 mm (1-1/2'') offers a reliable locking solution for wooden drawers and cabinet doors, accommodating lipped/overlay or flush constructions. This versatile cam lock features both a straight cam and an offset cam, allowing for seamless integration based on your project’s requirements. Designed for overlay applications, it supports panel thicknesses up to 1-1/2 inches, making it an ideal choice for various cabinetry styles. The lock is crafted from durable zinc alloy and comes in a sleek black finish, ensuring both functionality and aesthetic appeal. With a cylinder diameter of 3/4 inch and a cylinder length of 1 25/32 inches, the BP140451090 is built to last. Its reversible position enhances flexibility during installation, while the removable key can be secured in both locked and unlocked positions for added convenience. Each lock includes two keys and is keyed alike, simplifying key management. The standard security level and RoHS certification make this cam lock a dependable choice for everyday applications. Whether you're outfitting new cabinets or upgrading existing ones, the Richelieu BP140451090 Cam Lock is an essential component for secure and stylish storage solutions.
Cam Lock for Panel Thickness up to 38 mm (1-1/2'')
Application: Single Drawer, Drawer Lock, Cabinet Doors
Brand: Richelieu
Cam Length (from center): 40 mm
Cylinder Diameter: 19 mm
Cylinder Length: 45 mm
Finish: Black
Key No.: D20
Key Turn Degree: 90°
Key Type: Keyed Alike #1
Material: Zinc Alloy
Mechanism Type: Wafer
Panel Thickness: Max. 38 mm
Position: Reversible
Product #: BP140451090
Product number: BP140451090
Product №: BP140451090
Security Level: Standard
Standards and Certifications: RoHS
Supplier Key No.: D20
Types of Locks: Cam Locks
Unit: Bag
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 50
Unit 4: master case - 200
Use: Cabinet Doors, Single Drawer
