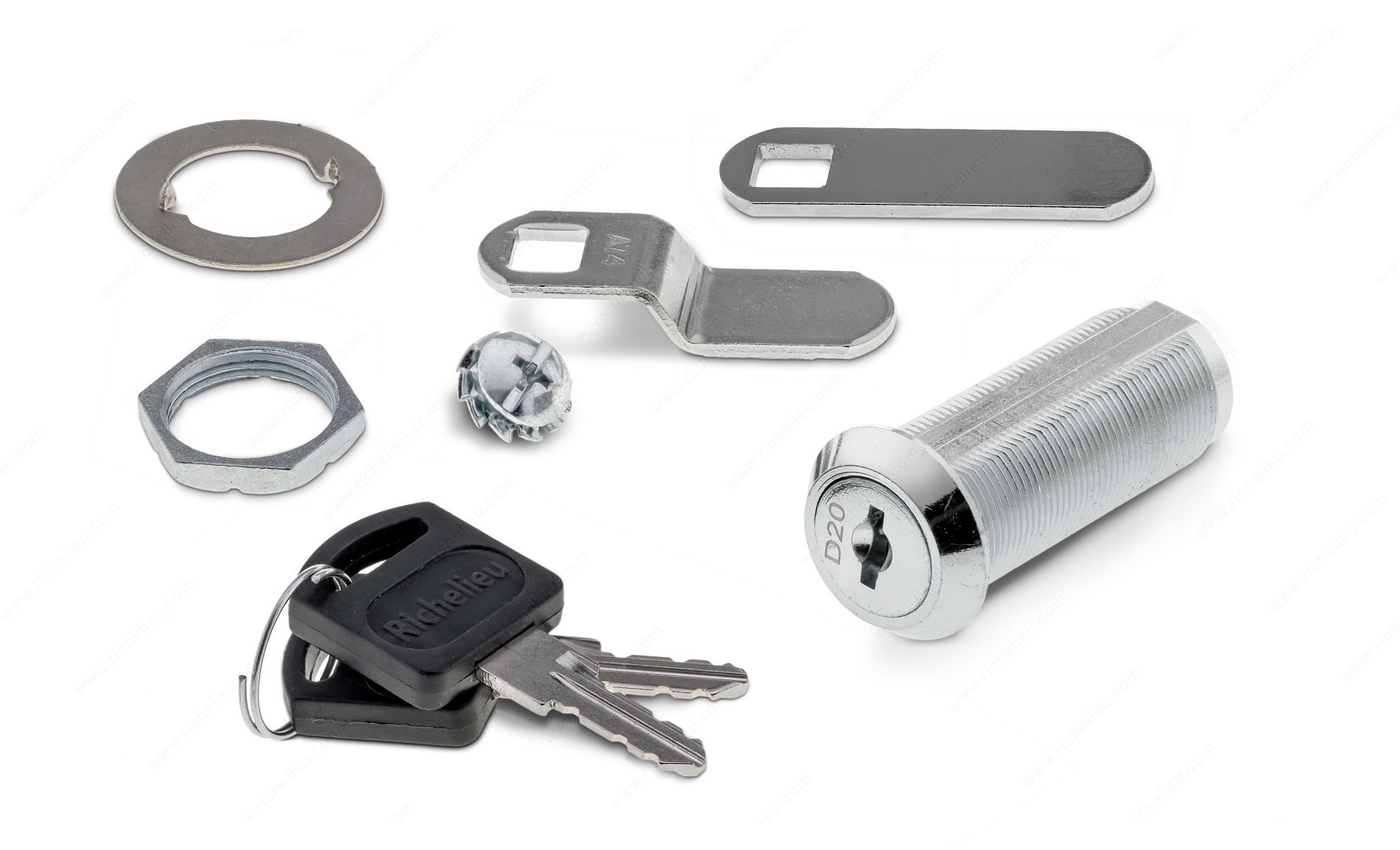

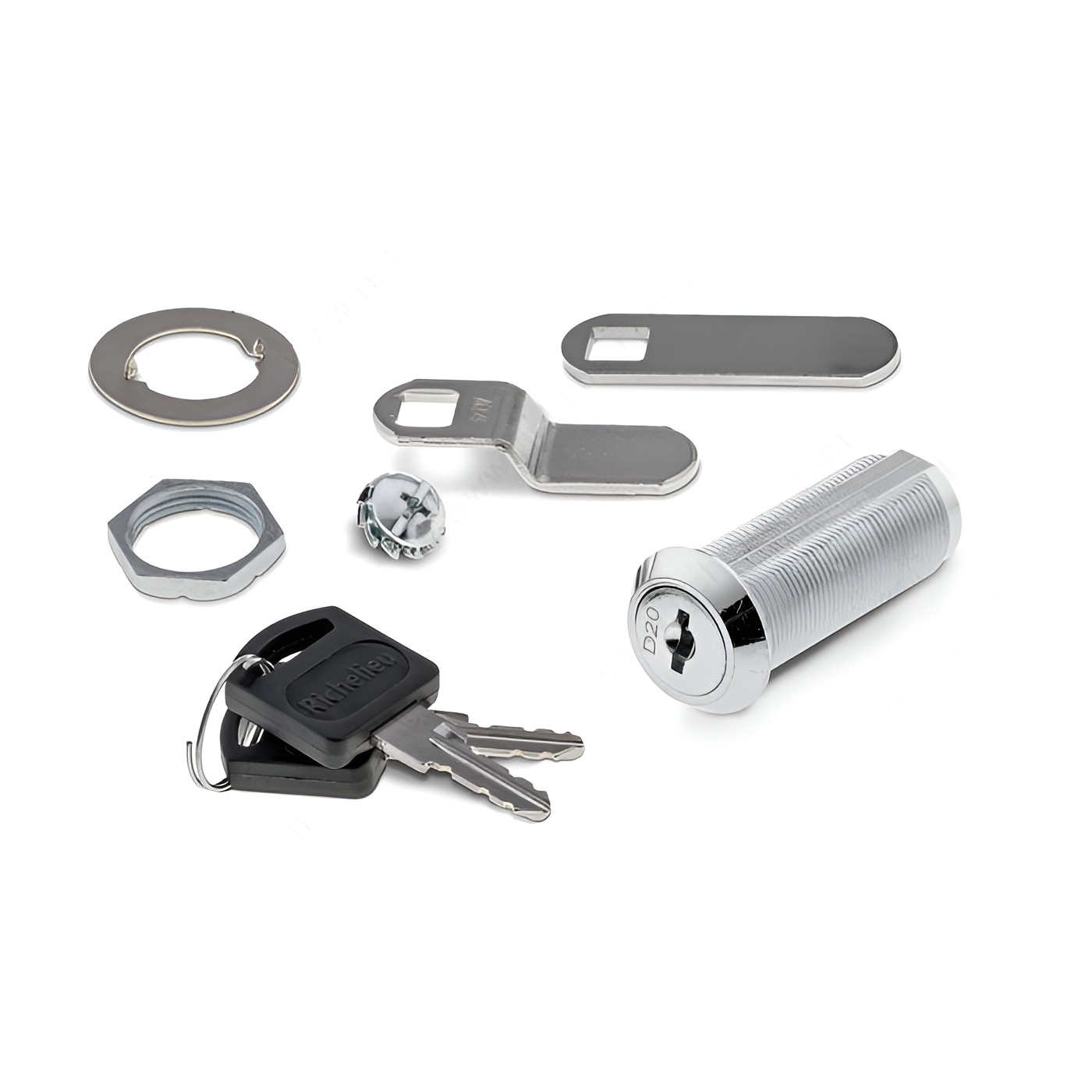

Richelieu BP140451140 Cam Lock for Panel Thickness up to 38 mm (1-1/2'') offers a versatile and secure locking solution for wooden drawers and cabinet doors featuring both lipped/overlay and flush constructions. Designed for panels with a maximum thickness of 38 mm, this cam lock provides flexibility with its two included cams-straight for overlay applications and offset for flush designs. Crafted from durable zinc alloy and finished in a sleek chrome, this lock not only enhances security but also adds a touch of sophistication to your cabinetry. The cylinder measures 3/4 inch in diameter and 1 25/32 inches in length, ensuring a reliable fit. The key is removable in both the locked and unlocked positions, allowing for convenient operation. With a key turn degree of 90°, it integrates seamlessly into various applications. This cam lock is reversible, making installation straightforward and adaptable to your specific needs. Each package comes with two keys and meets RoHS standards, ensuring compliance with safety regulations. Ideal for securing single drawers and cabinet doors, the Richelieu BP140451140 is a standard security choice that combines functionality and style for any cabinetry project.
Cam Lock for Panel Thickness up to 38 mm (1-1/2'')
Application: Single Drawer, Drawer Lock, Cabinet Doors
Brand: Richelieu
Cam Length (from center): 40 mm
Cylinder Diameter: 19 mm
Cylinder Length: 45 mm
Finish: Chrome
Key No.: D20
Key Turn Degree: 90°
Key Type: Keyed Alike #1
Material: Zinc Alloy
Mechanism Type: Wafer
Panel Thickness: Max. 38 mm
Position: Reversible
Product #: BP140451140
Product number: BP140451140
Product №: BP140451140
Security Level: Standard
Standards and Certifications: RoHS
Supplier Key No.: D20
Types of Locks: Cam Locks
Unit: Bag
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 50
Unit 4: master case - 200
Use: Cabinet Doors, Single Drawer
