Richelieu HAWA FRONTINO 20 H FS Coplanar Sliding System offers an innovative solution for creating seamless, modern cabinetry with its bottom-running design. This system is specifically engineered for two coplanar wooden doors, each supporting a weight of up to 44 lbs (20 kg). Ideal for cabinets with a width ranging from 78 3/4 to 86 5/8 inches, it accommodates door heights of up to 39 3/8 inches, making it versatile for various applications. The HAWA FRONTINO features a full overlay door position, allowing for a clean, flush appearance that enhances any interior design. Designed for ease of use, the system supports two-way soft-closing operation, ensuring doors glide smoothly and quietly into place. This functionality not only improves usability but also adds a touch of luxury to your cabinetry. Constructed to accommodate door thicknesses between 3/4 and 31/32 inches and maximum door widths of 43 1/4 inches, this complete set is adjustable and easy to install. Whether you're a building professional or a knowledgeable homeowner, the Richelieu HAWA FRONTINO 20 H FS Coplanar Sliding System is a stellar choice for enhancing the elegance and functionality of your spaces.
HAWA FRONTINO 20 H FS Coplanar Sliding System
Adjustable: Yes
Application: Cabinet
Brand: Hawa
Brand Model: Hawa Fortino
Cabinet Width: 2 000 to 2 199 mm
Door Height: Max. 1 000 mm
Door Material: Wood
Door Movement: Coplanar
Door Position: Full Overlay
Door Thickness: 19 to 25 mm
Door Width: Max. 1 097 mm
Load Capacity: 44.1 lb*
Number of Doors: 2
Product #: 1890533390075

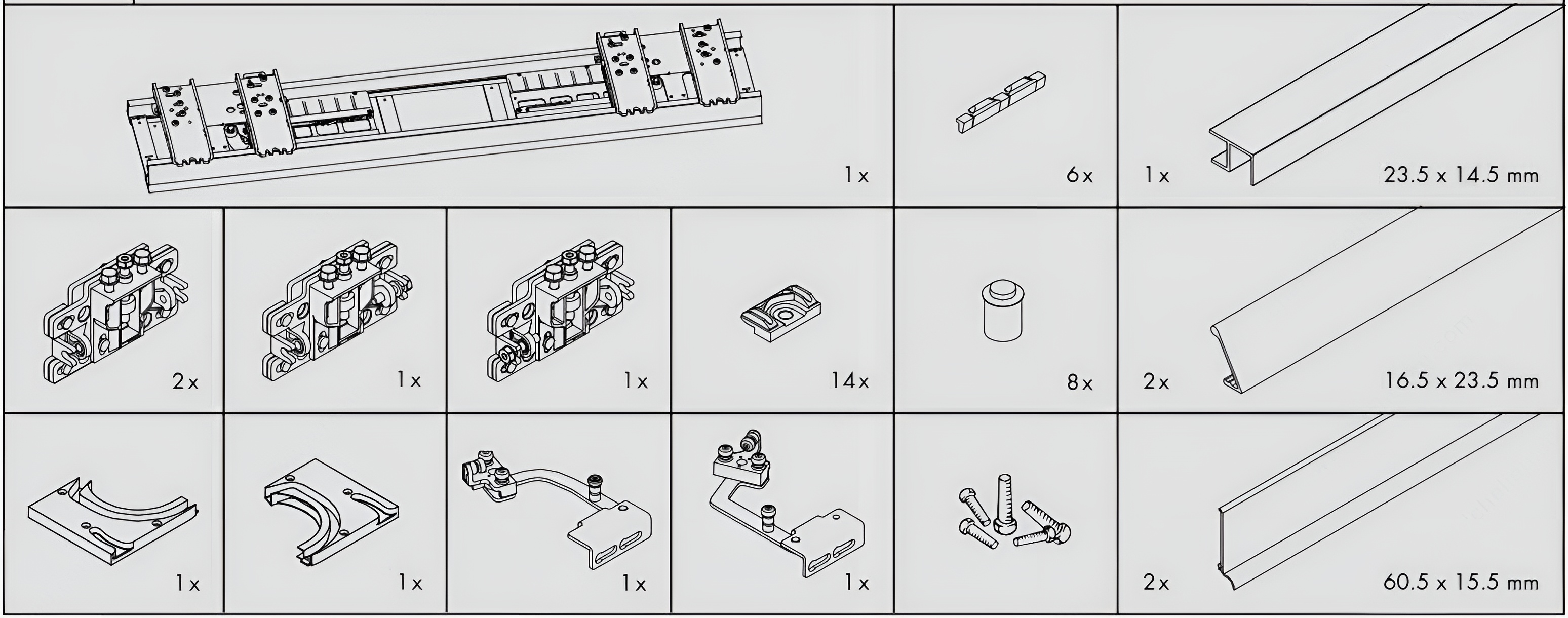

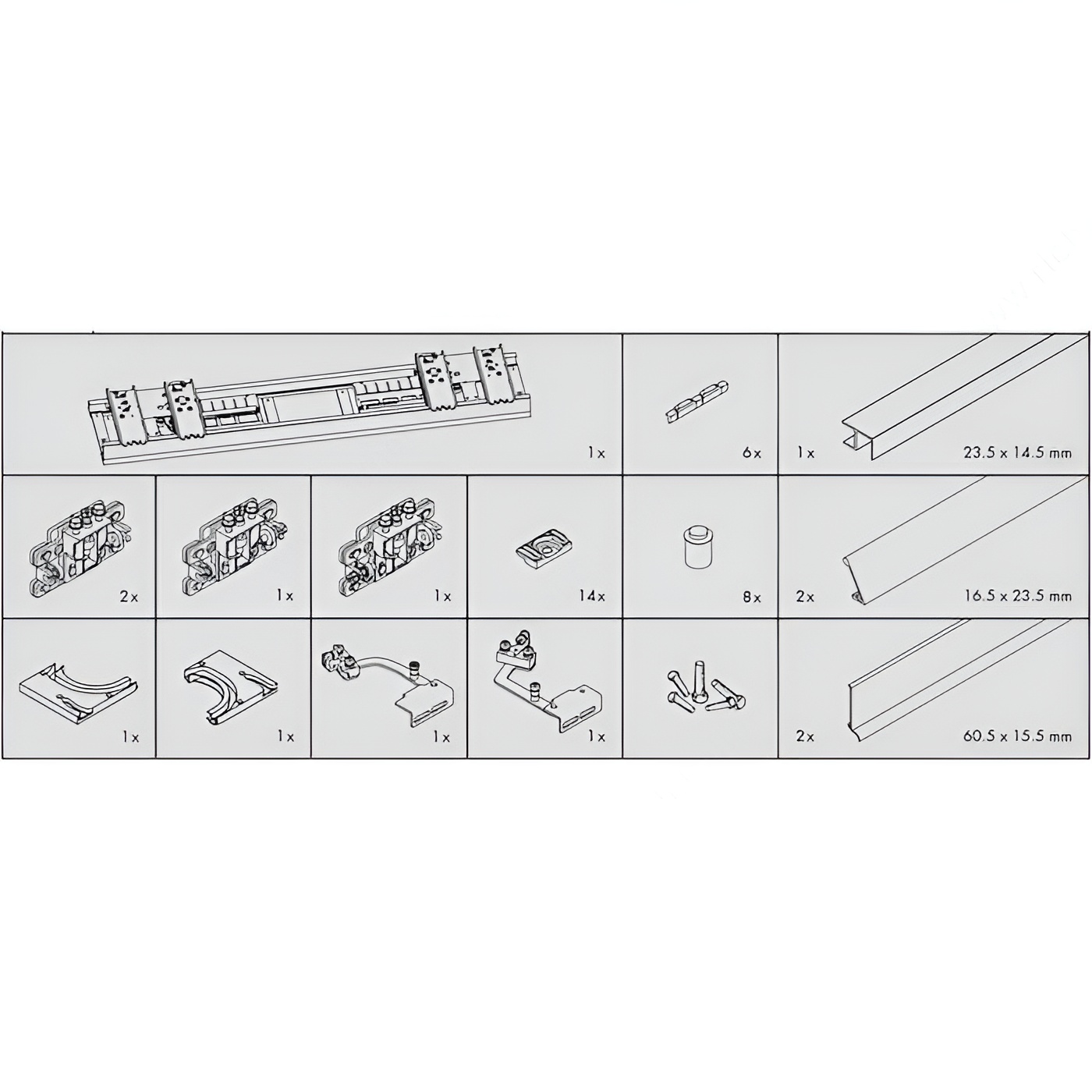

Product Type: Complete Set
Product number: 1890533390075
Product type: Complete Set
Product №: 1890533390075
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: Two-Way Operation
Soft- Closing: Yes
Unit: Box
Weight Capacity per Door: 20 kg
