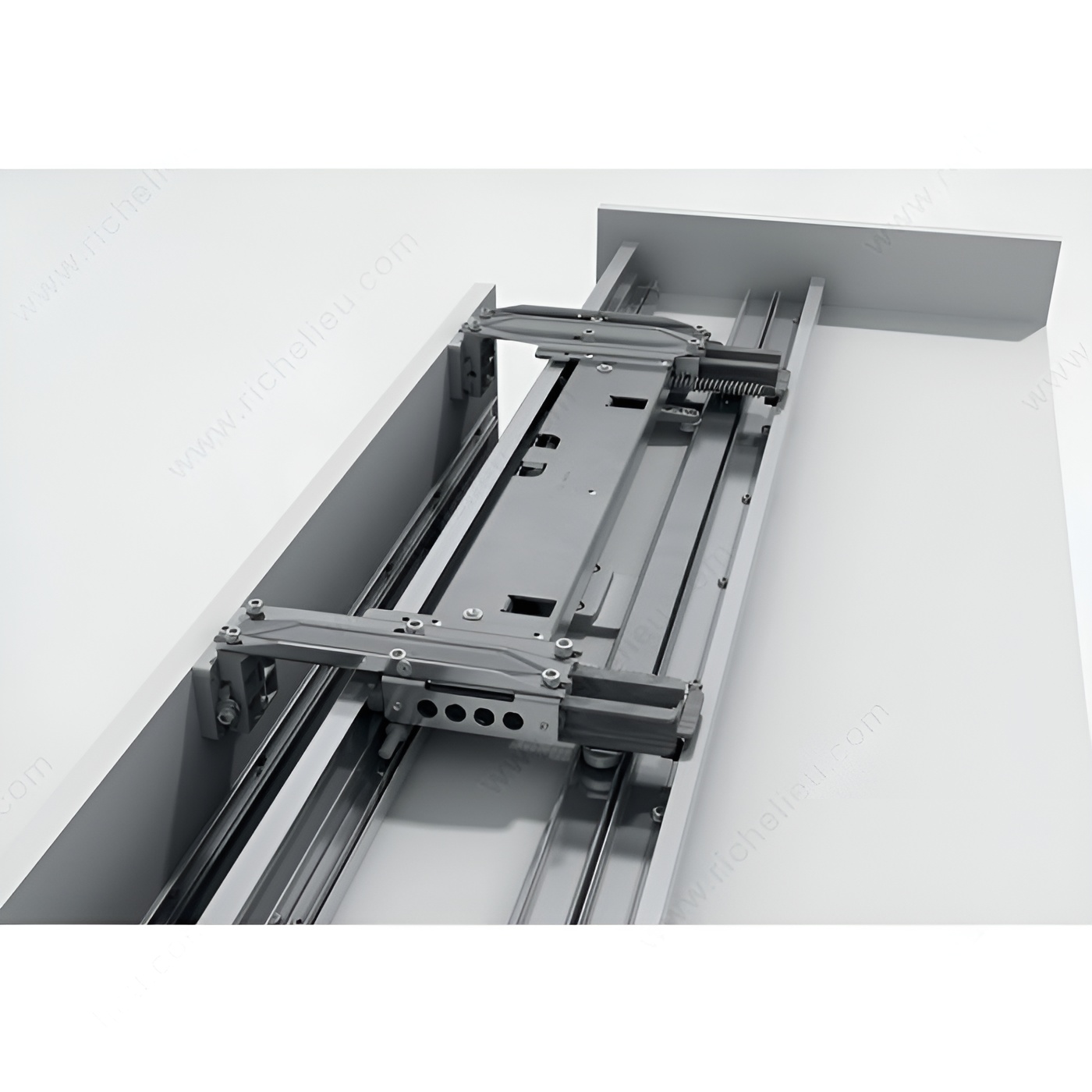

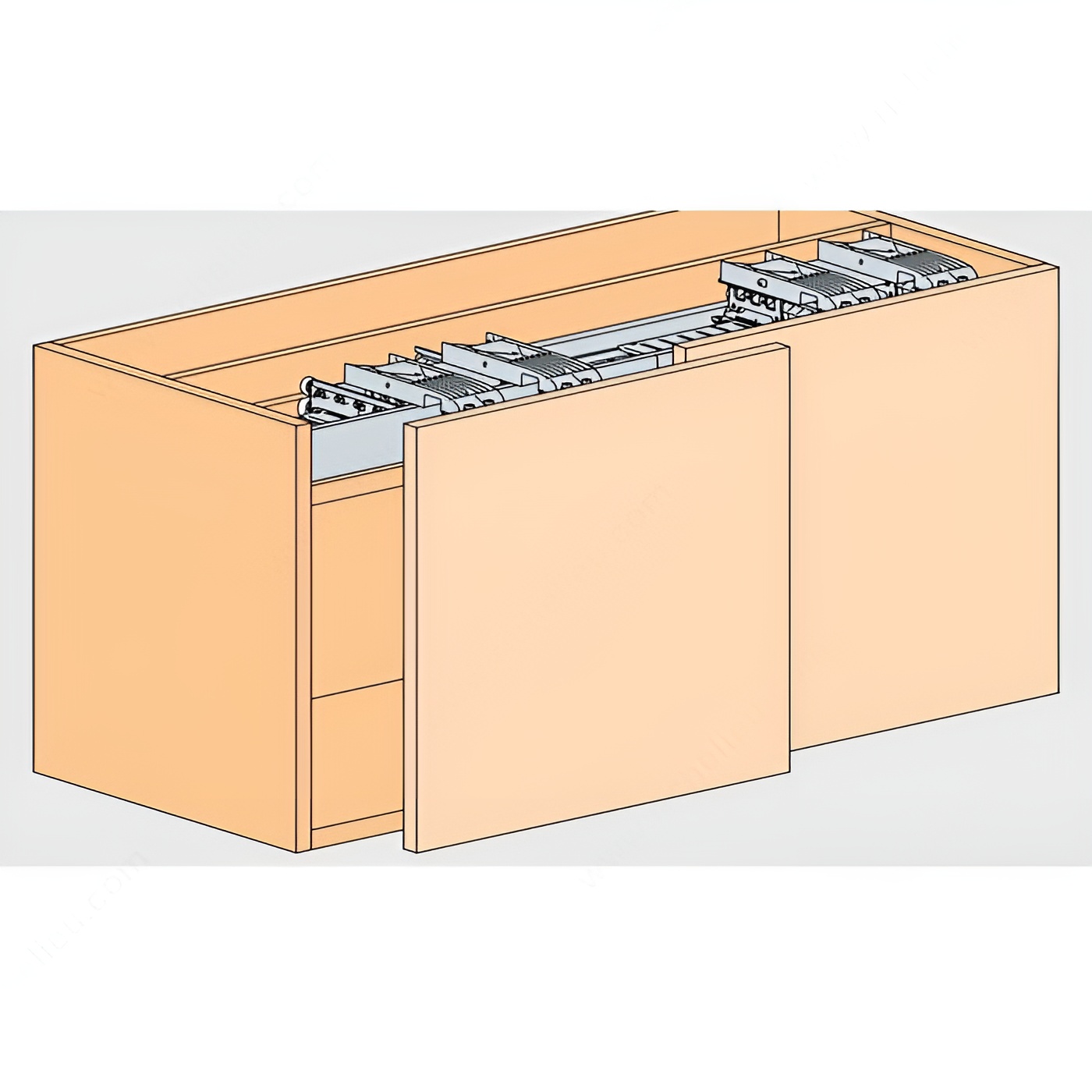

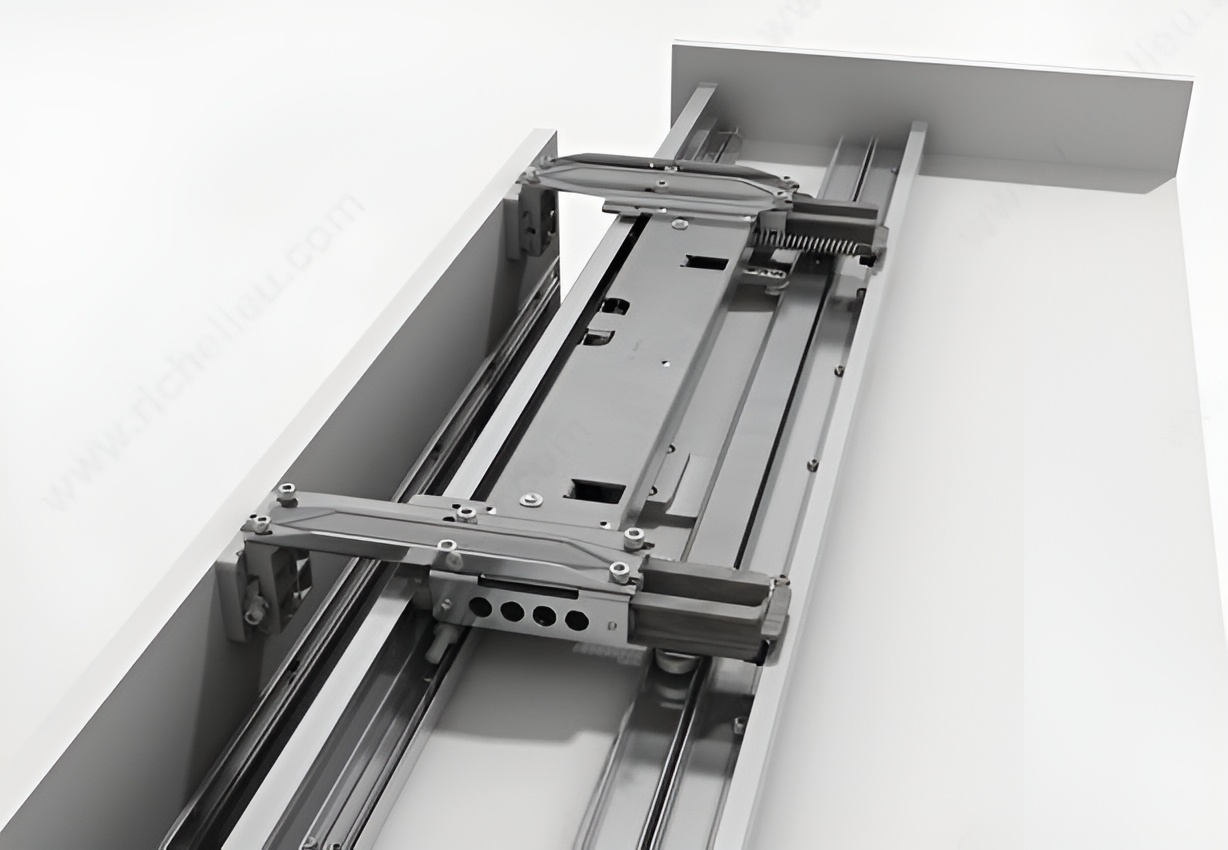

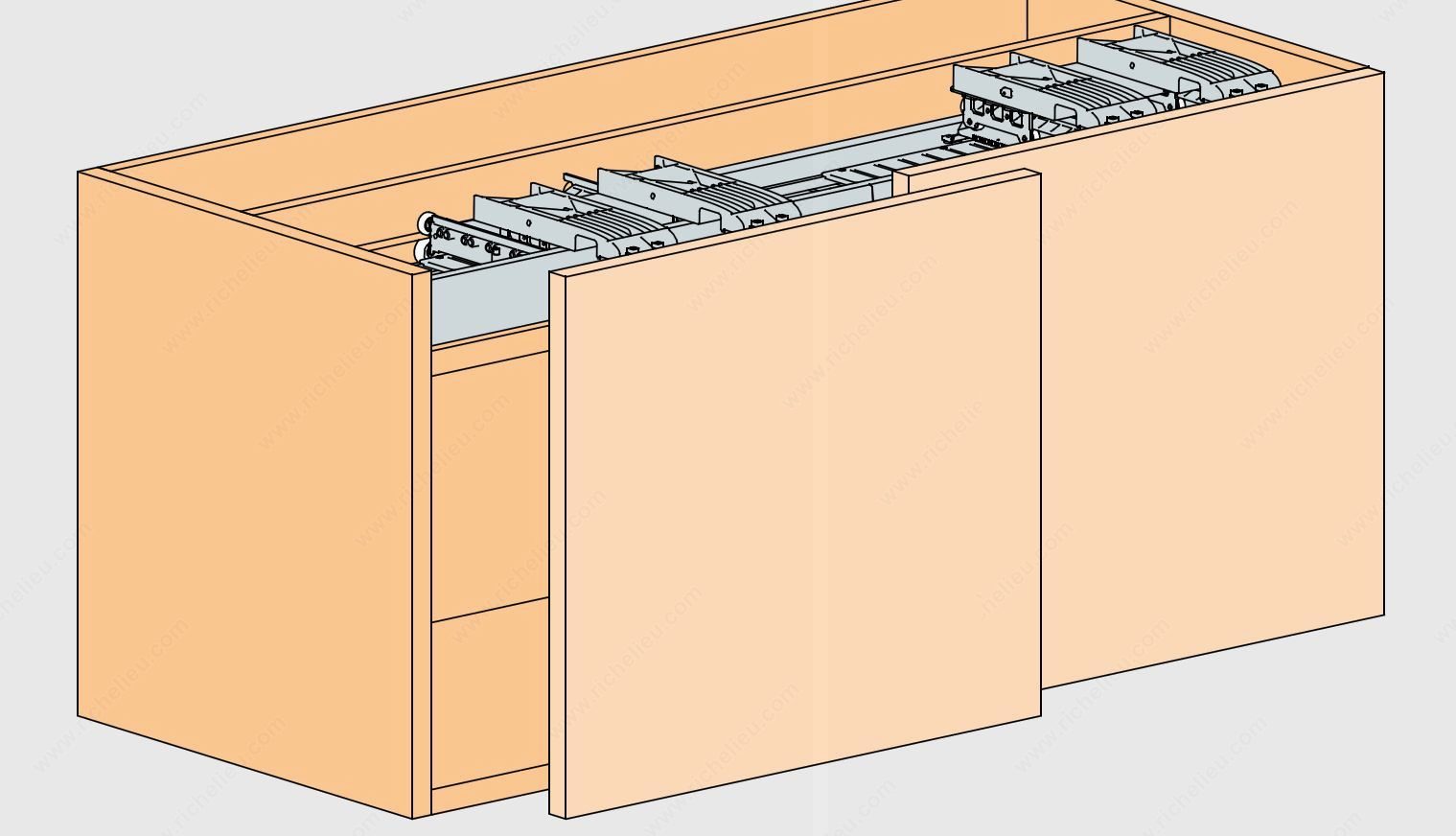

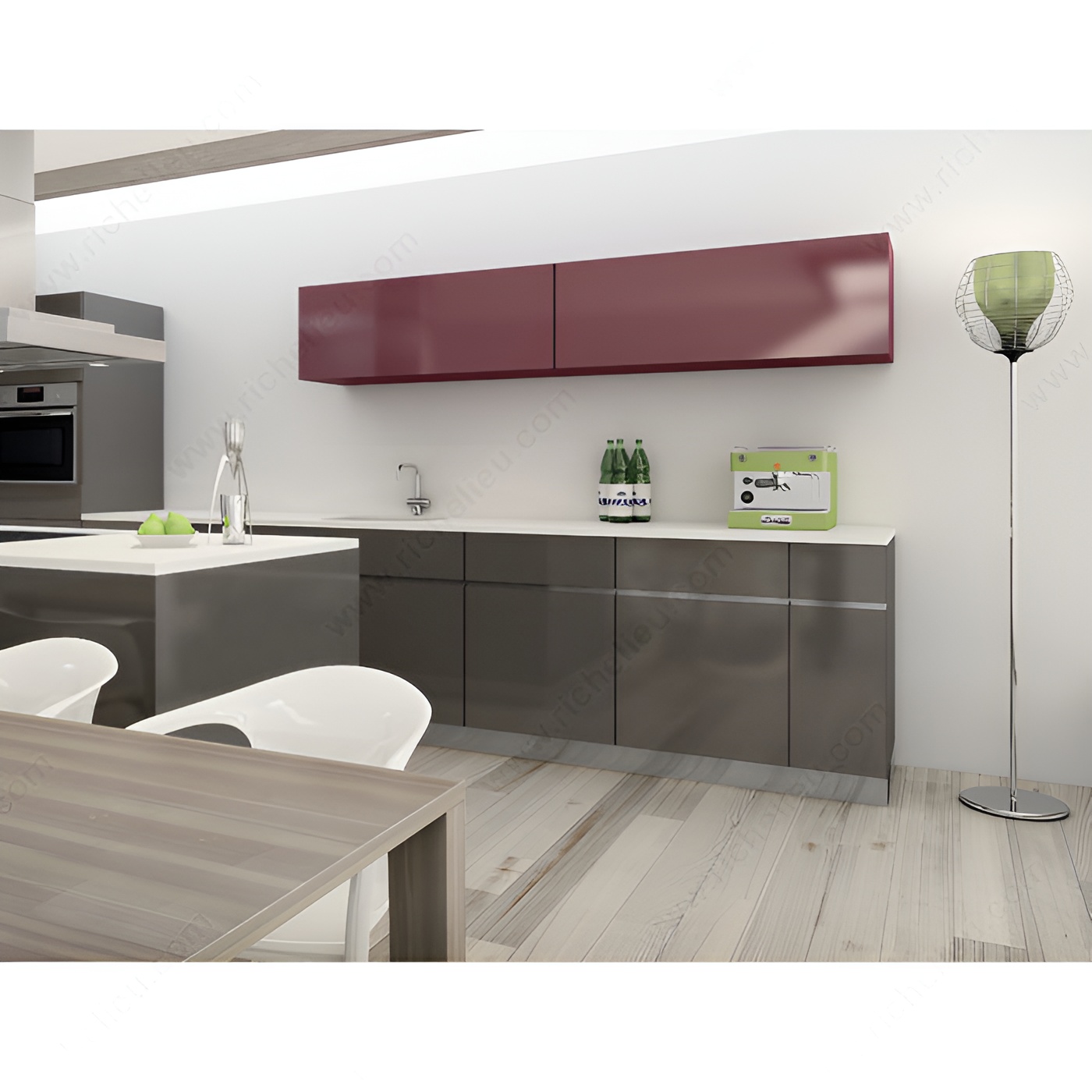

Richelieu 1890533389074 HAWA FRONTINO 20 H OS FS Coplanar Sliding System offers an innovative solution for managing space with style and functionality. Designed for two coplanar doors, this top-running sliding system supports doors weighing up to 44 lb (20 kg) each, featuring a thickness range of 19 to 25 mm (3/4 in to 31/32 in). The system allows for seamless operation, enabling the ergonomic opening of flush-mounted furniture doors that gently slide against each other. Installation is straightforward, ensuring quick and secure setup, while the self-closing mechanism provides a notably soft closure, enhancing user experience. The adjustable design accommodates a cabinet width of 70 7/8 to 78 3/4 in* and allows for optional door widths between 23 5/8 to 47 1/4 in*. With a fixed door height of 39 3/8 in* and full overlay positioning, this system seamlessly integrates into various cabinet styles. The HAWA FRONTINO system is suitable for wooden doors and features a door overlap of 2 17/32 in*. Offering two-way soft-close operation, it combines modern aesthetics with practical functionality, making it an ideal choice for both building professionals and discerning homeowners. Enhance your cabinetry with Richelieu’s commitment to quality and design.
HAWA FRONTINO 20 H OS FS Coplanar Sliding System
" Optional" Door Width: 600 to 1 200 mm
Adjustable: Yes
Application: Cabinet
Brand: Hawa
Cabinet Width: 1 800 to 1 999 mm
Door Height: 1 000 mm
Door Height ( Upper Cabinet): 1 000 mm
Door Material: Wood
Door Movement: Coplanar
Door Overlap: 64 mm
Door Position: Full Overlay
Door Thickness: 19 to 25 mm
Door Thickness Including the Handle: 70 mm
Door Width: Max. 997 mm
Load Capacity: 44.1 lb*
Number of Doors: 2
Product #: 1890533389074
Product number: 1890533389074
Product №: 1890533389074
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: Two-Way Operation
Soft- Closing: Yes
Unit: Box
Weight Capacity per Door: 20 kg
