Richelieu CS3068 CS Pocket Door Kit for Cavity Sliders

Richelieu CS3068 CS Pocket Door Kit for Cavity Sliders

Richelieu CS3068 CS Cavity Sliders Pocket Door Kit is expertly crafted for single sliding wood doors, accommodating weights up to 200 lb (90 kg) and 500 lb (227 kg). This kit is compatible with standard 2 x 4 wood and metal wall stud construction, making it a versatile choice for various applications including residential, commercial, and institutional projects. Available in three distinct kits, this pocket door system supports door widths of 36 in (914 mm) and 48 in (1.2 m), alongside heights of 80 in (2 m) and 96 in (2.4 m). The kit features two carriage/hardware sets-M6 for lighter doors and M8 for heavier options-ensuring you have the right components for your project. Its sturdy double wall aluminum pocket frame is adjustable, allowing for custom sizing to fit different door specifications. The CarriSnap mounting suspension plate enables effortless mounting and release of the upper trolley without tools, while large wheel trolleys with precision ground bearings guarantee smooth operation. Additional elements like trim clips and a pivoting bottom guide streamline installation and enhance functionality. With a low-profile upper track integrated into the pocket frame, this pocket door kit combines practicality with a sleek design for concealed doorways in any space.

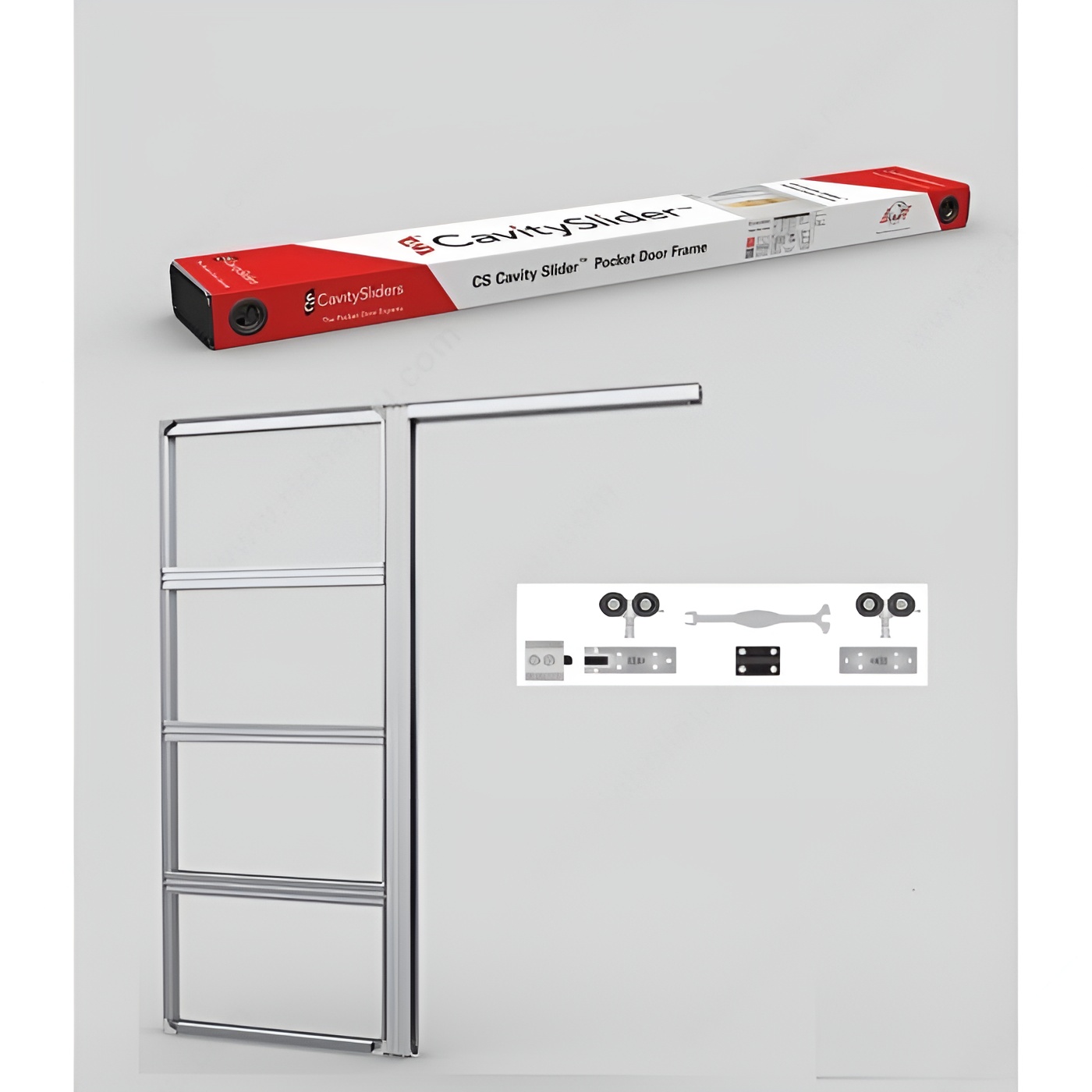

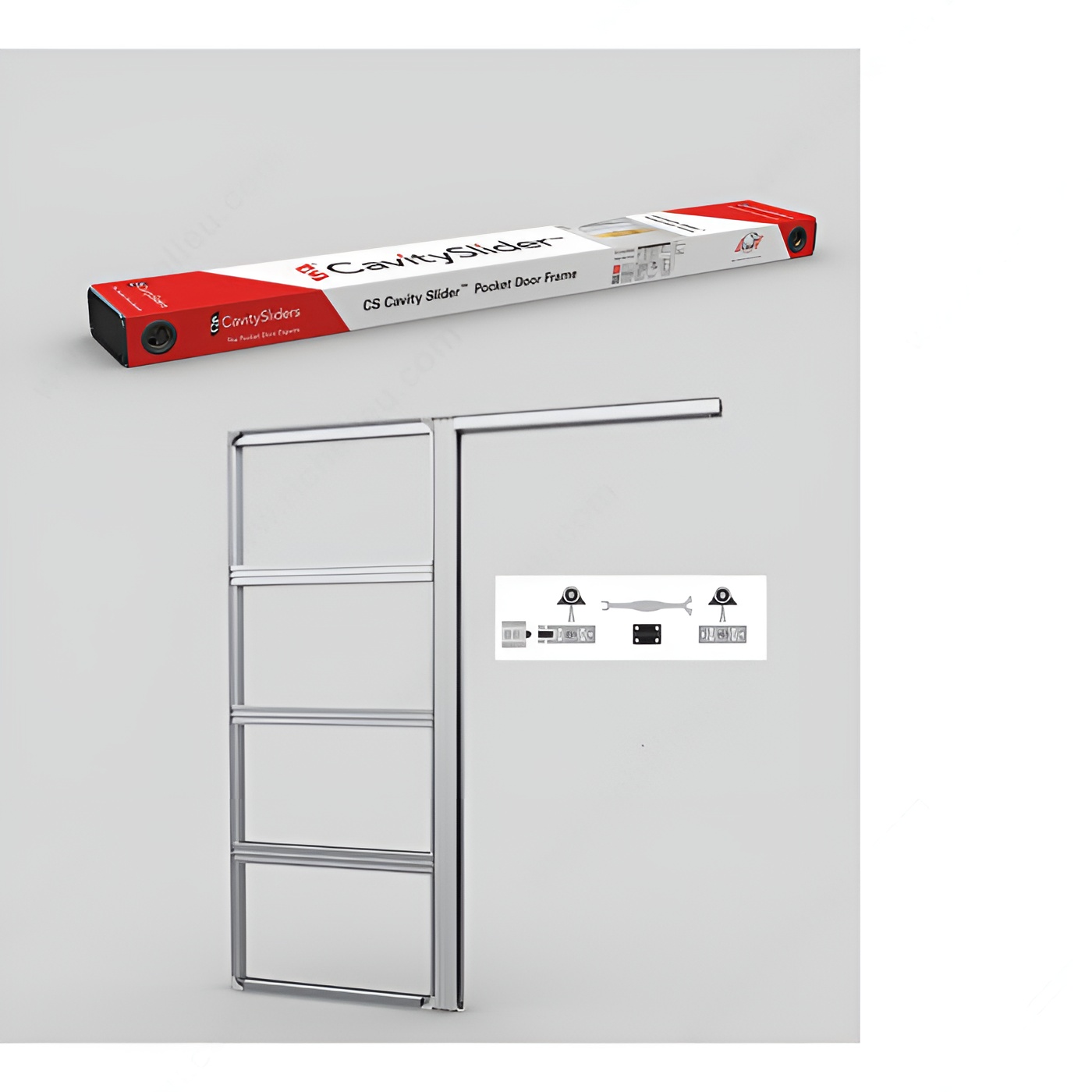

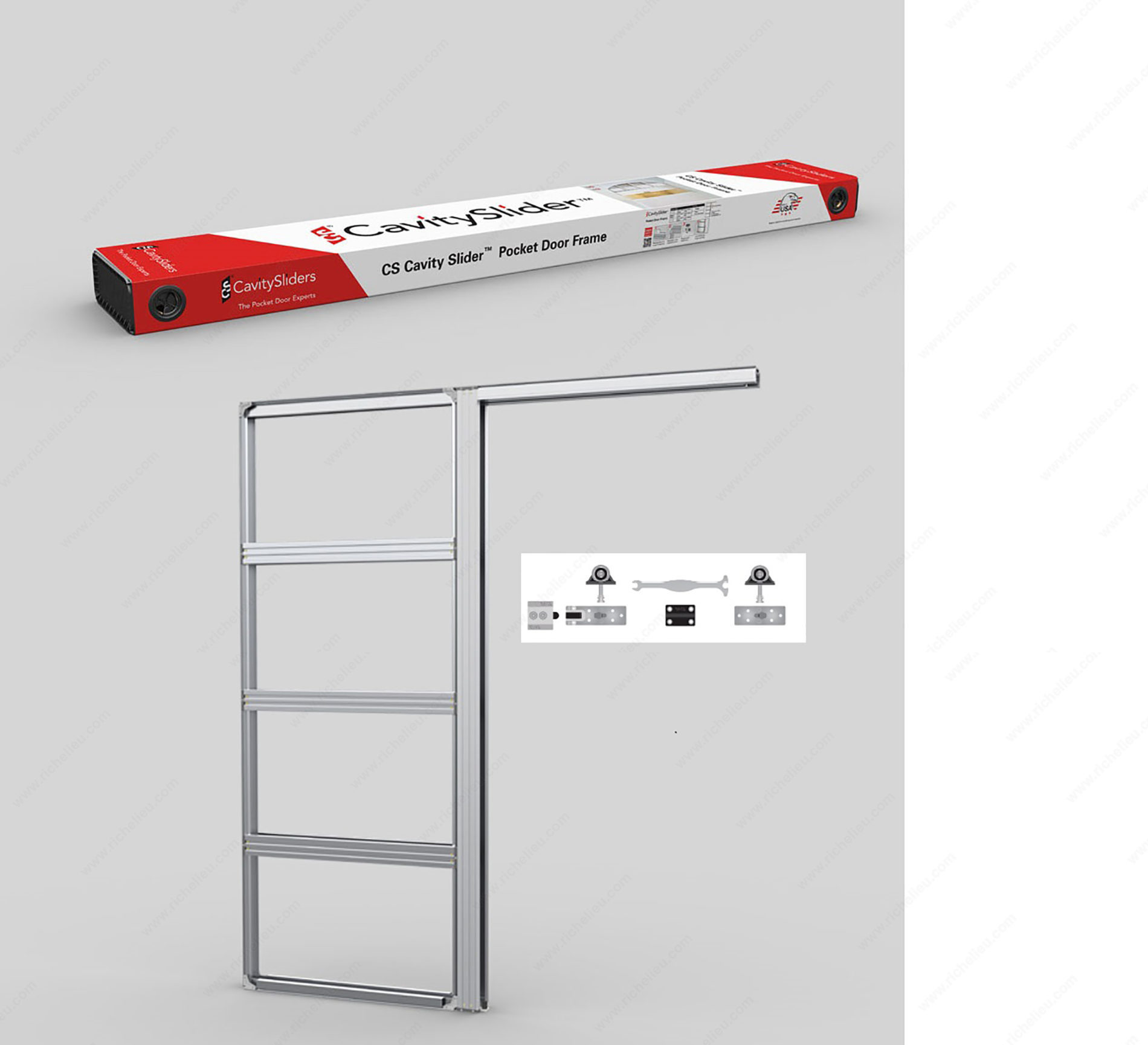

CS Cavity Sliders Pocket Door Kit

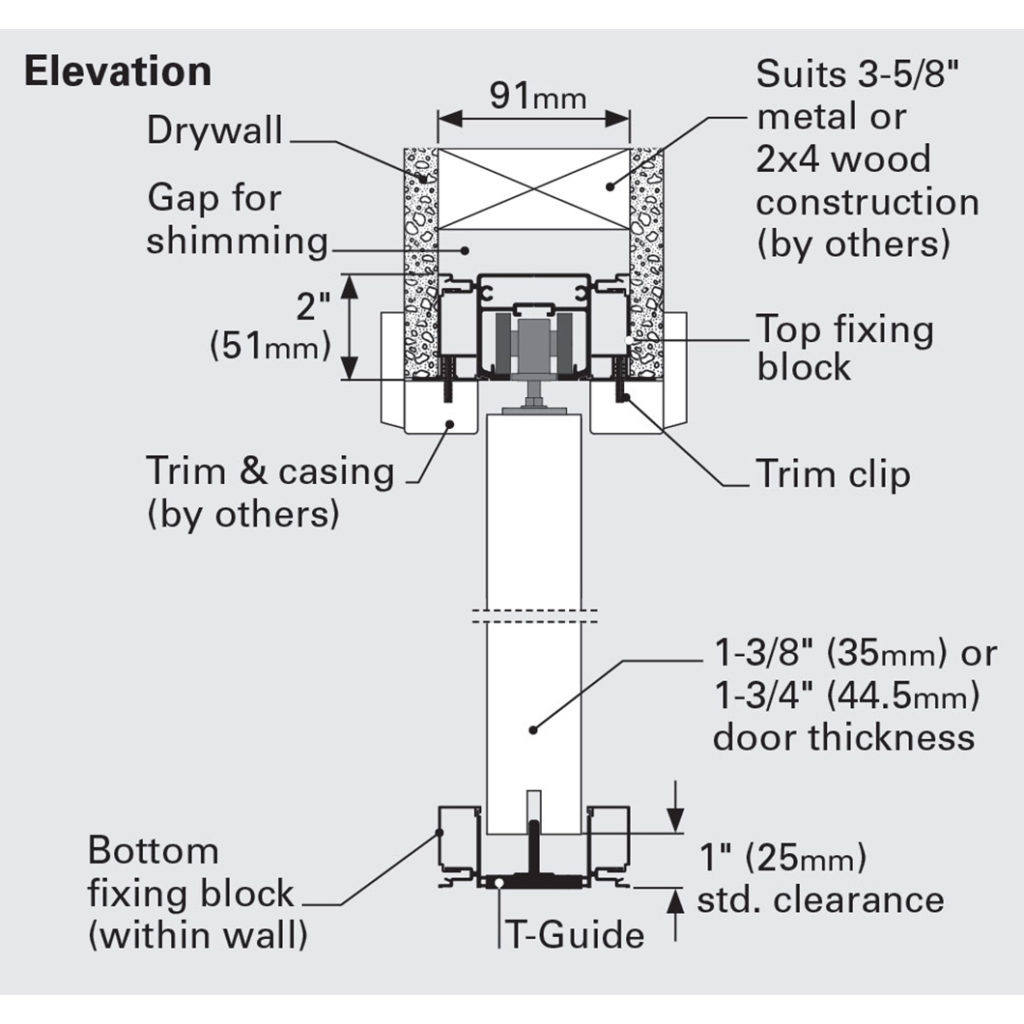

The CS Cavity Sliders Pocket Door Kit is designed for single sliding wood doors weighing up to 200 lb (90 kg) and 500 lb (227 kg) each. Made for standard 2 x 4 wood and metal wall stud construction.

Features:
Choose from three types of kits for various door widths and heights:
- Door widths of 36 in (914 mm) and 48 in (1.2 m)
- Door heights of 80 in (2 m) and 96 in (2.4 m)

Two types of carriage/hardware sets with one stopper to choose from:
- M6 for 200 lb (90 kg) door
- M8 for 500 lb (227 kg) door

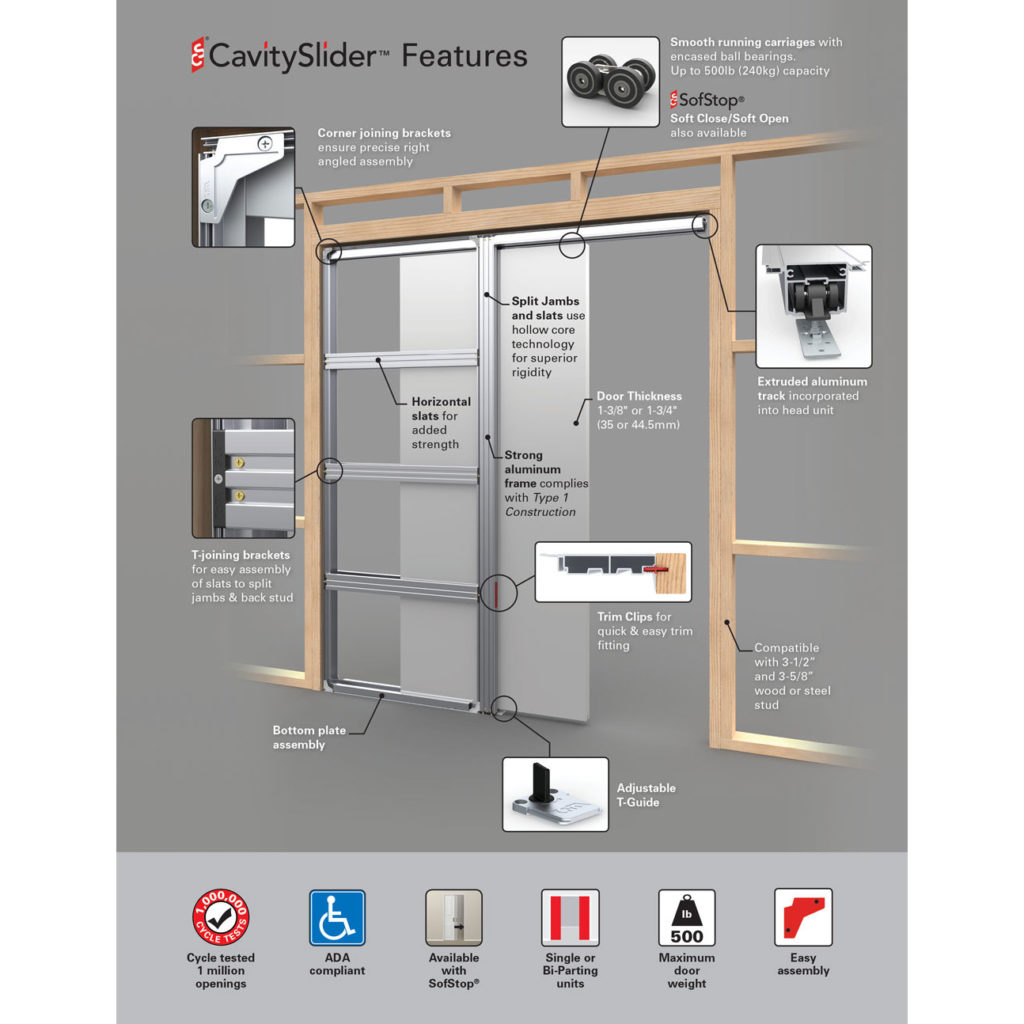

- CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sturdy double wall aluminum pocket frame structure can be cut to size to accommodate different door widths and heights
- Low profile upper track is part of the structure of the pocket frame
- Trim clips for easy press-on mounting for door jamb trim
- Pivoting bottom guide to ease loading the door into the pocket frame during installation
- Large wheel trolleys with precision ground bearings for smooth running
- Simple and flexible low-cost installation
- Cut a groove bottom of the door to conceal floor guide

For soft-close options, refer to the CS Cavity Sliders Pocket Door System in the Suggested Products section below.

For bi-parting applications use connecting pin item no. ZK00305 to line up and connect two systems.

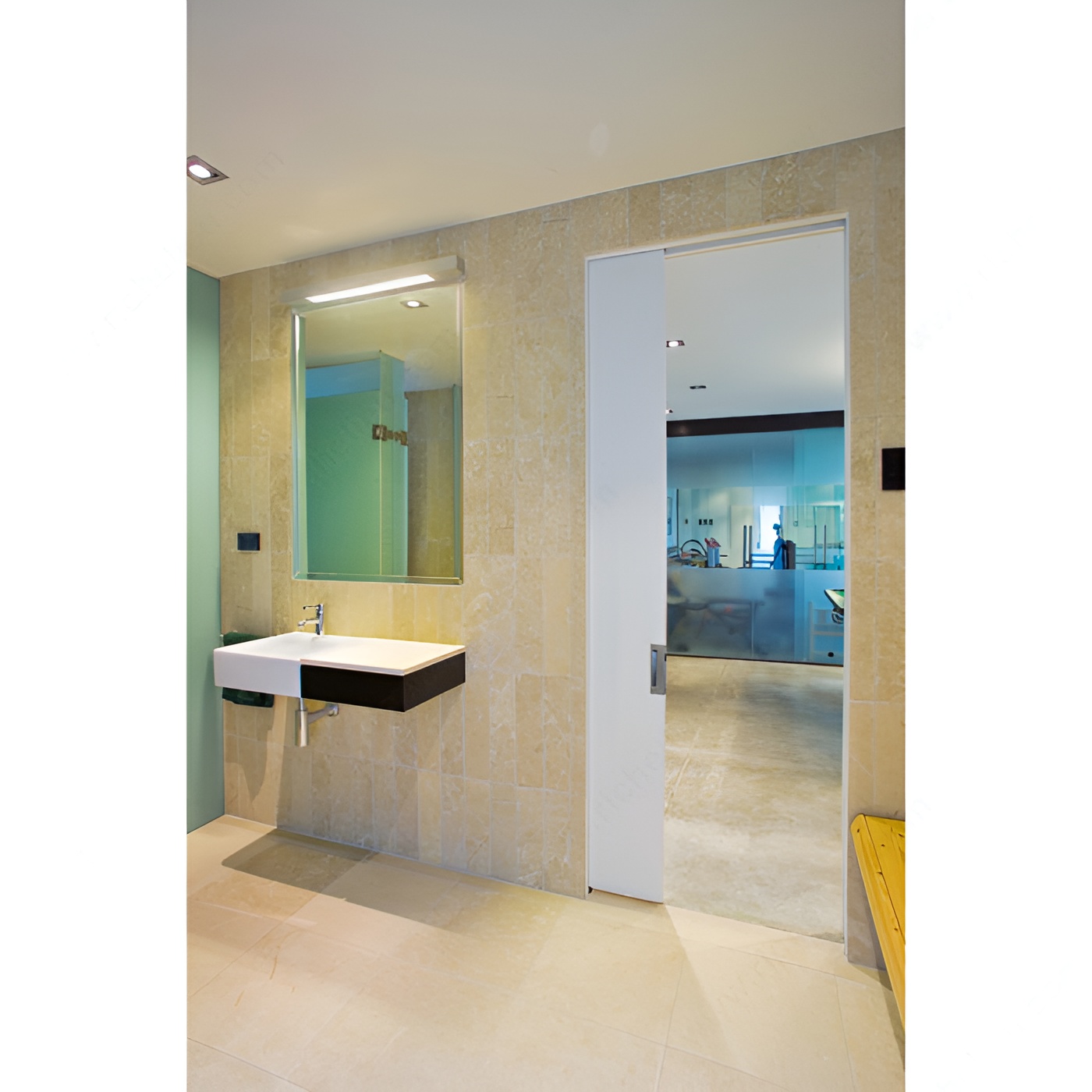

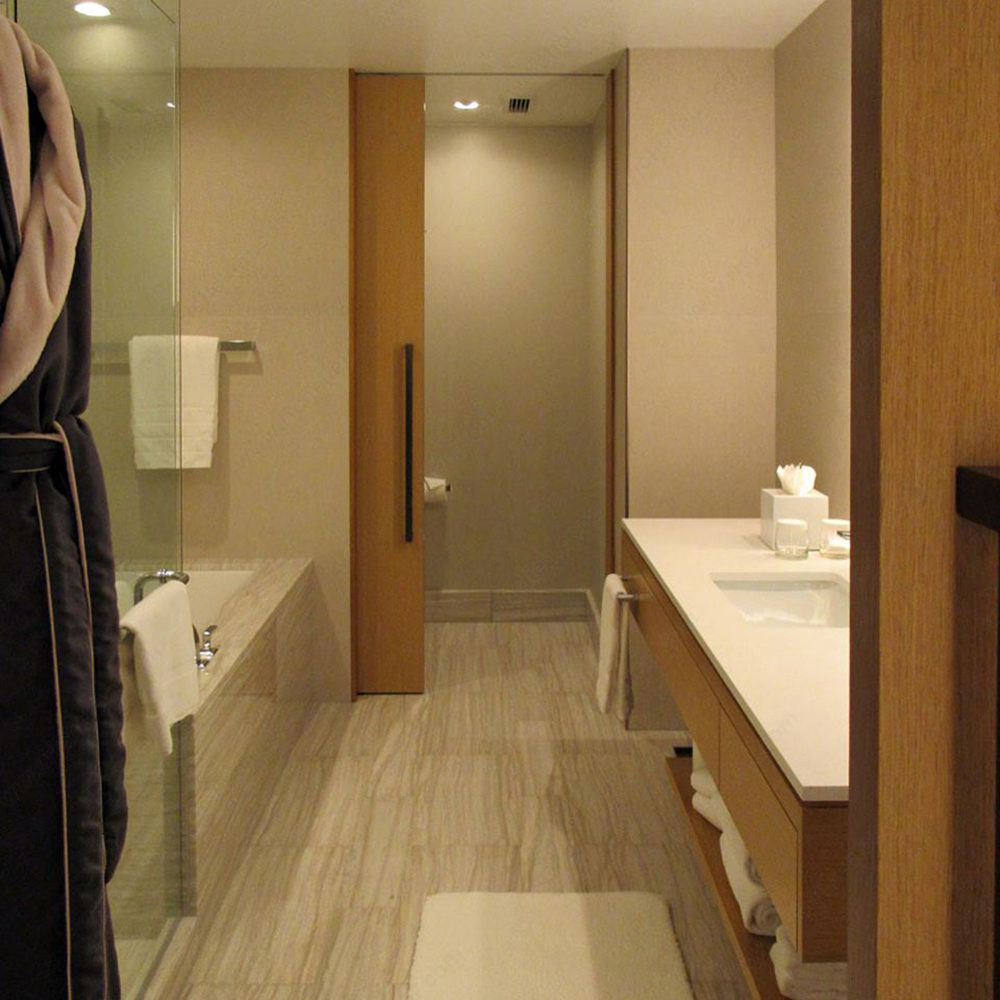

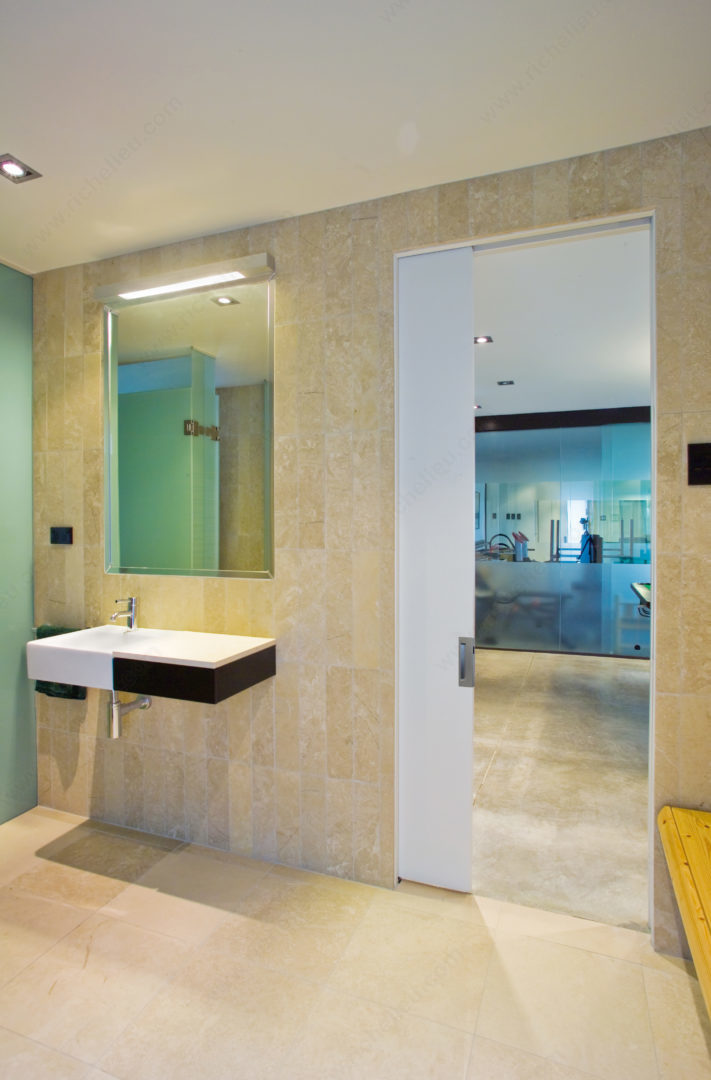

Ideal for residential, commercial, and institutional projects for a wide variety of applications, such as doorways for bedrooms, washrooms, utility rooms, offices, etc.
