Richelieu CS3080 CS Pocket Door Kit for Cavity Sliders

Richelieu CS3080 CS Pocket Door Kit for Cavity Sliders

Richelieu CS3080 CS Cavity Sliders Pocket Door Kit provides a robust solution for installing single sliding wood doors, accommodating weights of up to 200 lb (90 kg). This versatile kit is engineered for standard 2 x 4 wood and metal wall stud construction, making it ideal for a wide range of residential and commercial applications, including bedrooms, offices, and utility rooms. The kit offers flexibility with options for door widths of 36 in (914 mm) and 48 in (1.2 m), and heights of 80 in (2 m) and 96 in (2.4 m). Users can select from two types of carriage/hardware sets, catering to different door weights, and enjoy the benefits of a sturdy double-wall aluminum pocket frame that can be cut to size. The low-profile upper track, part of the pocket frame structure, ensures a seamless installation process. Additional features include a CarriSnap mounting suspension plate for easy trolley release without tools, precision-ground wheel trolleys for smooth operation, and trim clips for simple door jamb installation. A pivoting bottom guide simplifies loading during setup. For soft-close options or bi-parting applications, refer to the recommended products section. The CS3080 is a reliable choice for any pocket door installation project.

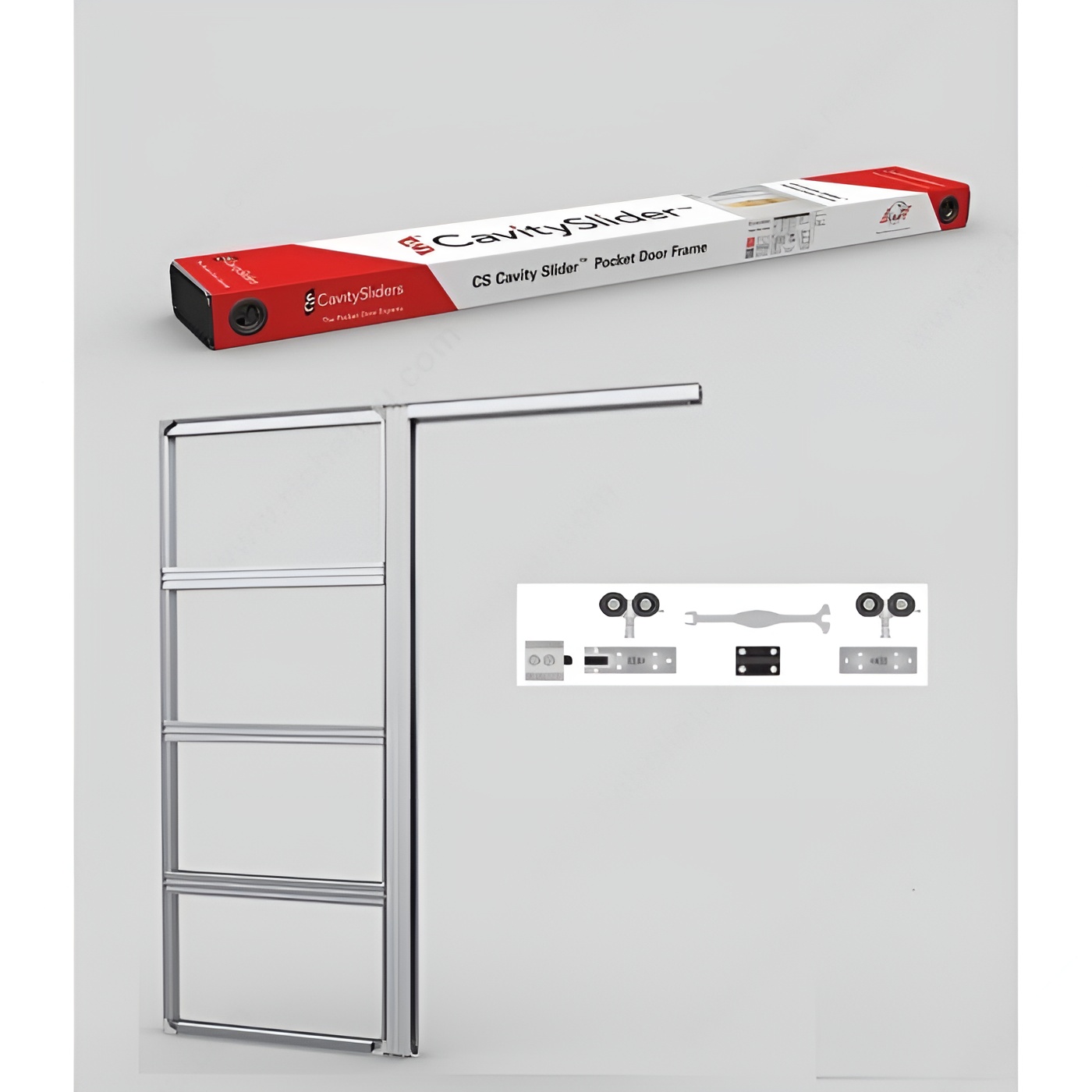

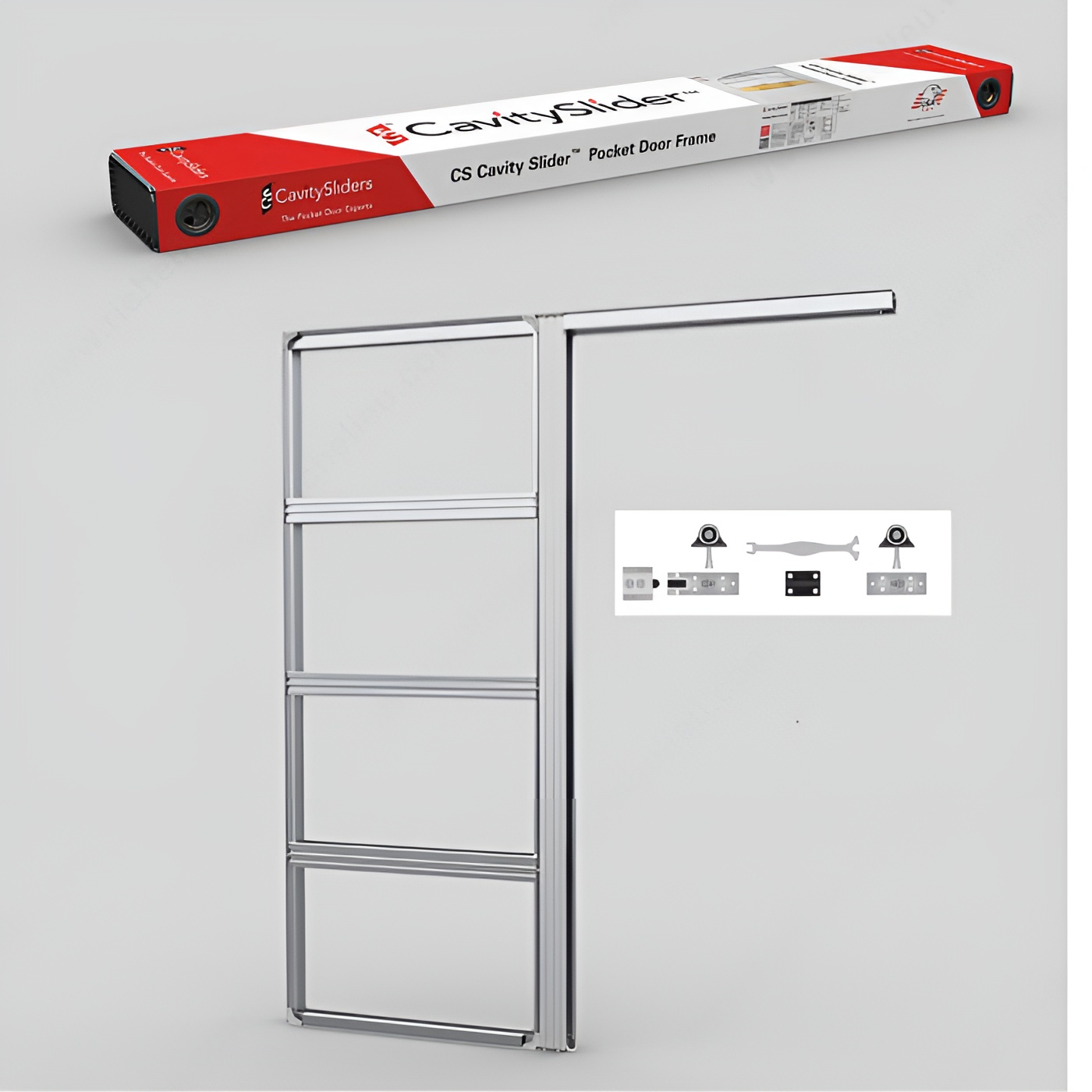

CS Cavity Sliders Pocket Door Kit

The CS Cavity Sliders Pocket Door Kit is designed for single sliding wood doors weighing up to 200 lb (90 kg) and 500 lb (227 kg) each. Made for standard 2 x 4 wood and metal wall stud construction.

Features:
Choose from three types of kits for various door widths and heights:
- Door widths of 36 in (914 mm) and 48 in (1.2 m)
- Door heights of 80 in (2 m) and 96 in (2.4 m)

Two types of carriage/hardware sets with one stopper to choose from:
- M6 for 200 lb (90 kg) door
- M8 for 500 lb (227 kg) door

- CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sturdy double wall aluminum pocket frame structure can be cut to size to accommodate different door widths and heights
- Low profile upper track is part of the structure of the pocket frame
- Trim clips for easy press-on mounting for door jamb trim
- Pivoting bottom guide to ease loading the door into the pocket frame during installation
- Large wheel trolleys with precision ground bearings for smooth running
- Simple and flexible low-cost installation
- Cut a groove bottom of the door to conceal floor guide

For soft-close options, refer to the CS Cavity Sliders Pocket Door System in the Suggested Products section below.

For bi-parting applications use connecting pin item no. ZK00305 to line up and connect two systems.

Ideal for residential, commercial, and institutional projects for a wide variety of applications, such as doorways for bedrooms, washrooms, utility rooms, offices, etc.
