Richelieu CSS4K2280 CS Pocket Door Frame InstructionsRichelieu CSS4K2280 CS Cavity Sliders Pocket Door Frame offers a robust solution for installing single sliding doors weighing between 40 lbs (90 kg) and 500 lbs (227 kg). Designed for standard 2 x 4 wood and metal wall stud constructions, this pocket door frame features a precut, double-wall aluminum structure that accommodates doors ranging from 26 in (660 mm) to 48 in (1.21 m) wide and 80 in (2.03 m) to 96 in (2.43 m) tall. For specialized projects, a special-order frame can be crafted for doors 36 in (914 mm) wide and up to 120 in (3.05 m) tall. This frame is not only flexible but can also be custom cut to meet specific project needs. It is compatible with CS M6, M8, and SofStop soft close carriage/hardware sets, allowing for a smooth operation. The low-profile upper track integrates seamlessly into the pocket frame, while trim clips enable easy press-on mounting of door jamb trim. With straightforward installation, this frame is suitable for various applications across residential, commercial, and institutional settings. For those working with 2 x 6 wall constructions, the CS Ultimate Pocket Door Frame is recommended. Elevate your space with the efficiency and elegance of Richelieu's pocket door solutions.

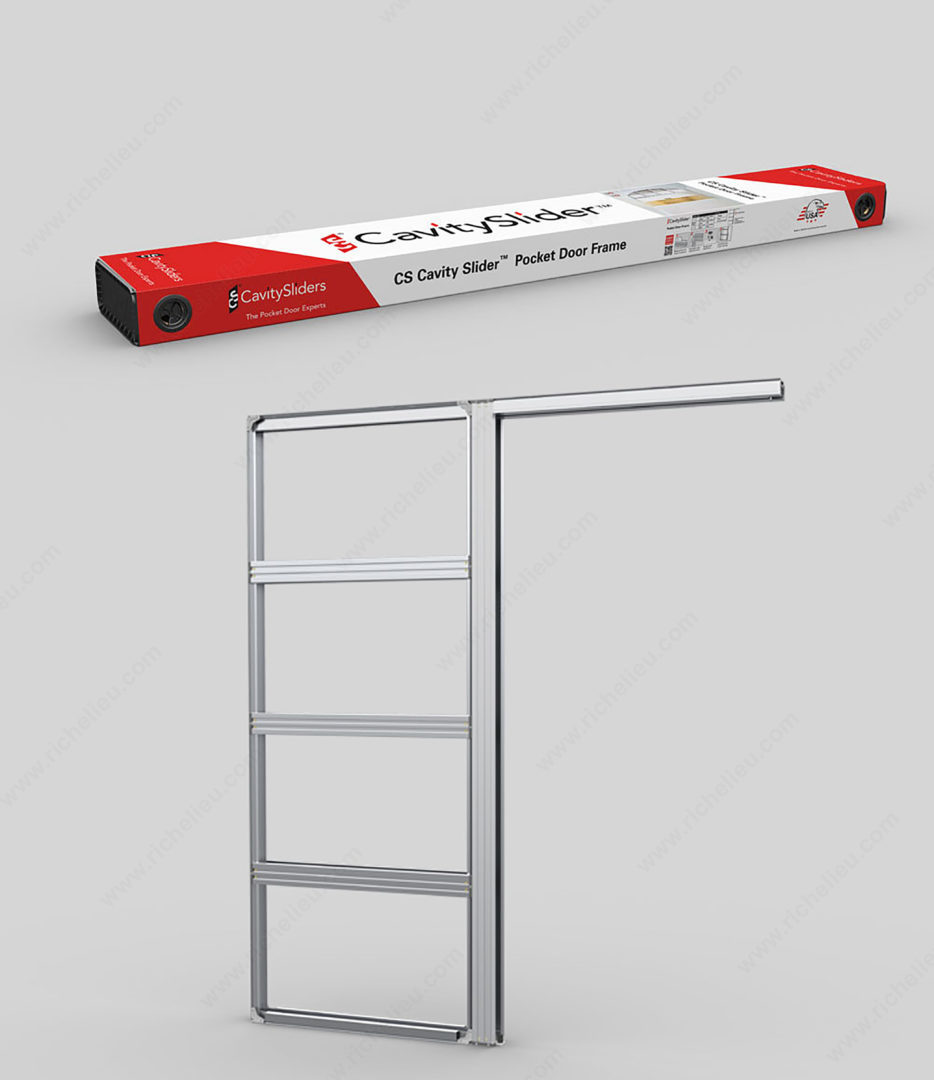

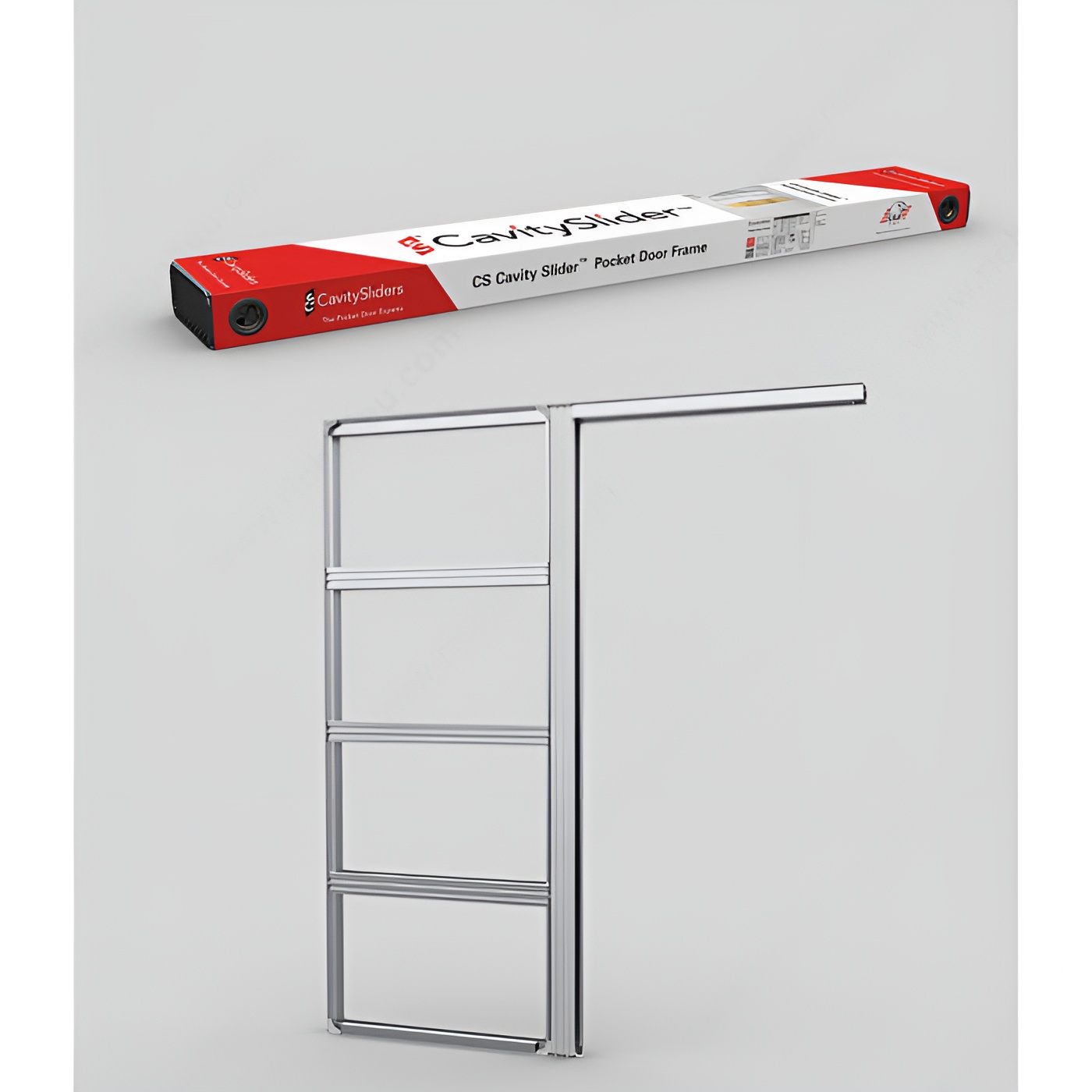

CS Cavity Sliders Pocket Door Frame
The CS Cavity Sliders Pocket Door Frame is for single sliding doors weighing from 40 lbs (90 kg) to 500 lbs (227 kg) each. Made for standard 2 x 4 wood and metal wall stud construction.
Features:
- Precut, sturdy double-wall aluminum pocket frame structure suitable for doors from 26 in (660 mm) to 48 in (1.21 m) wide and 80 in (2.03 m) to 96 in (2.43 m) tall
- Special-order frame available for doors 36 in (914 mm) wide and up to 120 in (3.05 m) tall
- Frames can be custom cut to accommodate other door widths and heights according to project needs
- Compatible with CS M6, M8, and SofStop soft close carriage/hardware sets (sold separately)
- Low profile upper track is part of the upper structure of the pocket frame
- Trim clips for easy press-on mounting of door jamb trim
- Simple, flexible, and low-cost installation
Ideal for for a wide variety of applications in residential, commercial, and institutional projects.
IMPORTANT: For 2 x 6 wall construction, reference the CS Ultimate Pocket Door Frame.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Pocket Door
Brand: Cavity Sliders
Compatible with: Cavity Sliders
Detailed Door Movement: Single sliding, Pocket door
Door Height: 96 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Pocket Door
Door Position: Pocket Door
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 20 to 22 in
Length - Overall Dimensions: 52 in
Load Capacity: 198 to 500 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Number of Doors: 1
Overall Length: 44 in
Packaging Format: Box
Product #: CSS4K2280
Product type: Pocket Door Frame Structure
Roller Position: Upper
Running Track Fixing: Recessed
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Material: Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Panel: 500 lb
