Richelieu CSS4K2868 CS Pocket Door Frame InstructionsRichelieu CSS4K2868 CS Cavity Sliders Pocket Door Frame is engineered for seamless integration of single sliding doors weighing between 40 lbs (90 kg) and 500 lbs (227 kg). Designed for standard 2 x 4 wood and metal wall stud construction, this durable pocket frame accommodates doors ranging from 26 inches (660 mm) to 48 inches (1.21 m) wide and 80 inches (2.03 m) to 96 inches (2.43 m) tall. For specialized projects, a custom frame option is available for doors up to 120 inches (3.05 m) tall. The pre-cut, double-wall aluminum structure ensures longevity and stability, while a low-profile upper track is integrated into the frame for a clean aesthetic. Trim clips simplify press-on mounting of door jamb trim, contributing to quick installation. This pocket door frame is compatible with CS M6, M8, and SofStop soft close carriage/hardware sets, allowing for enhanced functionality (sold separately). With its flexible design, the Richelieu CSS4K2868 is ideal for a diverse range of residential, commercial, and institutional applications. Note that for 2 x 6 wall construction, the CS Ultimate Pocket Door Frame should be referenced. Elevate your space with this practical and stylish pocket door solution.

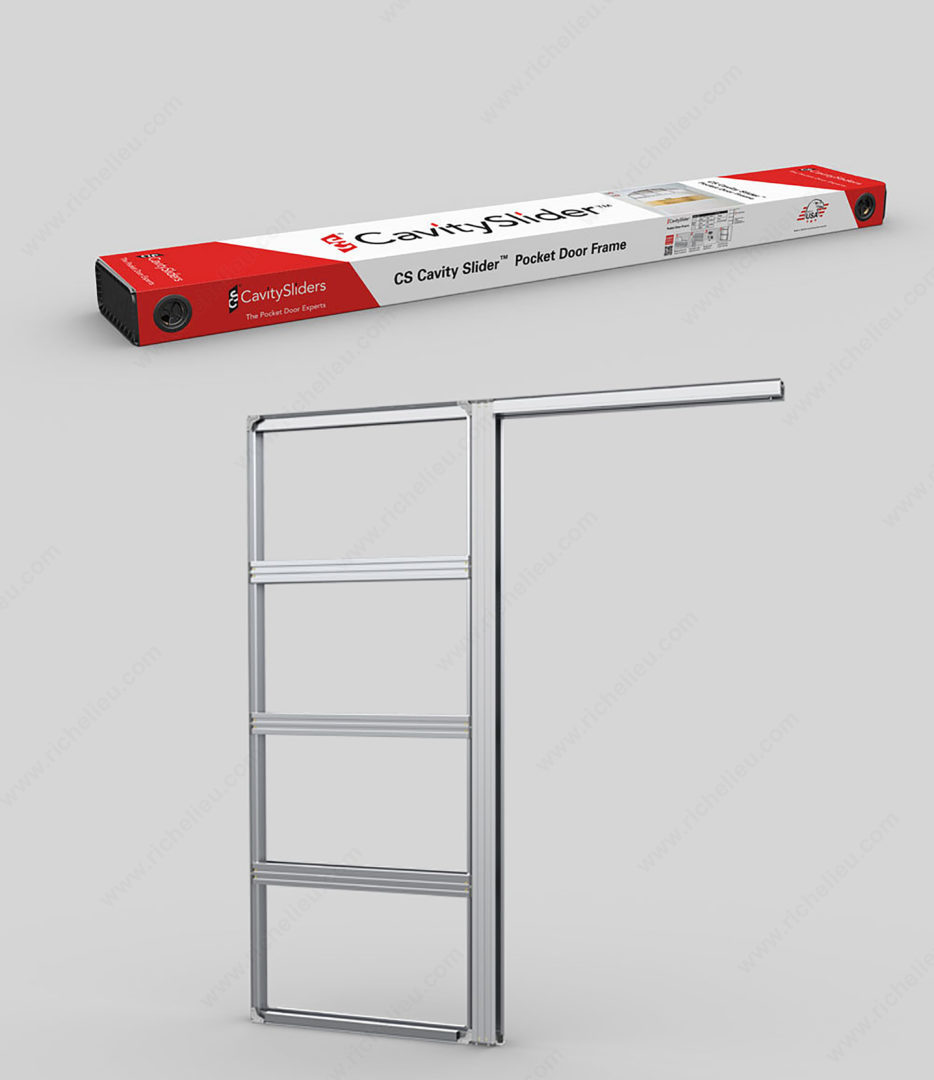

CS Cavity Sliders Pocket Door Frame
The CS Cavity Sliders Pocket Door Frame is for single sliding doors weighing from 40 lbs (90 kg) to 500 lbs (227 kg) each. Made for standard 2 x 4 wood and metal wall stud construction.
Features:
- Precut, sturdy double-wall aluminum pocket frame structure suitable for doors from 26 in (660 mm) to 48 in (1.21 m) wide and 80 in (2.03 m) to 96 in (2.43 m) tall
- Special-order frame available for doors 36 in (914 mm) wide and up to 120 in (3.05 m) tall
- Frames can be custom cut to accommodate other door widths and heights according to project needs
- Compatible with CS M6, M8, and SofStop soft close carriage/hardware sets (sold separately)
- Low profile upper track is part of the upper structure of the pocket frame
- Trim clips for easy press-on mounting of door jamb trim
- Simple, flexible, and low-cost installation
Ideal for for a wide variety of applications in residential, commercial, and institutional projects.
IMPORTANT: For 2 x 6 wall construction, reference the CS Ultimate Pocket Door Frame.
Attributes
Application: Standard Access Door, Pocket Door
Brand: Cavity Sliders
Compatible with: Cavity Sliders
Door Height: 80 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Pocket Door
Door Position: Concealed Inside Wall
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 24 to 32 in
Load Capacity: 198 to 500 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Overall Length: 64 in
Packaging Format: Box
Product #: CSS4K2868
Product type: Hardware for Bypassing Doors
Roller Position: Upper
Running Track Fixing: Recessed
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Ceiling Mount
