Richelieu CSS4K4080 CS Pocket Door FrameRichelieu CSS4K4080 CS Cavity Sliders Pocket Door Frame is engineered for single sliding doors weighing between 40 lbs (90 kg) and 500 lbs (227 kg), making it an ideal choice for various residential, commercial, and institutional applications. Constructed from sturdy double-wall aluminum, this frame is designed to accommodate doors ranging from 26 in (660 mm) to 48 in (1.21 m) wide and 80 in (2.03 m) to 96 in (2.43 m) tall, with special-order options available for larger doors. The low-profile upper track integrates seamlessly into the pocket frame, ensuring a clean and unobtrusive appearance. Trim clips facilitate easy press-on mounting of door jamb trim, simplifying the installation process. Custom cutting options allow this frame to be tailored to specific project needs, offering flexibility for unique designs. Compatible with CS M6, M8, and SofStop soft close carriage/hardware sets (sold separately), the CSS4K4080 is a robust solution for concealed inside wall applications. It supports door thicknesses of 1 3/8 to 1 3/4 in, ensuring a secure fit for various door materials, primarily wood. With its straightforward installation and exceptional load capacity, this pocket door frame is a reliable choice for any project requiring both functionality and aesthetics.

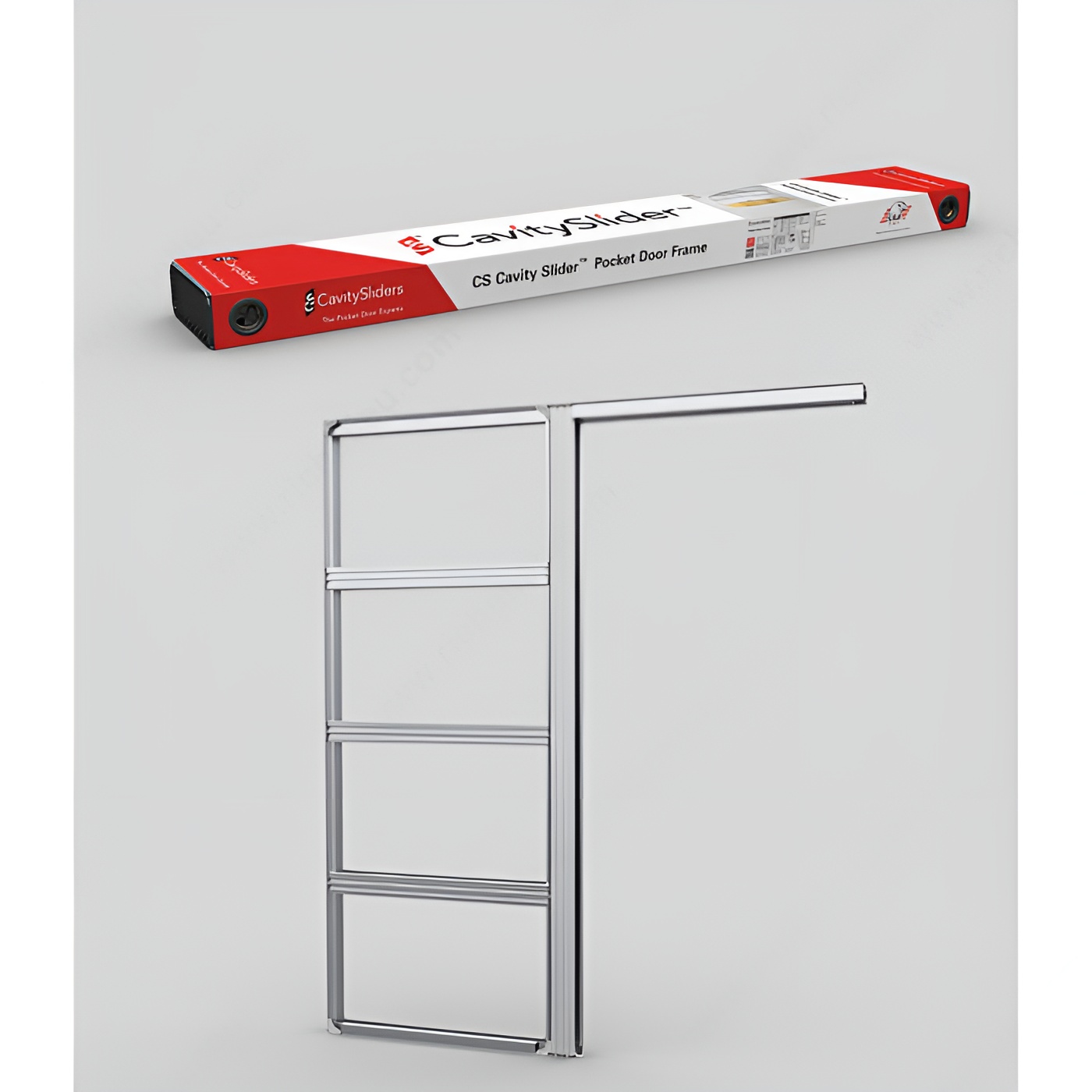

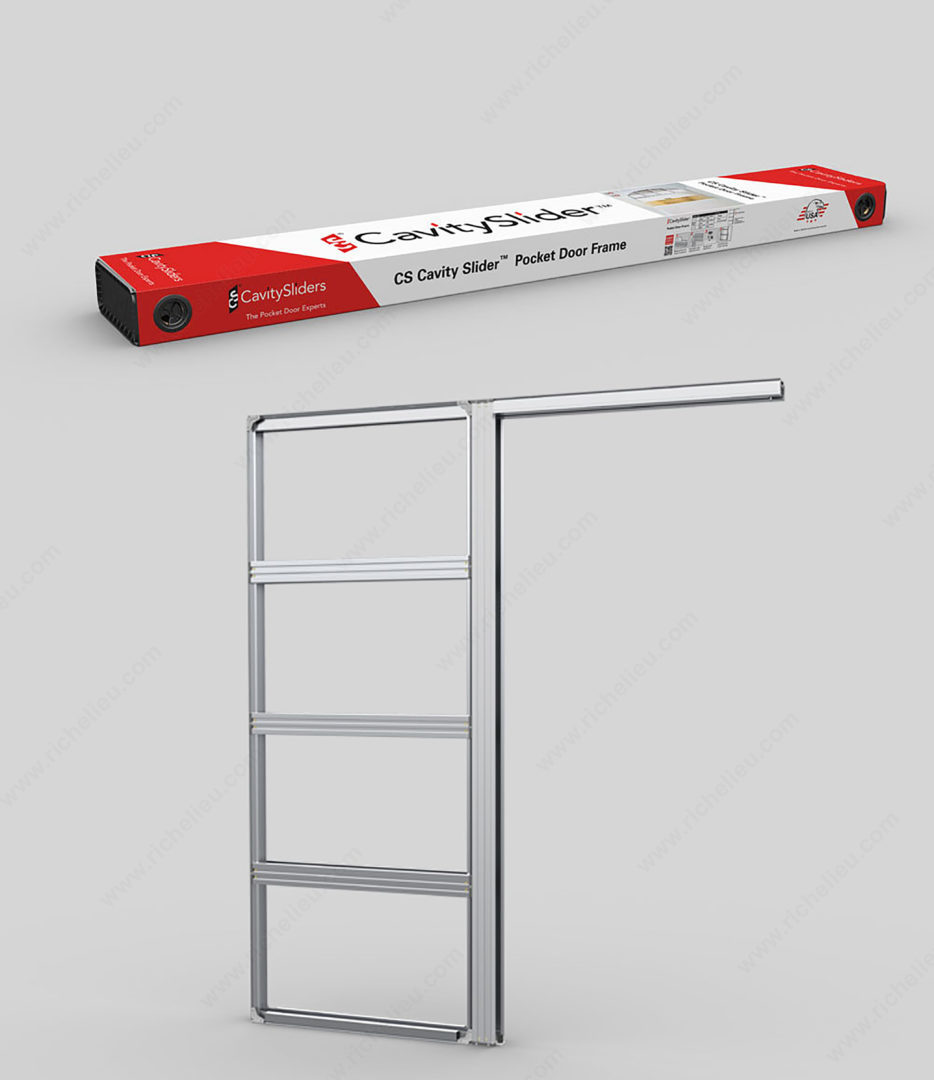

CS Cavity Sliders Pocket Door Frame
The CS Cavity Sliders Pocket Door Frame is for single sliding doors weighing from 40 lbs (90 kg) to 500 lbs (227 kg) each. Made for standard 2 x 4 wood and metal wall stud construction.
Features:
- Precut, sturdy double-wall aluminum pocket frame structure suitable for doors from 26 in (660 mm) to 48 in (1.21 m) wide and 80 in (2.03 m) to 96 in (2.43 m) tall
- Special-order frame available for doors 36 in (914 mm) wide and up to 120 in (3.05 m) tall
- Frames can be custom cut to accommodate other door widths and heights according to project needs
- Compatible with CS M6, M8, and SofStop soft close carriage/hardware sets (sold separately)
- Low profile upper track is part of the upper structure of the pocket frame
- Trim clips for easy press-on mounting of door jamb trim
- Simple, flexible, and low-cost installation
Ideal for for a wide variety of applications in residential, commercial, and institutional projects.
IMPORTANT: For 2 x 6 wall construction, reference the CS Ultimate Pocket Door Frame.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door, Pocket Door
Brand: Cavity Sliders
Compatible with: Cavity Sliders
Detailed Door Movement: Single sliding, Pocket door
Door Height: Max. 96 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Pocket Door
Door Position: Pocket Door
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 30 to 48 in
Length - Overall Dimensions: 96 in
Load Capacity: 198 to 500 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Number of Doors: 1
Overall Length: 96 in
Packaging Format: Box
Product #: CSS4K4080
Product type: Pocket Door Frame Structure
Roller Position: Upper
Running Track Fixing: Recessed
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Material: Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Panel: 500 lb
