Richelieu CSU6K3080 CS Cavity Sliders Ultimate Pocket FrameRichelieu CSU6K3080 CS Cavity Sliders Ultimate Pocket Frame is designed to accommodate single sliding doors weighing between 40 lbs (90 kg) and 500 lbs (227 kg). This robust pocket frame is ideal for standard 2 x 6 wood and metal wall stud construction, making it a versatile choice for various residential, commercial, and institutional applications. Crafted from a precut, sturdy double-wall aluminum structure, this frame supports doors ranging from 30 in (762 mm) to 48 in (1.21 m) wide and heights from 96 in (2.43 m) to 108 in (2.74 m). For larger openings, special-order frames are available for doors up to 60 in (1.52 m) wide and 120 in (3.05 m) tall. Additionally, the frames can be custom cut to meet specific project requirements. The CSU6K3080 features a low-profile upper track integrated into the pocket frame, simplifying installation. It includes trim clips for easy door jamb trim mounting and is compatible with CS M6, M8, and SofStop soft close carriage/hardware sets (sold separately). Designed for top-hung installation, this pocket door frame structure ensures smooth operation with its ball-bearing roller type. Choose Richelieu for a reliable and flexible pocket door solution that enhances any space.
CS Cavity Sliders Ultimate Pocket Frame
The CS Cavity Sliders Ultimate Pocket Frame is for single sliding doors weighing from 40 lbs (90 kg) to 500 lbs (227 kg) each. Made for standard 2 x 6 wood and metal wall stud construction.
Features:
- Precut, sturdy double-wall aluminum pocket frame structure suitable for doors from 30 in (762 mm) to 48 in (1.21 m) wide and 96 in (2.43 m) to 108 in (2.74 m) tall
- Special-order frame available for doors up to 60 in (1.52 m) wide and up to 120 in (3.05 m) tall
- Frames can be custom cut to accommodate other door widths and heights according to project needs
- Compatible with CS M6, M8, and SofStop soft close carriage/hardware sets (sold separately)
- Low profile upper track is part of the upper structure of the pocket frame
- Trim clips for easy press-on mounting of door jamb trim
- Simple, flexible, and low-cost installation

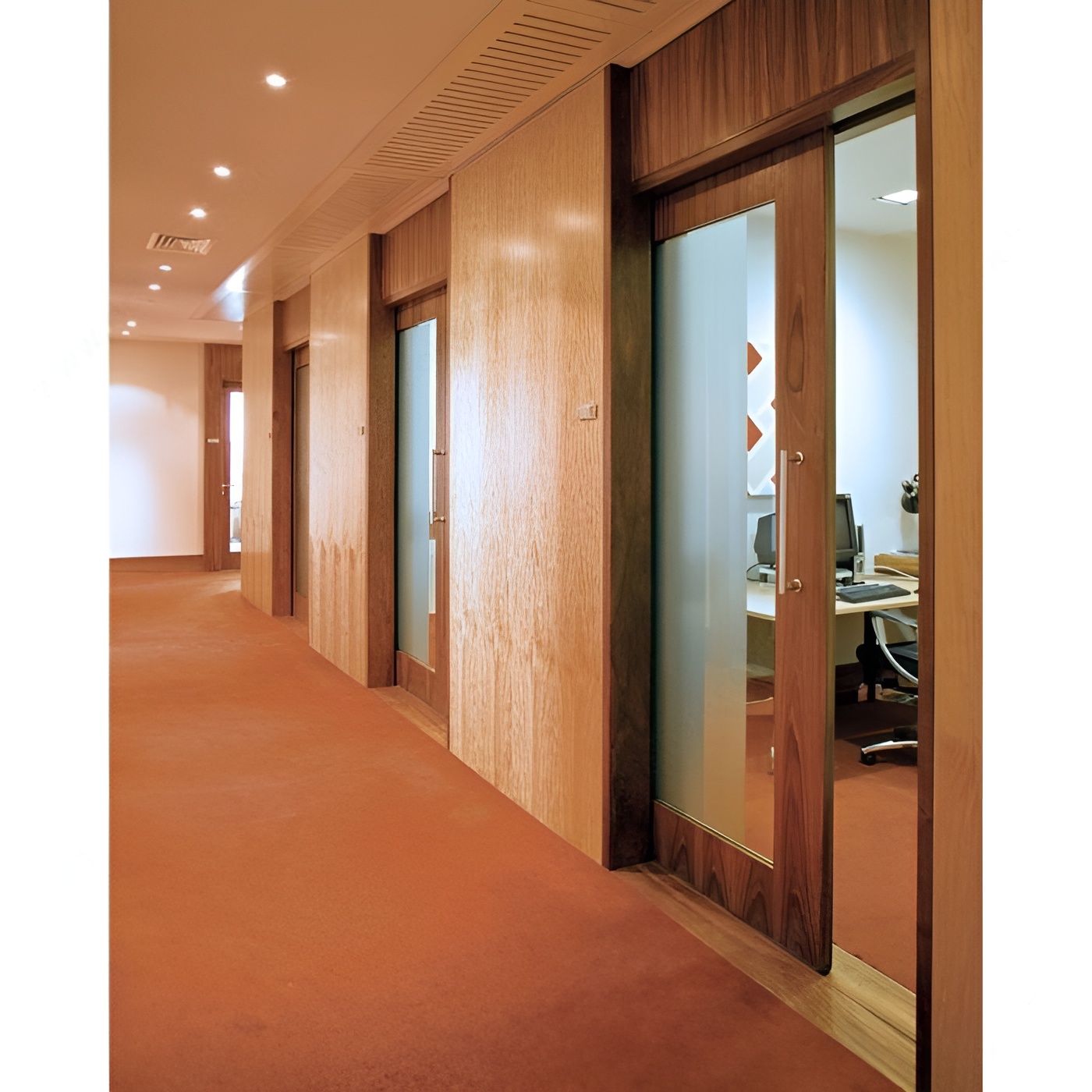

Ideal for for a wide variety of applications in residential, commercial, and institutional projects.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Pocket Door
Compatible with: CS Pocket Door
Detailed Door Movement: Pocket door
Door Height: 72 to 96 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 2 1/4 in
Door Width: 30 to 36 in
Groove Needed for Guiding System: Yes
Number of Doors: 1
Packaging Format: Box
Product #: CSU6K3080
Product type: Pocket Door Frame Structure
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
