Richelieu CSU6K4090 CS Cavity Sliders Ultimate Pocket FrameRichelieu CSU6K4090 CS Cavity Sliders Ultimate Pocket Frame is engineered for single sliding doors weighing between 40 lbs (90 kg) and 500 lbs (227 kg). This robust pocket frame is designed for standard 2 x 6 wood and metal wall stud construction, making it an ideal choice for a variety of residential, commercial, and institutional applications. Featuring a precut, sturdy double-wall aluminum structure, this pocket frame accommodates doors ranging from 30 inches (762 mm) to 48 inches (1.21 m) wide and 96 inches (2.43 m) to 108 inches (2.74 m) tall. For larger projects, a special-order frame is available to fit doors up to 60 inches (1.52 m) wide and 120 inches (3.05 m) tall. Custom cuts can also be made to suit unique project specifications. The low-profile upper track is integrated into the pocket frame for a seamless look, while trim clips facilitate easy press-on mounting of door jamb trim. The installation process is simple, flexible, and cost-effective. The CSU6K4090 is compatible with CS M6, M8, and SofStop soft-close carriage/hardware sets, available separately, ensuring a smooth and quiet door operation. With its reliable design, this pocket frame is the perfect solution for enhancing space efficiency without compromising on style.

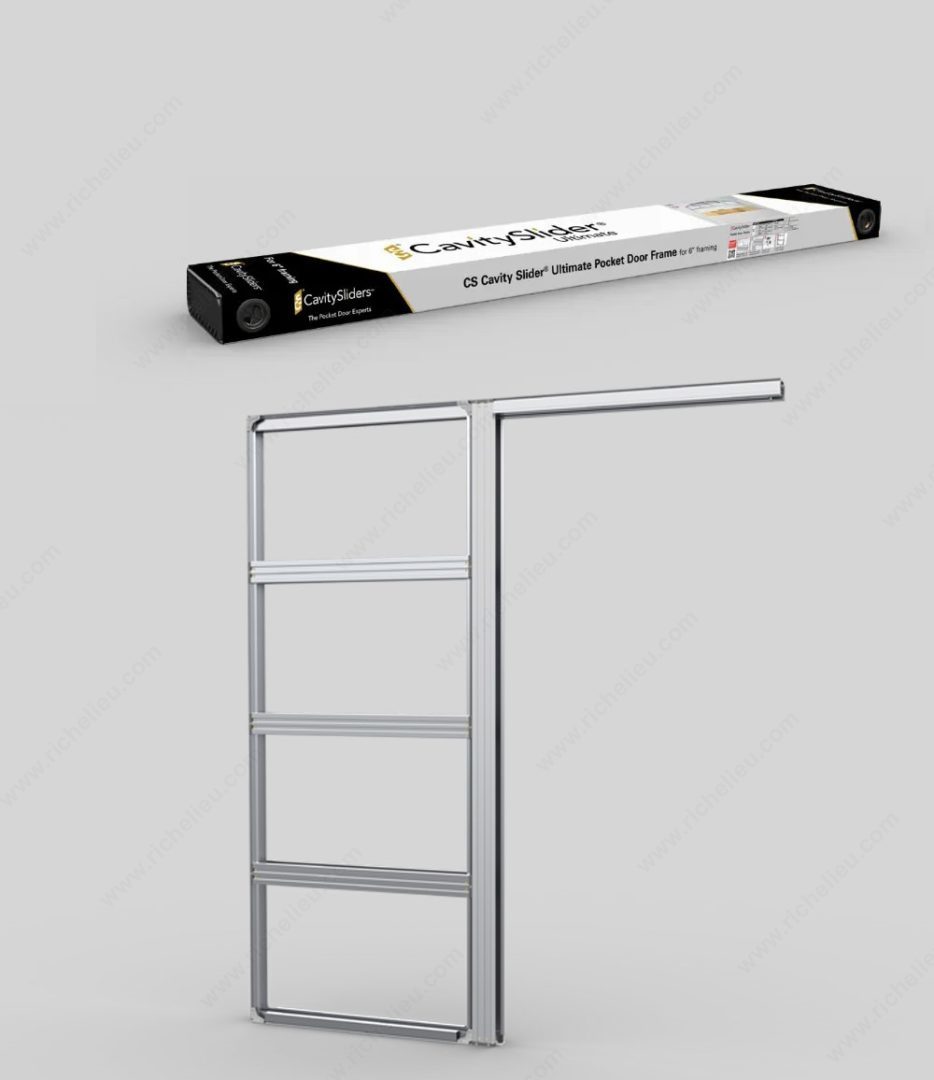

CS Cavity Sliders Ultimate Pocket Frame
The CS Cavity Sliders Ultimate Pocket Frame is for single sliding doors weighing from 40 lbs (90 kg) to 500 lbs (227 kg) each. Made for standard 2 x 6 wood and metal wall stud construction.
Features:
- Precut, sturdy double-wall aluminum pocket frame structure suitable for doors from 30 in (762 mm) to 48 in (1.21 m) wide and 96 in (2.43 m) to 108 in (2.74 m) tall
- Special-order frame available for doors up to 60 in (1.52 m) wide and up to 120 in (3.05 m) tall
- Frames can be custom cut to accommodate other door widths and heights according to project needs
- Compatible with CS M6, M8, and SofStop soft close carriage/hardware sets (sold separately)
- Low profile upper track is part of the upper structure of the pocket frame
- Trim clips for easy press-on mounting of door jamb trim
- Simple, flexible, and low-cost installation
Ideal for for a wide variety of applications in residential, commercial, and institutional projects.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Pocket Door
Compatible with: CS Pocket Door
Detailed Door Movement: Pocket door
Door Height: 80 to 108 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 2 1/4 in
Door Width: 30 to 48 in
Groove Needed for Guiding System: Yes
Number of Doors: 1
Packaging Format: Box
Product #: CSU6K4090
Product type: Pocket Door Frame Structure
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Sold Separately
