Richelieu DKM1000 Cavity Sliders Heavy-Duty M10 Hardware SetRichelieu DKM1000 Cavity Sliders Heavy-Duty M10 Hardware Set is expertly designed to support sliding wood doors weighing up to 1,100 lb (500 kg), making it ideal for large commercial projects, divider doors, and wall partitions. This hardware set features a mounting suspension plate that facilitates easy installation and quick release of the upper trolley without the need for tools, enhancing efficiency on the job site. Large wheel trolleys equipped with precision ground bearings ensure smooth operation, while the adjustable design allows for a flexible, low-cost installation tailored to various project requirements. The DKM1000 accommodates doors with a height of up to 144 inches and thickness ranging from 1 3/4 to 3 inches, with a width between 39 and 71 inches. Constructed from durable metal, steel, and nylon, this top-hung system is built to last. The upper roller position and ball bearing roller type contribute to a reliable straight sliding movement. The ceiling-mounted box track design further supports seamless installation. With its robust load capacity and ease of use, the Richelieu DKM1000 is the perfect solution for demanding architectural applications, ensuring performance and longevity in every project.

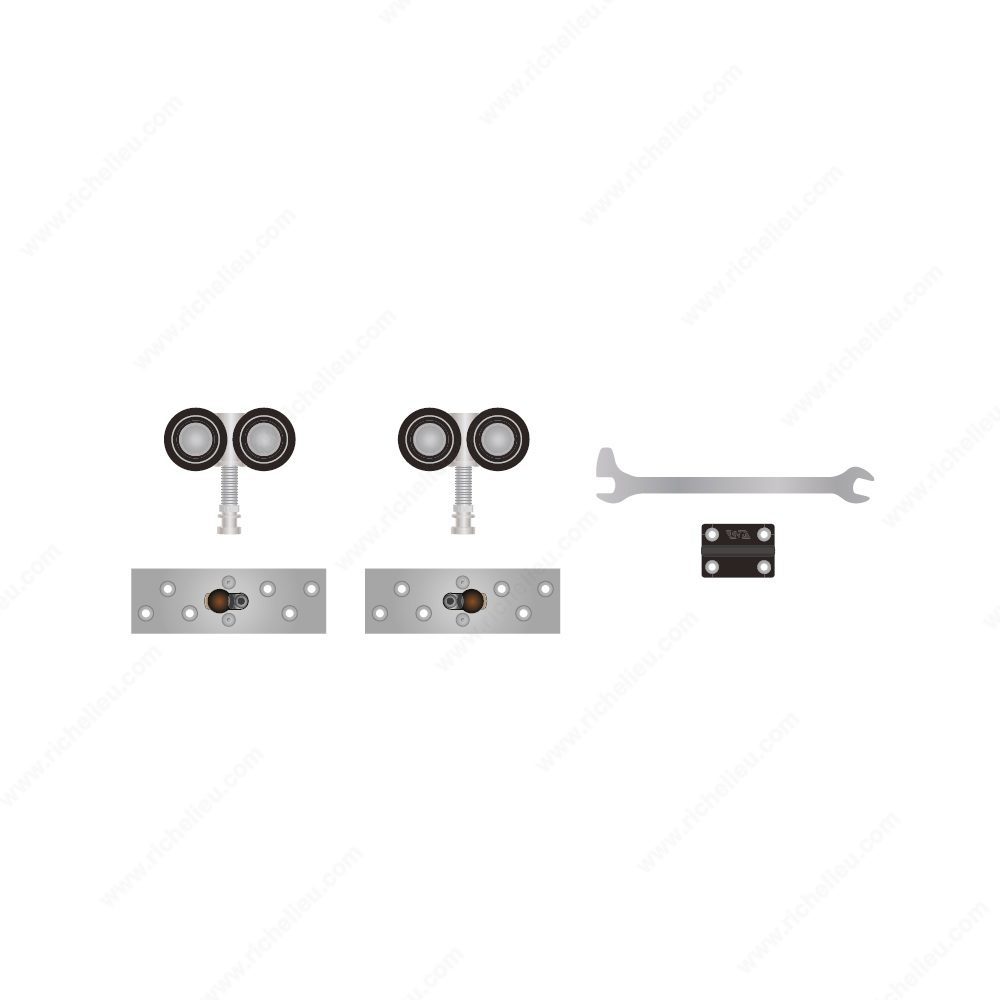

Cavity Sliders Heavy-Duty M10 Hardware Set
The Cavity Sliders Heavy-Duty M10 Hardware Set is designed for sliding wood doors weighing up to 1100 lb (500 kg) each.
Features:
- Mounting suspension plate to the top of the door for mounting and quick releasing the upper trolley without tools
- Large wheel trolleys with precision ground bearings for smooth running
- Simple and flexible low-cost installation

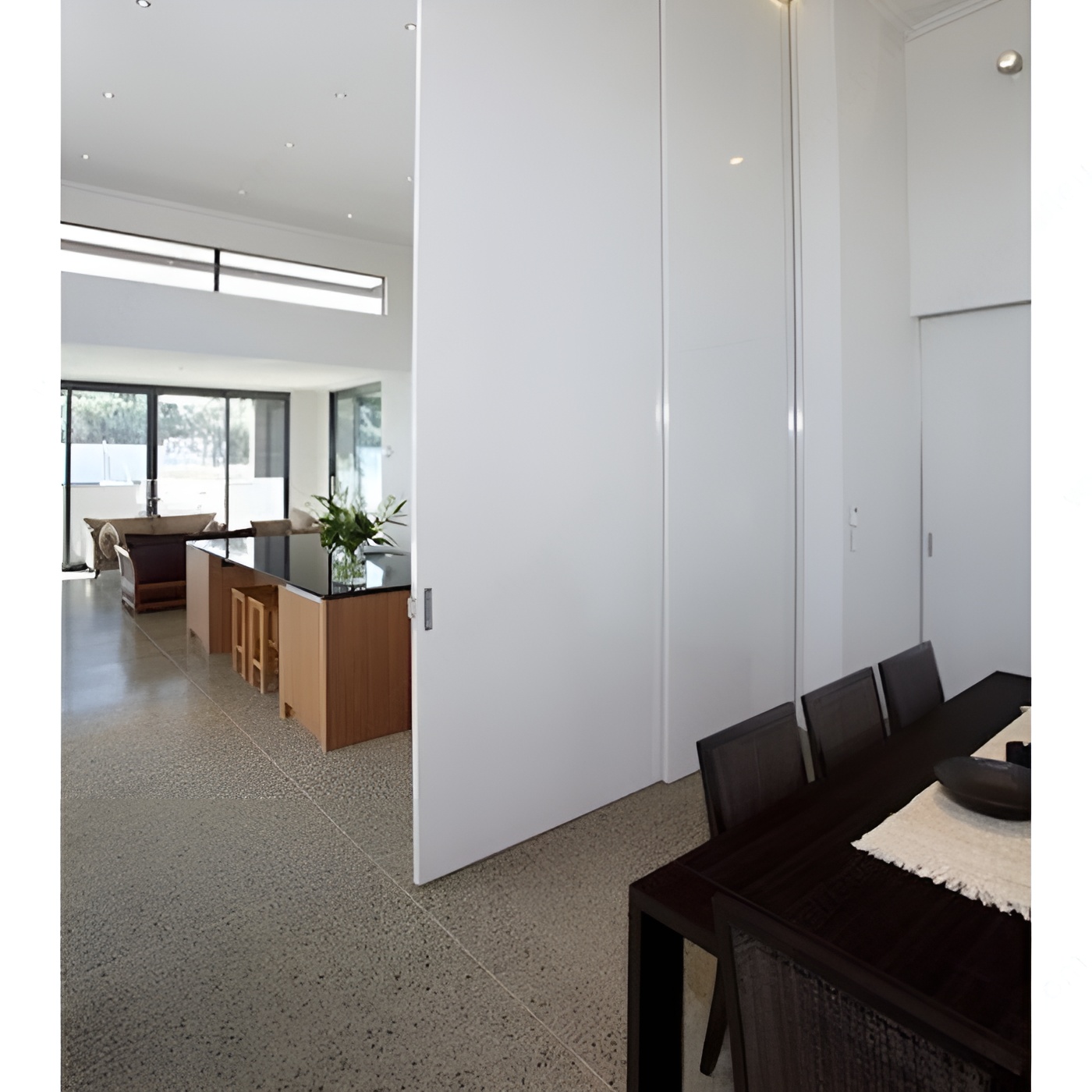

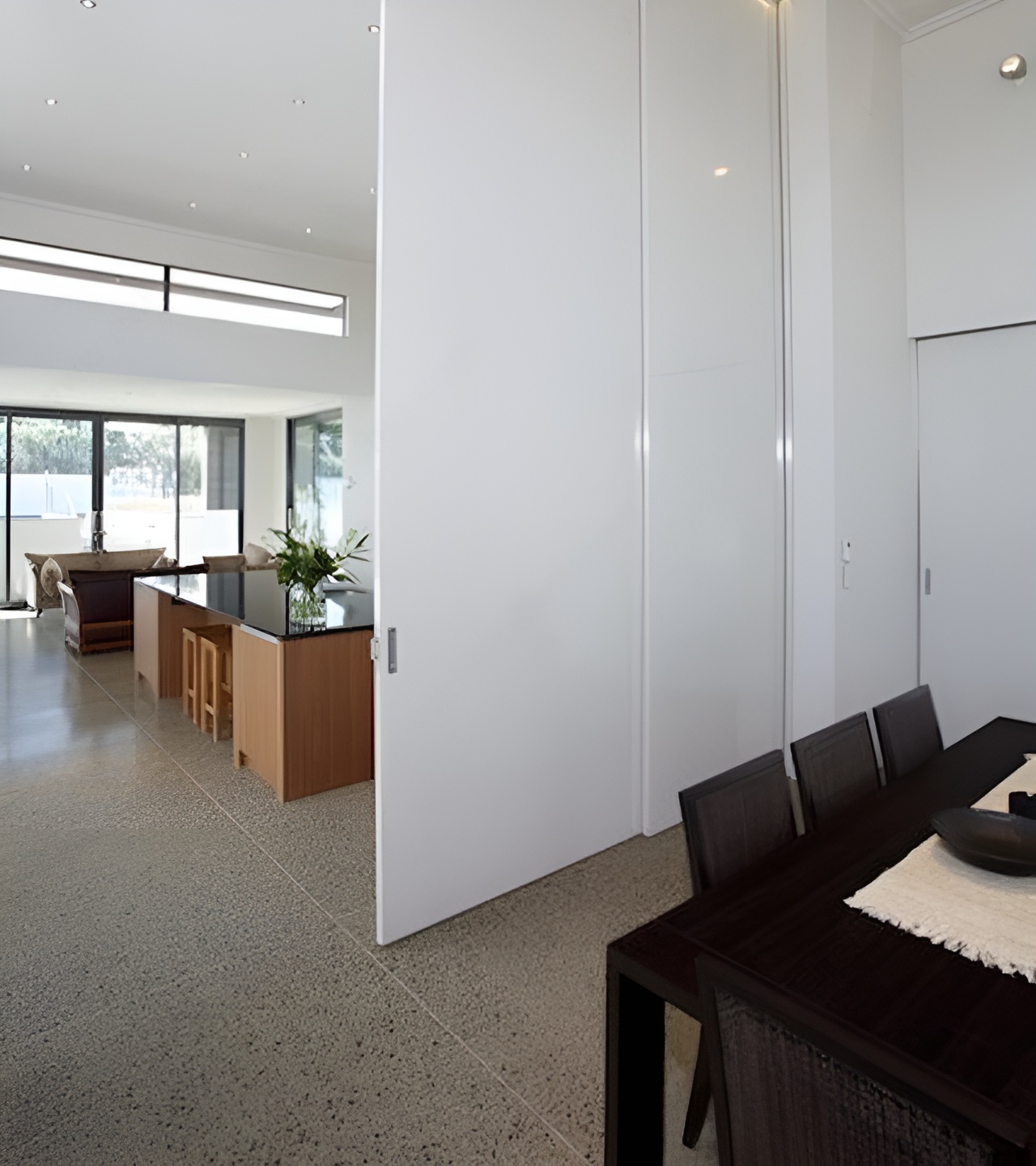

An ideal solution for large commercial projects, divider doors, and wall partitions.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Brand: Cavity Sliders
Compatible with: Cavity Sliders
Detailed Door Movement: Single Sliding
Door Height: 144 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/4 to 3 in
Door Width: 39 to 71 in
Drilling: 1 in
Drilling Depth: 1/2 in
Load Capacity: 1 000 lb
Manufacturing Material: Metal, Steel, and Nylon
Material: Metal, Steel, and Nylon
Number of Doors: 1
Packaging Format: Box
Product #: DKM1000
Product number: DKM1000
Product type: Hardware Set
Product №: DKM1000
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: None
Track Mounting: Ceiling Mount
Track Type: Box Track
Track type: Box Track
Unit: Set
Weight Capacity per Panel: 1 000 lb
