Richelieu DKO6201CP CS Door Collection Set InstructionsRichelieu DKO6201CP CS Door Collection Sets offer an innovative solution for sliding wood doors, accommodating weights of up to 200 lb (90 kg) or 500 lb (227 kg) each for two or three telescopic and stacked configurations. Designed with efficiency in mind, these sets include a CarriSnap mounting suspension plate that allows for tool-free installation and release of the upper trolley, streamlining the setup process. Compatible with 1-3/8 in (35 mm) and 1-3/4 in (45 mm) thick doors, the DKO6201CP features robust vertical pick-up extrusions (sold separately for non-KITS) to ensure smooth and secure door movement. The large wheel trolleys, equipped with precision-ground bearings, provide exceptional performance, while the absence of a bottom guide channel for doors under 48 in (1219 mm) simplifies design choices and installation. With an overall height of 4 in and a length of 16 in, this ceiling mount box track system is suitable for a range of wood doors, allowing for an adjustable, low-cost installation option. Note that the hardware carriage sets are sold separately from vertical pick-up profiles, making the KITS an ideal choice for a complete package. Elevate your space with the reliability and functionality of Richelieu’s CS Door Collection Sets.
CS Door Collection Sets

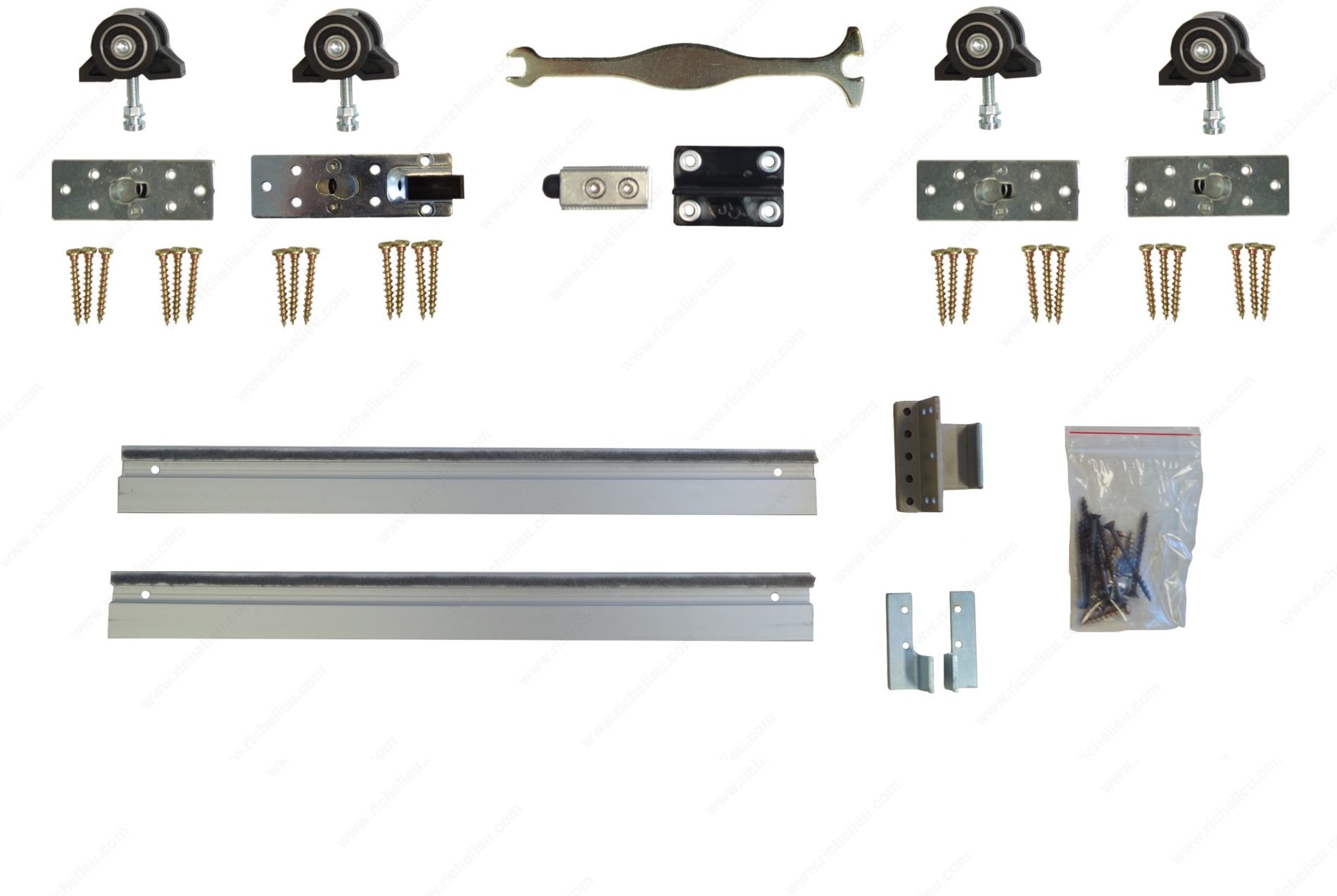

The CS Door Collection carriage and pick-up extrusion sets are designed for two or three telescopic and stacked sliding wood doors weighing up to 200 lb (90 kg) or 500 lb (227 kg) each.
Features:
- A CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sets for 1-3/8 in (35 mm) or 1-3/4 in (45 mm) thick doors
- Sturdy vertical pick-up extrusions for smooth and secure movement (sold separately for non-KITS)
- Large wheel trolleys with precision ground bearings for smooth running
- No bottom guide channel required for door widths under 48 in (1219 mm)
- Simple, flexible and low-cost installation
IMPORTANT: Hardware carriage sets are sold separately from vertical pick-up profiles.
Order KITS if you need the hardware set complete in one box.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Brand: Cavity Sliders
Compatible with: CS Door Collection
Detailed Door Movement: Telescoping, Stacking
Door Height: 120 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Movable Wall
Door Position: Inset/Inlay
Door Thickness: 1 3/8 in
Door Width: 24 to 71 in
Height - Overall Dimensions: 4 in
Length - Overall Dimensions: 16 in
Load Capacity: 80 to 200 lb
Manufacturing Material: Metal, Aluminum, and Nylon
Material: Metal, Aluminum, and Nylon
Number of Doors: 2
Overall Height: 4 in
Overall Length: 16 in
Packaging Format: Box
Product #: DKO6201CP
Product type: KIT with Pick Up Profile
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Mounting: Ceiling Mount
Track type: Box Track
Weight Capacity per Door: 80 to 200 lb
Width - Overall Dimensions: 5 in
