Richelieu DKO6301CP CS Door Collection Set InstructionsRichelieu DKO6301CP CS Door Collection Sets are expertly crafted for the seamless operation of two or three telescopic and stacked sliding wood doors, accommodating weights of up to 200 lb (90 kg) per door. Designed with the building professional in mind, these sets feature a CarriSnap mounting suspension plate that enables tool-free installation and release of the upper trolley, simplifying the setup process. Compatible with doors ranging from 1-3/8 in (35 mm) to 1-3/4 in (45 mm) thick, the DKO6301CP sets utilize sturdy vertical pick-up extrusions for a secure and smooth movement, available separately for non-KITS. The large wheel trolleys are equipped with precision ground bearings, ensuring an effortless glide. Notably, for door widths under 48 in (1219 mm), a bottom guide channel is unnecessary, enhancing design flexibility. These hardware sets are ideal for top-hung installations and can accommodate door heights up to 120 in. With a load capacity ranging from 80 to 200 lb, you can confidently utilize this system for various applications. Please note that the hardware carriage sets are sold separately from vertical pick-up profiles, so order KITS for a complete solution. Elevate your space with the reliable and efficient Richelieu DKO6301CP CS Door Collection Sets.
CS Door Collection Sets

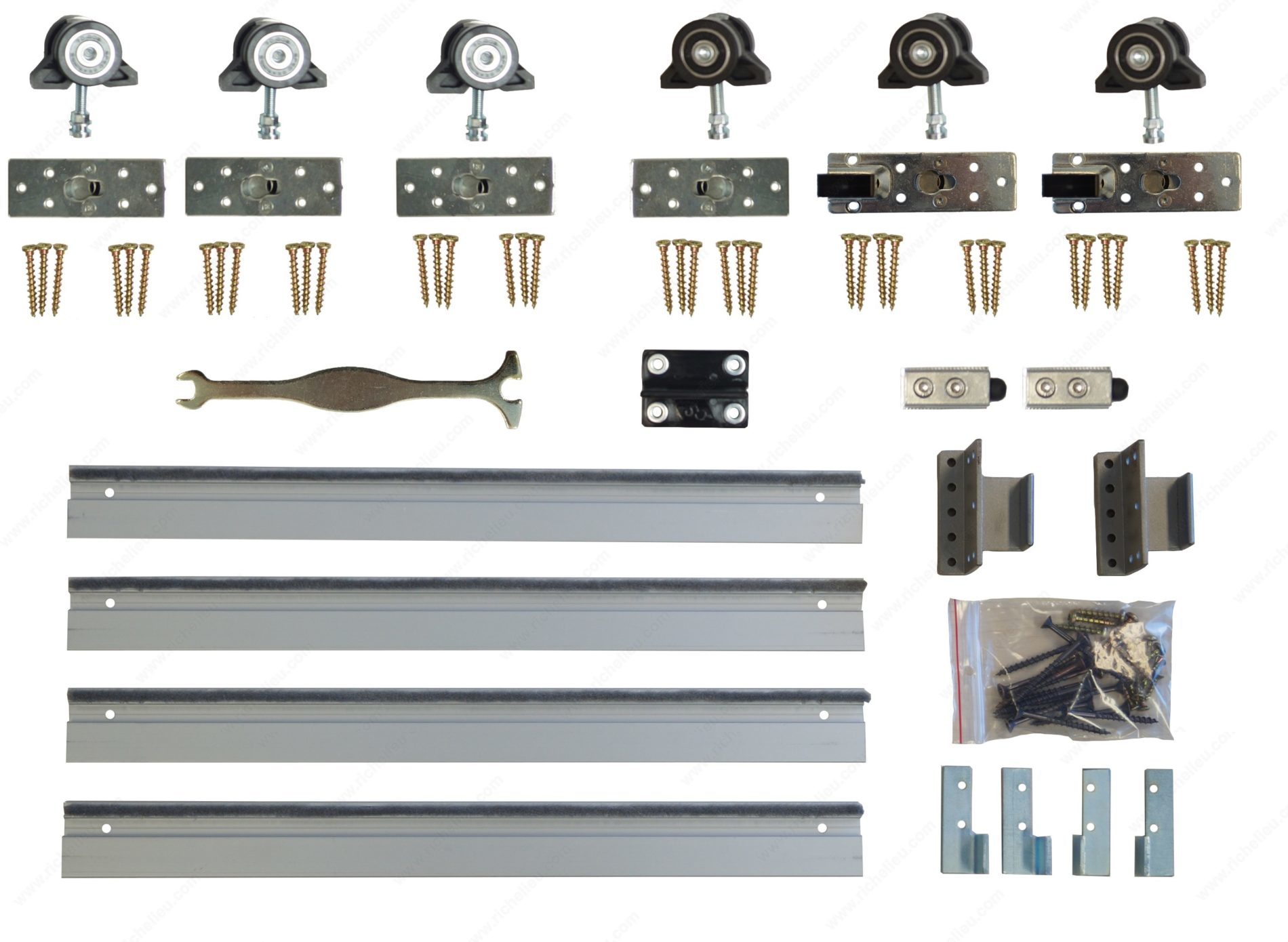

The CS Door Collection carriage and pick-up extrusion sets are designed for two or three telescopic and stacked sliding wood doors weighing up to 200 lb (90 kg) or 500 lb (227 kg) each.
Features:
- A CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sets for 1-3/8 in (35 mm) or 1-3/4 in (45 mm) thick doors
- Sturdy vertical pick-up extrusions for smooth and secure movement (sold separately for non-KITS)
- Large wheel trolleys with precision ground bearings for smooth running
- No bottom guide channel required for door widths under 48 in (1219 mm)
- Simple, flexible and low-cost installation
IMPORTANT: Hardware carriage sets are sold separately from vertical pick-up profiles.
Order KITS if you need the hardware set complete in one box.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Brand: Cavity Sliders
Compatible with: CS Door Collection
Detailed Door Movement: Telescoping, Stacking
Door Height: 120 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Movable Wall
Door Position: Inset/Inlay
Door Thickness: 1 3/8 in
Door Width: 24 to 71 in
Height - Overall Dimensions: 4 in
Length - Overall Dimensions: 16 in
Load Capacity: 80 to 200 lb
Manufacturing Material: Metal, Aluminum, and Nylon
Material: Metal, Aluminum, and Nylon
Number of Doors: 3
Overall Height: 4 in
Overall Length: 16 in
Packaging Format: Box
Product #: DKO6301CP
Product type: KIT with Pick Up Profile
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Mounting: Ceiling Mount
Track type: Box Track
Weight Capacity per Door: 80 to 200 lb
Width - Overall Dimensions: 5 in
