Richelieu DKO6321CP CS Door Collection Set InstructionsRichelieu DKO6321CP CS Door Collection Sets offer an innovative solution for sliding wood doors, accommodating both telescopic and stacked configurations. Designed for doors weighing up to 200 lb (90 kg) or even 500 lb (227 kg) each, these sets provide versatility for various architectural applications. One standout feature is the CarriSnap mounting suspension plate, enabling easy installation and release of the upper trolley without any tools. Compatible with doors of 1-3/8 in (35 mm) or 1-3/4 in (45 mm) thickness, the sets ensure a secure fit. The sturdy vertical pick-up extrusions, sold separately, contribute to smooth and reliable door movement, while large wheel trolleys with precision ground bearings guarantee seamless operation. Notably, a bottom guide channel is unnecessary for doors under 48 in (1219 mm), simplifying the installation process. The DKO6321CP sets are designed for top-hung installations, allowing for a clean and unobtrusive look. With an overall height of 4 in and a length of 16 in, they are compatible with door widths ranging from 24 to 71 in, accommodating a variety of spaces. Ideal for building professionals and discerning homeowners, these hardware sets provide a practical and stylish solution for modern living.
CS Door Collection Sets

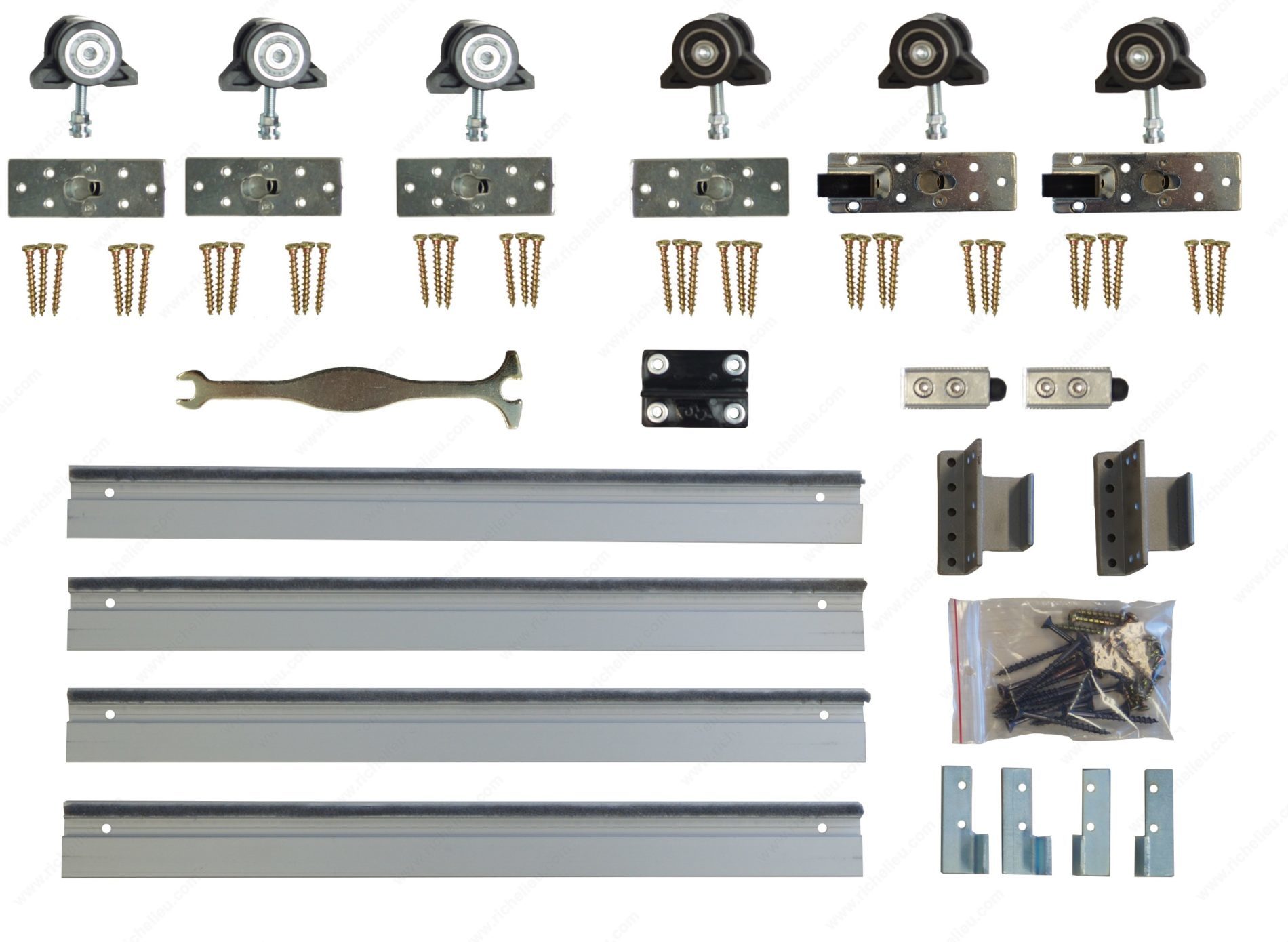

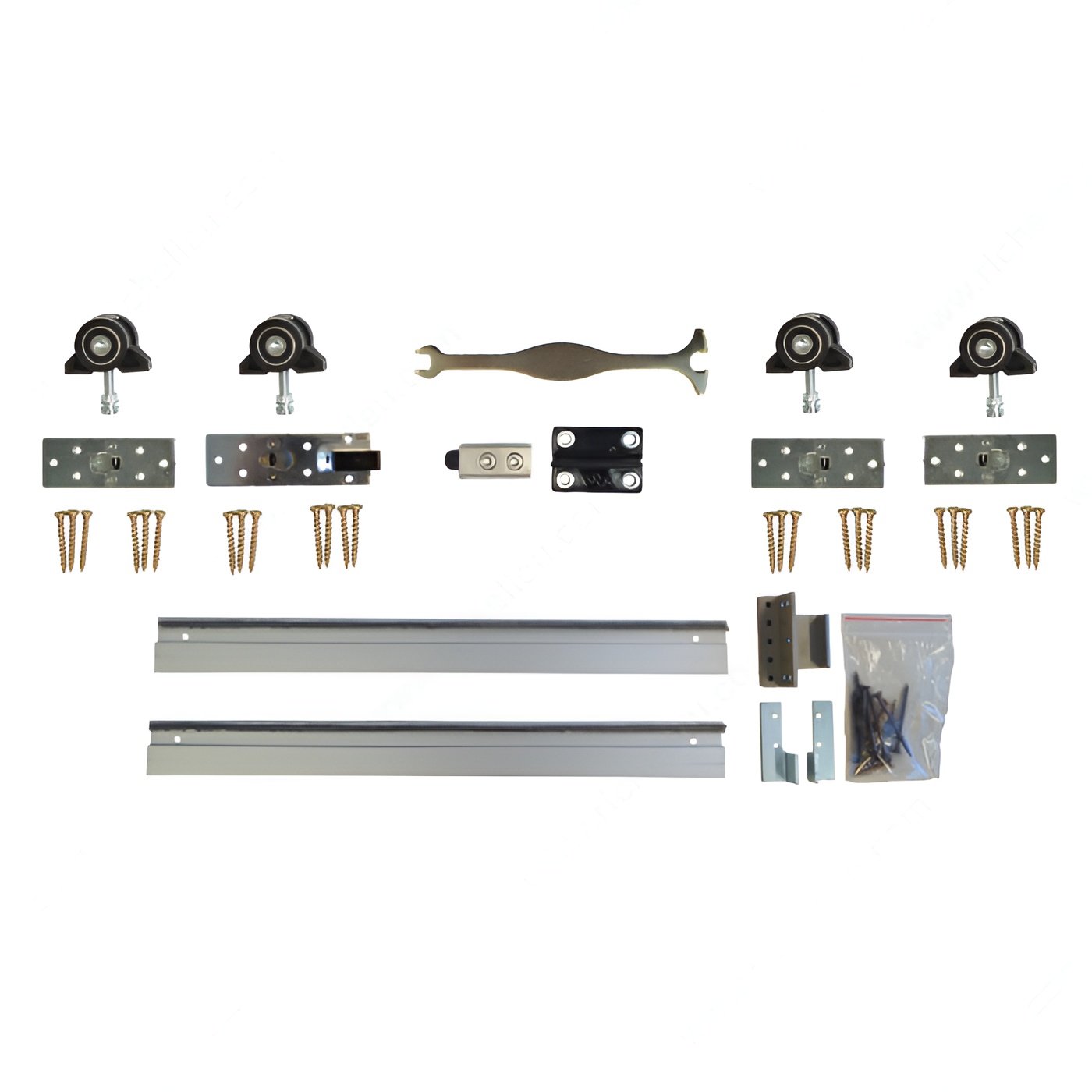

The CS Door Collection carriage and pick-up extrusion sets are designed for two or three telescopic and stacked sliding wood doors weighing up to 200 lb (90 kg) or 500 lb (227 kg) each.
Features:
- A CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sets for 1-3/8 in (35 mm) or 1-3/4 in (45 mm) thick doors
- Sturdy vertical pick-up extrusions for smooth and secure movement (sold separately for non-KITS)
- Large wheel trolleys with precision ground bearings for smooth running
- No bottom guide channel required for door widths under 48 in (1219 mm)
- Simple, flexible and low-cost installation
IMPORTANT: Hardware carriage sets are sold separately from vertical pick-up profiles.
Order KITS if you need the hardware set complete in one box.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Brand: Cavity Sliders
Compatible with: CS Door Collection
Detailed Door Movement: Telescoping, Stacking
Door Height: 120 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Movable Wall
Door Position: Inset/Inlay
Door Thickness: 1 3/4 in
Door Width: 24 to 71 in
Height - Overall Dimensions: 4 in
Length - Overall Dimensions: 16 in
Load Capacity: 80 to 200 lb
Manufacturing Material: Metal, Aluminum, and Nylon
Material: Metal, Aluminum, and Nylon
Number of Doors: 3
Overall Height: 4 in
Overall Length: 16 in
Packaging Format: Box
Product #: DKO6321CP
Product type: KIT with Pick Up Profile
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Mounting: Ceiling Mount
Track type: Box Track
Weight Capacity per Door: 80 to 200 lb
Width - Overall Dimensions: 5 in
