Richelieu DKO8201CP CS Door Collection Set InstructionsRichelieu DKO8201CP CS Door Collection Sets provide a robust solution for your sliding wood door needs, accommodating two or three telescopic and stacked doors with impressive load capacities ranging from 200 lb (90 kg) to 500 lb (227 kg) each. Designed for doors with thickness options of either 1-3/8 in (35 mm) or 1-3/4 in (45 mm), these sets ensure a smooth and secure operation thanks to sturdy vertical pick-up extrusions, which are sold separately for non-KITS. Featuring a CarriSnap mounting suspension plate, this system allows for quick and tool-free mounting and releasing of the upper trolley, streamlining the installation process. The large wheel trolleys with precision ground bearings guarantee seamless movement, while the absence of a bottom guide channel for door widths under 48 in (1219 mm) simplifies your setup. Constructed from durable metal, aluminum, and nylon, the DKO8201CP is compatible with the CS Door Collection and supports top-hung installation with a maximum door height of 120 in. Offering adjustable features and a low-cost installation option, this hardware set is perfect for building professionals and knowledgeable homeowners seeking efficiency and reliability in their sliding door systems.
CS Door Collection Sets

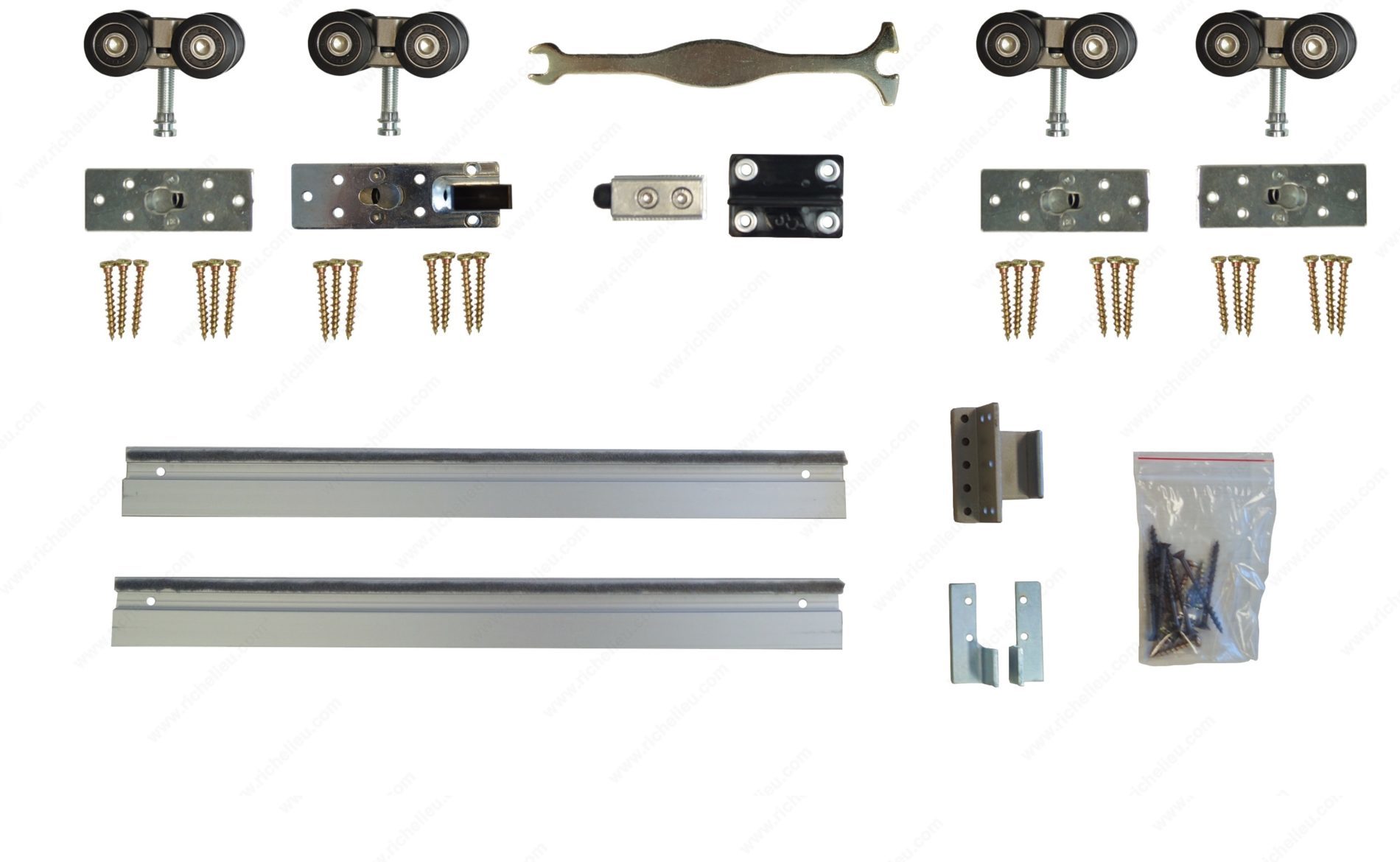

The CS Door Collection carriage and pick-up extrusion sets are designed for two or three telescopic and stacked sliding wood doors weighing up to 200 lb (90 kg) or 500 lb (227 kg) each.
Features:
- A CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sets for 1-3/8 in (35 mm) or 1-3/4 in (45 mm) thick doors
- Sturdy vertical pick-up extrusions for smooth and secure movement (sold separately for non-KITS)
- Large wheel trolleys with precision ground bearings for smooth running
- No bottom guide channel required for door widths under 48 in (1219 mm)
- Simple, flexible and low-cost installation
IMPORTANT: Hardware carriage sets are sold separately from vertical pick-up profiles.
Order KITS if you need the hardware set complete in one box.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Brand: Cavity Sliders
Compatible with: CS Door Collection
Detailed Door Movement: Telescoping, Stacking
Door Height: 120 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Movable Wall
Door Position: Inset/Inlay
Door Thickness: 1 3/8 in
Door Width: 24 to 71 in
Height - Overall Dimensions: 4 in
Length - Overall Dimensions: 16 in
Load Capacity: 200 to 500 lb
Manufacturing Material: Metal, Aluminum, and Nylon
Material: Metal, Aluminum, and Nylon
Number of Doors: 2
Overall Height: 4 in
Overall Length: 16 in
Packaging Format: Box
Product #: DKO8201CP
Product type: KIT with Pick Up Profile
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Mounting: Ceiling Mount
Track type: Box Track
Weight Capacity per Door: 200 to 500 lb
Width - Overall Dimensions: 5 in
