Richelieu GT50012 Grant TopLine XHD Single Upper Track is engineered for robust performance, accommodating a single wood door with a thickness of at least 1 inch (25 mm). This track is offered in a generous 12-foot length, making it ideal for various installations. Constructed from anodized aluminum, it promises durability while maintaining a sleek appearance. This model supports a maximum load capacity of 500 pounds, ensuring that it can handle substantial wooden doors with ease. The pre-drilled screw slots facilitate straightforward mounting, whether you choose ceiling or wall installation, saving valuable time during setup. Compliance with BHMA-ANSI standards guarantees reliable quality for professional use. Designed for doors with a height of up to 9 feet 10 inches and widths ranging from 30 to 94.5 inches, the GT50012 is versatile enough to fit a range of applications. With its anodized finish, it not only enhances aesthetic appeal but also offers resistance against wear and corrosion. Whether you are a building professional or an informed homeowner, the Richelieu GT50012 Grant TopLine XHD Single Upper Track combines strength, functionality, and style, making it an essential addition to your project.

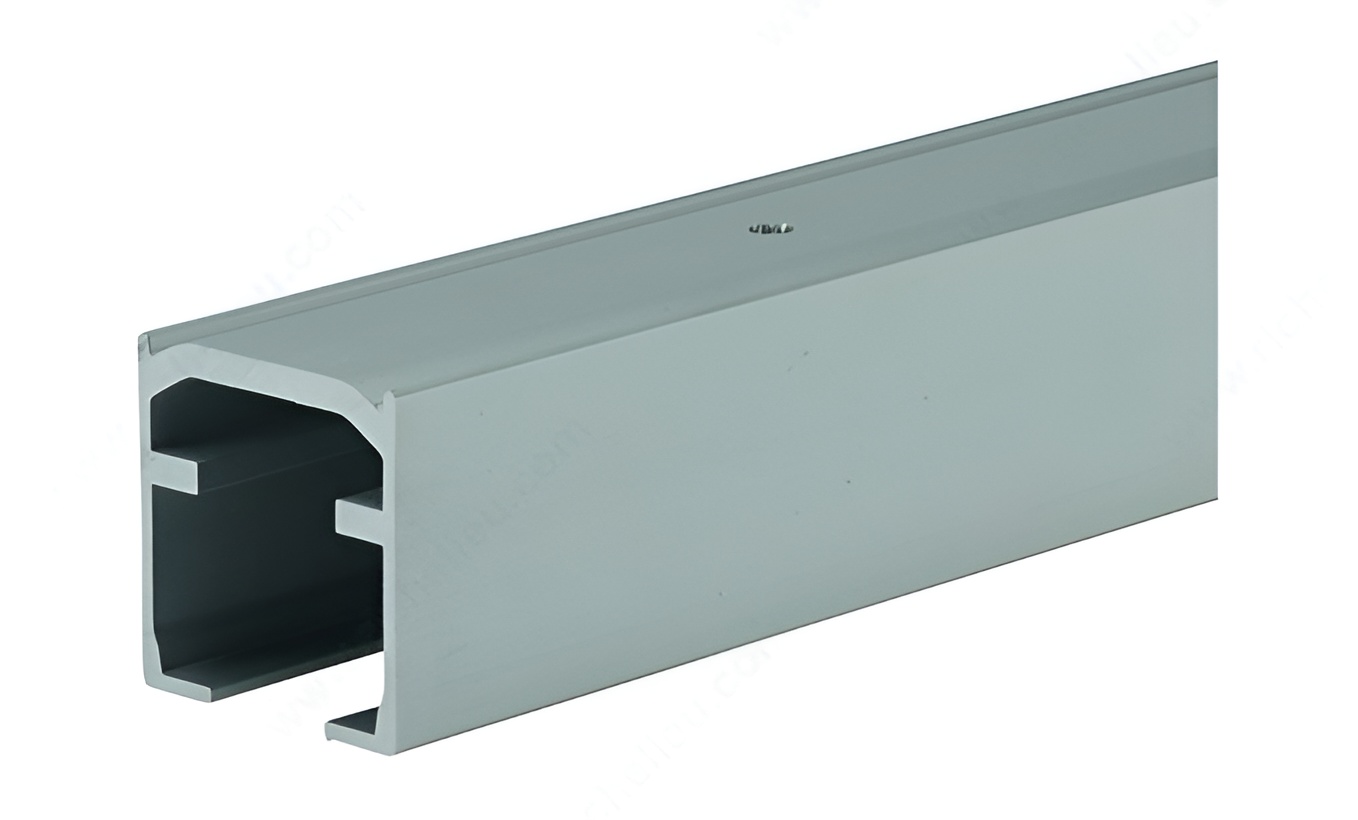

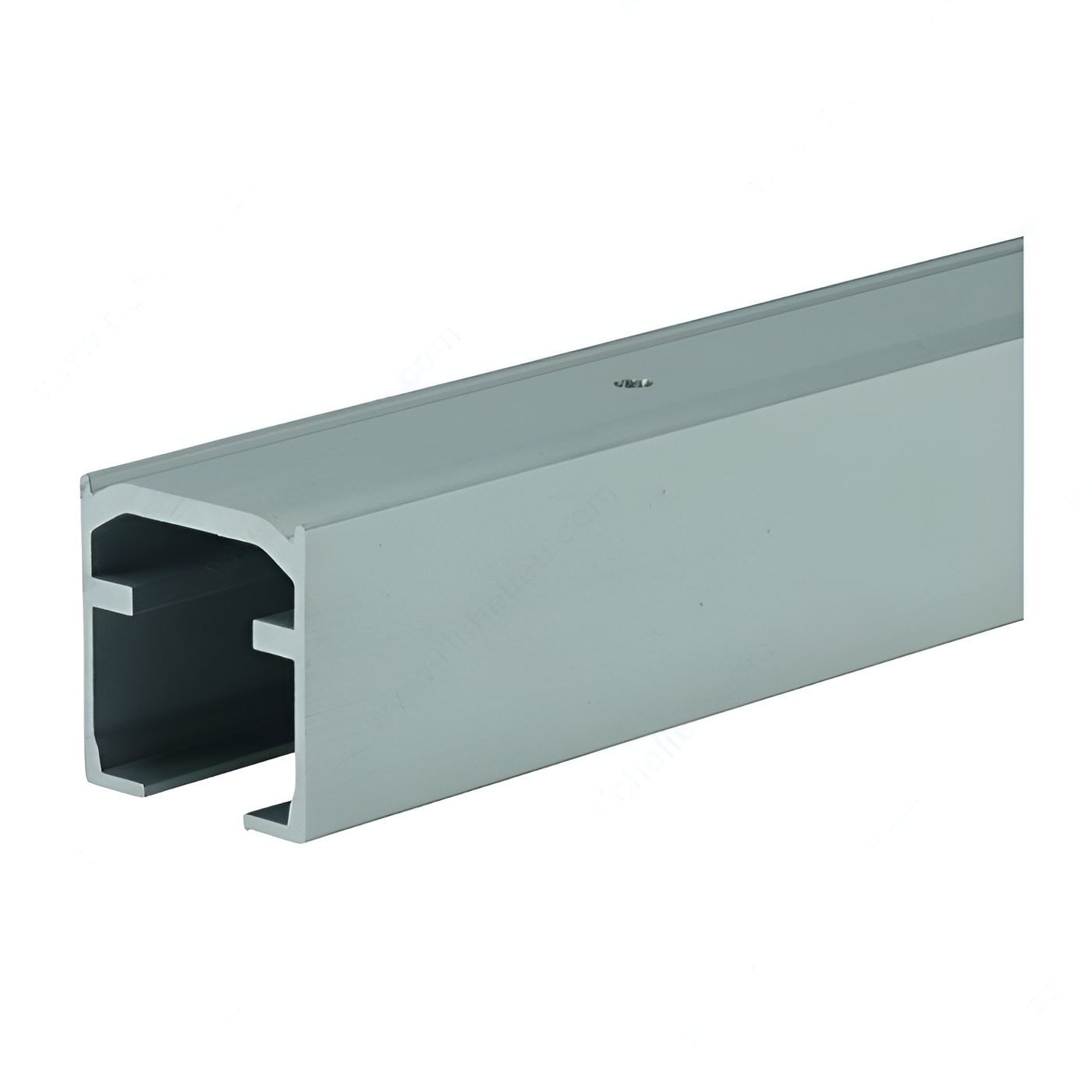

Grant TopLine XHD Single Upper Track
Ship via: No UPS - Common Carrier Only
Brand: Grant Hettich
Door Height: 3 000 mm
Door Material: Wood
Door Width: 762 to 2 400 mm
Finish: Anodized
Length - Overall Dimensions: 12 ft*
Load Capacity: Max. 500 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Overall Length: 3 658 mm
Packaging format: Length of 12 linear foot
Pre-drilled: Yes
Product #: GT50012
Product number: GT50012
Product type: Running and Guiding Tracks
Product №: GT50012
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Standards and Certifications: ANSI/BIFMA
Track Length: 3 658 mm
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount, Wall Mount
Unit: Length of 12 linear foot
Weight Capacity per Door: Max. 227 kg
