Richelieu GT9191125 Grant TopLine HD Hardware SetRichelieu GT9191125 Grant TopLine HD Hardware Set is expertly crafted to support a single wood door weighing up to 325 lb (147 kg) and with a minimum thickness of 1 in (25 mm). This robust hardware set is ideal for both single and biparting installations, making it a versatile choice for various applications, including closets, walk-in closets, cabinets, and storage solutions. The set includes two heavy-duty trolleys, two top mount suspension plates, two track stoppers with retaining devices, one floor guide, and all necessary mounting screws for a comprehensive installation. Designed with precision ball bearing wheels, the Grant TopLine HD ensures smooth and reliable operation, while its compliance with ANSI-BHMA Grade 1 standards guarantees durability and safety. This hardware set is suitable for doors up to 9 ft 10 in in height and accommodates widths ranging from 30 to 94 1/2 in. Finished with an anodized surface, it not only offers aesthetic appeal but also enhances longevity. The upper roller position further optimizes performance, providing effortless sliding functionality. For installation, the hardware can be mounted on the ceiling or wall, catering to various design preferences and spatial requirements.
Grant TopLine HD Hardware Set
The Grant TopLine HD hardware set is designed for one (1) wood door up to 325 lb (147 kg) each and at least 1 in (25 mm) thick.
- Precision ball bearing wheels
- Meets ANSI-BHMA standards
The Grant TopLine HD hardware set is an ideal solution for single and biparting installations.

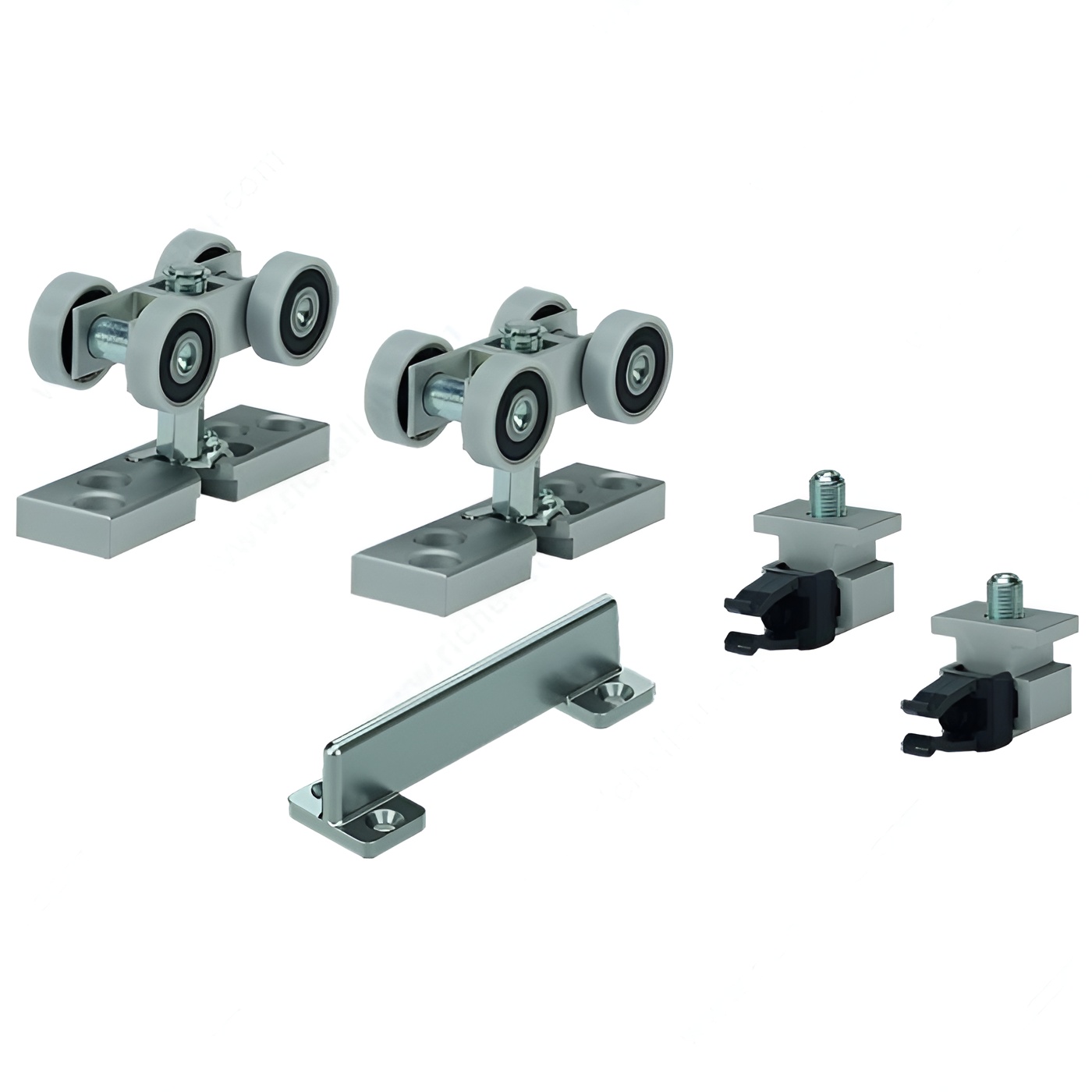

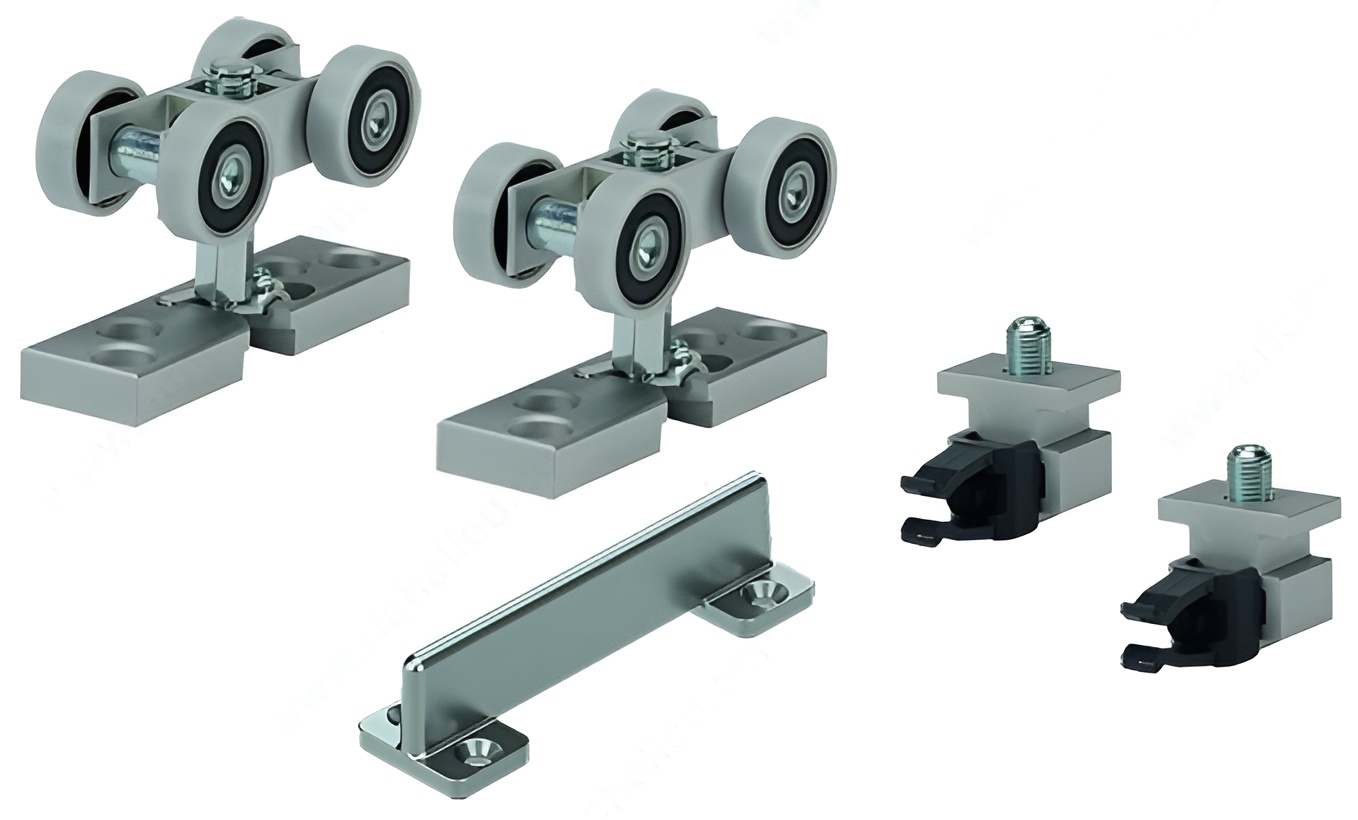

Included products
- 2 trolleys HD series
- 2 top mount suspension plates
- 2 track stoppers with retaining device
- 1 floor guide
- Mounting screws
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Door Height: 3 000 mm
Door Material: Wood
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Finish: Anodized
Load Capacity: 324 lb*
Number of Doors: 1
Product #: GT9191125
Product number: GT9191125
Product type: Hardware Set
Product №: GT9191125
Roller Position: Upper
Roller Type: Premium Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standards and Certifications: ANSI/BHMA Grade 1
Track Mounting: Ceiling Mount, Wall Mount
Unit: Set
Unit 1: case - 10
Unit 2: case - 10
Weight Capacity per Door: 147 kg
