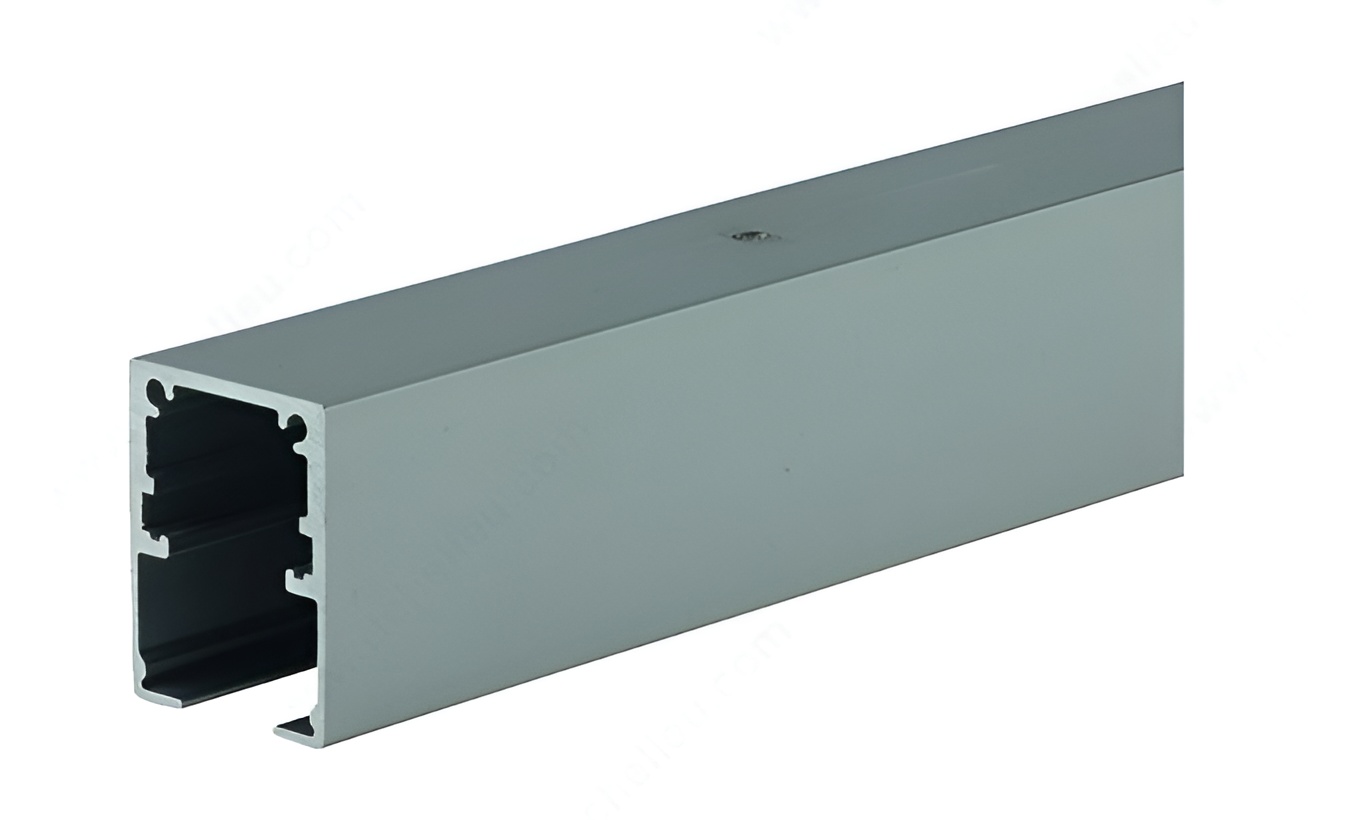

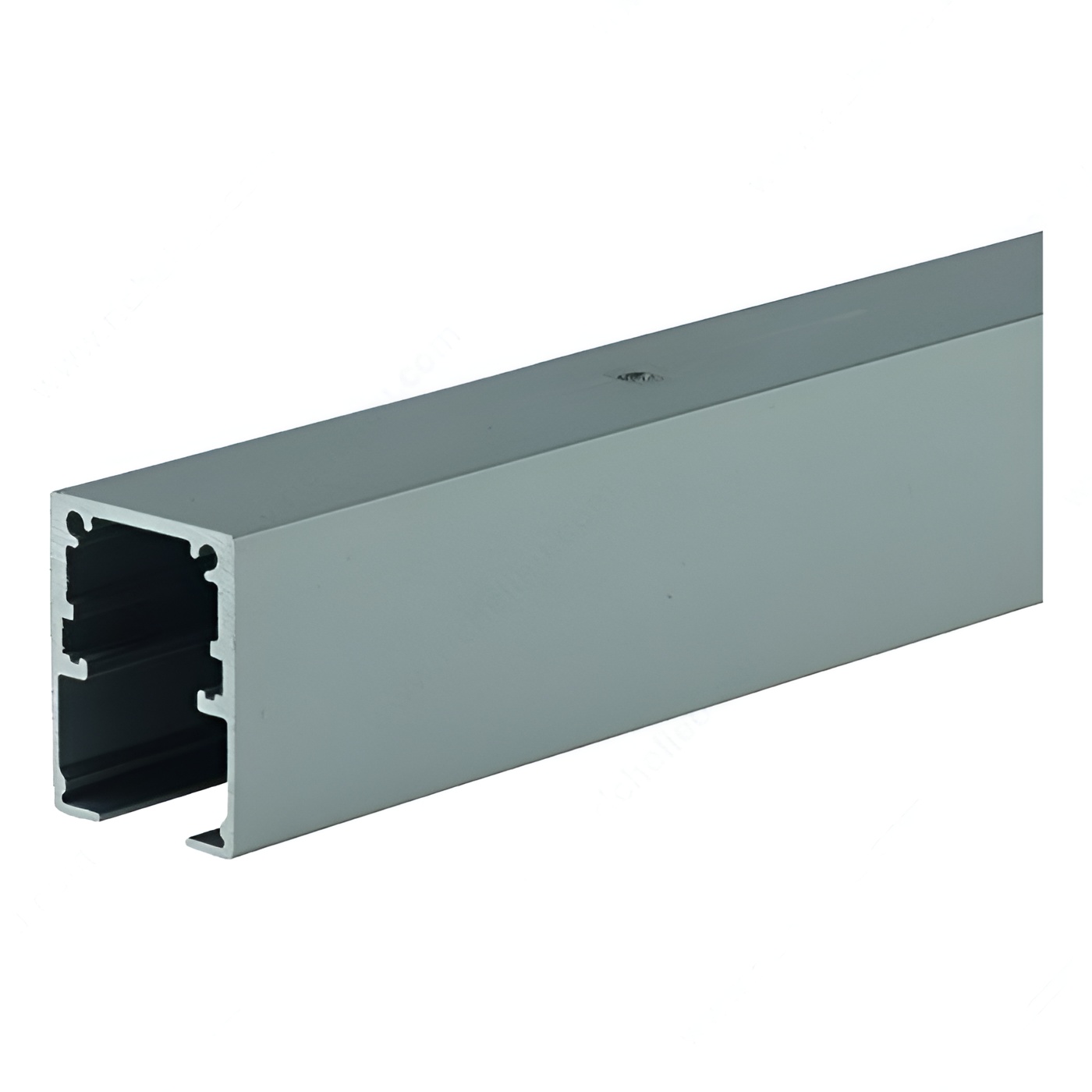

Richelieu GT9199835 Grant TopLine SD Single Upper Track offers a robust solution for hanging a wood door with a minimum thickness of 1 inch (25 mm). This track is meticulously crafted from anodized aluminum, ensuring longevity and a sleek finish that complements various interior designs. Available in seven different lengths, the track is adaptable to meet diverse project requirements. Designed for a maximum load capacity of 150 lb, this system supports a single door positioned as a semi-overlay, with a height of up to 9 ft 10 in. The track features pre-drilled screw slots, facilitating straightforward installation whether mounted to the ceiling or wall. For added convenience, a soft-close mechanism can be purchased separately, enhancing functionality and user experience. The GT9199835 is ANSI-BHMA compliant, ensuring it meets high industry standards. This single upper track is packaged in a 5-foot length format, making it easy to handle and transport. With its combination of durability, design, and ease of installation, the Richelieu Grant TopLine SD Single Upper Track is an ideal choice for professionals looking to deliver quality results in their projects.
Grant TopLine SD Single Upper Track
Ship via: No UPS - Common Carrier Only
Brand: Grant Hettich
Door Height: 3 000 mm
Door Material: Wood
Door Position: Semi Overlay
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Finish: Anodized
Length - Overall Dimensions: 60 in*
Load Capacity: Max. 150 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Overall Length: 1 524 mm
Packaging format: Length of 5 linear foot
Pre-drilled: Yes
Product #: GT9199835
Product number: GT9199835
Product type: Running and Guiding Tracks
Product №: GT9199835
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standards and Certifications: ANSI/BIFMA
Track Length: 1 524 mm
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount, Wall Mount
Track Type: Single
Track type: Single
Unit: Length of 5 linear foot
Weight Capacity per Door: Max. 68 kg
