Richelieu GT9199840 Grant TopLine SD Single Upper Track Installation GuideRichelieu GT9199840 Grant TopLine SD Single Upper Track offers a robust solution for sliding wood doors with a minimum thickness of 1 inch (25 mm). Crafted from anodized aluminum, this track is not only durable but also designed to blend seamlessly with various interior styles. Available in seven different lengths, including a generous 12-foot option, it accommodates door widths ranging from 30 to 94.5 inches, making it versatile for numerous applications. This track is engineered for a single wood door and has a maximum load capacity of 150 pounds, ensuring reliable performance. The pre-drilled screw slots simplify the installation process, whether you choose to mount it on the ceiling or the wall. Additionally, the system is ANSI-BHMA compliant, which signifies adherence to high standards of safety and quality. For enhanced functionality, a soft-close mechanism can be purchased separately, allowing for a smooth and quiet operation. This track is suitable for semi-overlay door positions, making it an excellent choice for both professional builders and knowledgeable homeowners seeking quality solutions. With its combination of strength, flexibility, and ease of installation, the Richelieu Grant TopLine SD track is an ideal choice for modern living spaces.

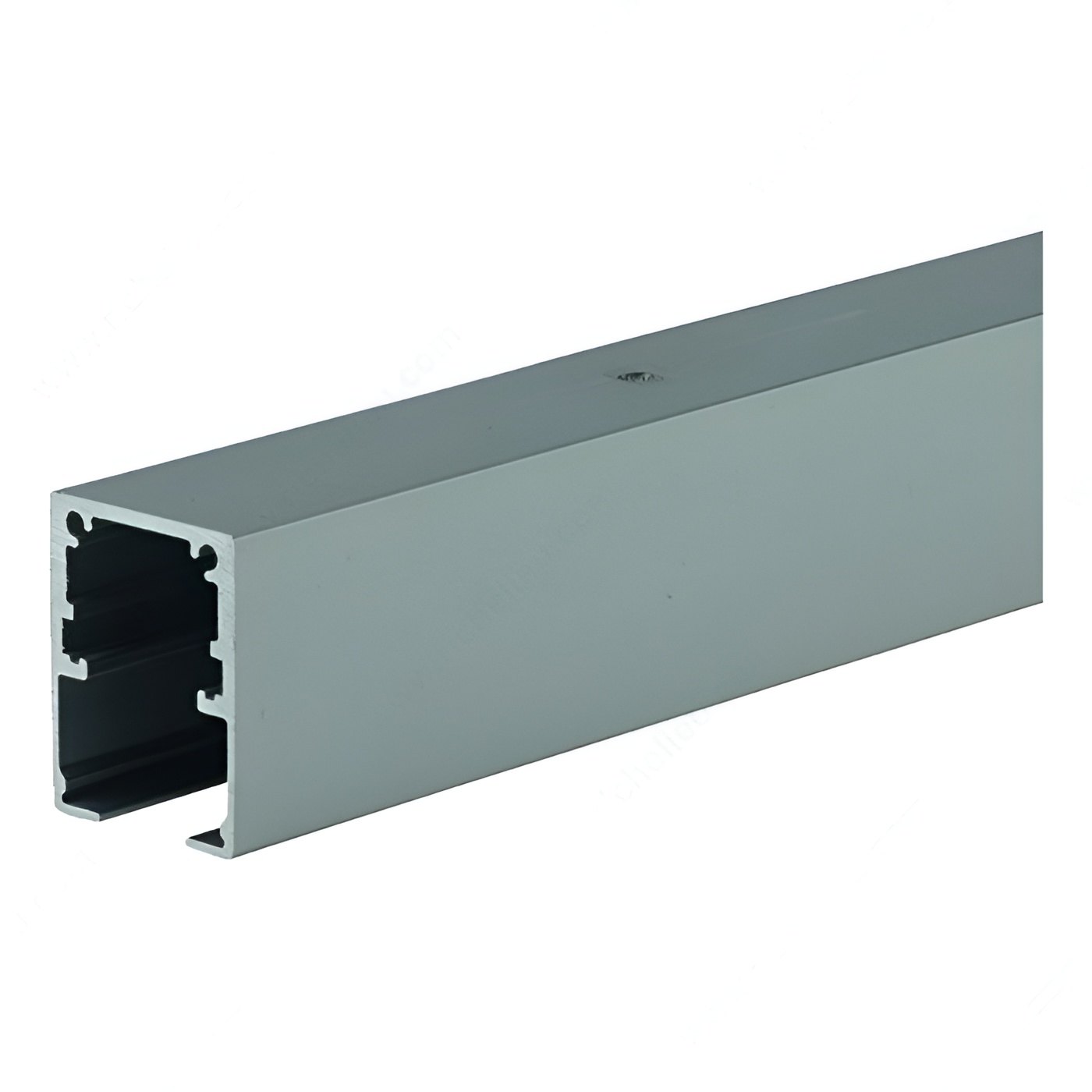

Grant TopLine SD Single Upper Track
The Grant TopLine SD single upper track is designed for one wood door at least 1 in (25 mm) thick and is available in seven different lengths.
- Anodized aluminum construction
- Pre-drilled screw slots for easy mounting
- Soft-close mechanism available separately
- ANSI-BHMA compliant
Attributes
Ship via: No UPS - Common Carrier Only
Brand: Grant Hettich
Door Height: 3 000 mm
Door Material: Wood
Door Position: Semi Overlay
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Finish: Anodized
Length - Overall Dimensions: 12 ft*
Load Capacity: Max. 150 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Overall Length: 3 658 mm
Packaging format: Length of 12 linear foot
Pre-drilled: Yes
Product #: GT9199840
Product number: GT9199840
Product type: Running and Guiding Tracks
Product №: GT9199840
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standards and Certifications: ANSI/BIFMA
Track Length: 3 658 mm
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount, Wall Mount
Track Type: Single
Track type: Single
Unit: Length of 12 linear foot
Weight Capacity per Door: Max. 68 kg
