Richelieu GT9200611 Grant TopLine Straight Sliding Door System InstructionsRichelieu GT9200611 Grant TopLine Straight Sliding Door System offers an exceptional solution for both commercial and residential spaces, accommodating wood doors weighing up to 500 lb (227 kg). This system features precision ball bearing wheel trolleys that glide smoothly on durable aluminum box tracks, ensuring a seamless operation and longevity. Designed to facilitate single sliding door applications, the Grant TopLine system supports doors with a maximum height of 9 ft 10 in* and a width ranging from 30 to 94 1/2 in*. The minimum door thickness required is 31/32 in*, optimizing compatibility with various wood types. For added convenience, a Silent System soft-close and soft-open mechanism can be purchased separately, ideal for doors weighing up to 325 lb (147 kg). Available in two packaging formats-kits (hardware and track included) and bulk (separate selection)-this system allows for tailored solutions to meet specific needs. The ceiling mount track installation enhances versatility, making it suitable for closets, walk-in closets, cabinets, and storage areas. With the ability to handle a load capacity of up to 150 lb*, the Richelieu GT9200611 Grant TopLine Straight Sliding Door System is an excellent choice for enhancing both function and style in your space.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.

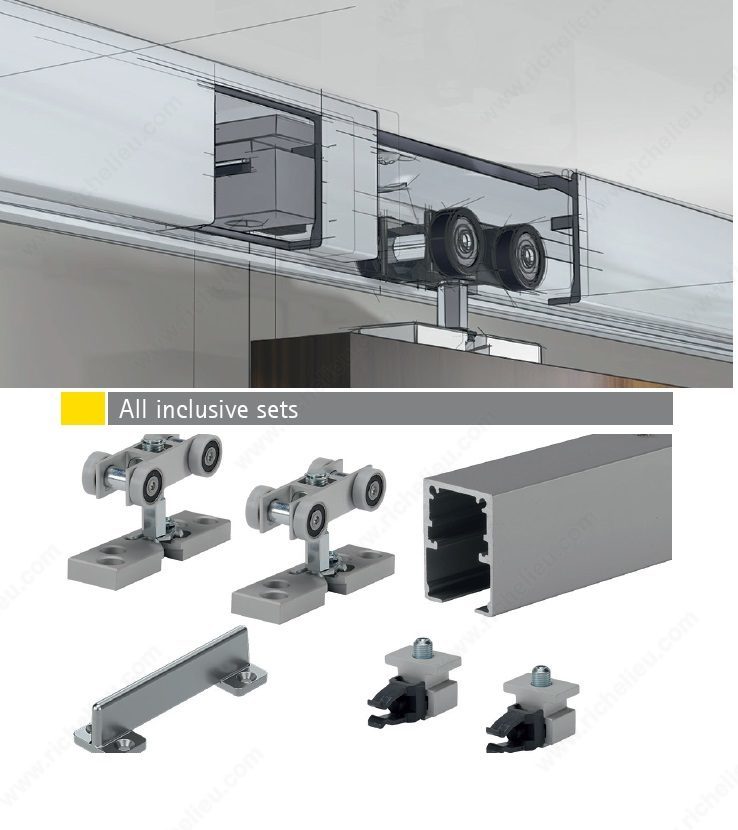

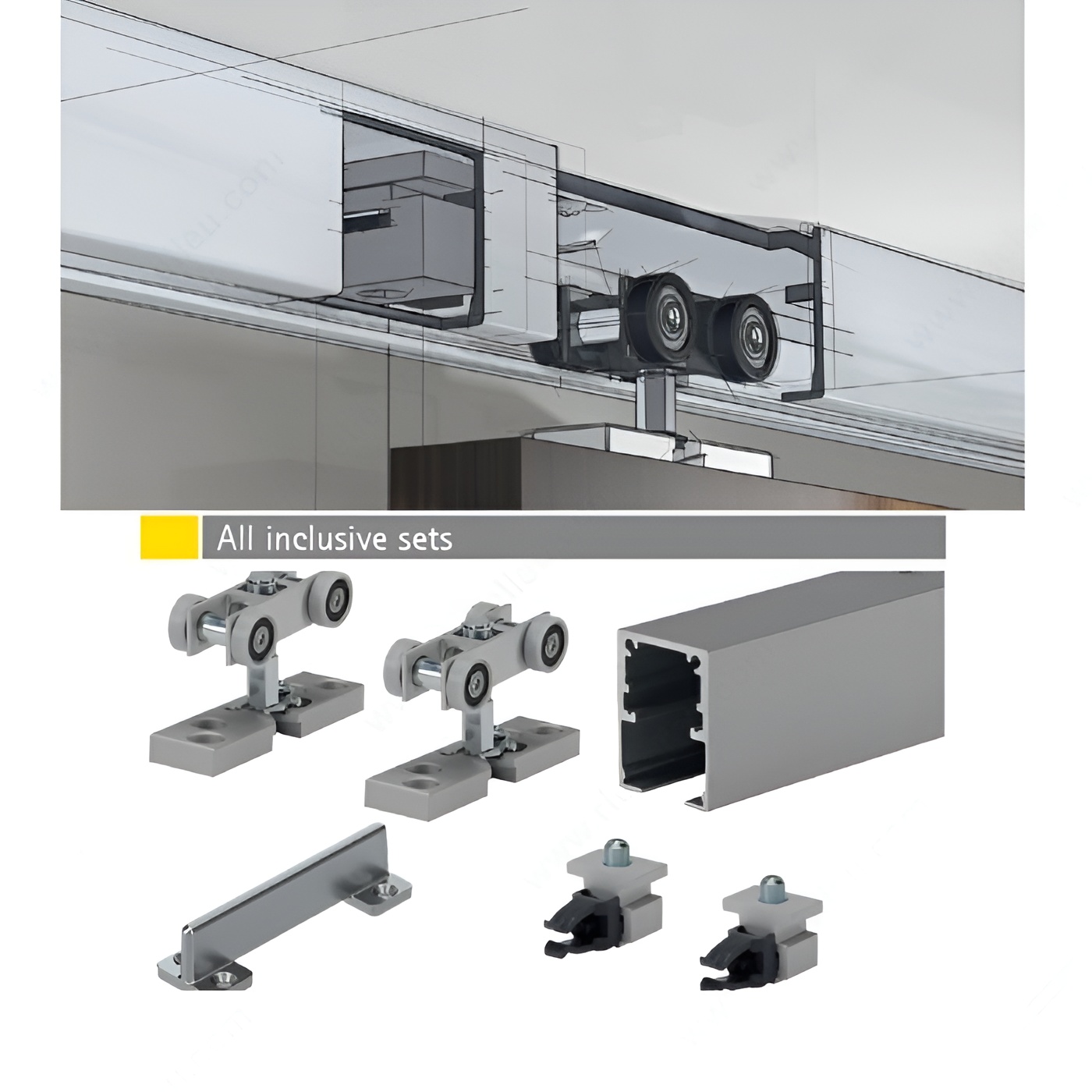

- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine SD
Length - Overall Dimensions: 48 in*
Load Capacity: Max. 150 lb*
Number of Doors: 1
Overall Length: 1 219 mm
Packaging format: Length of 4 linear foot
Product #: GT9200611
Product number: GT9200611
Product №: GT9200611
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 1 219 mm
Track Mounting: Ceiling Mount
Unit: Length of 4 linear foot
Weight Capacity per Door: Max. 68 kg
