Richelieu GT9200614 Grant TopLine Straight Sliding Door SystemRichelieu GT9200614 Grant TopLine Straight Sliding Door System offers a robust solution for both commercial and residential applications, designed to accommodate wood doors weighing up to 500 lb (227 kg). This system features precision ball bearing wheel trolleys that glide smoothly along durable aluminum box tracks, ensuring reliable, long-lasting performance. The Grant TopLine system is versatile, suitable for single sliding, biparting, and bypassing door configurations. With a door height capability of up to 9 ft 10 in and a width range from 30 to 94 1/2 in, it can be customized to fit various spaces. The minimum door thickness required is 31/32 in, providing ample support for heavier doors. While the system does not include a soft-close mechanism, an optional Silent System soft-close and soft-open feature is available for doors up to 325 lb (147 kg), enhancing user experience by preventing slamming. The GT9200614 comes in two packaging formats-kit and bulk-allowing for flexibility in purchasing hardware and track components. Ideal for closets, walk-in closets, cabinets, and storage solutions, this ceiling-mounted track system is a perfect blend of functionality and style. Transform your space with Richelieu's Grant TopLine Sliding Door System.
Grant TopLine Straight Sliding Door System
The Grant TopLine Straight Sliding Door System, featuring Grant TopLine SD, Grant TopLine HD and Grant TopLine XHD, is designed for wood doors weighing up to 500 lb (227 kg) each.

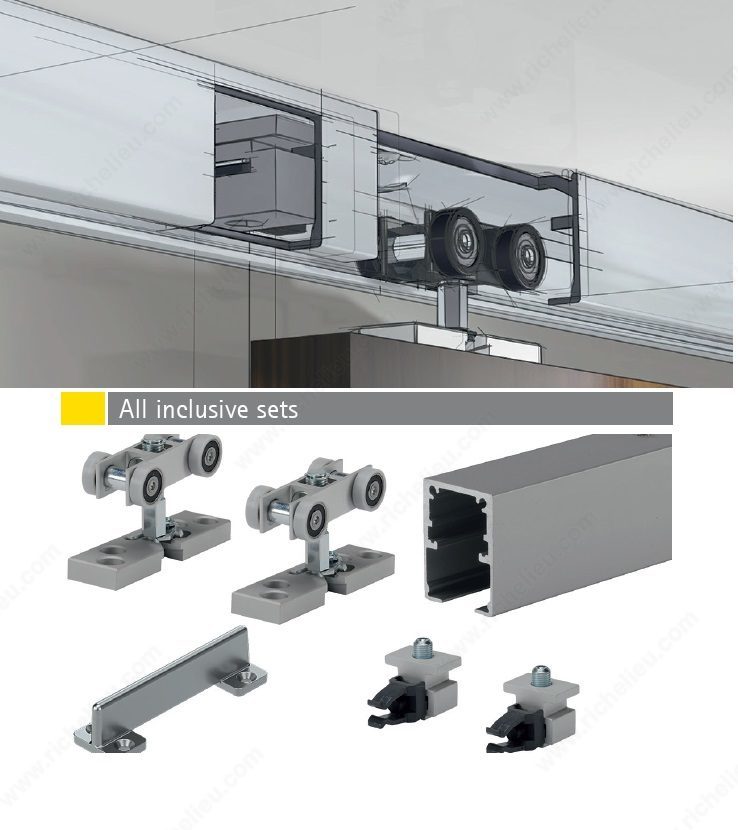

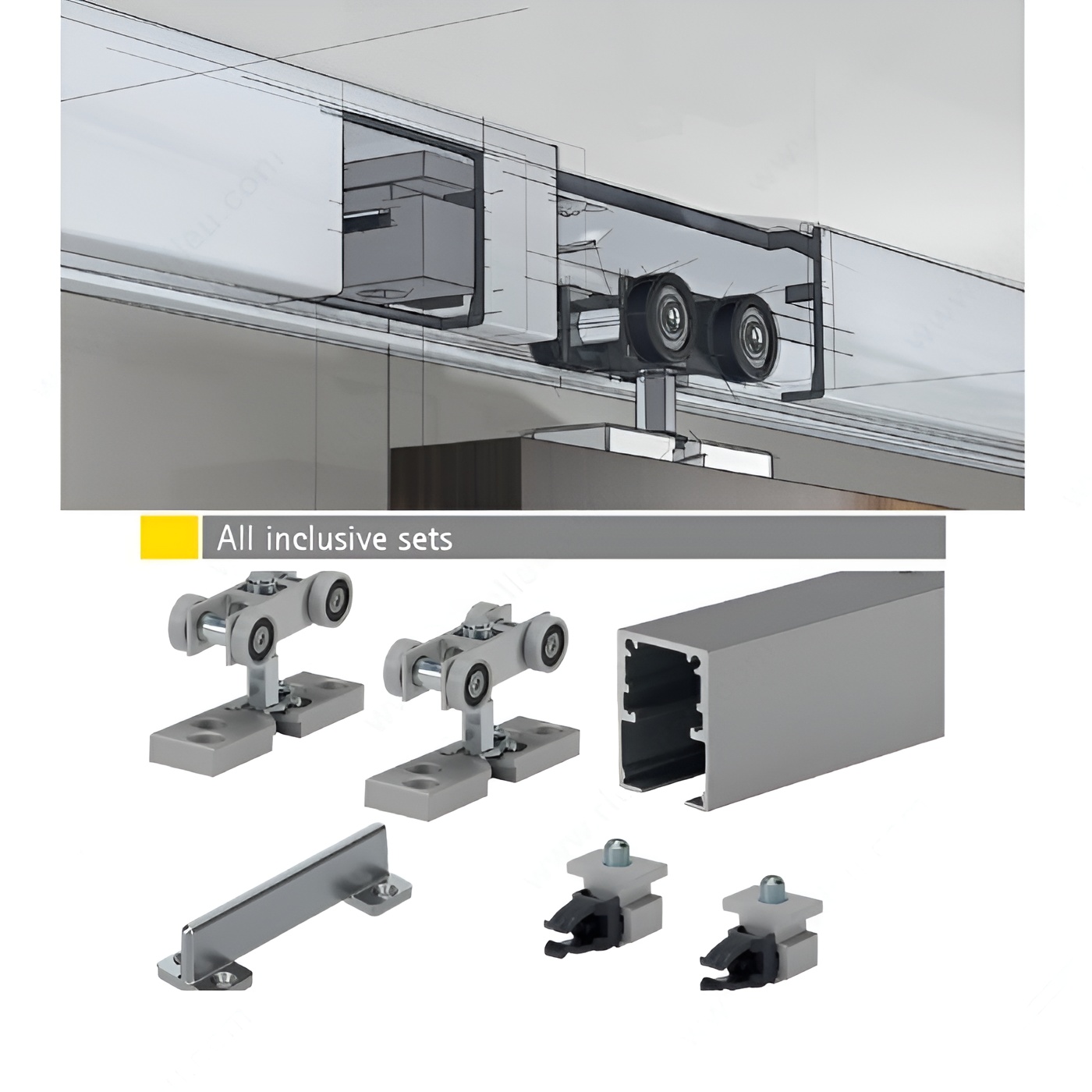

- Precision ball bearing wheel trolleys run on aluminum box tracks
- Silent System soft-close and soft-open mechanism available separately for doors weighing up to 325 lb (147 kg) each.
- Available in 2 packaging formats: kit (hardware and track), bulk (hardware and track selected separately)
These models are designed for commercial and residential use with single, biparting, and bypassing door applications.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Cabinet, Storage
Brand: Grant Hettich
Detailed Door Movement: Single Sliding
Door Height: Max. 3 000 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Grant Top Line Model: Grant TopLine SD
Length - Overall Dimensions: 72 in*
Load Capacity: Max. 150 lb*
Number of Doors: 1
Overall Length: 1 829 mm
Packaging format: Length of 6 linear foot
Product #: GT9200614
Product number: GT9200614
Product №: GT9200614
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Length: 1 829 mm
Track Mounting: Ceiling Mount
Unit: Length of 6 linear foot
Weight Capacity per Door: Max. 68 kg
