Richelieu GT9201446 Grant TopLine HD Single Upper Track InstructionsRichelieu GT9201446 Grant TopLine HD Single Upper Track is engineered for seamless operation with a single wood door that is at least 1 inch (25 mm) thick. This versatile track is available in seven lengths, accommodating a variety of installation needs. Crafted from durable anodized aluminum, it offers both strength and a sleek finish that blends effortlessly into any environment. Designed with pre-drilled screw slots, the Grant TopLine HD simplifies the mounting process, ensuring a straightforward installation for professionals. While a soft-close mechanism is available separately, the system’s robust design supports a maximum load capacity of 324 lbs, making it suitable for heavier doors up to 9 feet 10 inches in height. This product complies with BHMA-ANSI standards, ensuring quality and reliability for demanding applications. The track can be mounted on ceilings or walls, providing flexibility in design and installation. It's important to note that all required hardware should be ordered before installation, and proper fixation methods must be used for secure mounting. Richelieu emphasizes the need for qualified installation, advising users to follow the provided instructions diligently. The GT9201446 track is a reliable choice for those seeking durability and performance in architectural metal solutions.

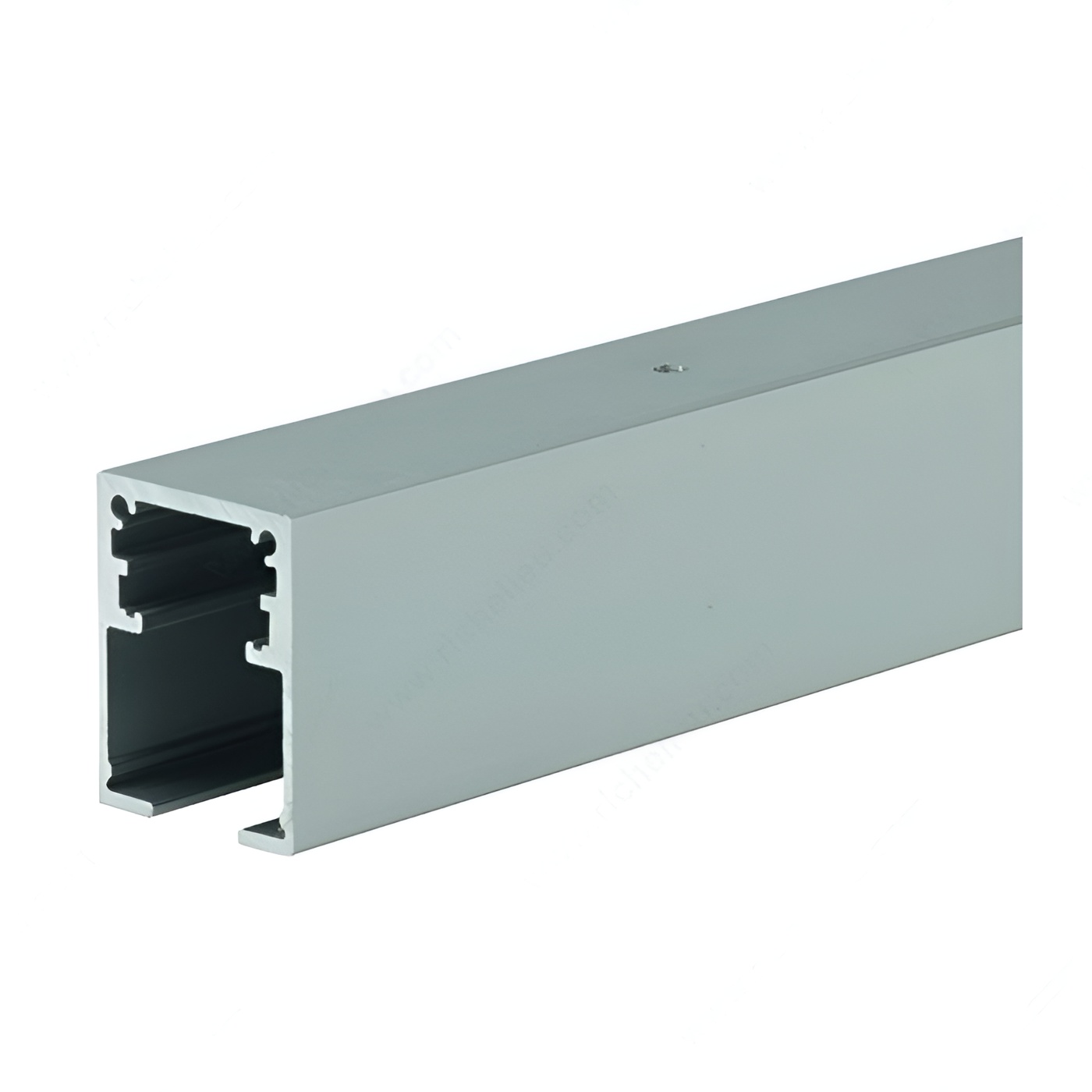

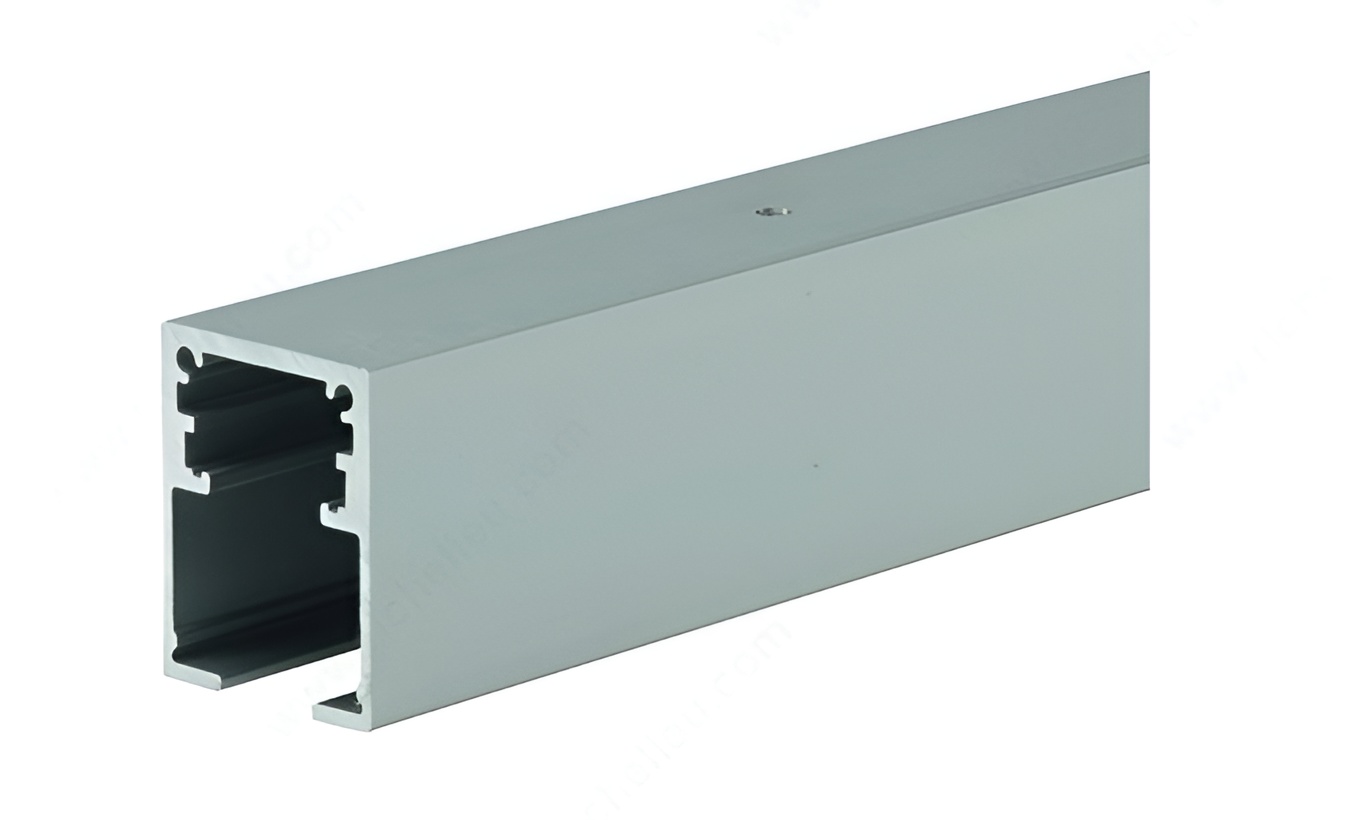

Grant TopLine HD Single Upper Track
The Grant TopLine HD single upper track is designed for one wood door at least 1 in (25 mm) thick and is available in seven different lengths.
- Anodized aluminum construction
- Pre-drilled screw slots for easy mounting
- Soft-close mechanism available separately
- BHMA-ANSI compliant
Important information
- Pictures provided for visual reference only: actual product may vary.
- All required hardware should be ordered and obtained prior to initiating fabrication or installation work. Please verify that the parts and quantity listed in your order are correct before proceeding to checkout.
- Always use instructions provided by the manufacturer, as included with the product. Manufacturer reserves the right to amend, modify or otherwise supplement any previously issued product and/or technical information, as deemed required from time to time, without prior notice.
- Installation of the product shall be executed by qualified individuals only, always ensuring that each product is securely installed using proper fixation methods, as appropriate for each applicable substratum. We trust that anyone installing these products has the required skills, knowledge and experience. Richelieu expressively disclaims any liabilities for results obtained through improper use or installation.
- Always remove debris/dust/residues (sawdust and/or aluminum) from the rails using a dry cloth before installing carriage bearings.
- Never spray lubricant.
Attributes
Ship via: No UPS - Common Carrier Only
Brand: Grant Hettich
Door Height: 3 000 mm
Door Thickness: Min. 25 mm
Door Width: 762 to 2 400 mm
Finish: Anodized
Length - Overall Dimensions: 72 in*
Load Capacity: Max. 324 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Overall Length: 1 829 mm
Packaging format: Length of 6 linear foot
Pre-drilled: Yes
Product #: GT9201446
Product number: GT9201446
Product type: Running and Guiding Tracks
Product №: GT9201446
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standards and Certifications: ANSI/BIFMA
Track Length: 1 829 mm
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount, Wall Mount
Unit: Length of 6 linear foot
Weight Capacity per Door: Max. 147 kg
