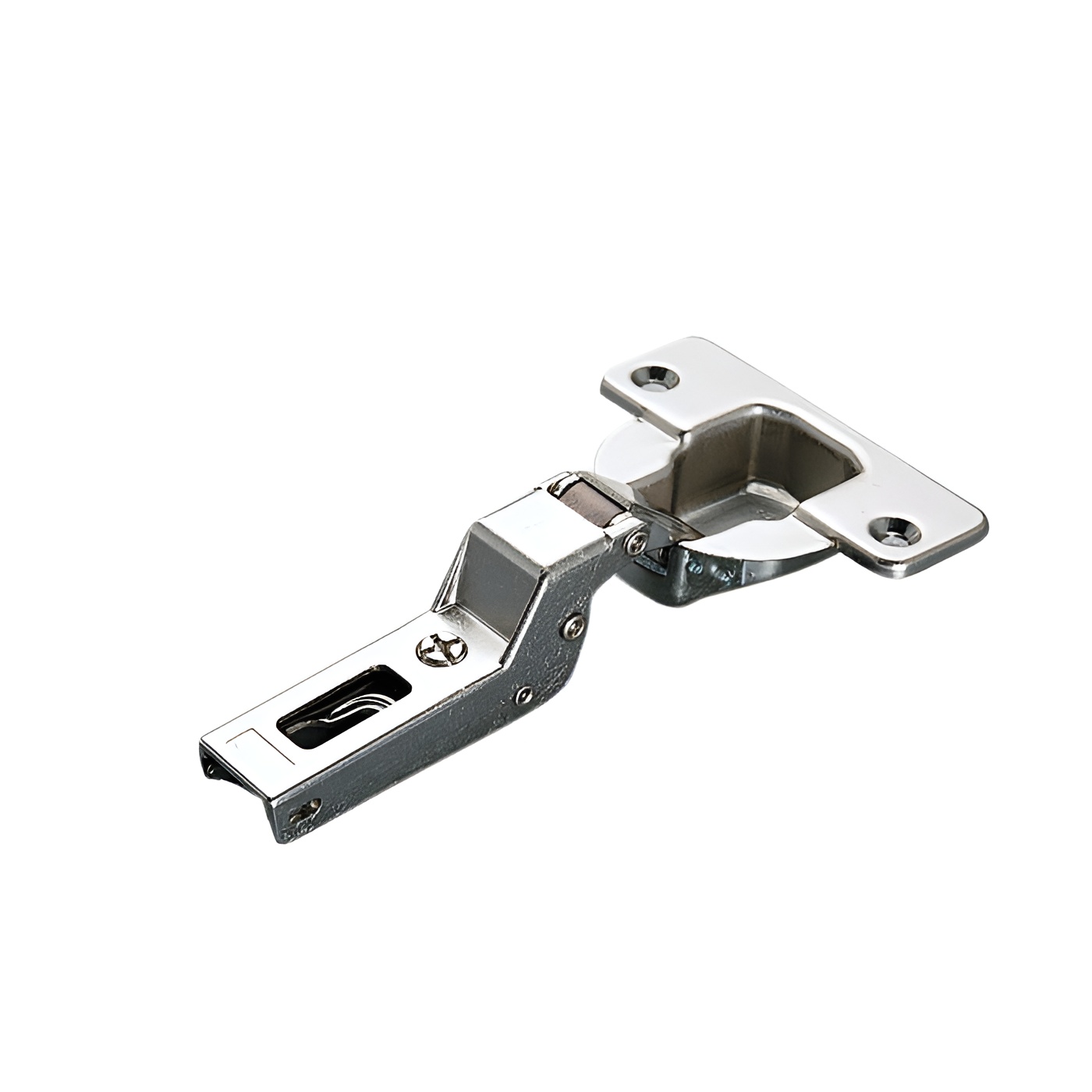

Richelieu H094CFA5G99 Series 200 Concealed Hinge offers an exceptional solution for frameless cabinet applications where concealed hinges are essential. This hinge is designed for half overlay doors, blending seamlessly into cabinetry while ensuring durability and functionality. Featuring a free swing mechanism with an impressive opening angle of +94°, it allows for optimal door access and ease of use. The independent and compensation adjustment feature ensures precise alignment, accommodating various door positions. With a safety stop device that supports both symmetrical and asymmetrical applications, this hinge guarantees reliability in any setup. Installation is a breeze thanks to the snap-on mounting and screw-on fixing type, making it compatible with all Domi series quick-release mounting plates. Constructed with a nickel finish, the hinge not only provides a polished look but also enhances resistance to wear and tear. It supports a load capacity of up to 10 lb, making it suitable for thick doors. The milling depth and diameter specifications (5/8 in and 1 9/16 in, respectively) facilitate a perfect fit for your projects. Whether you are a building professional or a knowledgeable homeowner, the Richelieu H094CFA5G99 Series 200 Concealed Hinge is a smart choice for any cabinetry project.

F Series - Concelead Hinges 94 for Thick Doors up to 40 mm

Resources

• Related document
• Series 200 Concealed Hinge - 94°
