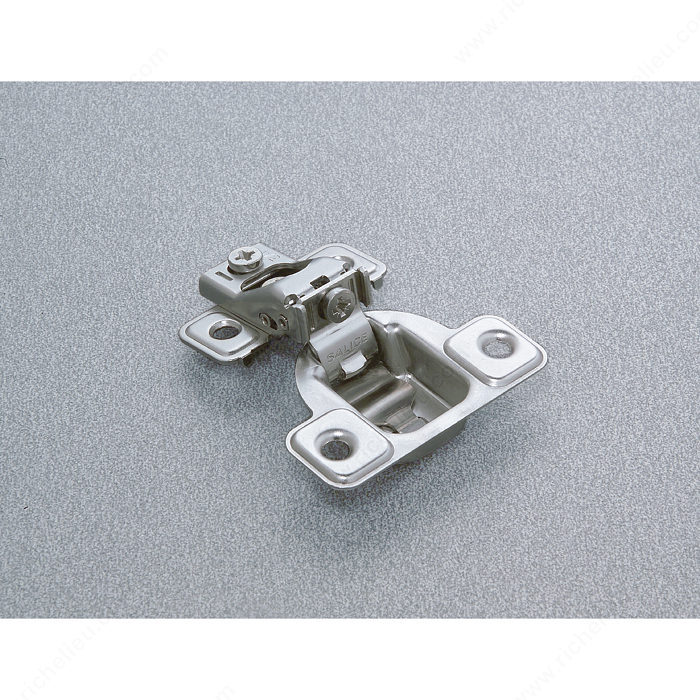

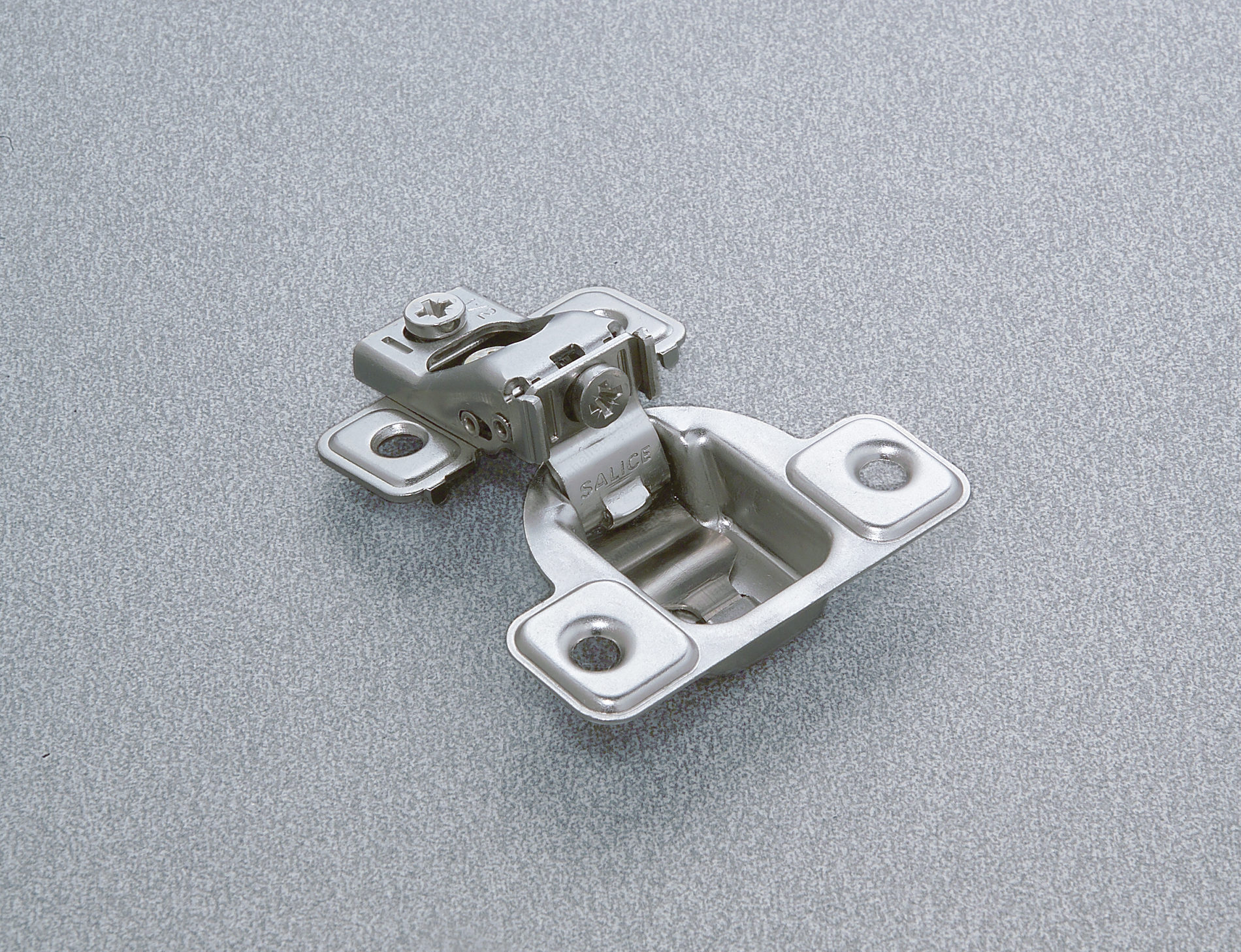

Richelieu H106CSP3799XR Excenthree Face Frame 3 Cams Hinges provide an exceptional solution for closing any door with precision and ease. Designed for face frame applications, these hinges offer versatile side, height, and depth adjustments, making them suitable for refacing projects where frame thickness may vary. The hinge is indexed from the front of the face frame, ensuring a streamlined installation process, while the absence of a back tab maintains a clean look. Crafted from stamped steel with a sleek nickel finish, these hinges feature a cup depth of 11 mm (7/16") and an impressive opening angle of 106°, allowing for full accessibility. With a fixed drilling distance of 2.5 mm (3/32"), installation is straightforward. The gap between the door and frame measures 4.6 mm (3/16"), accommodating overlays from 1/4" (6.4 mm) to 1-7/16" (36.5 mm) with optimal reveal values. The spring-closing mechanism ensures that doors remain securely closed while providing a load capacity of up to 10 lb. Suggested frame fixing utilizes screw #6 x 5/8" (15.9 mm) FHP for a reliable hold. Ideal for standard doors, the Richelieu H106CSP3799XR hinges deliver both functionality and style for any cabinetry project.
S Series - Excenthree Face Frame 3 Cam Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount
Overlay: 1/2 in
Product #: H106CSP3799XR
Product number: H106CSP3799XR
Product №: H106CSP3799XR
Production Time: Stock
Series: Excenthree
Unit 1: case - 300
Use Type: Standard Door
