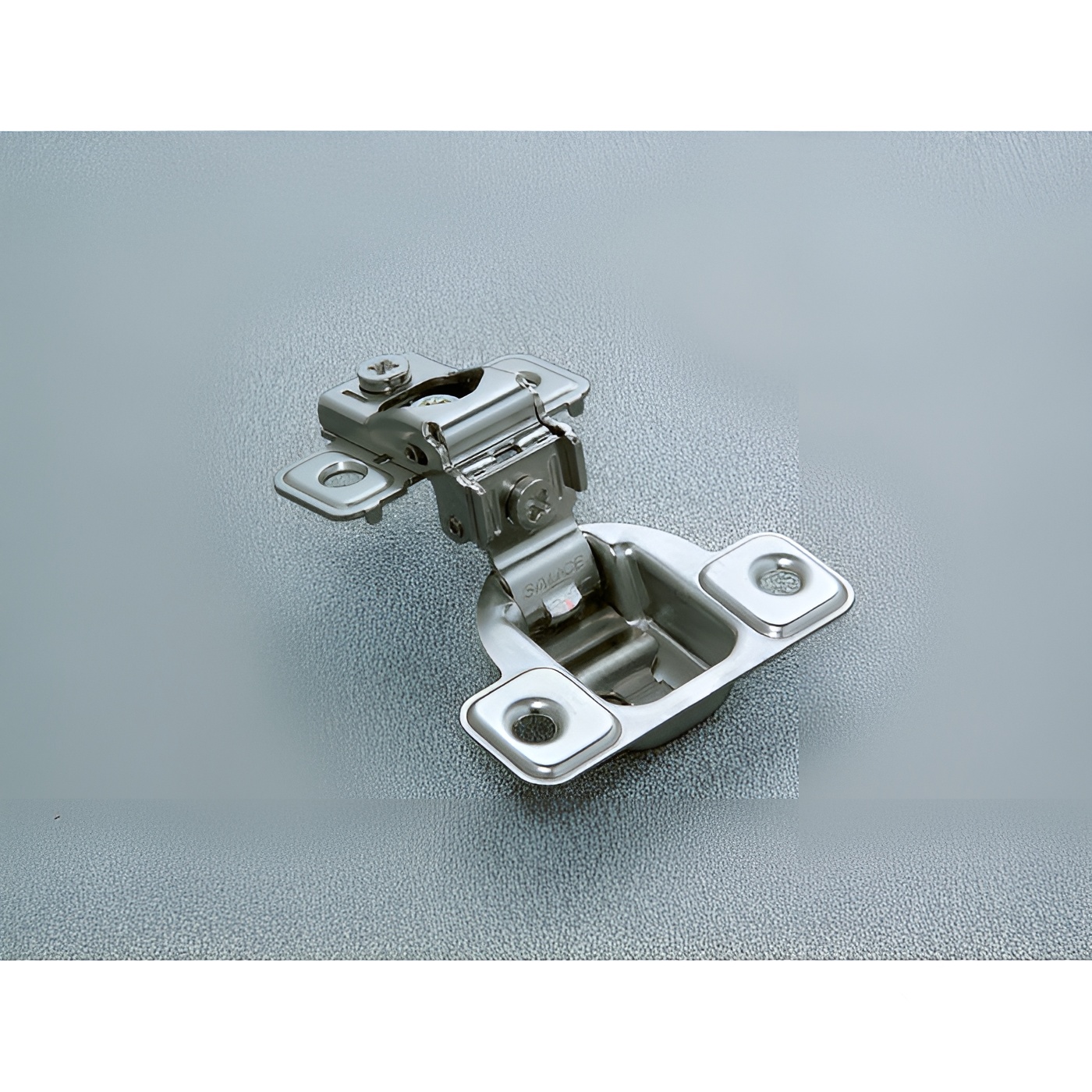

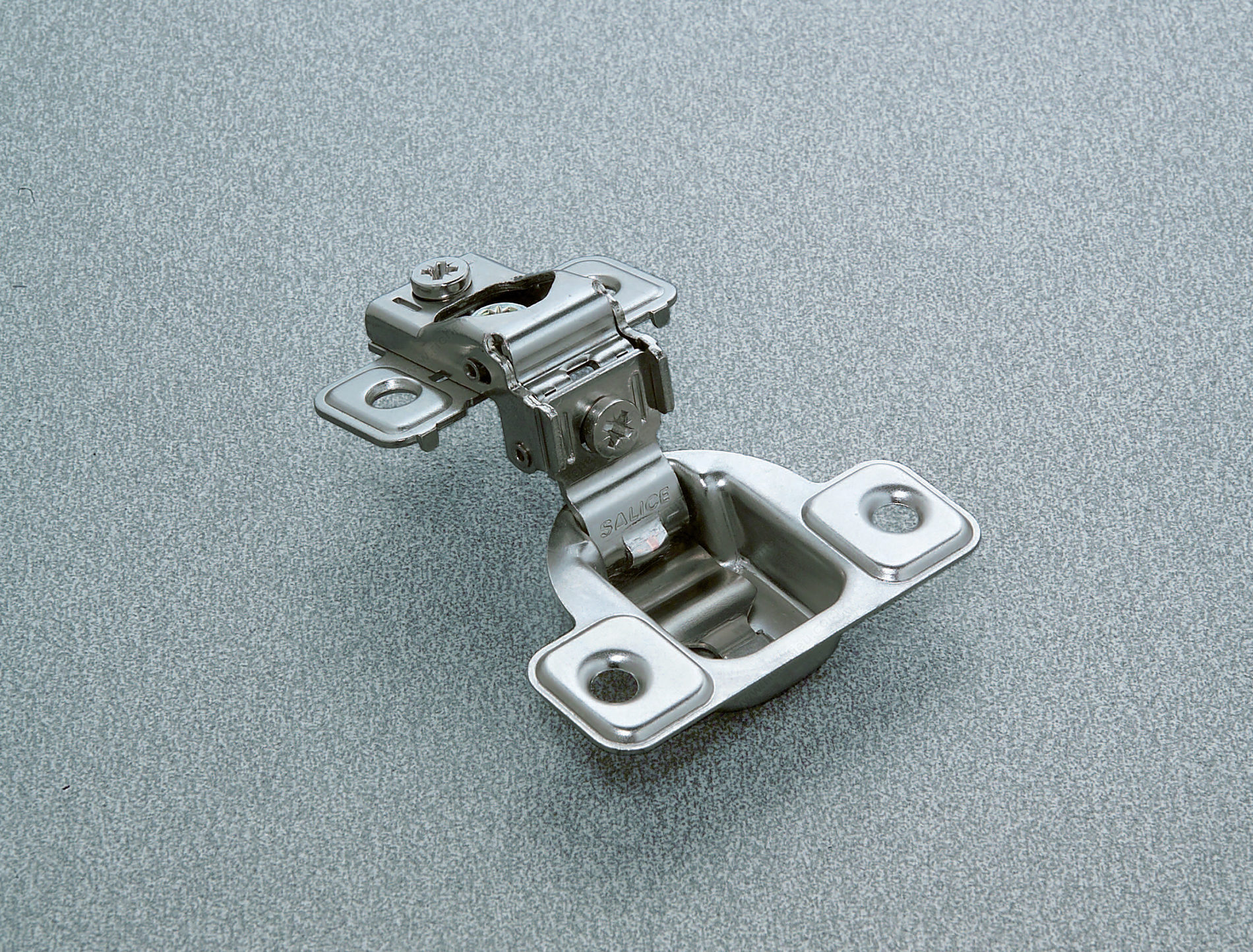

Richelieu H106CSR3299XR Excenthree Face Frame 3 Cams Hinges are engineered for precision and versatility, making them an ideal choice for closing doors in face frame cabinetry. These robust hinges are crafted from stamped steel and feature a nickel finish, ensuring durability and a sleek appearance. With a generous opening angle of 106 degrees, they provide ample access while maintaining a zero-door protrusion for a clean, unobtrusive look. Designed for overlays ranging from 1/4" (6.4 mm) to 1-7/16" (36.5 mm), these hinges allow for height, depth, and side adjustments, accommodating varying frame thicknesses with ease. The fixed drilling distance of 2.5 mm (3/32") ensures consistent installation, while the gap between the door and frame measures 4.6 mm (3/16"), optimizing alignment. The H106CSR3299XR hinges support a load capacity of up to 10 lbs and utilize a spring-closing mechanism for smooth operation. For optimal installation, it is suggested to use screw #6 x 5/8" (15.9 mm) for frame fixing. Whether for refacing projects or new constructions, these hinges deliver reliable performance and an elegant finish to any cabinetry application.
S Series - Excenthree Face Frame 3 Cam Hinges
Important information
Brand: Salice
Cabinet Type: Face Frame
Closing Mechanism: Spring Closing
Door Position: Full Overlay
Drilling Distance: 2.5 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +106°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Mounting Type: Face Mount
Overlay: 1 in
Product #: H106CSR3299XR
Product number: H106CSR3299XR
Product №: H106CSR3299XR
Production Time: Stock
Series: Excenthree
Unit 1: case - 300
Use Type: Standard Door
