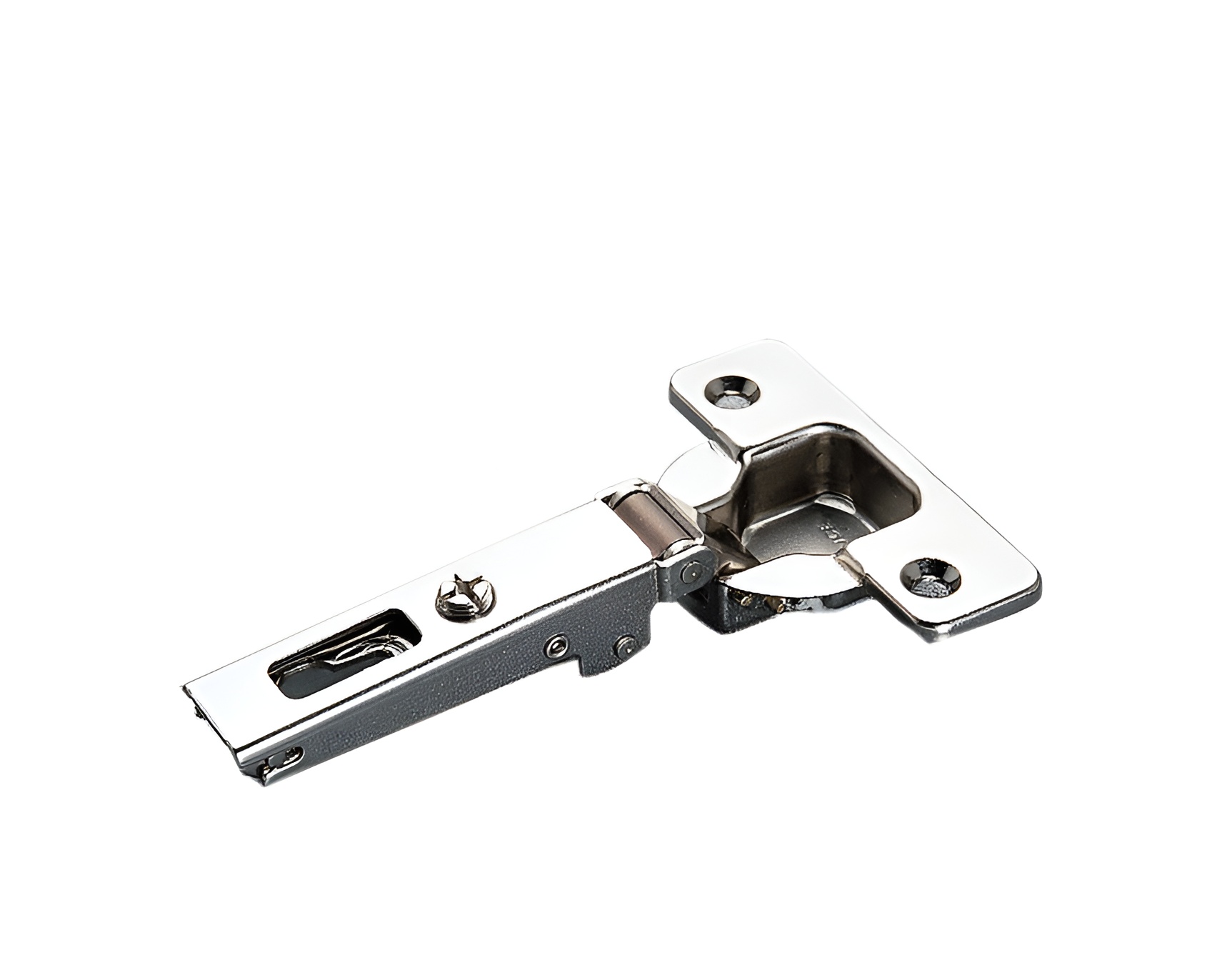

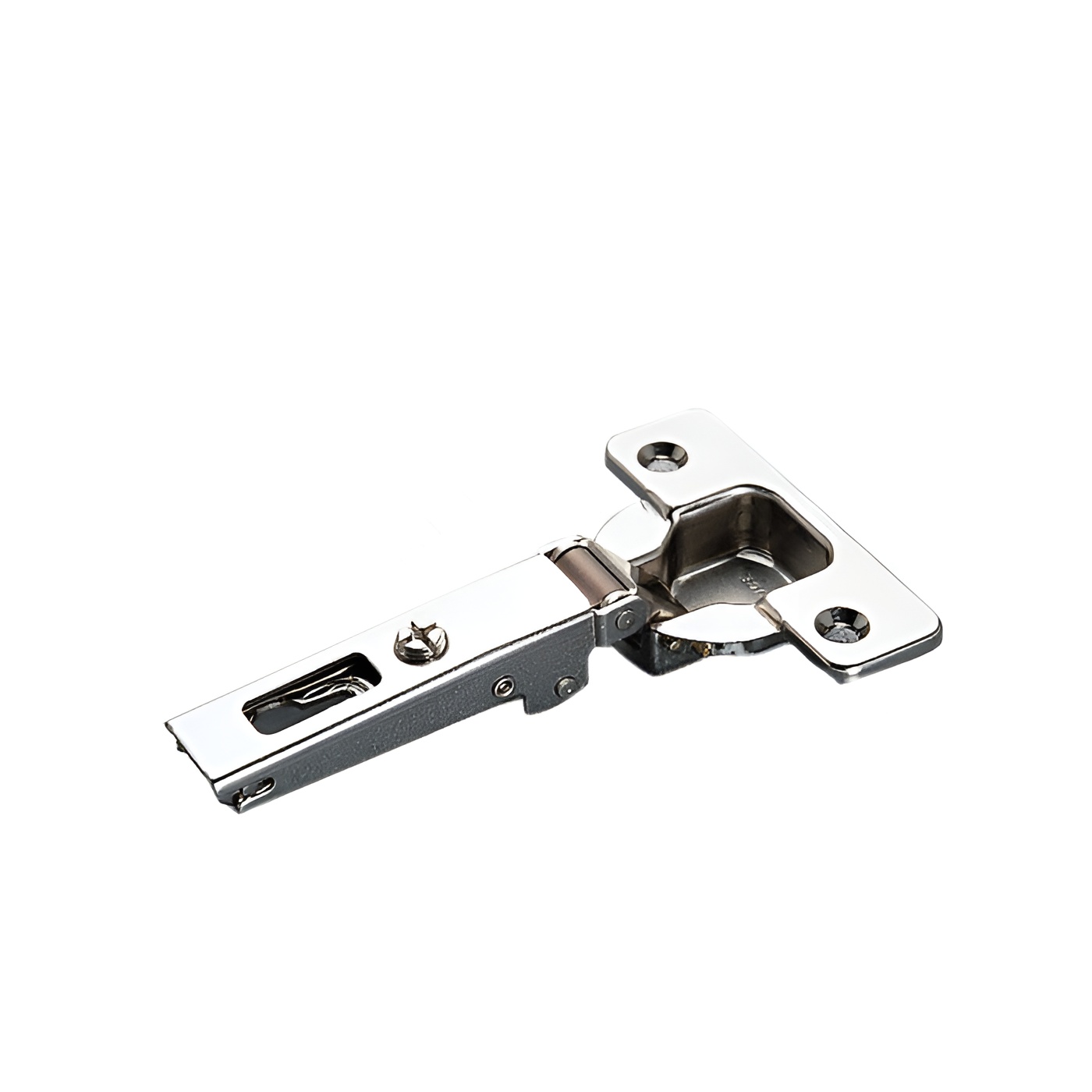

Richelieu H110C2P4A99 Series 200 Concealed Hinges - 110 offer an advanced solution for those seeking a reliable concealed hinge system. This innovative product from the Salice series is designed for full overlay door applications, accommodating door thicknesses ranging from 5/8 to 1 1/32 inches. The hinges feature independent and compensation adjustments, ensuring precise alignment for seamless operation. A standout characteristic is the safety stop device, which enhances functionality by allowing for both symmetrical and asymmetrical openings. The snap-on mounting provides ease of installation, making this hinge compatible with all Domi series quick-release mounting plates. Designed for standard doors, the H110C2P4A99 boasts a hinge opening angle of +110°, facilitating smooth access. With a milling depth of 7/16 inches and a milling diameter of 1 3/8 inches, these hinges are crafted for durability and long-lasting performance. Finished in sleek nickel, they not only perform well but also add a contemporary touch to any cabinetry. The screw-on fixing type ensures secure mounting, making them an ideal choice for building professionals and discerning homeowners alike. With stock availability, the Richelieu H110C2P4A99 is ready to enhance your projects today.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.75 in
Product #: H110C2P4A99
Product number: H110C2P4A99
Product №: H110C2P4A99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
