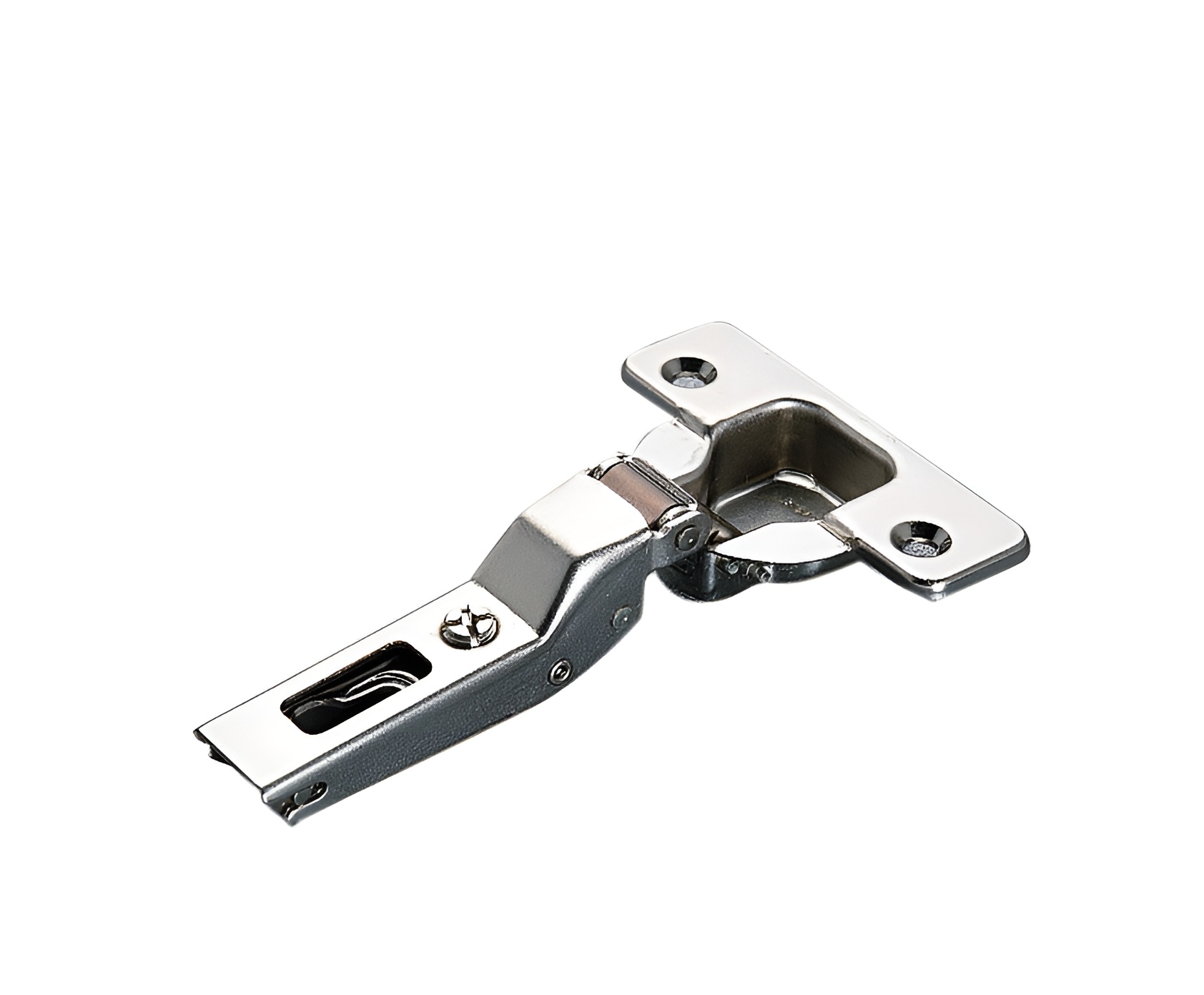

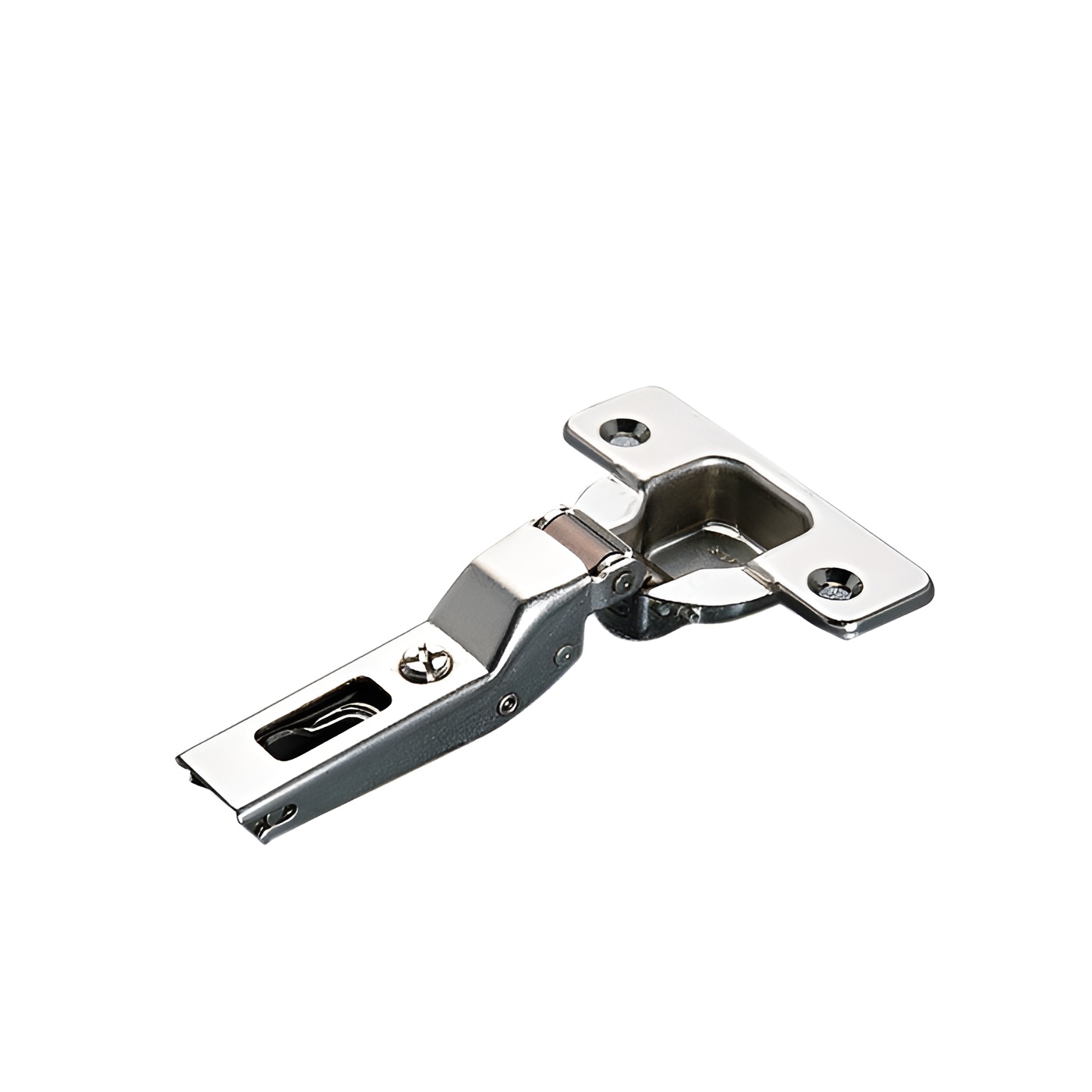

Richelieu H110C2R4G99 Series 200 Concealed Hinges are expertly engineered to meet the demands of modern cabinetry and door applications. This integrated hinge system is designed for concealed installations, making it ideal for both symmetrical and asymmetrical door setups. Featuring independent and compensation adjustment capabilities, these hinges allow for precise alignment, ensuring a flawless finish. The hinges support a generous opening angle of +110°, providing easy access and functionality for standard doors. Constructed with a durable nickel finish, they offer not only reliability but also aesthetic appeal. Designed for half overlay doors with a thickness range of 5/8 to 1 1/32 inches, the H110C2R4G99 hinges are adaptable to all Domi series quick-release mounting plates, allowing for effortless installation. Snap-on mounting simplifies the installation process, while the safety stop device enhances safety during use. The recommended milling depth is 7/16 inches, with a milling diameter of 1 3/8 inches, and an overlay of 11/32 inches ensures compatibility with various cabinetry designs. With a dowel fixing type, these hinges provide secure attachment for long-lasting performance. Elevate your cabinetry with the reliable and versatile Richelieu H110C2R4G99 Series 200 Concealed Hinges.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 11/32 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Free Swing

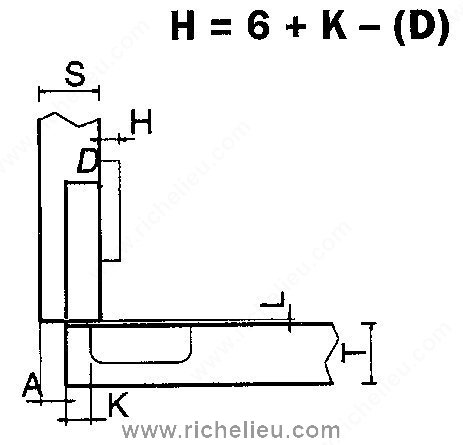

Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.3125 in
Product #: H110C2R4G99
Product number: H110C2R4G99
Product №: H110C2R4G99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
