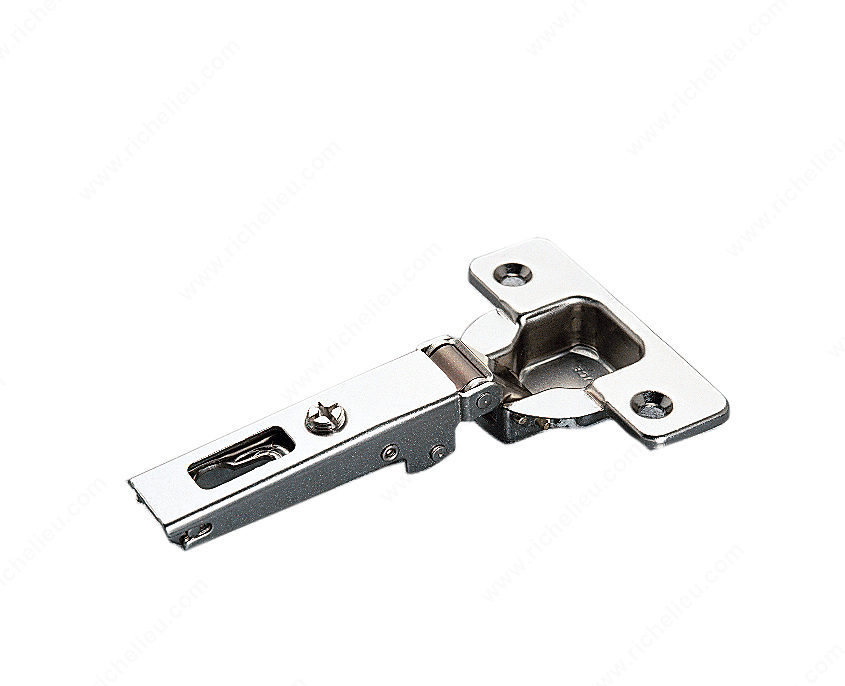

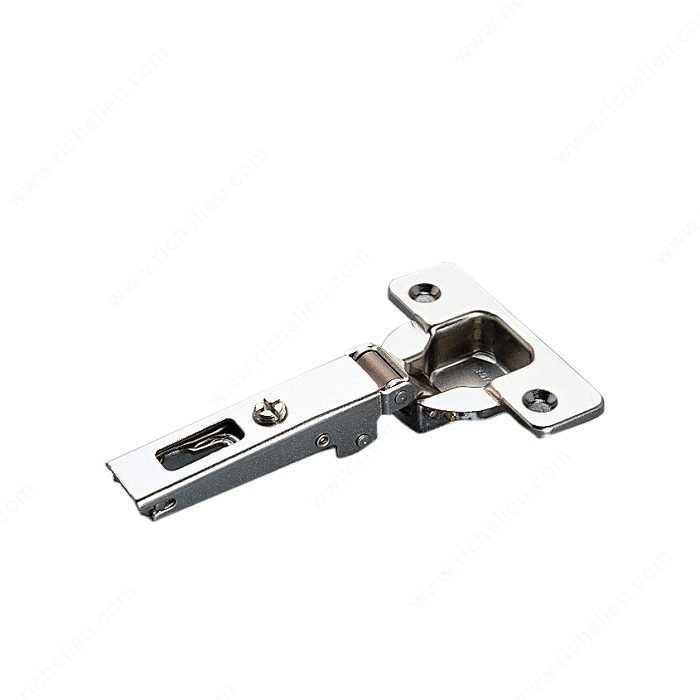

Richelieu H110C2R6A99 Series 200 Concealed Hinges - 110 offer a sophisticated solution for those seeking concealed hinges with versatility and ease of installation. Designed for full overlay applications, these hinges accommodate door thicknesses ranging from 5/8 to 1 1/32 inches, ensuring compatibility with a variety of cabinet styles. One of the standout features of the H110C2R6A99 hinges is their independent and compensation adjustment capability, which allows for precise alignment during installation. The symmetrical and asymmetrical safety stop device enhances the longevity and reliability of the hinge, making it ideal for both residential and commercial use. The snap-on mounting system simplifies the installation process, while the hinges are also adaptable to all Domi series quick-release mounting plates. With a hinge opening angle of +110°, the Richelieu hinges provide ample access to cabinet interiors. Constructed with a durable nickel finish and featuring a spring closing mechanism, these hinges combine style and functionality. The milling depth of 7/16 inches and a milling diameter of 1 3/8 inches further streamline the installation process. Perfect for standard doors, Richelieu H110C2R6A99 hinges are a dependable choice for professionals and DIY enthusiasts alike, ensuring a perfect fit and seamless operation.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.75 in
Product #: H110C2R6A99
Product number: H110C2R6A99
Product №: H110C2R6A99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
