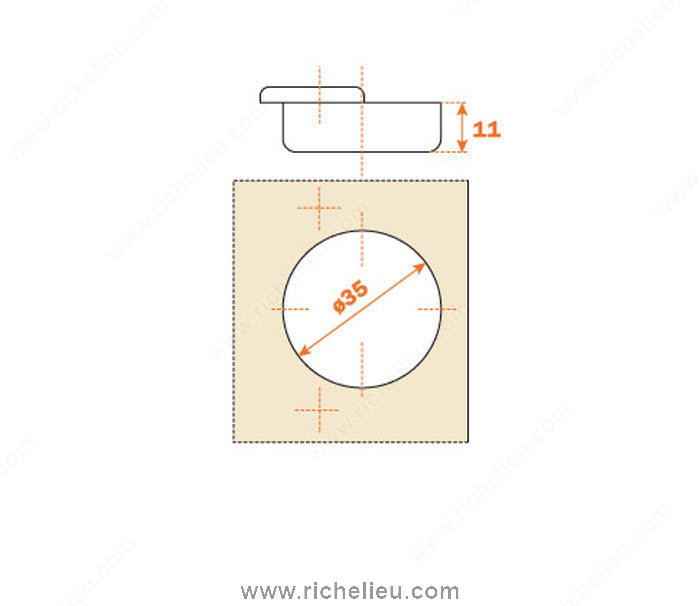

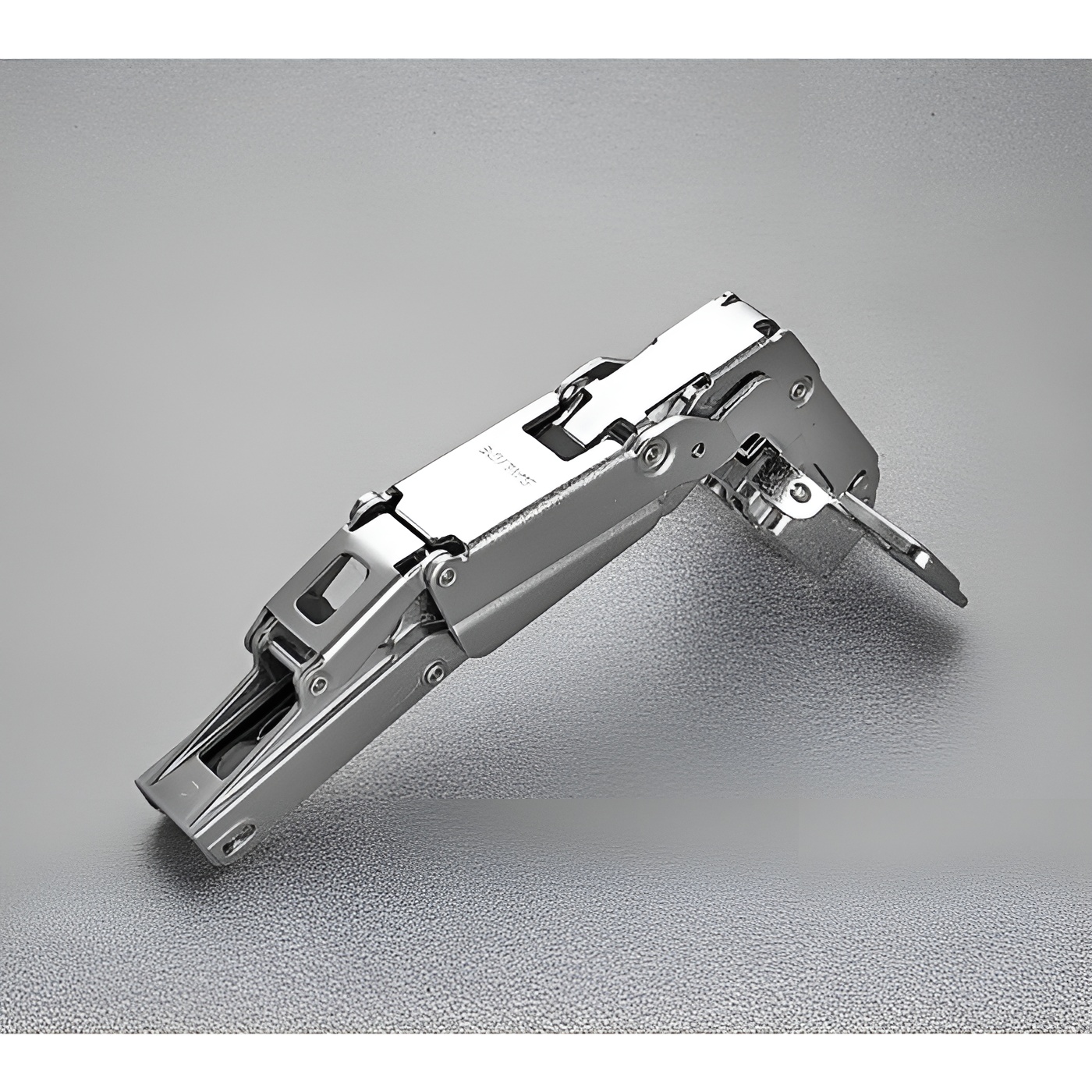

Richelieu H165C2JFD99 Serie 200 Concealed Hinges - 165 are engineered for frameless cabinet applications, offering a seamless and aesthetically pleasing look. With a die-cast cup measuring 11 mm and an impressive hinge opening angle of +165°, these hinges provide excellent accessibility without compromising style. They support a load capacity of up to 10 lbs, making them suitable for various standard door designs. The H165C2JFD99 hinges feature toolless fixing for easy installation and adjustment, streamlining the setup process for professionals and DIY enthusiasts alike. The drilling distance ranges from K = 3 to 8 mm, allowing for versatile mounting options. Additionally, the hinges use the same formulas as typical 94°, 110°, and 120° hinges for base plates, enabling compatibility and ease of integration into existing projects. Packaged conveniently at 100 units per case, these nickel-finished hinges are not only durable but also deliver a polished look. Designed for 1/2 inch (12.7 mm) overlay doors, these hinges are perfect for modern cabinetry where functionality meets design. Order base plates separately to complete your installation. The H165C2JFD99 hinges are in stock and ready to ship via UPS, ensuring quick availability for your next project.
200 Series - Concealed Hinges 165
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 3/16 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*

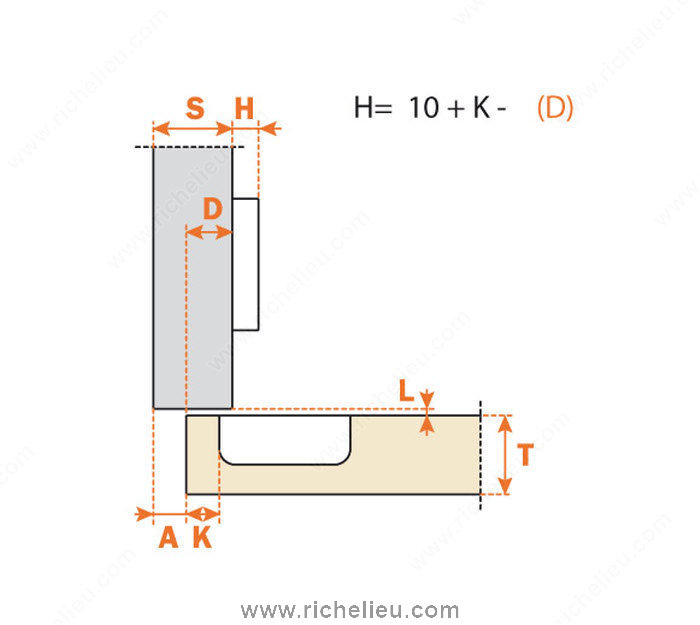

Drilling Distance: 3 to 8 mm
Finish: Nickel
Fixing Type: Toolless
Hinge Opening Angle: +165°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Mounting Type: Frameless
Overlay: 0 in
Product #: H165C2JFD99
Product number: H165C2JFD99
Product №: H165C2JFD99
Production Time: Stock
Series: 200 Series
Unit 1: case - 100
Use Type: Standard Door
