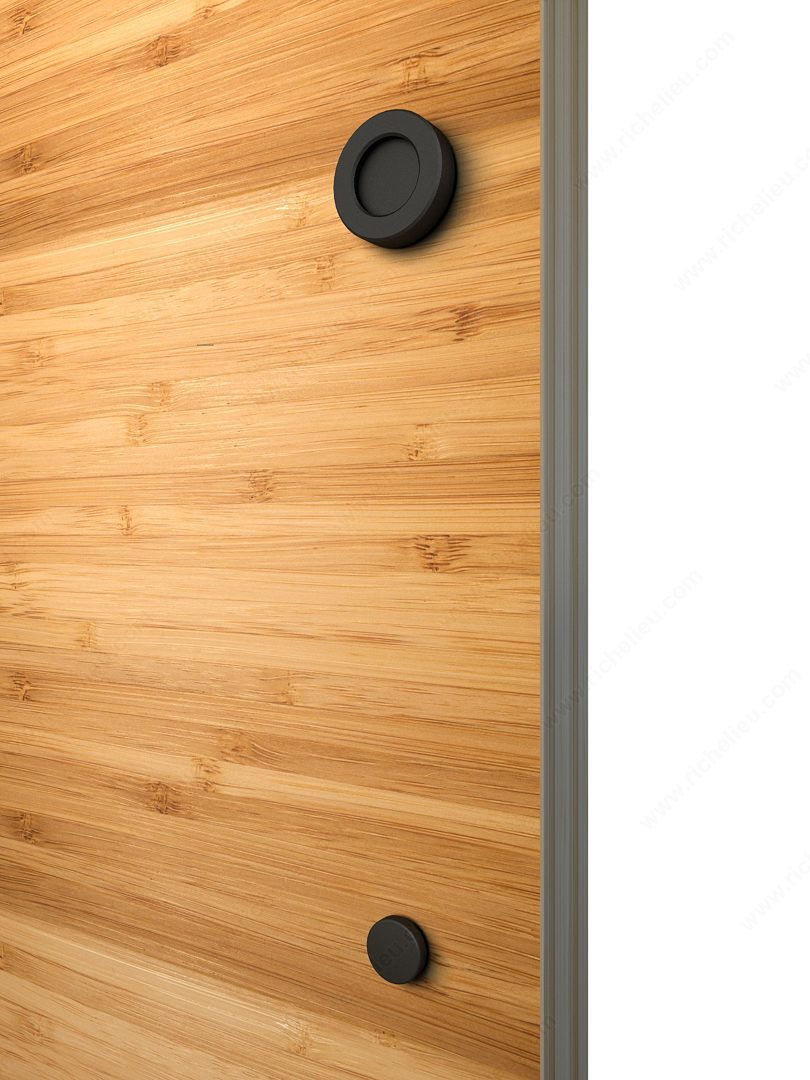

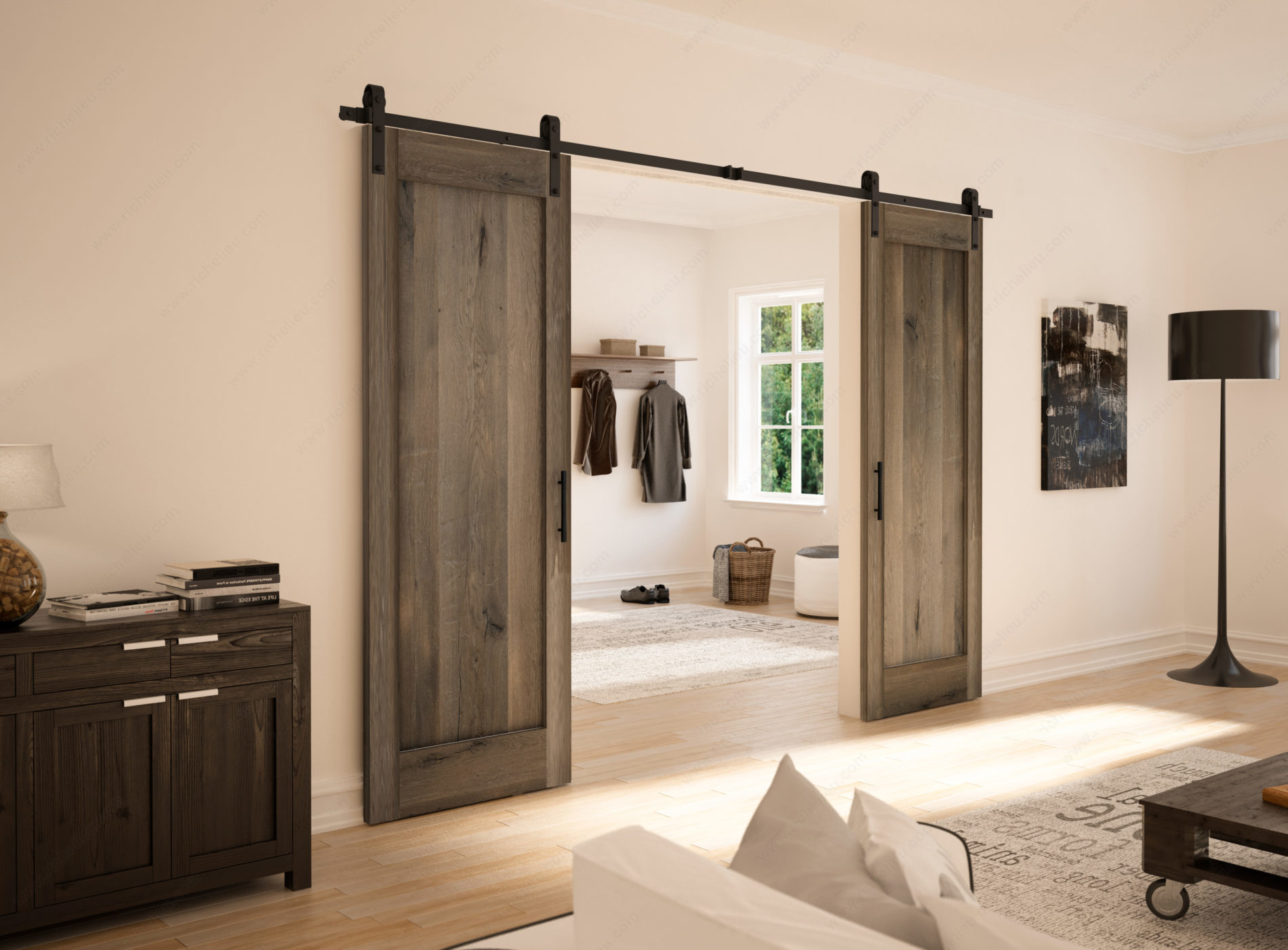

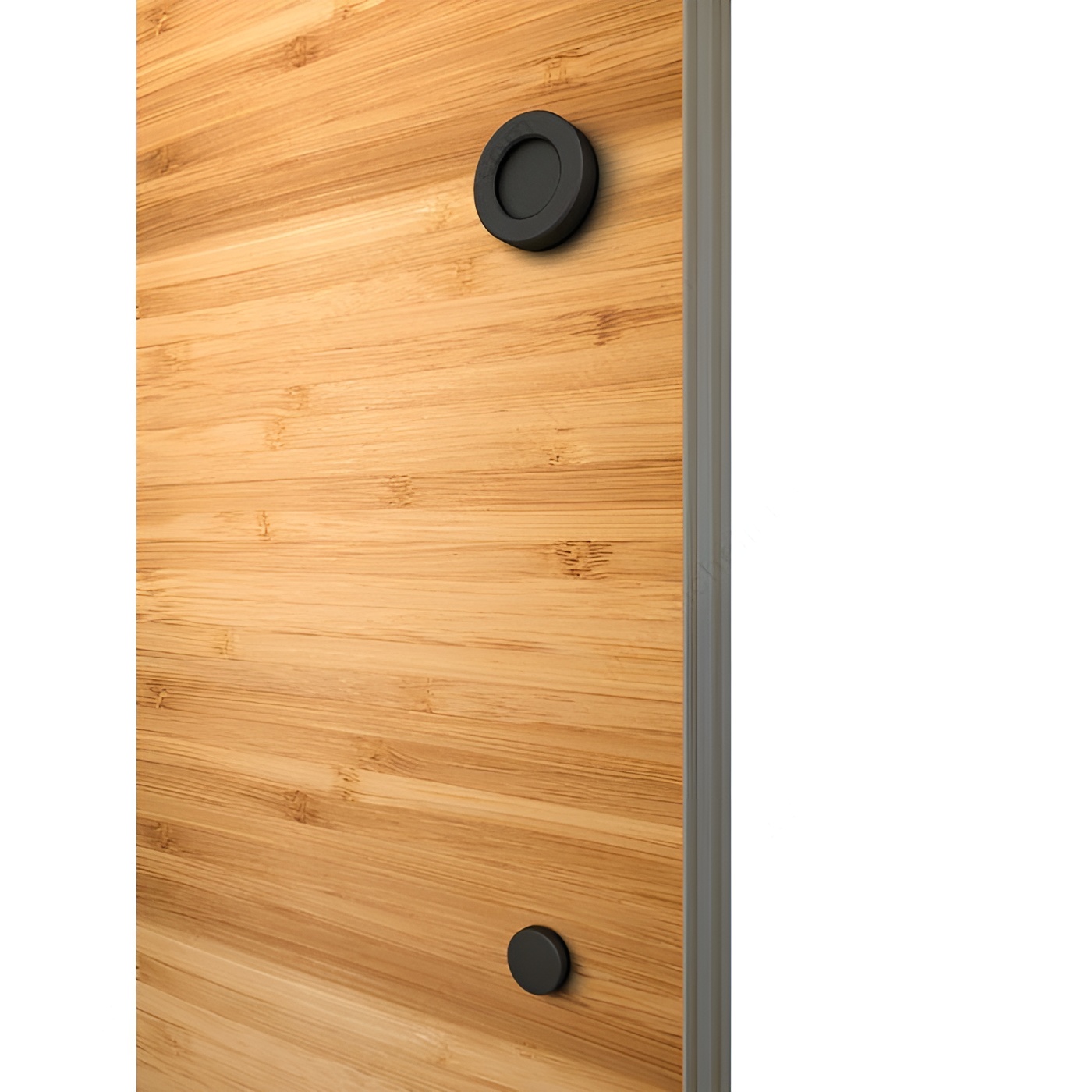

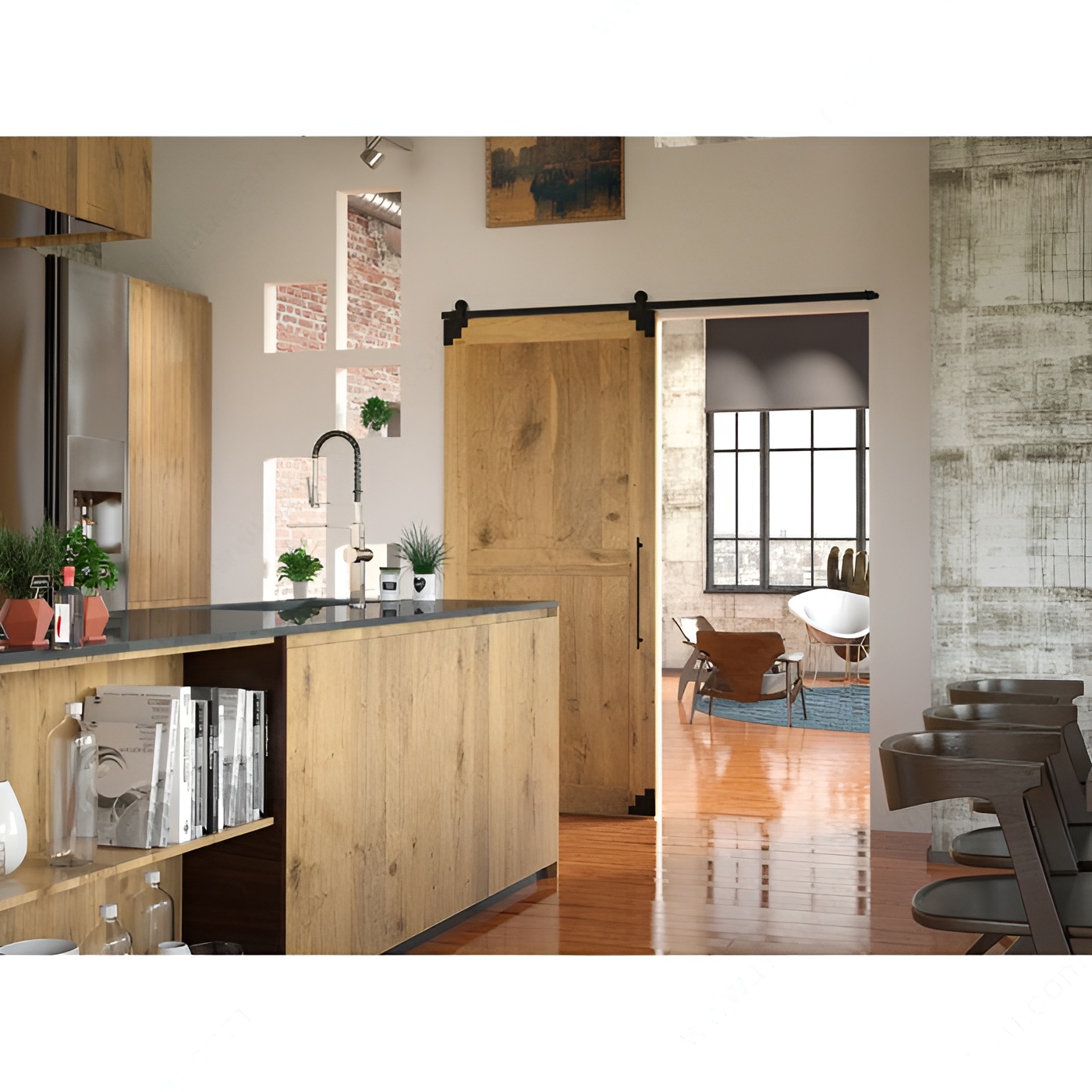

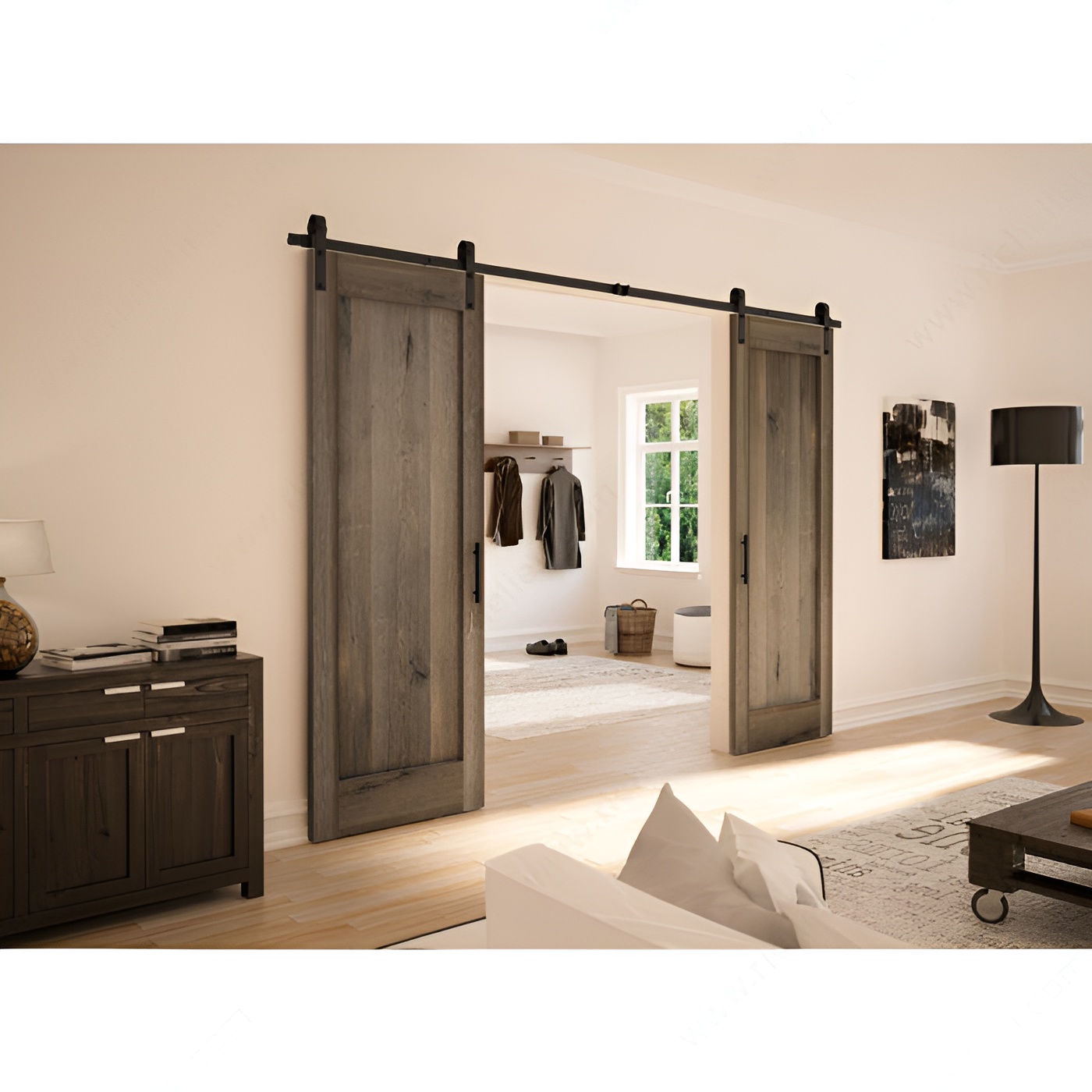

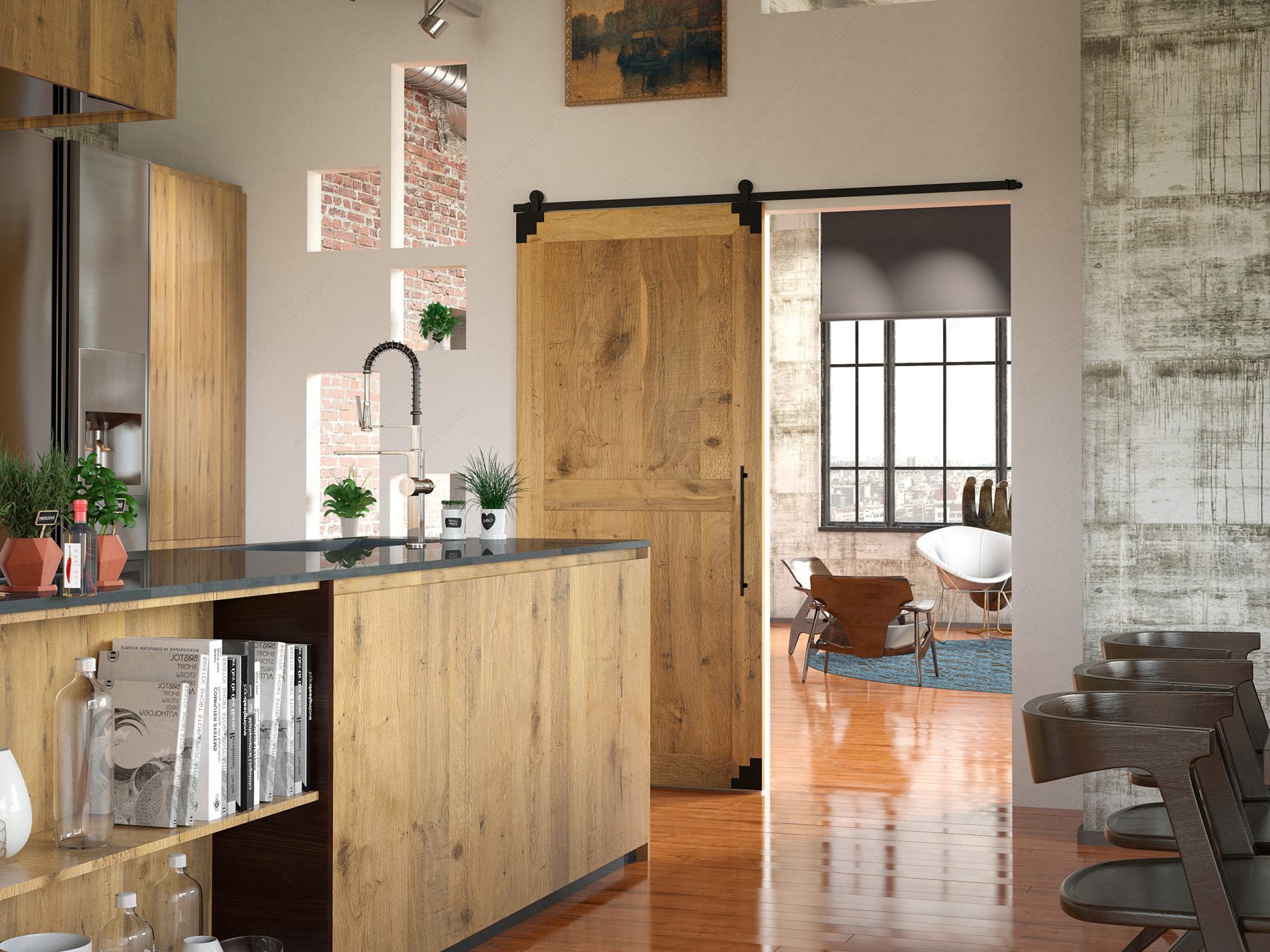

Richelieu 24620700910090 Tube Pull Handle with Round Disc Pull offers a sleek and functional solution for both residential and commercial sliding doors. This tube pull handle features a low-profile round disc pull on the opposite side, ensuring a streamlined appearance that remains unobtrusive, with a projection of just 2 7/32 inches. Crafted from durable steel, it is designed to withstand frequent use while providing a secure grip. The handle accommodates wood door thicknesses ranging from 1 3/8 inches to 1 9/16 inches, making it versatile for various installations. Included with the handle are two through bolt fasteners, which ensure a reliable attachment, along with a series of washers and rosettes that help protect the door surface from damage during installation. The center-to-center drilling spacing measures 11 3/4 inches, and the handle length is 19 5/8 inches, fitting comfortably within standard dimensions. Available in brushed stainless steel and matte black finishes, the Tube Pull Handle pairs beautifully with Richelieu's collection of Decorative Barn Door Sliding kits. This combination not only enhances the aesthetic appeal of your space but also promotes functionality, making it an excellent choice for pocket and sliding door applications.

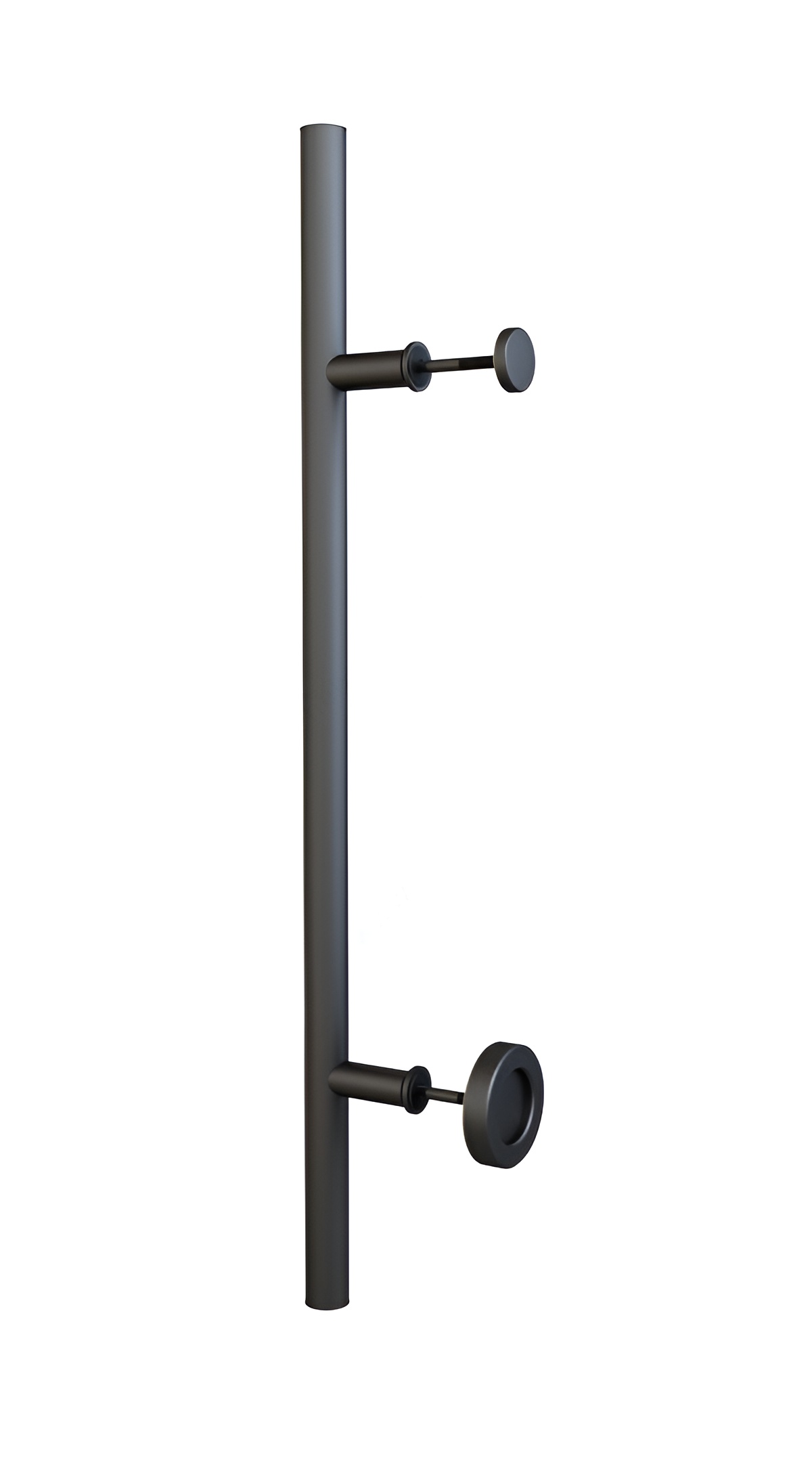

Tube Pull Handle with Round Disc Pull
Center to Center Drilling ( Spacing): 300 mm
Color/ Finish: Black
Diameter: 19 mm
Door Thickness: 35 to 40 mm
Door Type: Wood
Edge Distance: 60 mm
Function: Passage
Length: 500 mm
Manufacturing Material: Steel
Material: Steel
Milling Dimension: 10 mm
Packaging Specifications: Industrial Packaging
Product #: 24620700910090
Product number: 24620700910090
Product №: 24620700910090
Projection: 56.5 mm
Screw/ Nail: Included
Unit: Box
Unit 1: carton - 10
Unit 2: carton - 10
Usage: Pocket Door, Sliding Door
