Richelieu WEBKIT1216578 HAWA JUNIOR B Series Sliding Door SystemRichelieu WEBKIT1216578 HAWA JUNIOR B Series Sliding Door System offers a robust solution for both commercial and residential applications, accommodating doors weighing from 88 lb to 550 lb (40 kg to 250 kg). Designed with a low-profile rebate/mortise mount suspension plate, this system minimizes the gap between the door and upper track, eliminating the need for a fascia. The integrated track stopper features an adjustable retaining device that effectively resists door bounce back, ensuring smooth operation. Versatile track options are available in various lengths to suit single sliding, biparting, and bypassing configurations. The premium performance trolleys provide quiet and long-lasting functionality. For added convenience, the SoftMove soft/self-closing mechanism is available separately, tailored for doors weighing between 88 lb to 264 lb (40 kg to 120 kg). This system is ideal for applications such as room dividers, pocket doors, wall partitions, and low headroom installations. With a door thickness range of 1 3/8 to 1 31/932 in and a width between 27 1/8 to 40 3/8 in, the HAWA JUNIOR B Series ensures flexibility in design. Finished in satin aluminum, it combines durability with an elegant appearance, making it a perfect choice for modern spaces.
HAWA JUNIOR B Series Sliding Door System
The HAWA JUNIOR B Series sliding wood door systems for doors weighing 88 lb to 550 lb (40 kg to 250 kg) per door.
- Low profile rebate/mortise mount suspension plate for the top of the door
- Minimal gap between the top of the door and upper track, does not require a fascia
- Integrated track stopper with adjustable retaining device to resist door bounce back
- Versatile track options in various lengths for single sliding, biparting, and bypassing applications
- Smooth and quiet premium performance and long-lasting trolleys
- Available SoftMove soft/self-closing mechanism sold separately for doors weighing from 88 lb to 264 lb (40 kg to 120 kg) per door

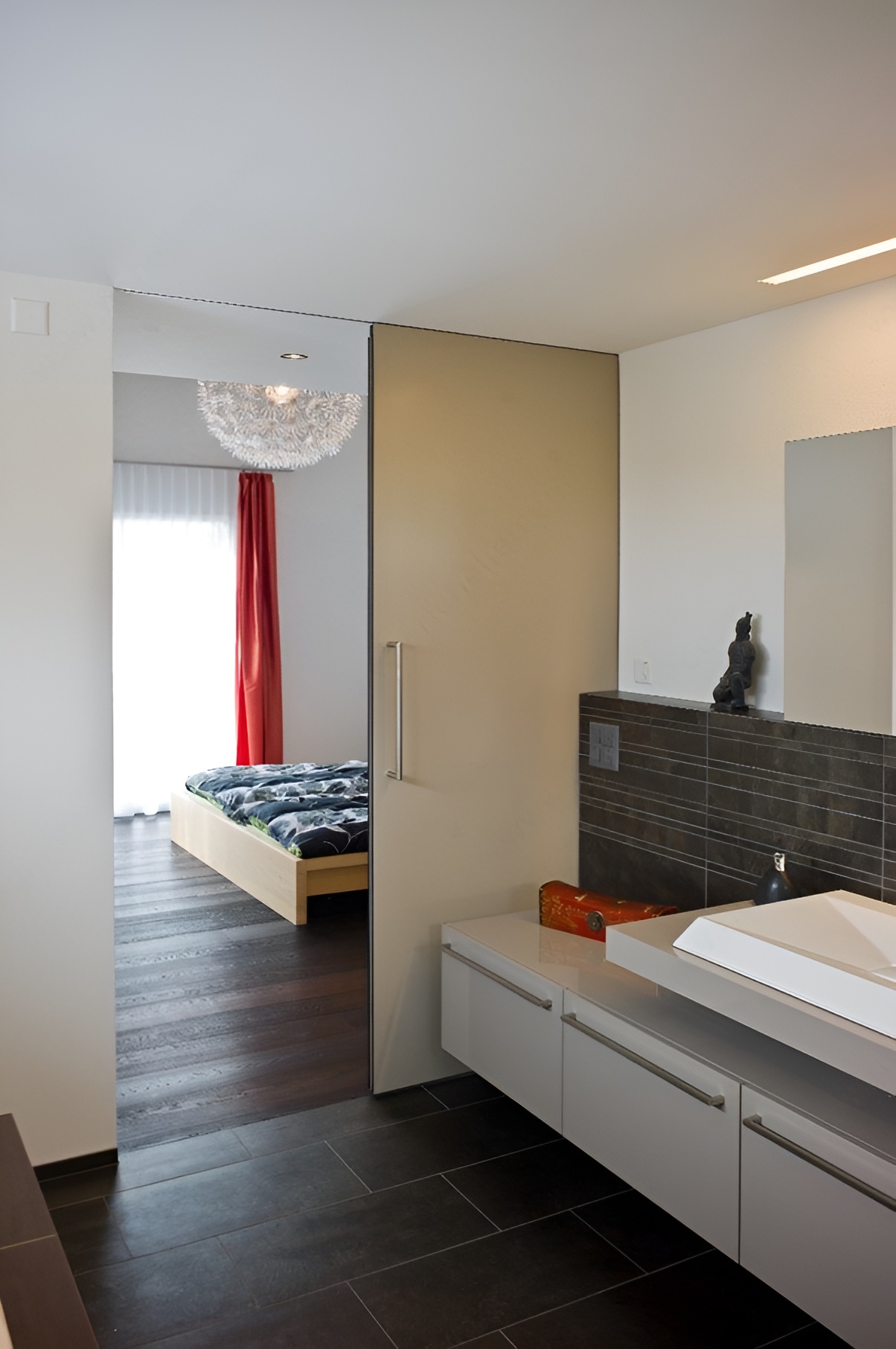

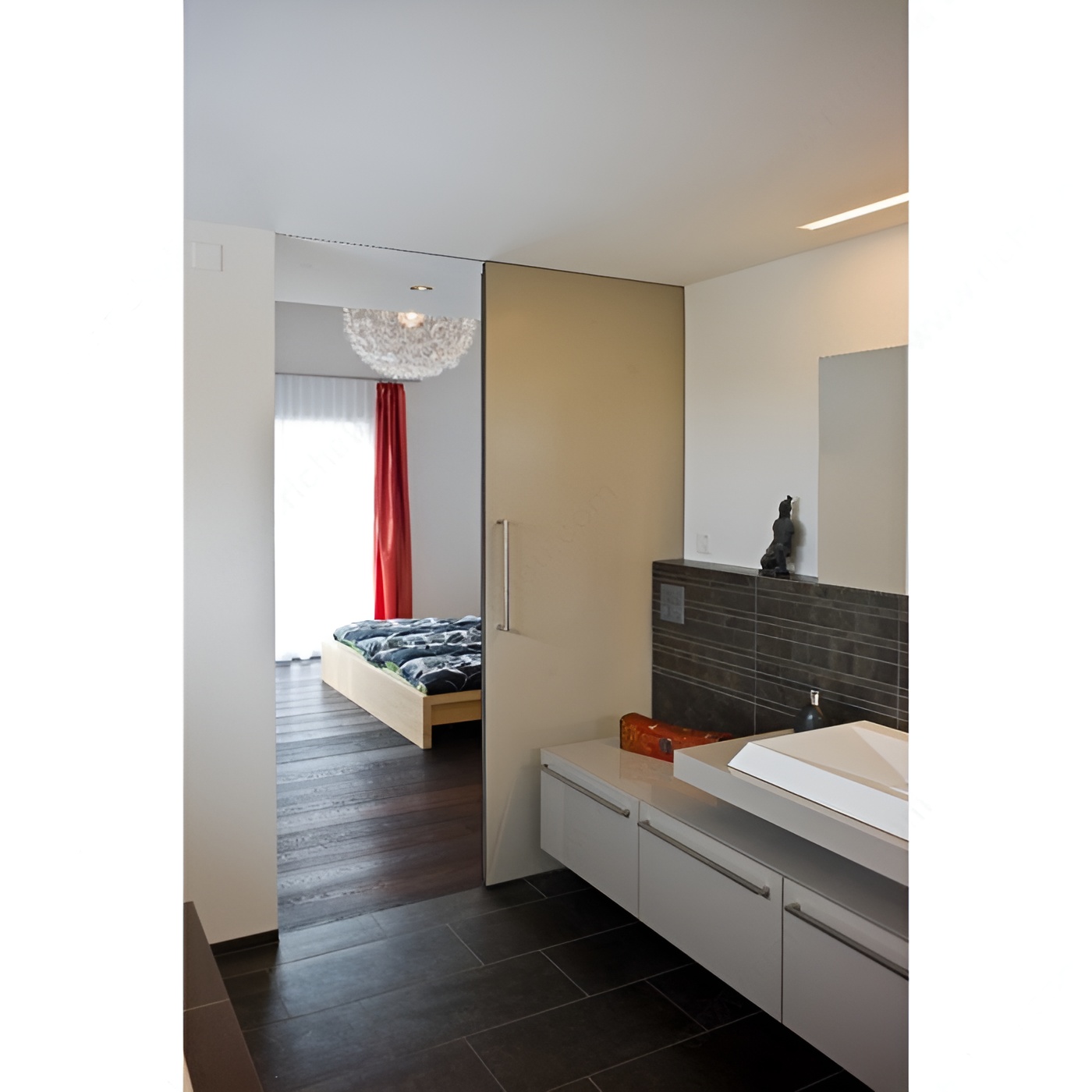

The HAWA JUNIOR B Series is an ideal solution for premium commercial and residential projects, room dividers, pocket doors, wall partitions, and low headroom applications.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Standard Access Door
Brand: Hawa
Detailed Door Movement: Single Sliding
Door Height: Max. 3 050 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inside Frame
Door Thickness: 35 to 50 mm
Door Width: 690 to 1 025 mm
Finish: Satin Aluminum
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 90.4 to 176 lb*
Number of Doors: 1
Overall Length: 2 m
Product #: WEBKIT1216578
Product number: WEBKIT1216578
Product №: WEBKIT1216578
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Track Finish: Satin Aluminum
Track Length: 2 m
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 80 kg
