Richelieu WEBKIT1216806 HAWA SYMMETRIC 80/Z Biparting Synchronized System InstructionsRichelieu WEBKIT1216806 HAWA SYMMETRIC 80/Z Biparting Synchronized System offers a seamless solution for sliding wood doors, allowing two doors to move in opposite directions on a single track. With a robust load capacity of up to 176 lb (80 kg) per door, this system is engineered for both residential and commercial settings, making it ideal for boardrooms, restaurants, and meeting spaces. This innovative system features a pulley mechanism that attaches securely to both ends of the upper track, ensuring smooth operation. The fiberglass reinforced toothed belt connects both doors, providing synchronized movement for an elegant and functional entrance. Compatible with the HAWA Junior 80/Z hardware set, it accommodates doors with widths ranging from 19 5/8 in to 39 3/8 in and heights from 23 5/8 in to 157 in, offering versatility for various applications. Constructed from durable aluminum, the system includes upper roller positions with axle-type rollers, ensuring reliable performance. The ceiling mount design maximizes space efficiency, while adjustable features allow for tailored installation. With two integrated stoppers, you can be assured of safe and secure operation in any environment. Transform your spaces with the HAWA SYMMETRIC 80/Z system and experience the perfect blend of style and function.
HAWA SYMMETRIC 80/Z Biparting Synchronized System
The HAWA SYMMETRIC 80/Z Biparting Synchronized system is for two wood doors sliding in opposite directions on one track, each weighing up to 176 lb (80 kg).
Features:
- Pulley system attaches to both ends of the upper track
- Fiberglass reinforced toothed belt links both doors
- Works with the HAWA Junior 80/Z hardware set
- Standard set for door widths of 19 3/4 in to 47 in (500 mm to 1200 mm) each

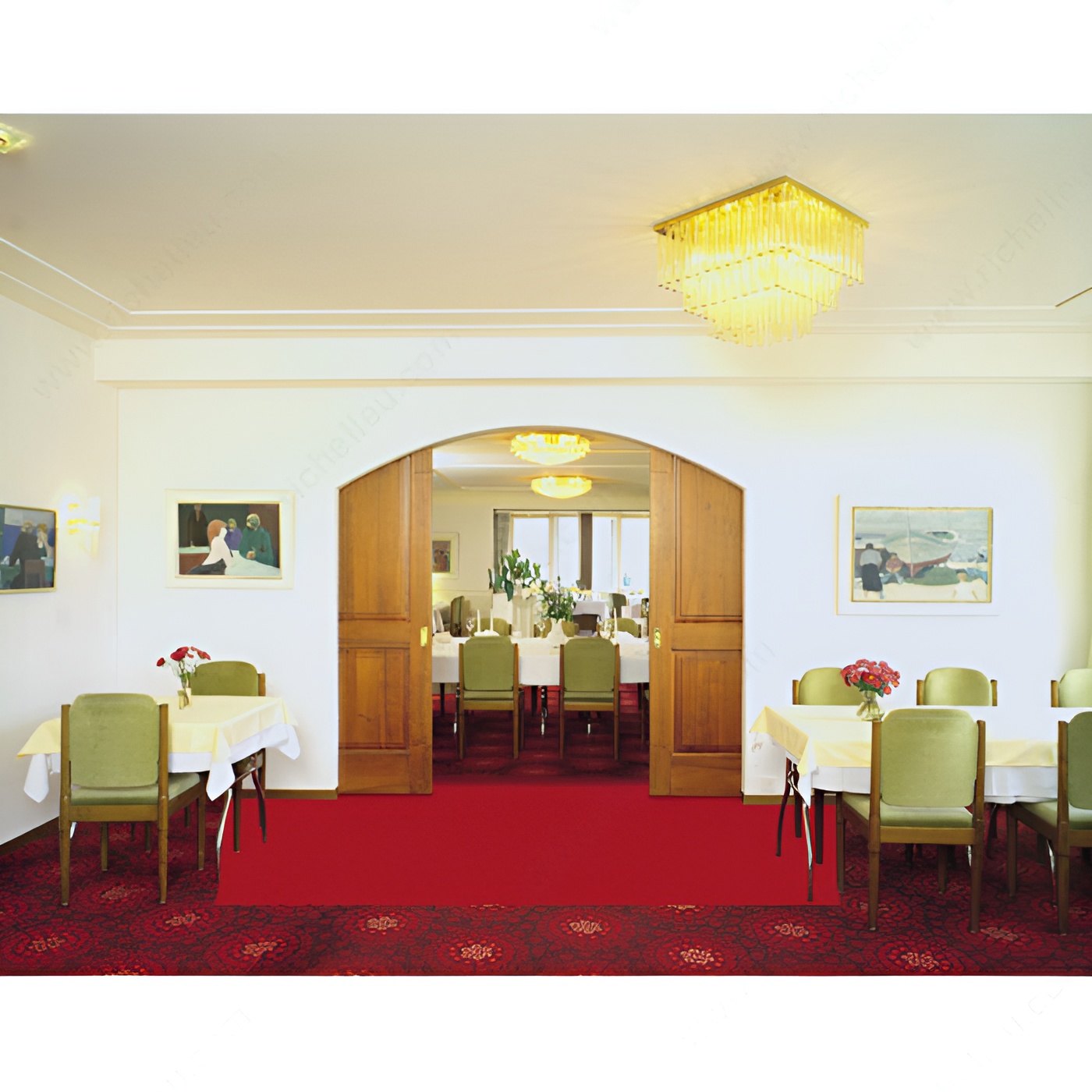

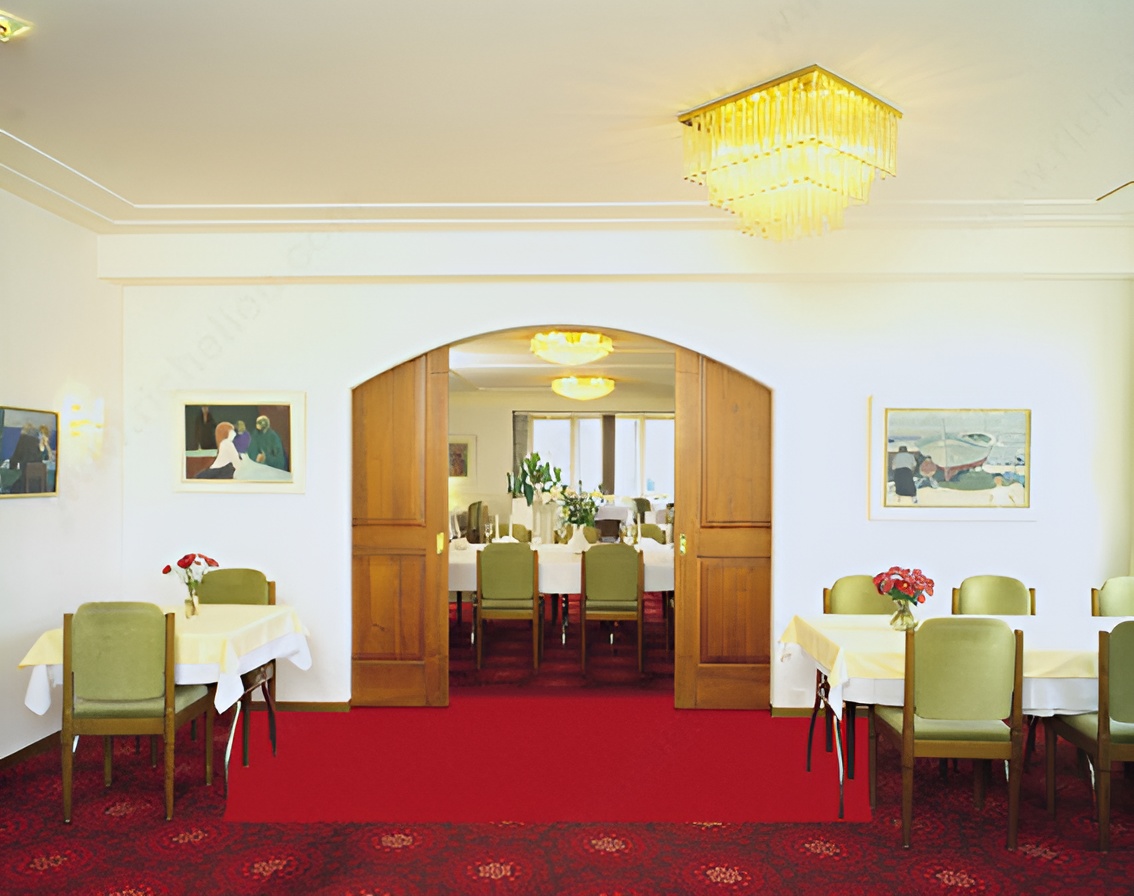

The HAWA SYMMETRIC 80/Z is an ideal solution for double door boardrooms, restaurants/breakfast rooms, and meeting rooms in residential and commercial applications.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Standard Access Door
Brand: Hawa
Detailed Door Movement: Biparting
Door Height: 3 050 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 50 mm
Door Width: 500 to 1 000 mm
Function: Sliding Door
Groove Depth: 20 mm
Groove Width at the Bottom of Door: 12 mm
Length - Overall Dimensions: 13 ft 1 in*
Load Capacity: 88.2 to 176 lb*
Manufacturing Material: Aluminum
Number of Doors: 2
Overall Length: 4 000 mm
Product #: WEBKIT1216806
Product number: WEBKIT1216806
Product №: WEBKIT1216806
Roller Position: Upper
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Stopper: Two
Track Length: 2 m
Track Material: Anodized Aluminum
Track Mounting: Ceiling Mount
Weight Capacity per Door: Max. 80 kg
